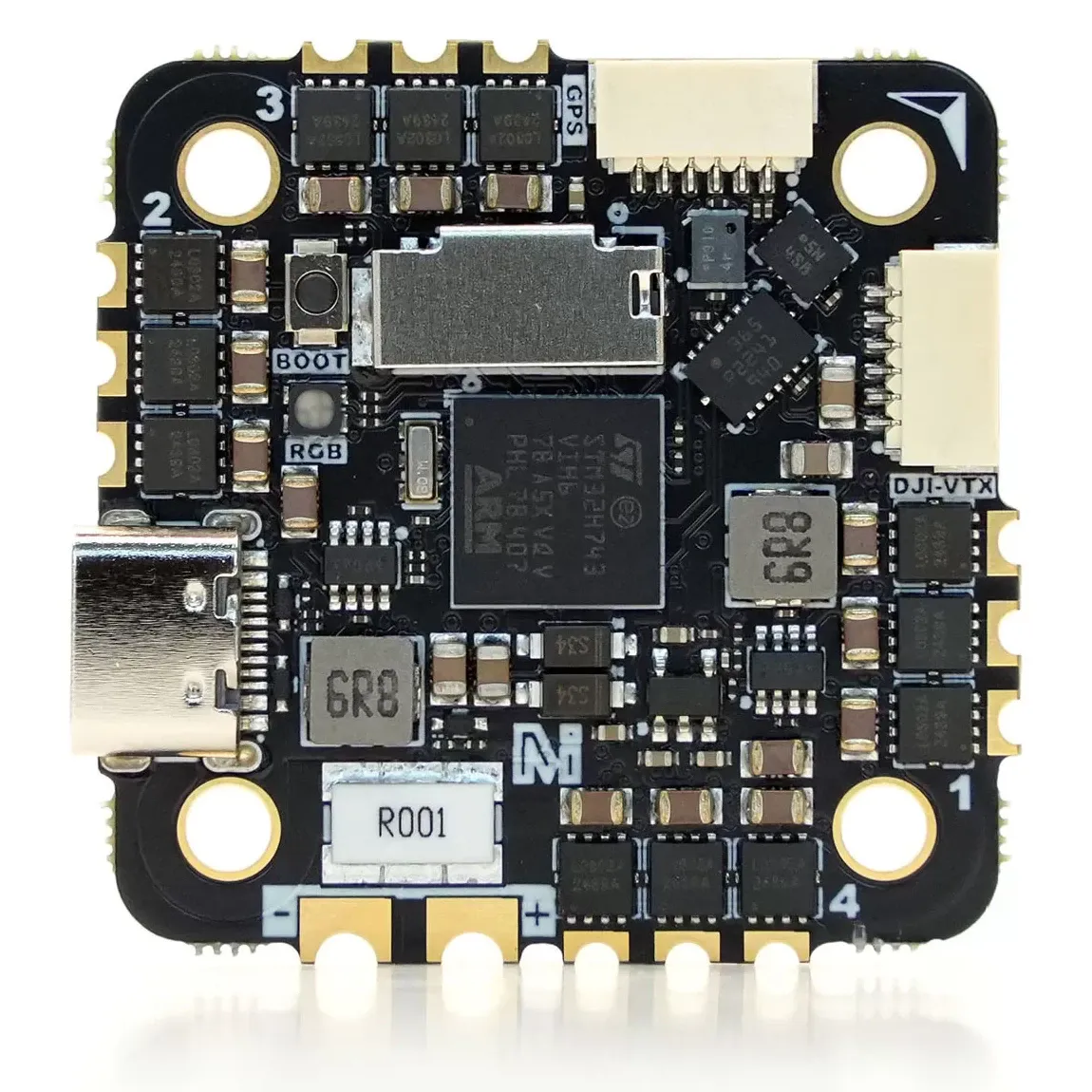

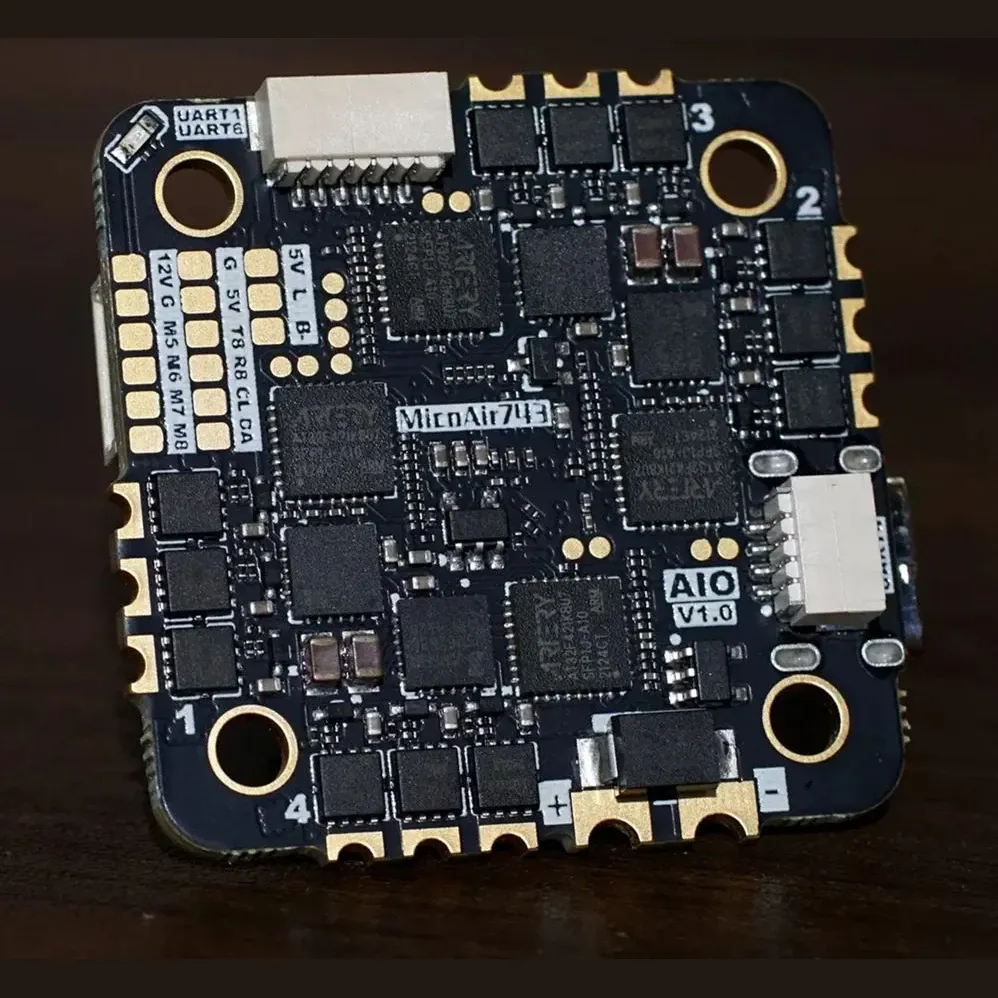

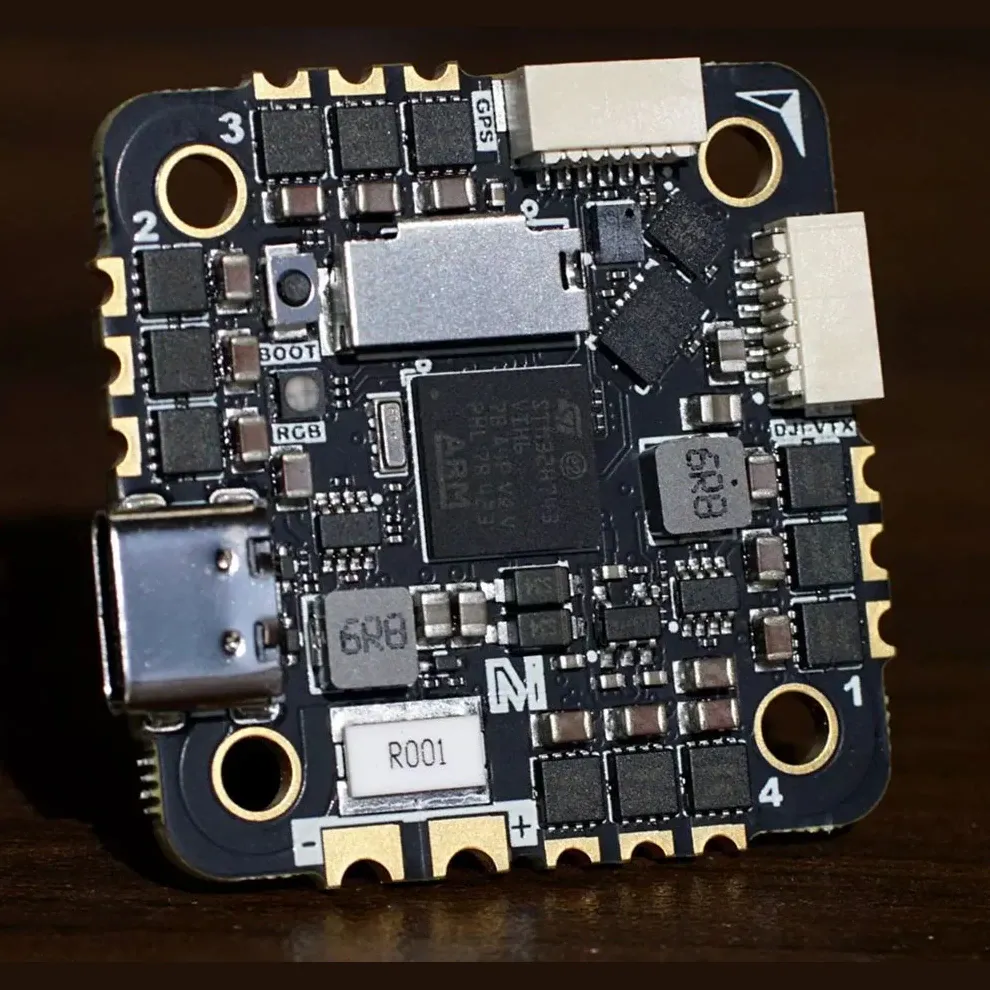

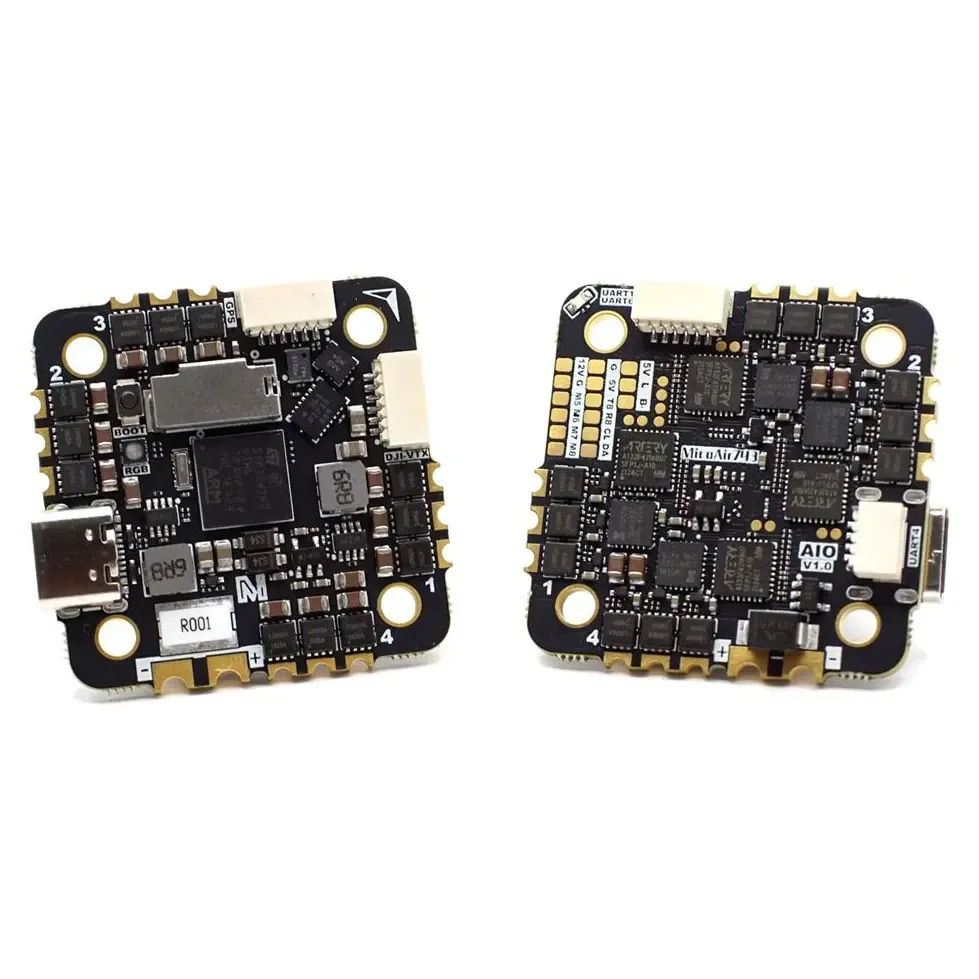

MicoAir H743 AIO 35A AM32 Flight Controller & ESC (25×25)

The MicoAir H743 AIO pairs a high-performance STM32H743 flight controller with a 32-bit AM32 ESC on a single whoop-style board. Designed for 3-6S builds, this AIO provides extensive processing headroom for complex ArduPilot, Betaflight, or INAV setups while delivering smooth, responsive motor control for demanding sub-250g and lightweight freestyle quads.

Key features

• STM32H743 MCU handles high loop times and advanced filtering with zero CPU bottlenecking.

• Integrated 35A ESC runs AM32 firmware for precise, configurable 32-bit motor management.

• Broad 3-6S LiPo input accommodates high-voltage micro builds.

• Standard 25.5x25.5mm mounting pattern integrates cleanly into toothpick and whoop frames.

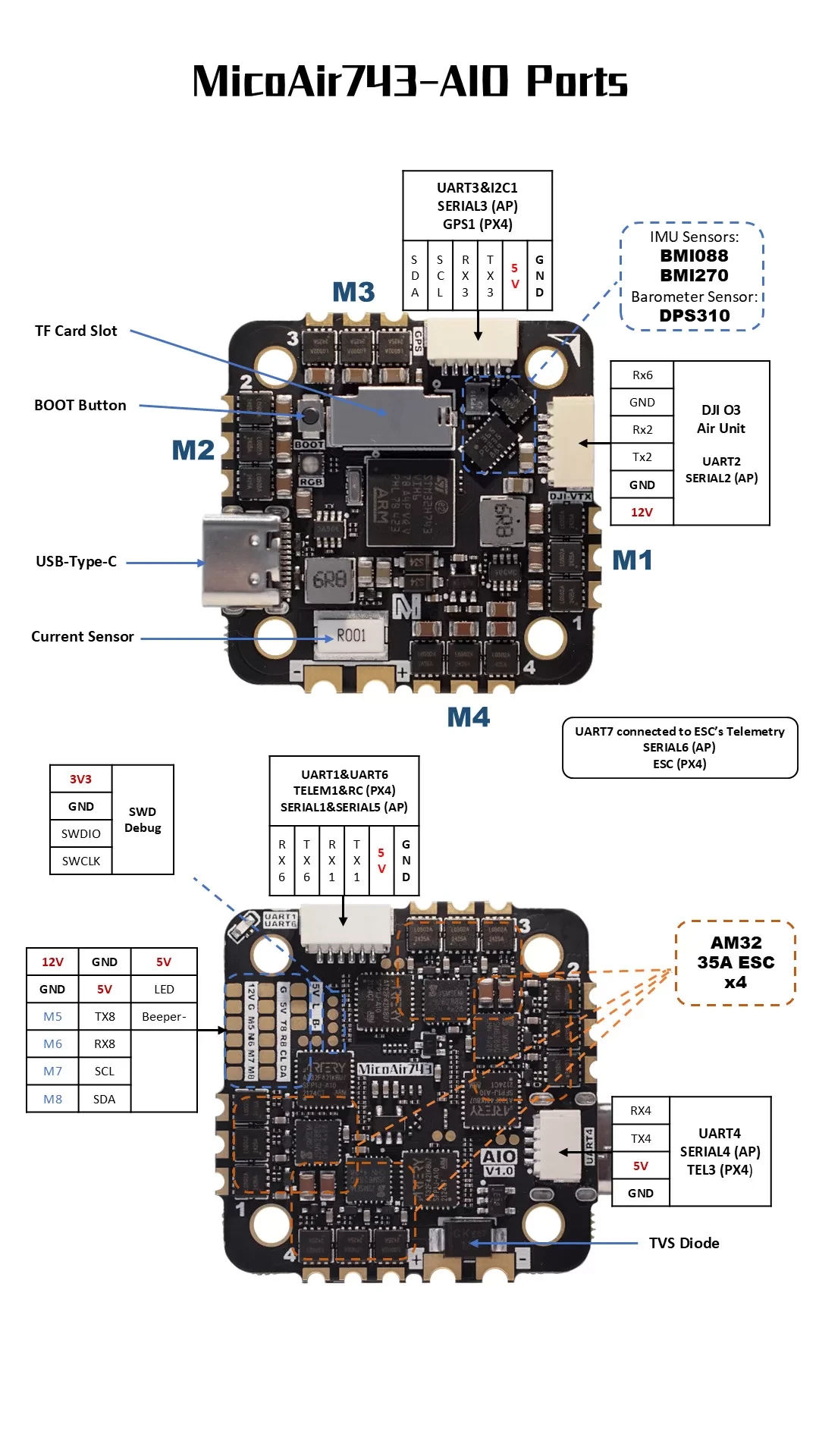

Specifications

• Processor: STM32H743

• IMU: BMI088 + BMI270

• Barometer: DPS310

• Blackbox: TF (microSD) card slot

• Continuous current: 35A

• Input voltage: 3-6S LiPo

• ESC firmware: AM32 (v2.12)

• Supported FC firmware: ArduPilot, Betaflight, INAV, PX4

• UARTs: 7

• PWM outputs: 8 (DShot and bidirectional DShot)

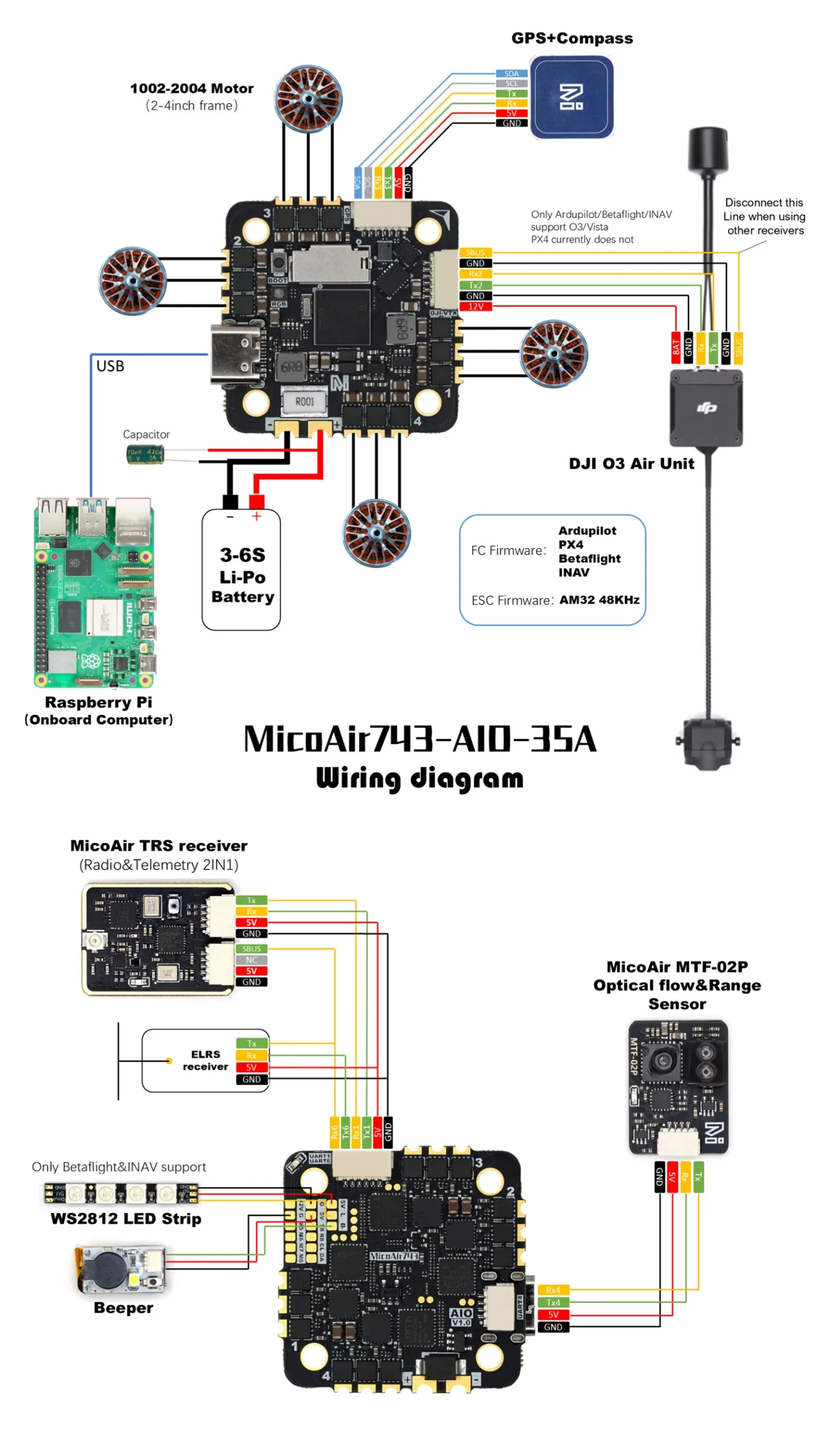

• BEC: 5V 2A, plus 12V 2A for DJI O3 / Vista

• HD VTX port: SH1.0 6-pin (pin 1 carries 12V)

• USB: Type-C

• Compass: none onboard; connect an external compass over I2C

• Mounting pattern: 25.5x25.5mm

• Dimensions: 36 x 36 x 8 mm

• Weight: 10 g

With its robust processing power and 32-bit AM32 ESC architecture, this AIO is an excellent foundation for GPS-equipped micro-long-range builds or aggressive 3-inch freestyle drones.
