HDZero BoxPro Goggles

The HDZero BoxPro Goggles deliver the ultra-low latency digital FPV experience of the HDZero ecosystem in a single-screen box format. Designed for pilots who prefer a wide field of view or need a headset that comfortably accommodates prescription glasses, these goggles provide a direct digital video solution without the complexity of binocular optics.

Key features

• Native support for the HDZero 5.8GHz digital video ecosystem

• Built-in analogue receiver plus mini-HDMI input and output, so the same goggle also flies analogue quads and shows external video

• Single-panel box design yielding a wide field of view

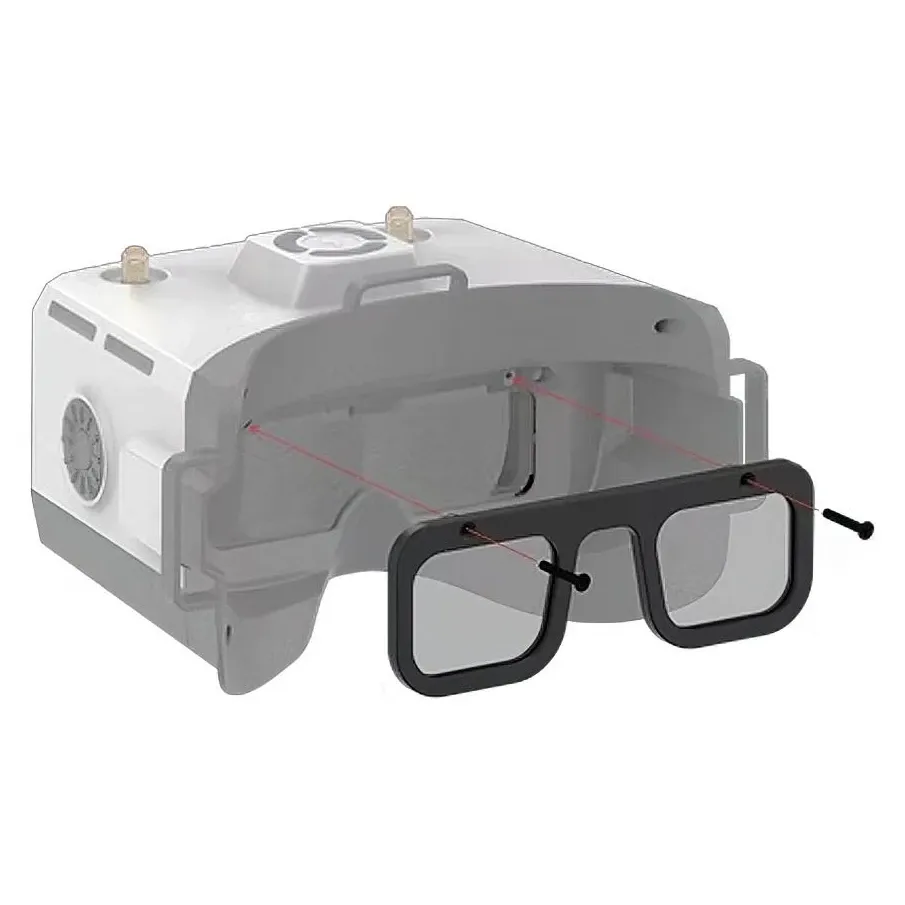

• Spacious internal housing designed to fit over standard prescription glasses

• Ultra-low fixed latency reception suited for fast freestyle flying and drone racing

Specifications

• Brand: HDZero

• FPV system: HDZero

• Form factor: Box goggle

• Operating frequency: 5.8GHz

• Receivers: Integrated HDZero (all HDZero modes) and analogue; 2 internal patch antennas plus 2 linear SMA antennas

• Display: LCD, 100Hz, 1800 nits, 56° FOV

• Latency: 4 ms HDZero camera, 3 ms analogue, 1 ms HDMI in

• Inputs/outputs: mini-HDMI in and out, 3.5 mm AV in, 3.5 mm head-tracker out

• DVR: built-in, H.264/H.265, records HDZero, analogue and HDMI

• Power: 2-6S via XT60 (battery not included)

• In the box: goggles, 2 linear 5.8GHz SMA antennas, head strap with battery pocket, 1200 mm XT60 power cable, goggle bag, lens cloth, foam face pad

Whether you are outfitting your first digital build or specifically require the single-screen ergonomic style, the BoxPro goggles serve as a straightforward video receiver for everything from micro whoops to 5-inch quads running HDZero transmitters.
