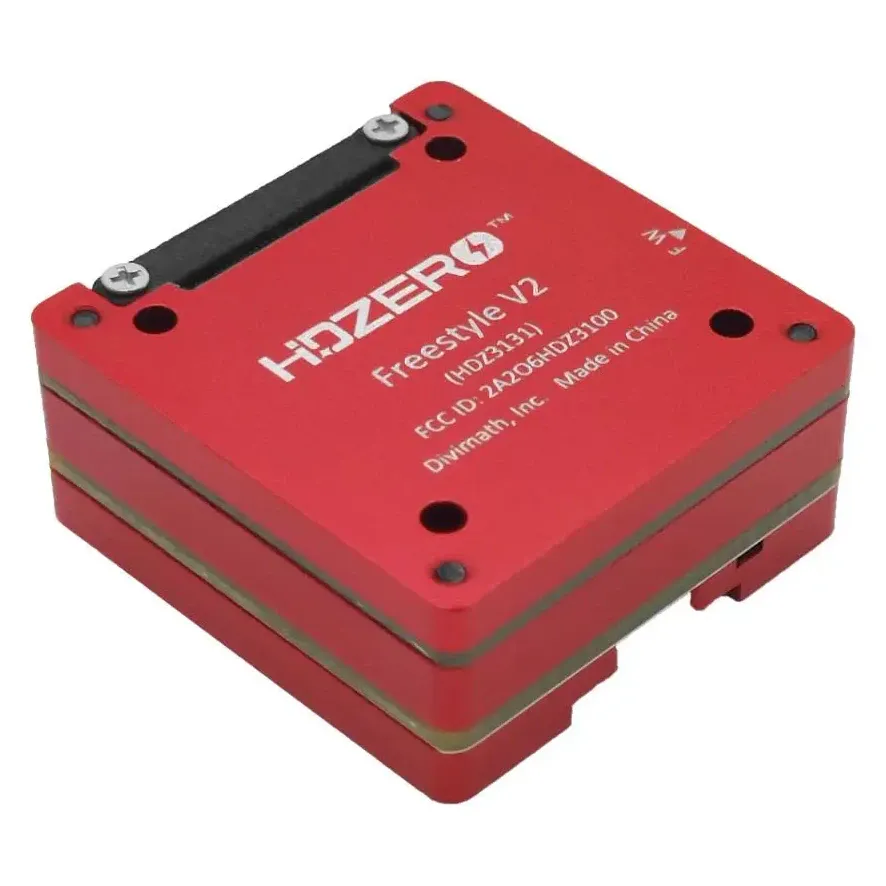

HDZero Freestyle V2 VTX

The HDZero Freestyle V2 VTX is a dedicated digital video transmitter engineered for 3.5-inch and 5-inch freestyle builds. Housed in a robust CNC aluminium enclosure that serves as a high-efficiency heatsink, this V2 model brings native 6S power input to the table. This eliminates the need for an external BEC, delivering the ultra-low, fixed-latency performance HDZero is known for while significantly simplifying your wiring.

Key features

• High-power output up to 1W (1000mW) for superior signal penetration and extended range.
• Direct 2-6S LiPo input voltage to streamline stack builds.
• Durable CNC aluminium case that protects components and passively dissipates heat.
• Secure U.FL antenna connection backed by a mechanical retention bracket to prevent mid-flight disconnects.

Specifications

• System: HDZero
• Operating frequency: 5.8GHz
• Power output: 25mW / 200mW / 1000mW (1W on the R1 channel only where unlocked or licensed)
• Video modes: 540p60, 540p90, 720p60, 1080p30
• Input voltage: 2-6S (7-25.2V)
• Power consumption: 6-15 W
• Mounting pattern: 20x20mm (M2 holes)
• Antenna connector: U.FL
• Dimensions: 29 x 30 x 14 mm
• Weight: 22.3g

With its 20x20mm (M2) mounting pattern, the Freestyle V2 VTX fits the stack of most 3.5-inch and 5-inch freestyle frames. Pair it with an HDZero MIPI camera and your preferred U.FL antenna to complete the setup.
