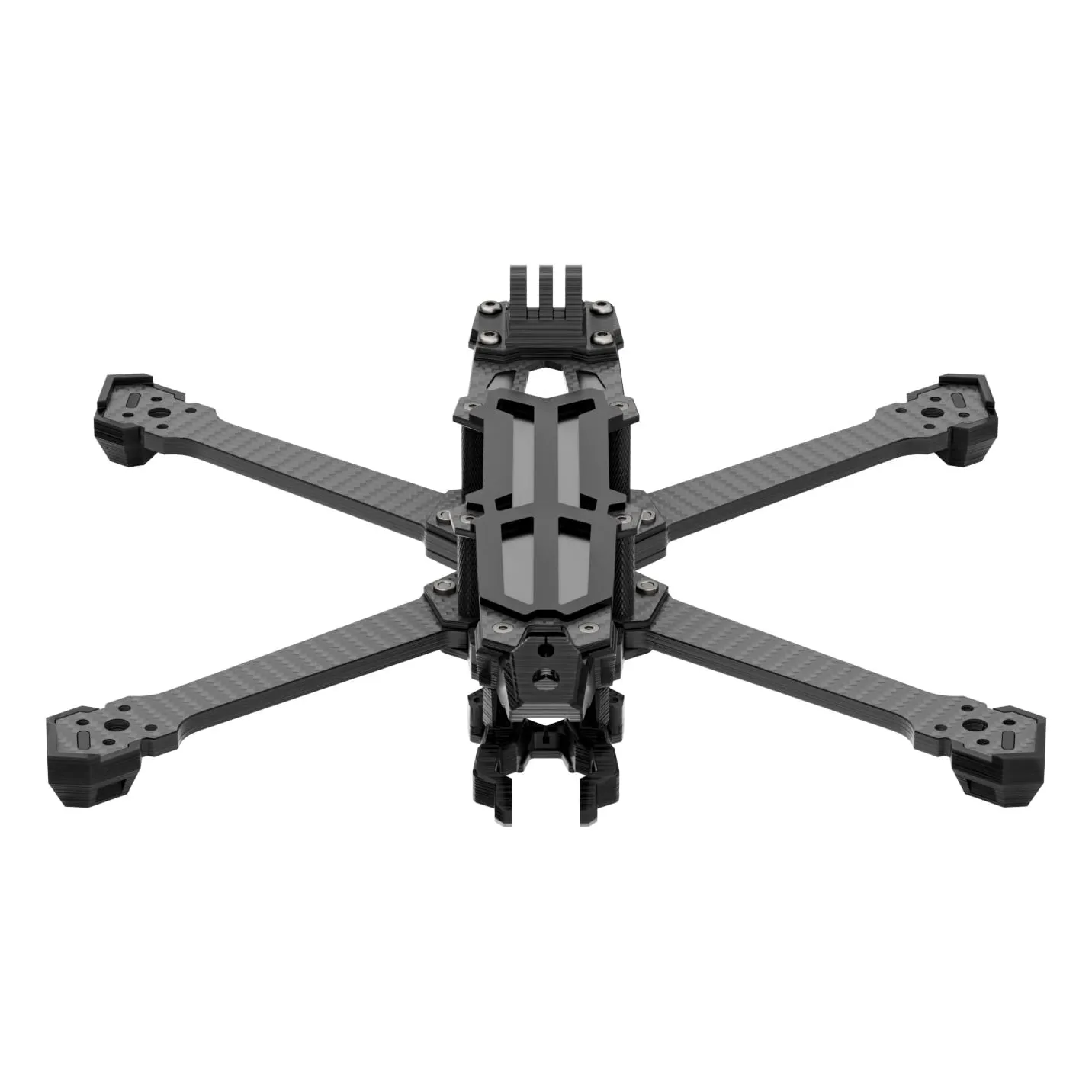

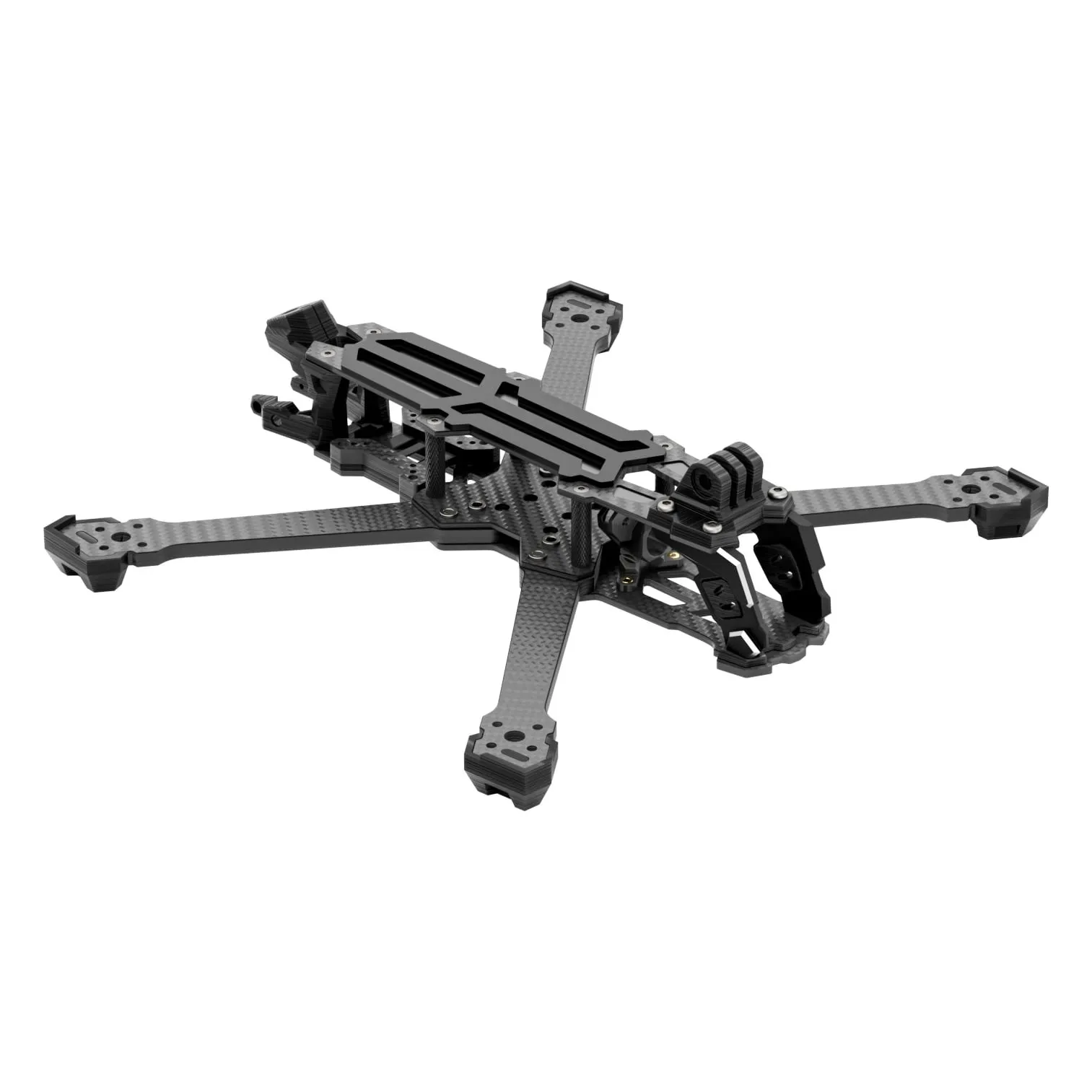

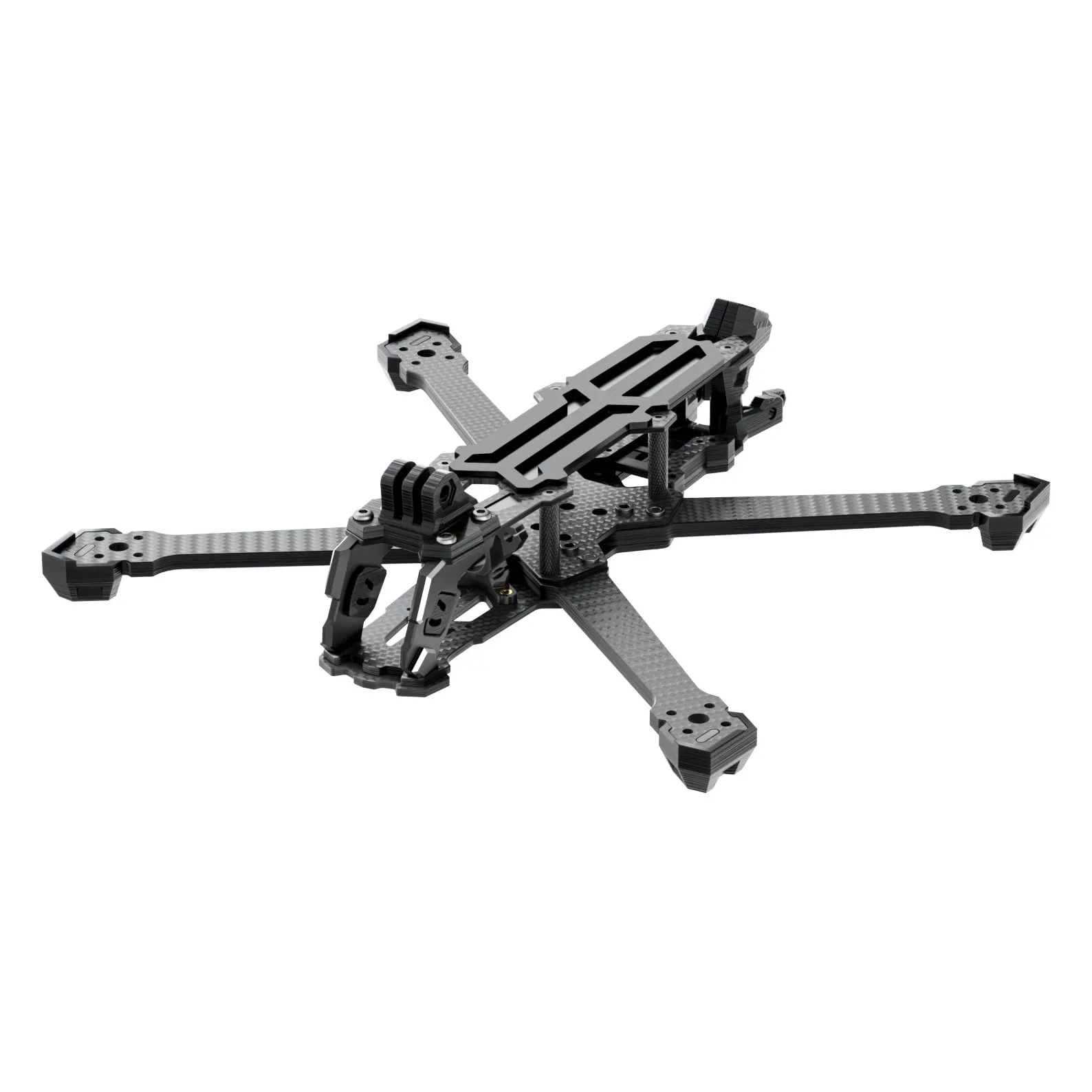

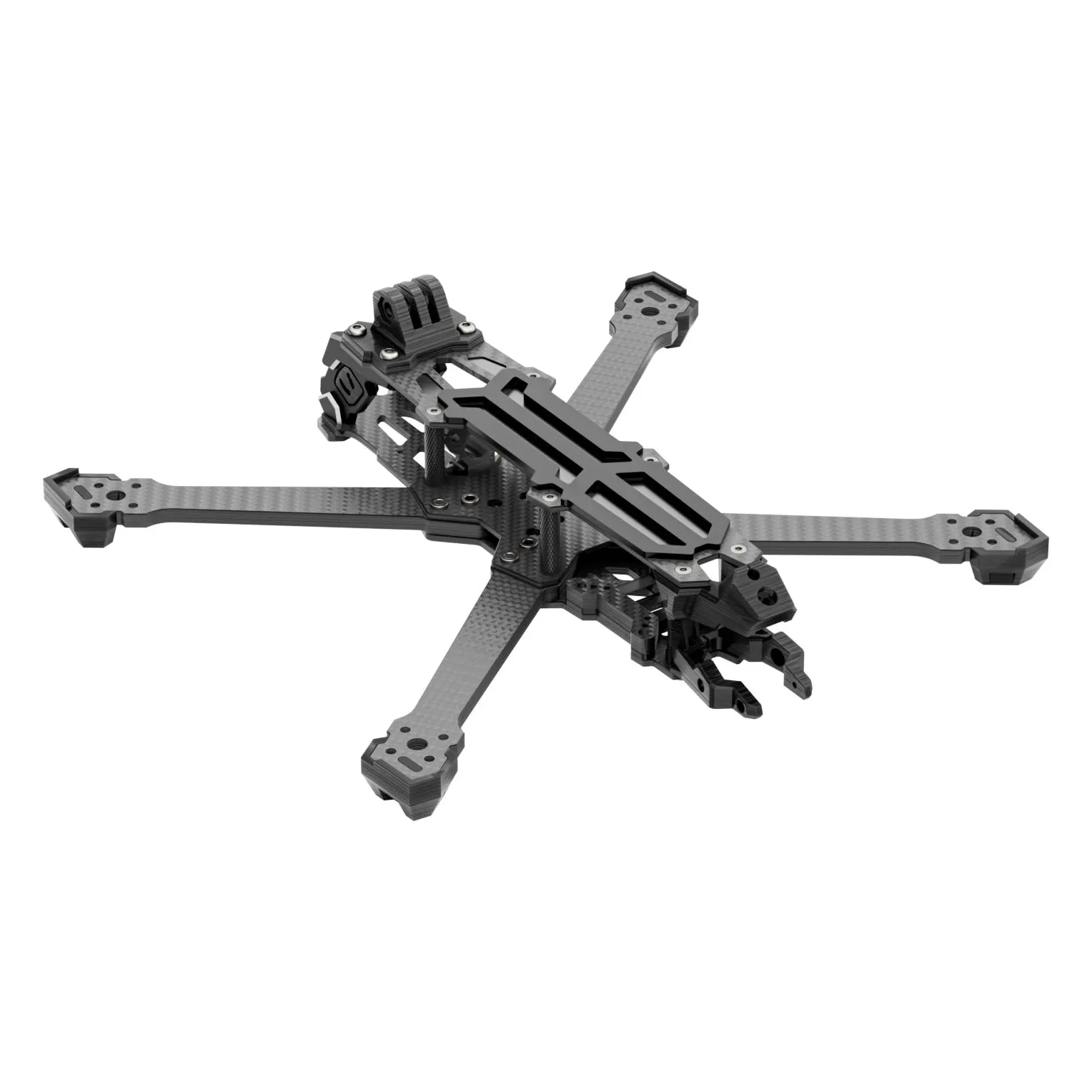

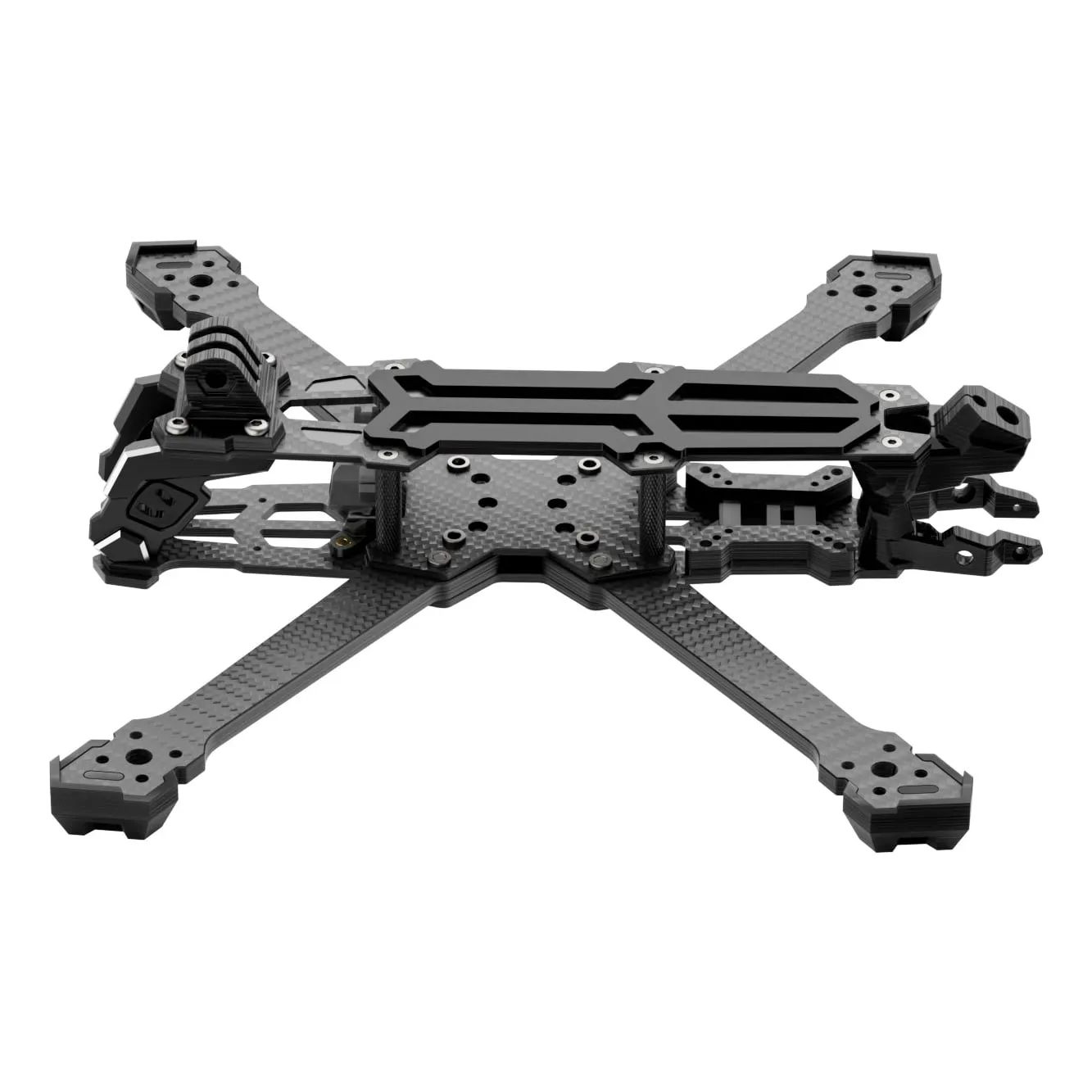

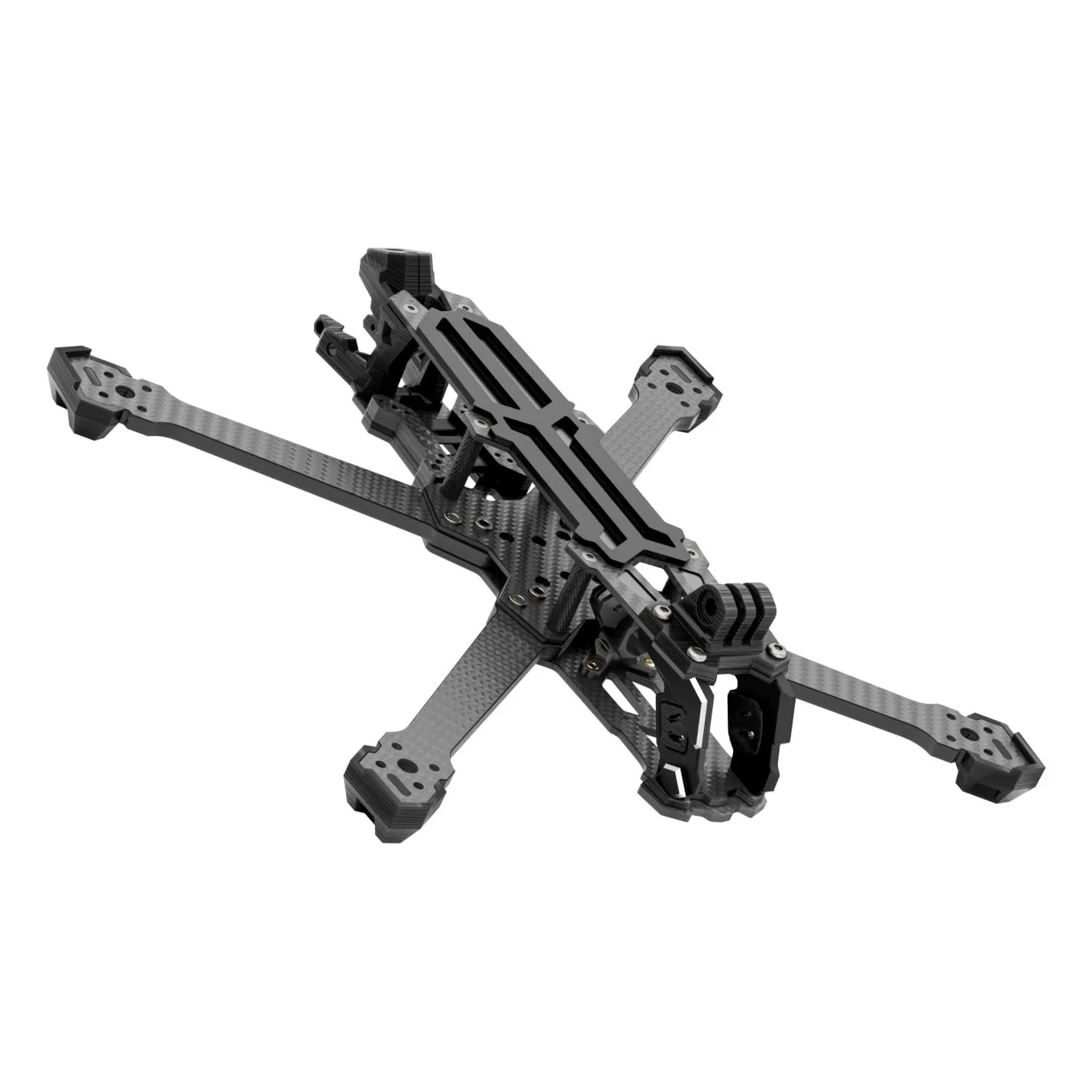

GEPRC GEP-Vapor-X6 Frame
₹7,399Incl. GST
SKU GEPRC-VAPOR-X6-FRAME
Prop Size: 6"Wheelbase: 254.5 mmCamera Size: 19mm, 20mmMade in India: No
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC GEP-Vapor-X6 is a 6-inch wide-X frame built for mid-to-long-range cruising and open-air freestyle. The wider X geometry gives the stability and leverage a 6-inch prop needs, with room for larger motors and heavier battery packs.
Key features
- 5mm-thick carbon fibre arms with a quick-release mount for fast field repairs.
- Camera side panels and a front guard give the camera and canopy double impact protection.
- FC mounting supports both 20x20mm and 30.5x30.5mm stacks; VTX mounting adds a 25x25mm option.
- Generous central chassis clearance for a full flight stack, VTX and high-capacity LiPo or Li-ion pack.
- Camera mounting fits both 19mm and 20mm cameras without an adapter.
Specifications
- Wheelbase: 254.5mm
- Arm thickness: 5.0mm
- Top / middle plate: 2.0mm / Bottom plate: 2.5mm
- FC mounting: 20x20mm, 30.5x30.5mm
- VTX mounting: 20x20mm, 25x25mm, 30.5x30.5mm
- Motor mounting: 16x16mm
- Camera mounting: 19mm, 20mm
- Recommended propeller: 6-inch
- Weight: 194.1g ±2g
Ships with battery straps, silicone anti-slip pads, a screw set and the hex drivers needed for a full build.
| Prop Size | 6" |
|---|---|
| Wheelbase | 254.5 mm |
| Camera Size | 19mm, 20mm |
| Made in India | No |
| Brand | GEPRC |
| Weight | 194.1 g |
| Mounting Size | 20x20, 30.5x30.5 |
| Arm Thickness | 5 mm |
| Motor Mount | 16x16mm |
