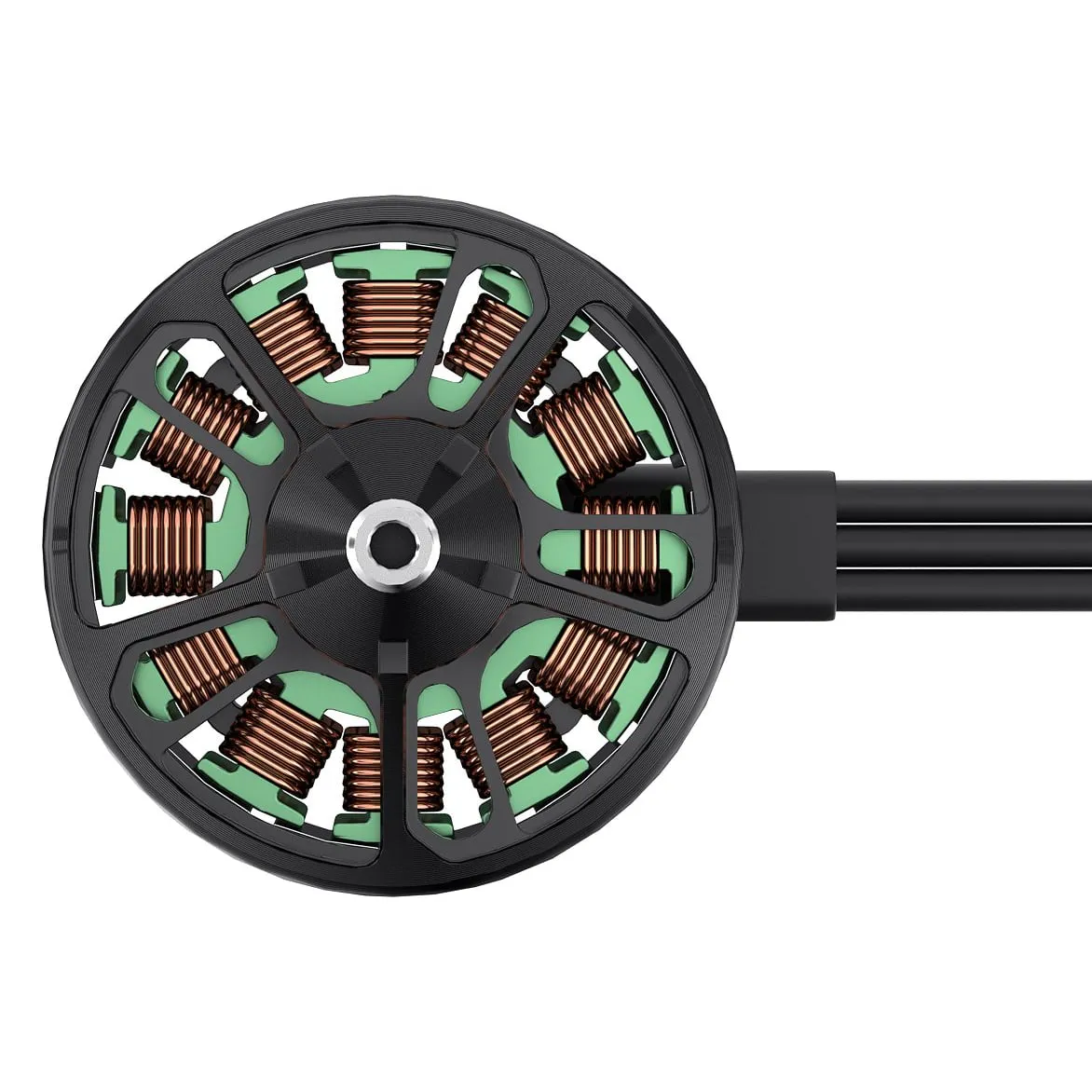

Generic 4214 660KV Brushless Motor (Unprinted)

This 4214 660KV brushless motor is built for long-range FPV and heavy-lift builds, matched to 12-14 inch propellers on 6S LiPo power. It ships unprinted, with no model markings on the casing, keeping the unit plain for builders who don't need branded artwork.

Key features

• 660KV winding for efficient thrust on large propellers
• 4214 stator size for high torque on long-range and cinelifter builds
• 30x30mm mounting pattern for common heavy-lift frame arms
• 6mm steel motor shaft, 25.5mm long, for rigid propeller mounting
• NMB bearings for smooth, long-lasting rotation under heavy load
• Low 25mΩ internal resistance to limit heat build-up under sustained heavy-lift throttle
• Supplied with M4x12 mounting screws and an M6 anti-slip prop nut

Specifications

• Stator size: 4214
• KV: 660KV
• Input voltage: 6S LiPo (25.2V)
• Max power: 2120W
• Peak current: 90A
• Configuration: 12N14P
• Shaft: 6mm, 25.5mm length
• Weight: 246g with wire

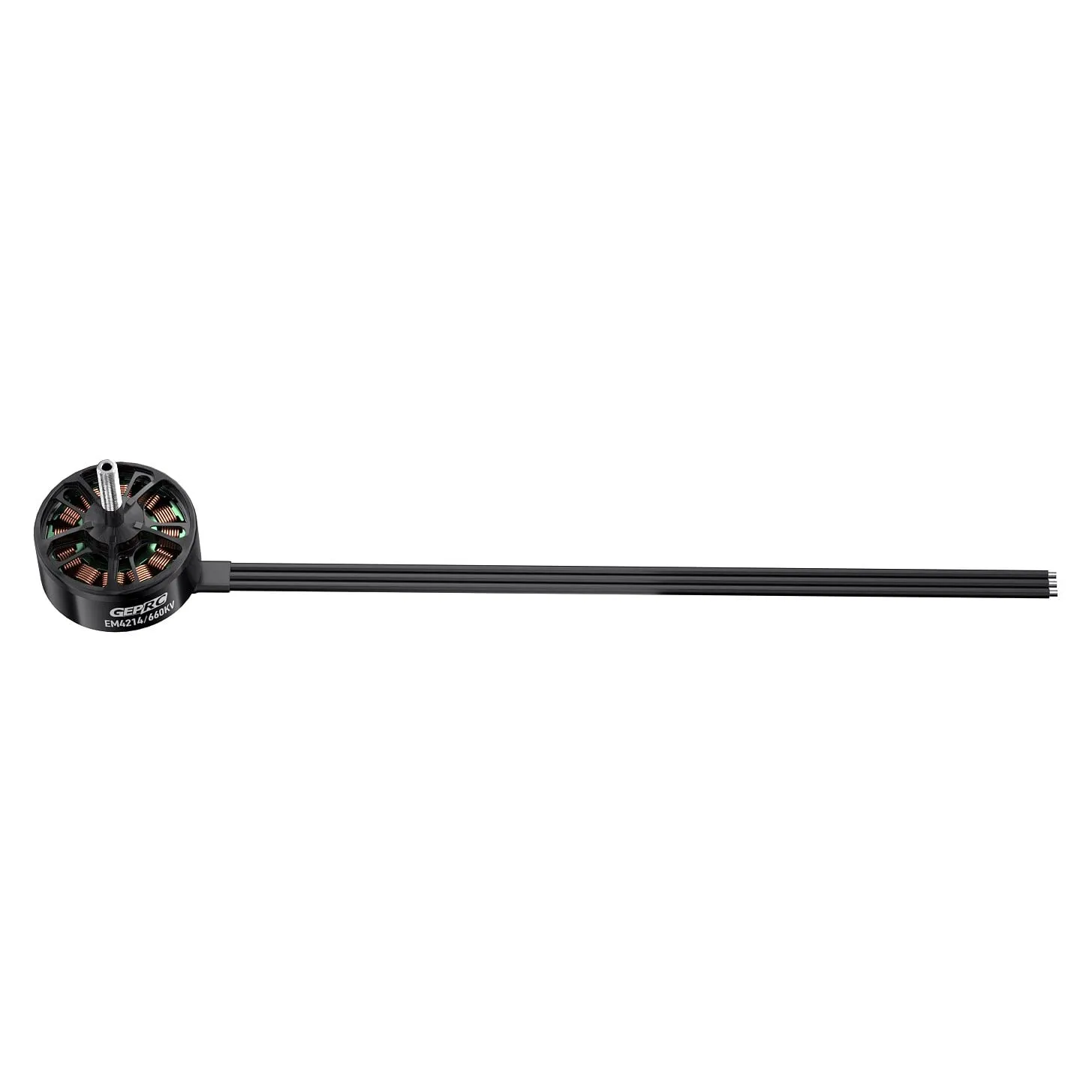

• Lead wire: 800mm, 14AWG

Use with an 80-100A ESC and 12-14 inch propellers for long-range, survey or heavy-payload quadcopter builds.
