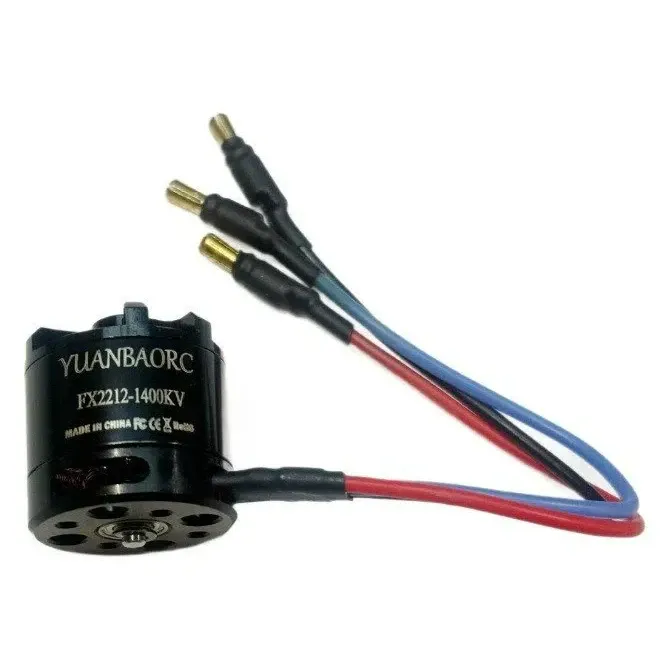

FX2212 1400KV Brushless Motor with Soldered Connector

The FX2212 1400KV is a 2212-size outrunner brushless motor for small fixed-wing RC aircraft, light multirotors and DIY projects. It arrives with its connector already soldered on, ready to plug into an ESC, and includes a prop adapter and a motor mount with screws.

Key features

• 1400KV winding on a 22 × 12 mm stator, rated for 2S–3S LiPo (7.4–11.1 V)
• 3.17 mm shaft; the supplied prop adapter takes standard hub props such as 8045 and 1045
• Pre-soldered connector saves a soldering job at the motor end

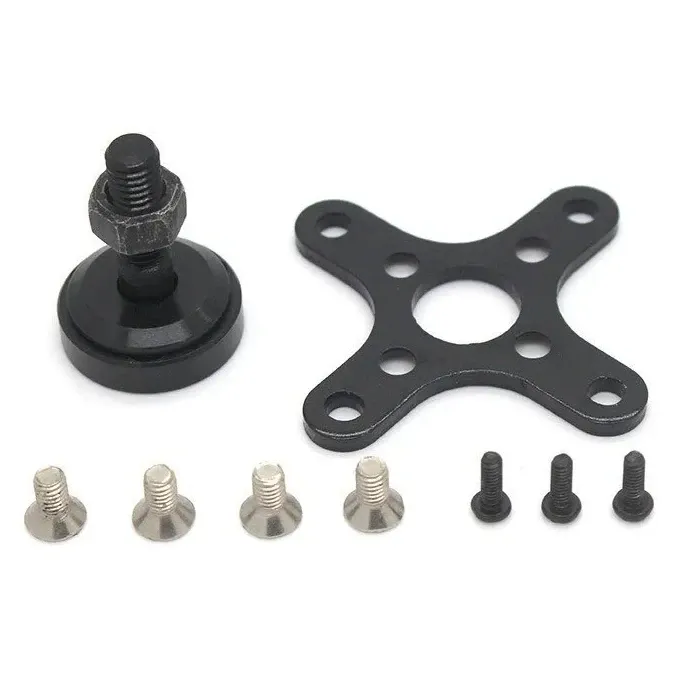

• Motor mount and screws included

Specifications

• Stator: 22 × 12 mm (2212)
• KV: 1400KV
• Shaft: 3.17 mm
• Battery: 2S–3S LiPo (7.4–11.1 V)
• Listed props: 8045, 1045
• Weight: 58 g

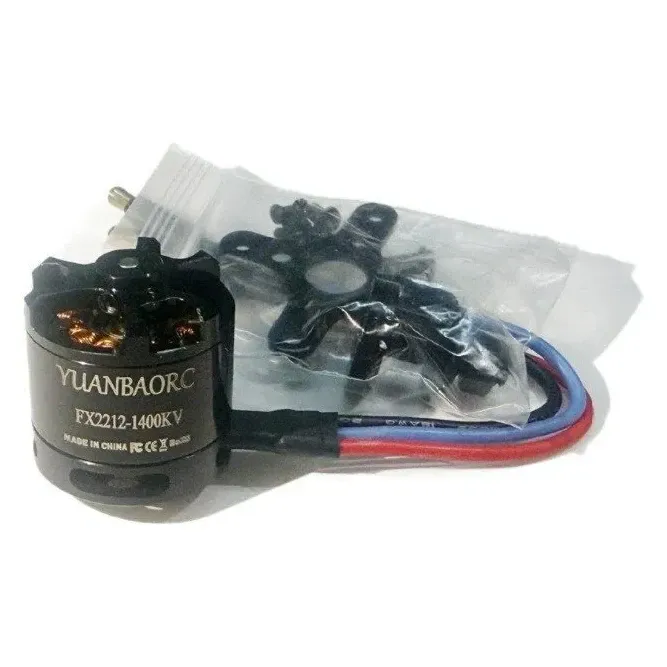

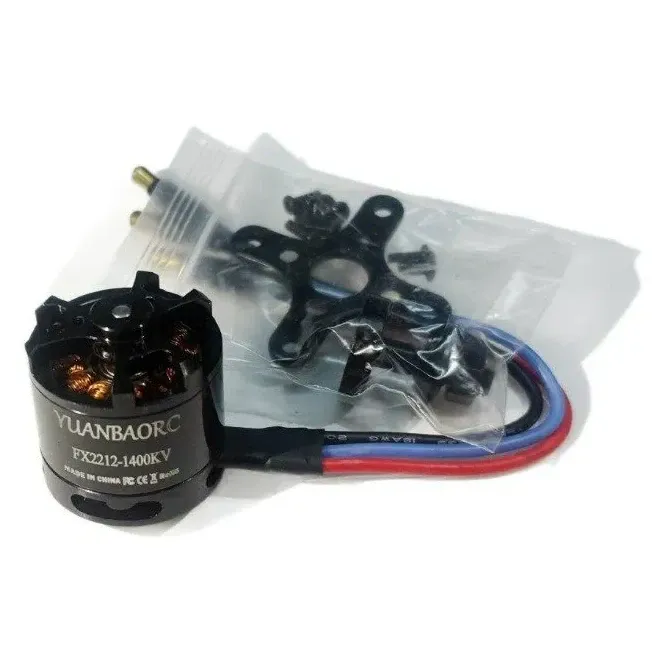

• In the box: motor, prop adapter, motor mount with screws

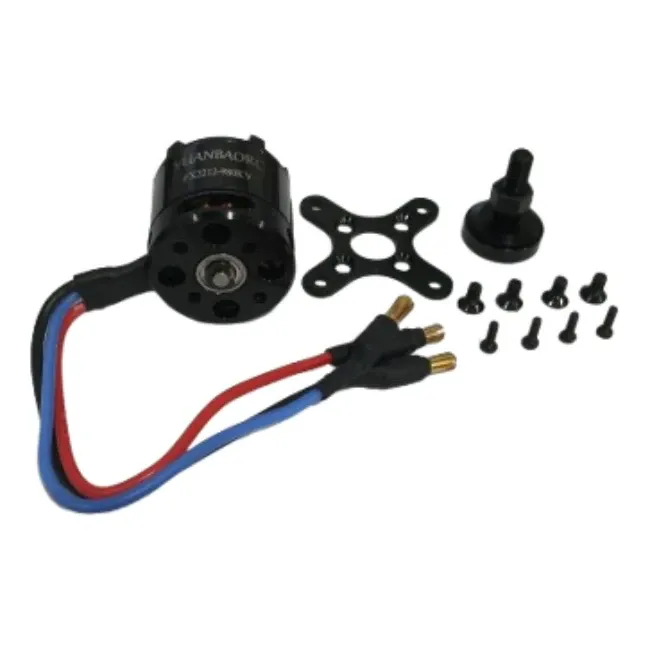

At 1400KV on 3S, start with the 8-inch prop and measure current with a watt meter before trying a 10-inch prop, then pick an ESC with comfortable headroom above the reading. For 10-inch props and longer, more efficient flights, the 980KV version of this motor is the better match.
