Fixed-Wing Motors

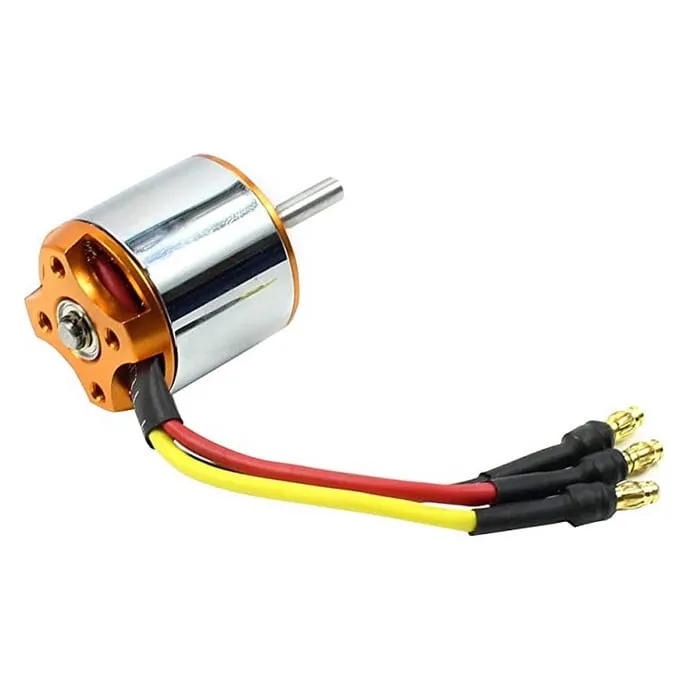

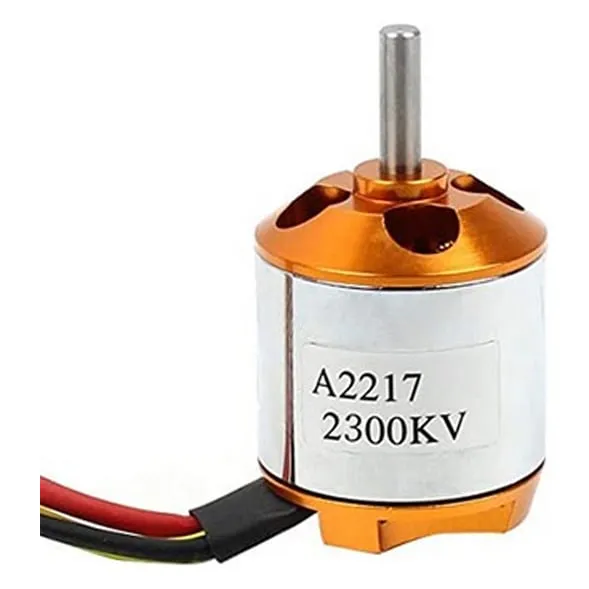

A2217 Brushless Motor Banana Connector
₹649Incl. GST
SKU A2217-2300KV-BANANA
KV: 2300KV
Input Voltage: 3–5SKV: 2700 KV, 1500 KV, 2300 KV, 1100 KVStator Size: 2217
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The A2217 brushless outrunner motor is intended for fixed-wing RC aircraft and compatible electric propulsion systems, and is sold in 2300KV, 1500KV and 1100KV windings.
Key features
- A2217 outrunner motor format for fixed-wing applications.
- Choice of 2300KV, 1500KV or 1100KV to match propeller size and battery voltage.
- Welded 3 mm male banana connectors plug straight into the ESC without soldering.
- 2300KV: rated for around 960g of thrust with a 3S LiPo, 40A ESC and a 6-inch propeller such as a 6040.
- 1100KV: runs on 3-5S LiPo with a 70A ESC and 12-inch propellers.
Specifications
- Motor format: A2217
- KV rating: 2300KV, 1500KV or 1100KV
- Motor type: Brushless outrunner
- Connector: Welded 3 mm male banana connector
- 1100KV version: 3-5S LiPo, 5 mm shaft, 911 W max power, 70A ESC, 12-inch props, 69 g, 48 x 27.8 mm
Confirm the connector, ESC rating and aircraft power-system requirements before fitting this motor.
| Input Voltage | 3–5S |
|---|---|
| KV | 2700 KV, 1500 KV, 2300 KV, 1100 KV |
| Stator Size | 2217 |
