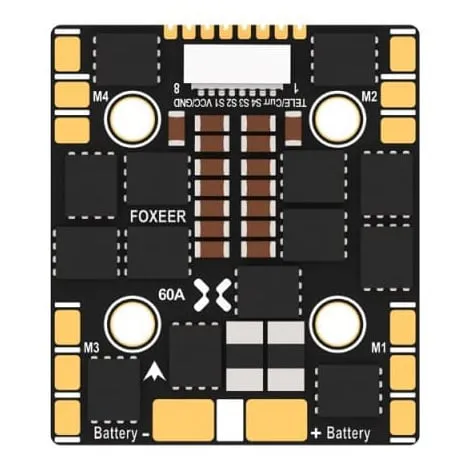

Foxeer Reaper F4 60A Slim ESC
SKU FOXEER-REAPER-F4-60A-SLIM
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
Foxeer Reaper F4 60A Slim is a 4-in-1 ESC for FPV racing, freestyle and other builds that need four motor channels in a compact, low-profile stack.
Key features
Provides four ESC channels on one board for a single multirotor power stage.
Uses BLHeli_32 firmware with a 128K MCU for ESC setup and motor-control configuration.
Each channel is rated for 60A continuous, 100A burst current.
Accepts a 3-8S LiPo input (DC 9-40V).
20x20mm/M3 mounting pattern with telemetry support.
Weighs about 13g.
Specifications
ESC current: 60A continuous / 100A burst
ESC firmware: BLHeli_32
Input signal: DShot150/300/600/1200, MultiShot, OneShot
Current scaling: 70
BEC: None
Mounting size: 20x20mm
Input voltage: 3-8S
Weight: 13g
In the box: ESC, XT60H-M power lead, 8 damping balls, 6-pin wire, capacitor
Match the ESC's mounting holes and voltage range to the flight controller and battery before wiring.
| Mounting Size | 20x20 |
|---|---|
| ESC Current | 60 A |
| Input Voltage | 3–8S |
| ESC Firmware | BLHeli_32 |
| Made in India | No |
| Brand | Foxeer |
| Weight | 13 g |
| Battery Connector | XT-60 |
| BEC | No |
| Current Sensor | Yes |
