Skystars KO60 BLHeli_32 4-in-1 60A ESC

₹6,899Incl. GST

SKU SKYSTARS-KO60-BL32-60A

Mounting Size: 30.5x30.5ESC Current: 60 AInput Voltage: 3–6SESC Firmware: BLHeli_32

Ships within 3–4 business days — quality-checked in Gurugram before dispatch

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The Skystars KO60 is a 60A 4-in-1 ESC for 5-inch freestyle, 7-inch long-range and cinematic builds running 3-6S power. A 6-layer PCB and BLHeli_32 firmware give it strong overcurrent handling, onboard current sensing and full telemetry back to the flight controller.

Key features

  • 60A continuous current (65A burst, 5s) across all four channels for hard punch-outs
  • BLHeli_32 firmware with the extended-resolution 128K throttle mode for smoother motor response
  • Onboard current sensor reports voltage, RPM and current telemetry to the flight controller
  • No onboard BEC — pair it with a flight controller or PDB that supplies its own 5V rail

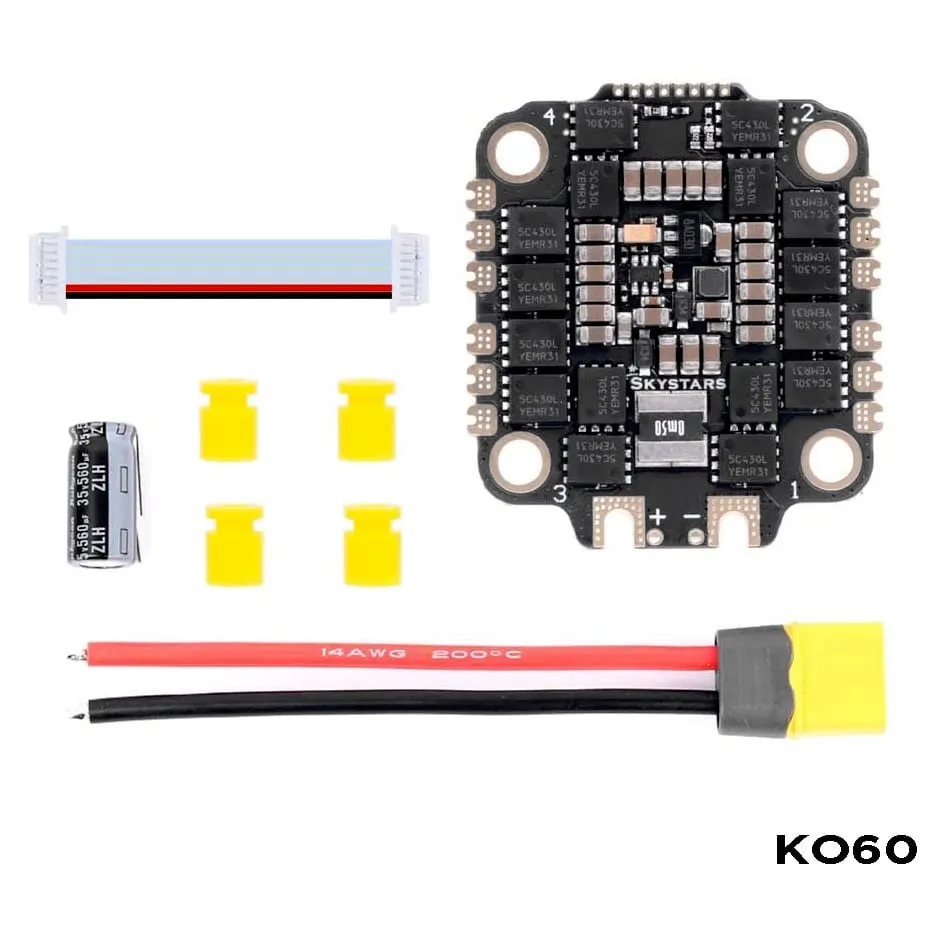

  • Ships with a filter capacitor, wire harness, XT60 cable and rubber grommets

Specifications

  • Input voltage: 3-6S LiPo
  • Continuous current: 60A
  • Peak current: 65A (5s)
  • Firmware: BLHeli_32
  • MCU: STM32F051, 48 MHz
  • Drive signal: DShot300-1200, ProShot1000, Oneshot, Multishot, PWM
  • BEC: None
  • Mounting pattern: 30.5x30.5mm
  • Weight: 12 g
  • In the box: ESC, 35 V 560 uF capacitor, 4 rubber grommets, wire harness, XT60 cable

This board pairs with most modern flight controllers over a standard 8-pin wiring harness, dropping into any standard 30-size FPV stack.
