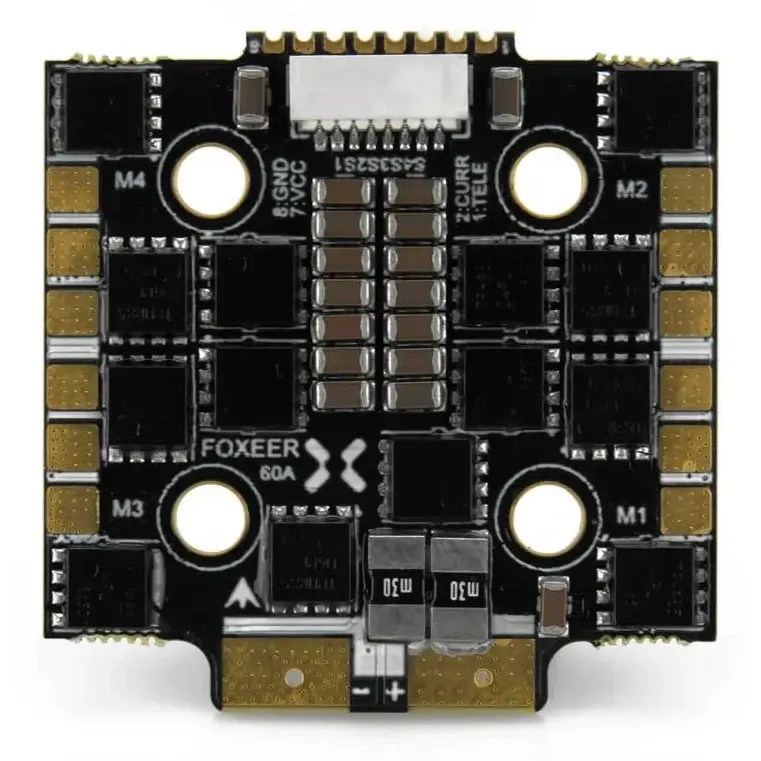

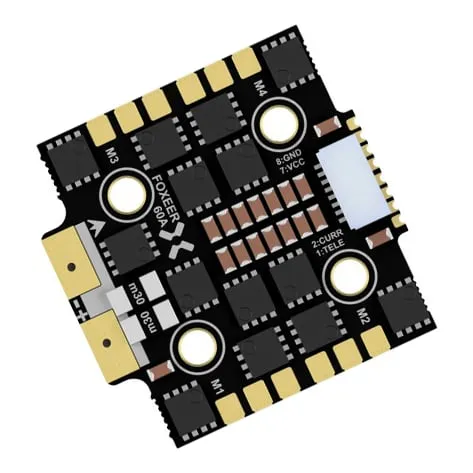

The Foxeer Reaper F4 Mini is a compact 4-in-1 ESC for FPV builds that need high continuous current across four motor outputs, running BLHeli_32 firmware on a 128K MCU.
Key features
60A continuous, 100A burst current per channel across all four motor outputs.
Accepts a 3-8S LiPo input (DC 9-40V) for freestyle and long-range builds alike.
Supports DShot150/300/600/1200, Multishot and Oneshot input signals.
Telemetry is supported for in-goggles current and voltage readouts; no BEC output is provided.
Mounts on the standard 20x20mm M3 pattern.
Runs on a 128K MCU for fast BLHeli_32 signal processing and quick firmware updates.
Specifications
Continuous/burst current: 60A / 100A per channel
Input voltage: 3-8S LiPo (DC 9-40V)
ESC firmware: BLHeli_32
Mounting: 20x20mm M3
Dimensions: 40.5 x 40 x 5.5mm
Weight: 13.5g
Since there is no onboard BEC, power your flight controller and other 5V accessories from a separate regulator, such as a dedicated 5V or 9V BEC module.
