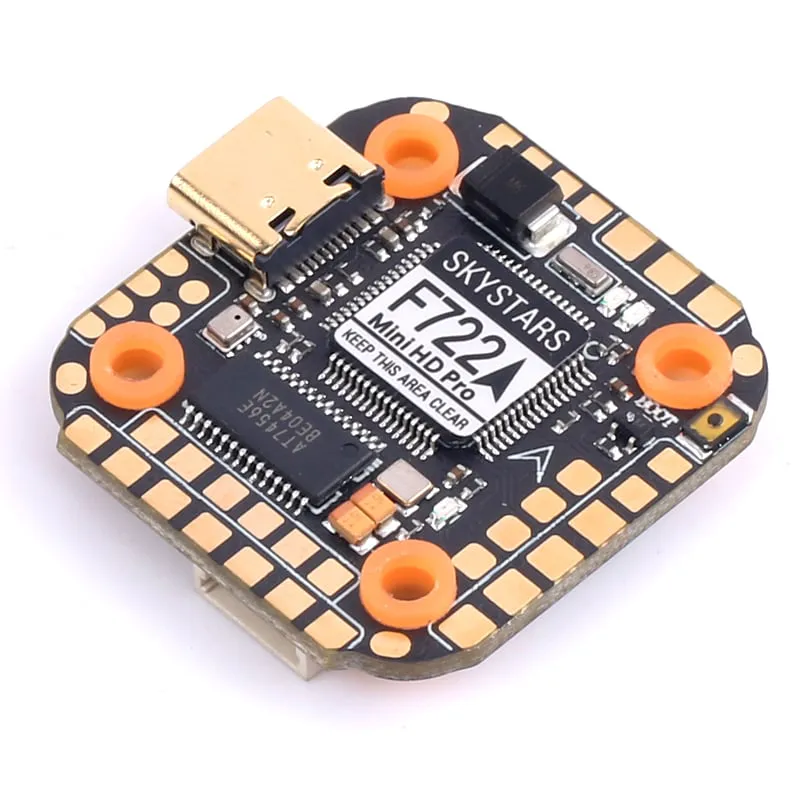

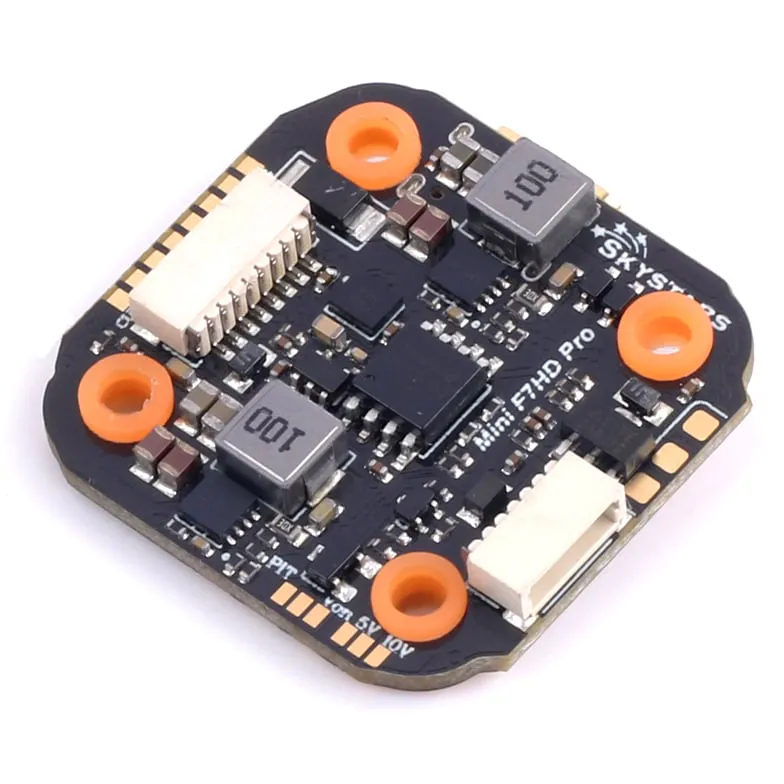

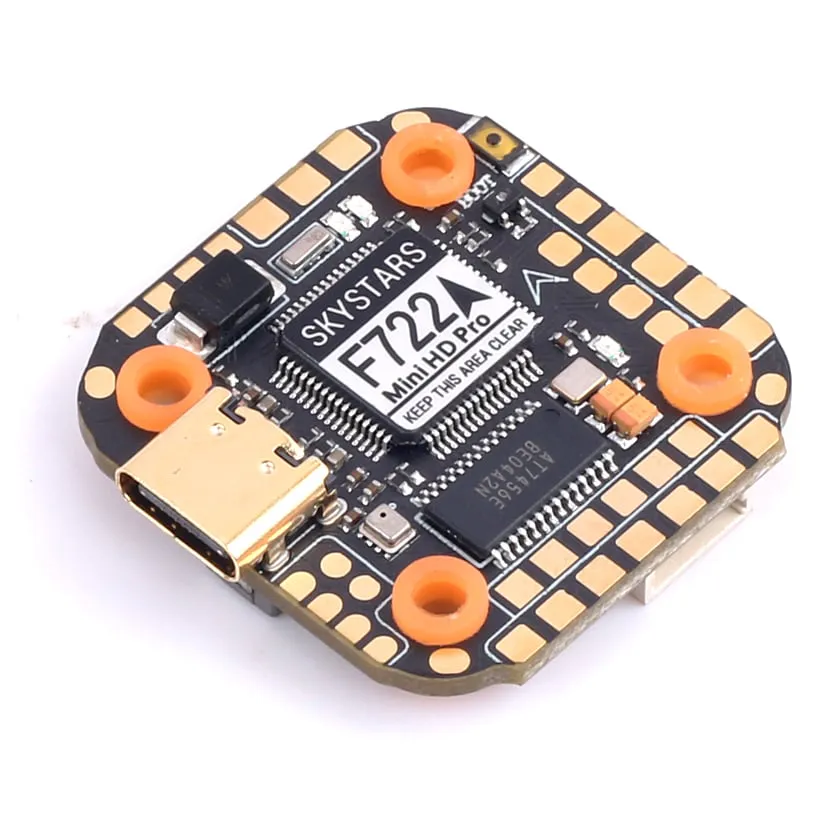

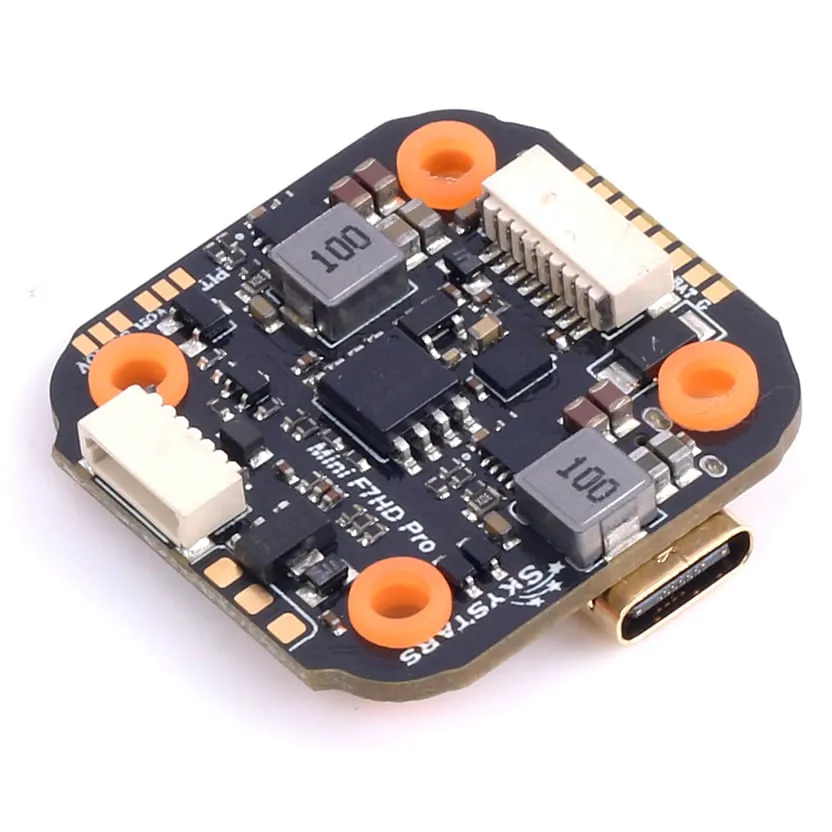

Skystars F722 Mini HD Pro Flight Controller

The Skystars F722 Mini HD Pro is a compact 20x20mm flight controller tailored for digital HD FPV builds, suited for everything from 3-inch cinewhoops to tight 5-inch freestyle frames. Built around a powerful F7 processor, it features a dedicated 10V BEC and a plug-and-play connector for direct integration with DJI O3, Caddx Vista, and Walksnail Avatar video transmitters, bypassing the need to micro-solder your VTX power leads.

Key features

• STM32F722 MCU running at 216MHz to handle high PID loop rates and complex Betaflight filtering
• Dedicated 10V/2A BEC specifically rated for powering digital HD video transmitters
• 6 full hardware UARTs for flexible receiver, GPS, and telemetry routing
• Included plug-and-play cable for rapid DJI HD system installation
• 16MB onboard Blackbox flash memory for flight logging and diagnostics

Specifications

• MCU: STM32F722RGT6 (216MHz)
• Gyro: BMI270 / MPU6000
• Input Voltage: 3-6S LiPo
• BEC: 5V/2A, 10V/2A
• UARTs: 6
• Blackbox: 16MB Flash
• Mounting: 20x20mm (M3 hardware)
• Supported Firmware: Betaflight, INAV (Target: SKYSTARSF722HD)

With its space-saving footprint and integrated HD VTX power management, this flight controller is an exact fit for densely packed builds where standard 30.5x30.5mm stacks cannot be mounted.
