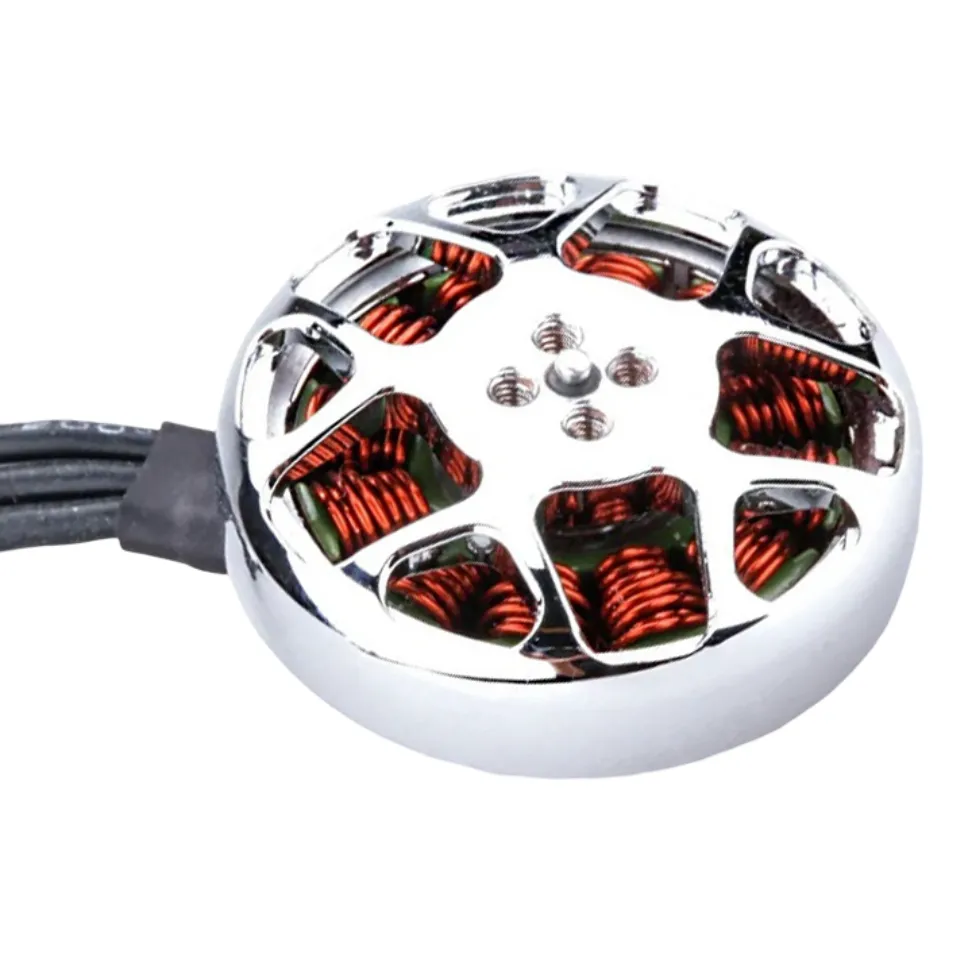

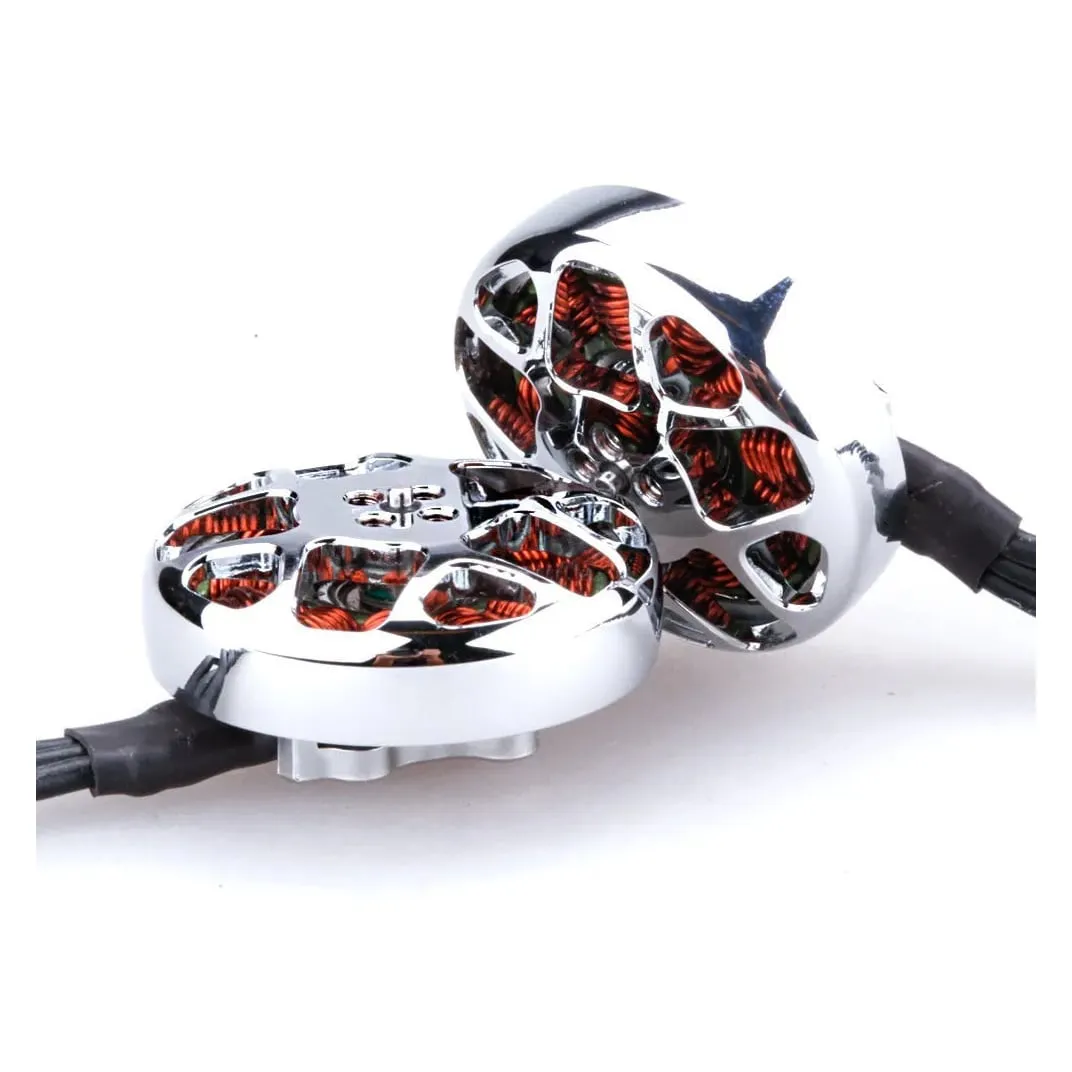

Flywoo NIN V2 2303.5 Motor

The Flywoo NIN V2 2303.5 is a specialist brushless motor engineered for ultralight 5-inch and aggressive 4-inch FPV builds, offered in 3000KV and 1750KV windings. By pairing a wide 23mm diameter with a remarkably low 3.5mm stator height, it delivers explosive low-end torque and exceptional throttle control while keeping the total weight to a minimum.

Key features

• Wide, low-profile stator maximises low-end torque for incredibly fast spool-up times
• High-temperature N52H curved magnets and premium NSK bearings ensure smooth, efficient operation
• Durable unibody bell design improves impact resistance during crashes
• Optimised for sub-250g and lightweight builds requiring rapid directional changes

Specifications

• Motor Model: NIN V2
• Stator Size: 2303.5
• KV: 3000KV or 1750KV
• Configuration: 12N14P
• Input Voltage: 3-4S LiPo (3000KV), 5-6S LiPo (1750KV)
• Shaft: 3mm inner, 1.5mm outer
• Dimensions: 29.1 x 13.5 mm
• Weight: 21.5g (with 3 cm leads)

The 3000KV winding is matched to 3-4S power systems and the 1750KV winding to 5-6S. When paired with lightweight 5-inch bi-blades or 4-inch tri-blades, it provides the responsive, floaty flight characteristics demanded by ultralight freestyle pilots and long-range cruisers.
