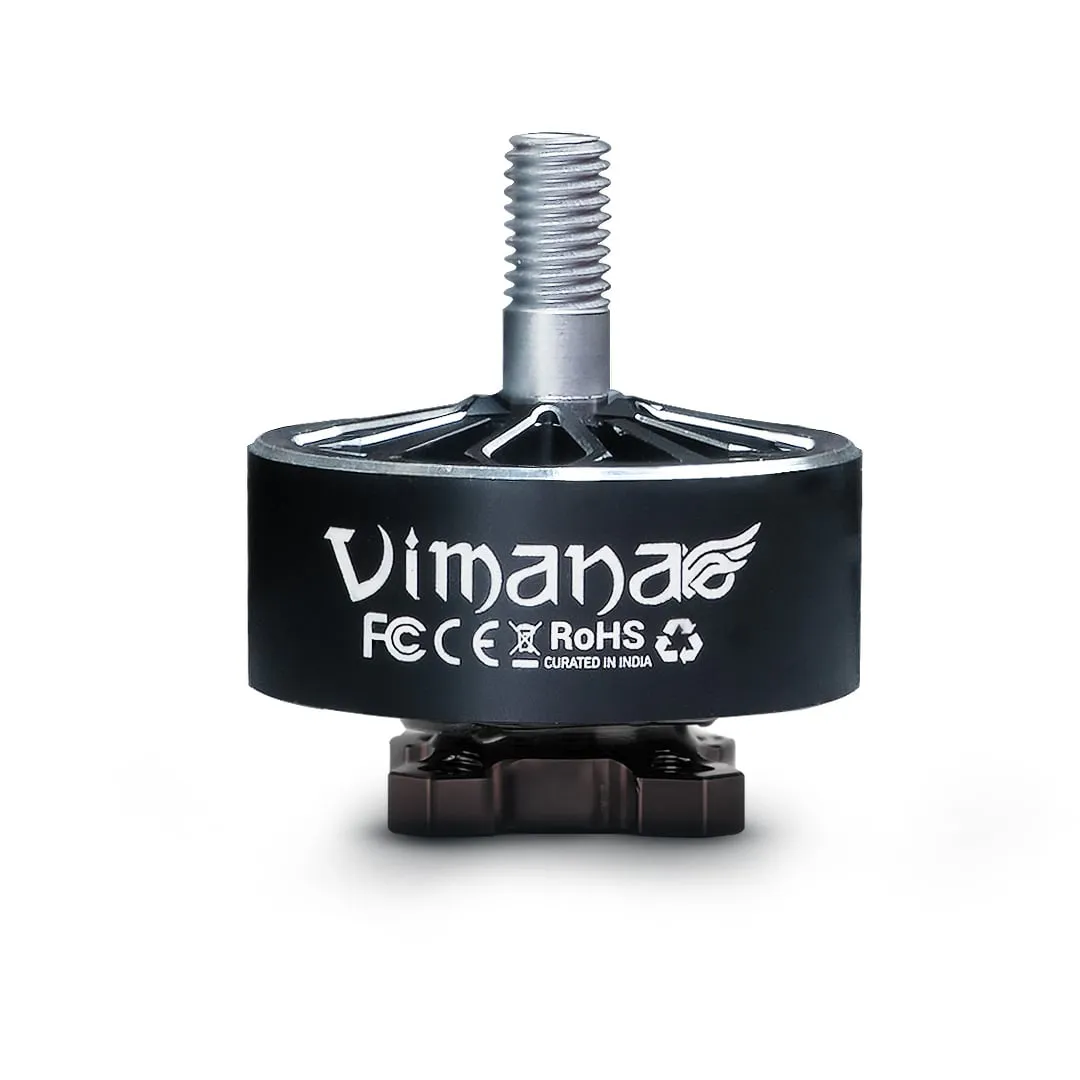

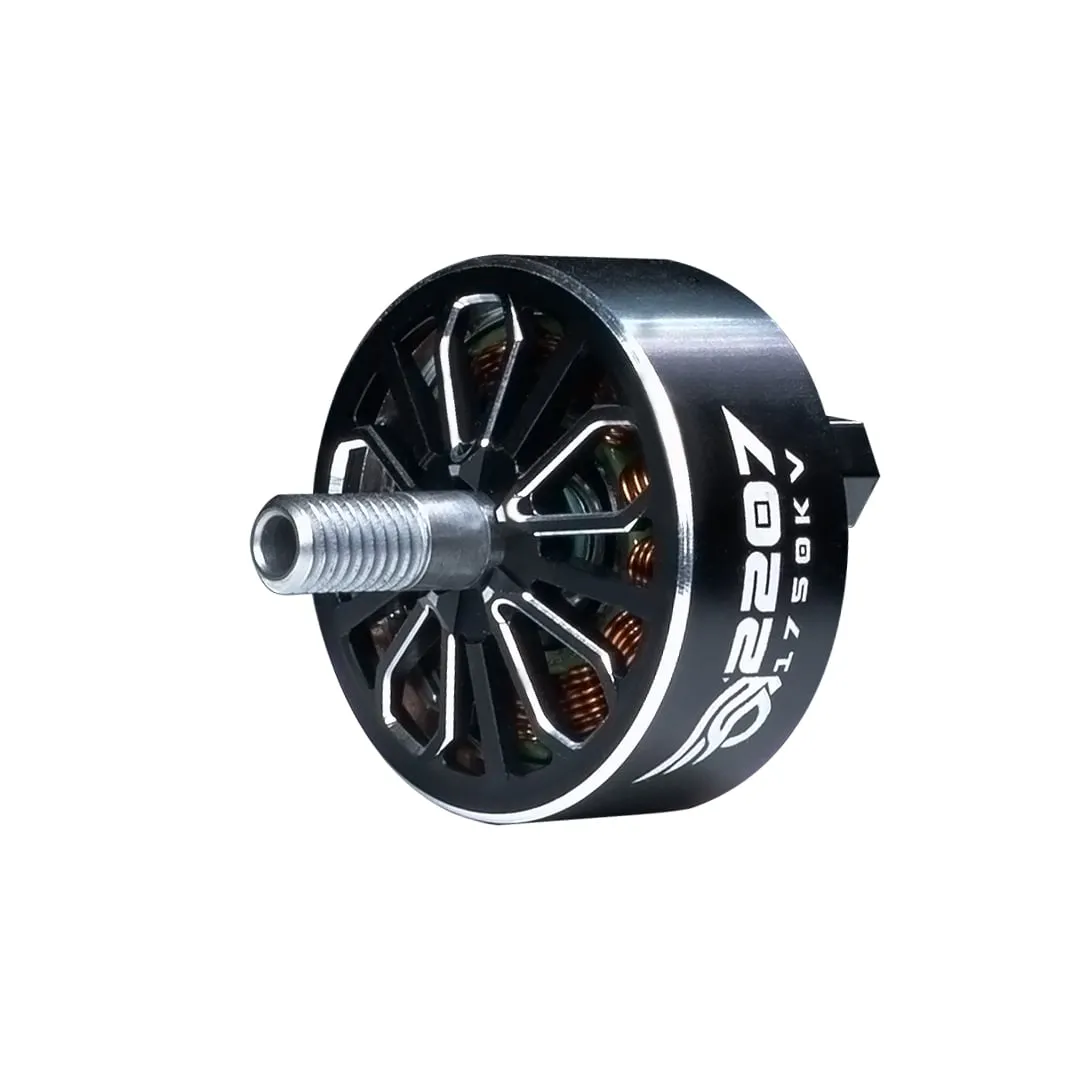

Vimana 2207 V2 1750KV Freestyle Motor

The Vimana 2207 V2 1750KV Freestyle Motor is built for 5-inch FPV freestyle quads that need a 2207-class motor with a moderate KV rating. It is aimed at pilots who want a responsive feel without jumping to a high-KV setup, and it suits builds where a clean layout and threaded shaft are part of the plan.

Key features

• 2207 stator size gives the motor the torque and rotor mass expected in modern 5-inch freestyle builds.

• 1750KV rating is a better fit for controlled freestyle tuning than ultra-high-KV racing setups.

• Threaded shaft design supports a more secure prop retention setup than plain shaft formats.

• Unibell 7075 aluminium bell built to withstand hard crashes.

• Black finish with Vimana branding matches dark-framed builds and keeps the motor look consistent.

Specifications

• Brand: VimanaFPV

• Stator Size: 2207

• KV: 1750 KV

• Configuration: 12N14P

• Rated Voltage: 6S LiPo

• Max Power: 744 W

• Max Thrust: 2.1 kg

• Peak Current: 32.4 A

• Interphase Resistance: 59 mOhm

• Shaft: 5 mm titanium alloy, 13.8 mm long

• Mounting Holes: 16x16 mm (M3)

• Magnets / Bearings: N52H curved / NSK

• Motor Wire: 20AWG, 150 mm

• Weight: 37.2 g (including cable)

• In the box: 1 x motor, 4 x M3x10 screws, 1 x M5 flanged nut

Use this motor when your 5-inch freestyle build needs a 2207 motor with a lower-KV feel and a threaded shaft layout. It is a straightforward pick for pilots building around smooth control rather than maximum top-end speed.
