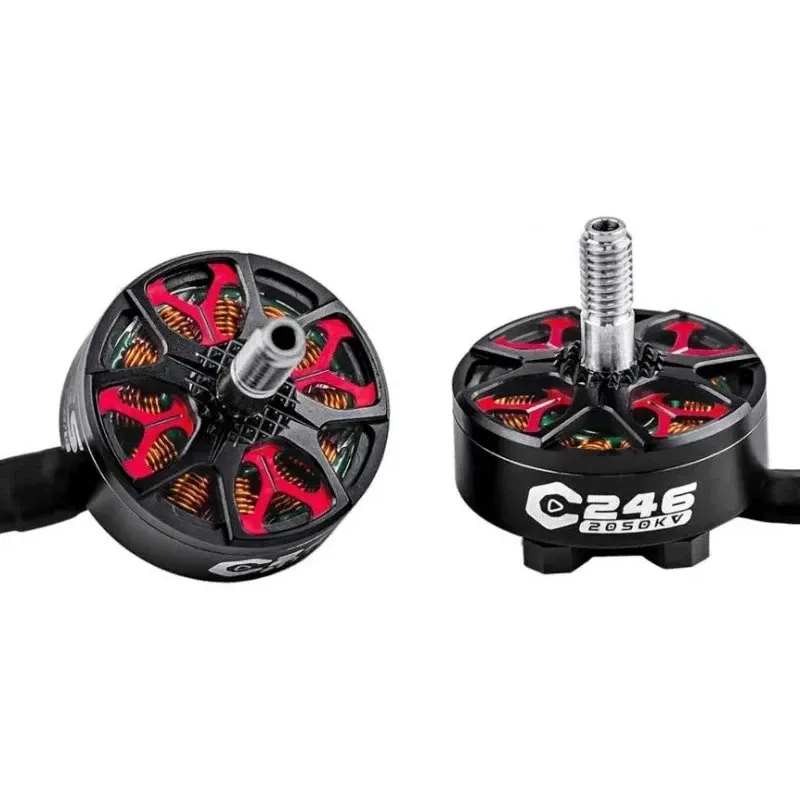

AxisFlying C246 2406 FPV Motor

AxisFlying C246 is a brushless motor for cinematic FPV and 5-inch builds. The 2406 stator and 2050KV winding are intended for smooth operation across a 4-6S LiPo power setup.

Key features

• 2406 stator format supports cinematic and 5-inch FPV applications.
• 2050KV winding is suitable for 4-6S operation.
• Designed for controlled throttle response in cinematic flying.
• Use a compatible ESC and select propellers rated for the chosen cell count.
• Check the motor-hole spacing, shaft and propeller mounting method before fitting.

Specifications

• Stator size: 2406 (24 mm diameter, 6 mm height)

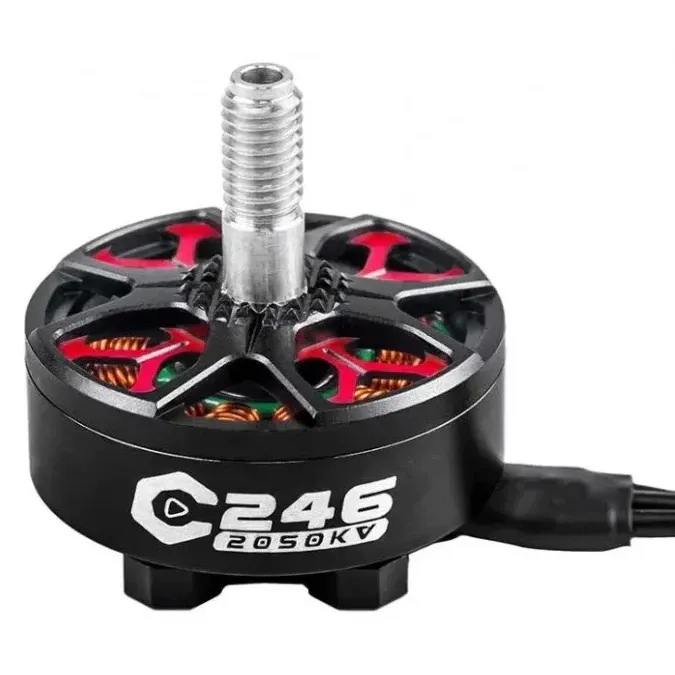

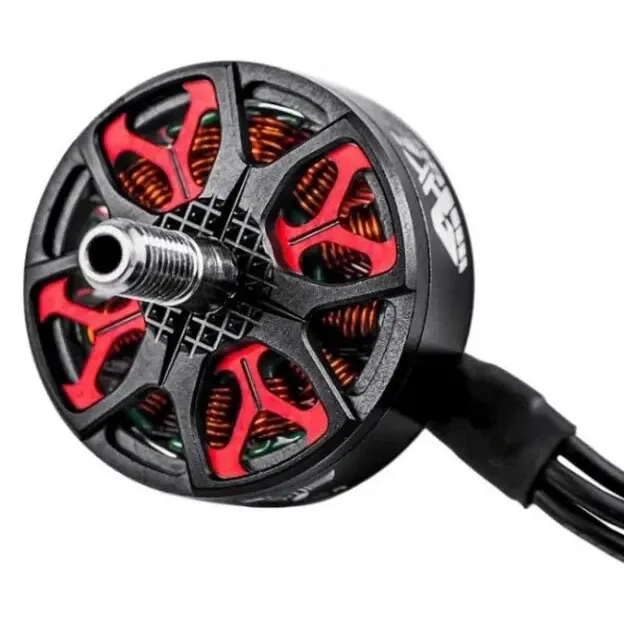

• KV options: 2050KV (optimised for 6S) / 2650KV (optimised for 4S)
• Shaft diameter: 4 mm
• Mounting pattern: 16x16 mm
• Weight: approx. 34 g
• Max current: up to 45 A (2050KV) / 50 A (2650KV)
• Recommended props: 5-6 inch (2050KV), 4-5 inch (2650KV)

For a quadcopter, install four matched motors and verify rotation direction with the propellers removed before the first powered test.
