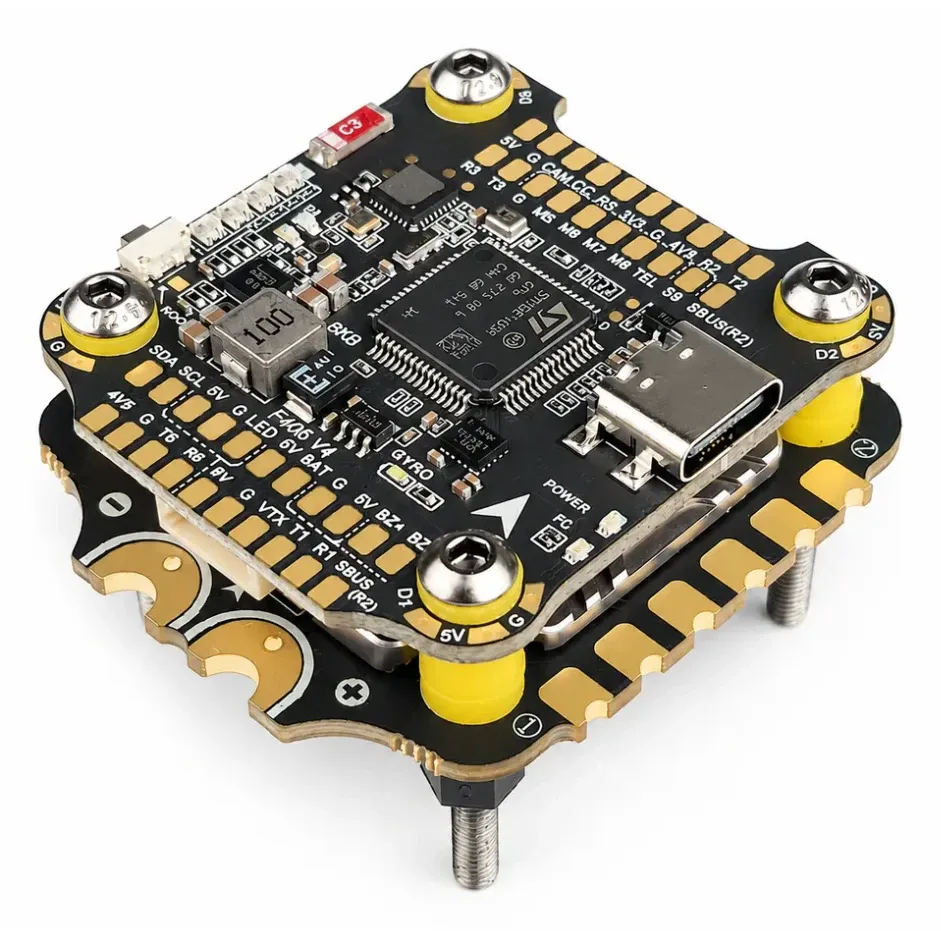

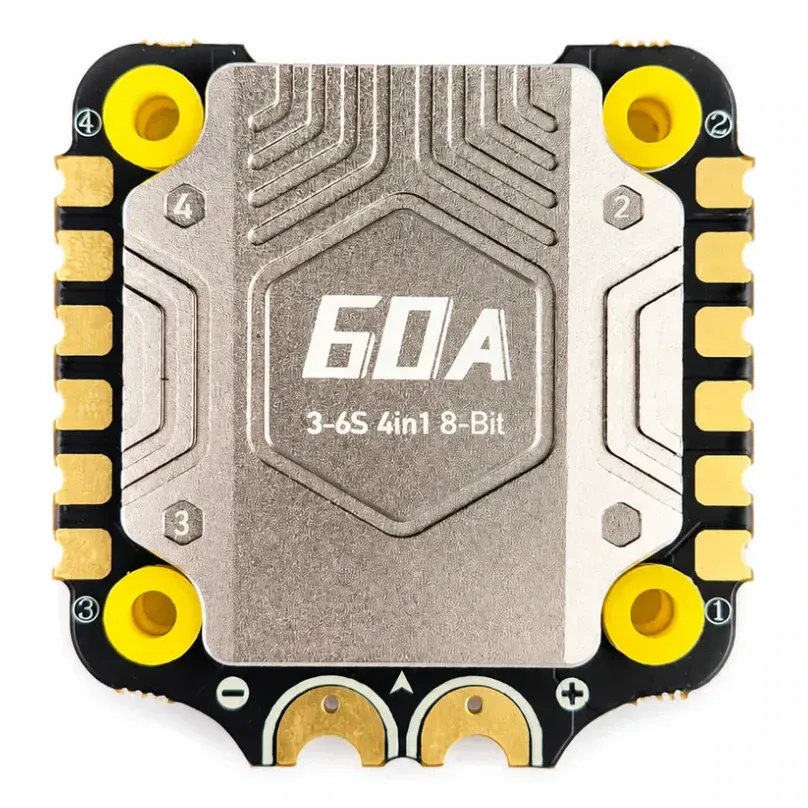

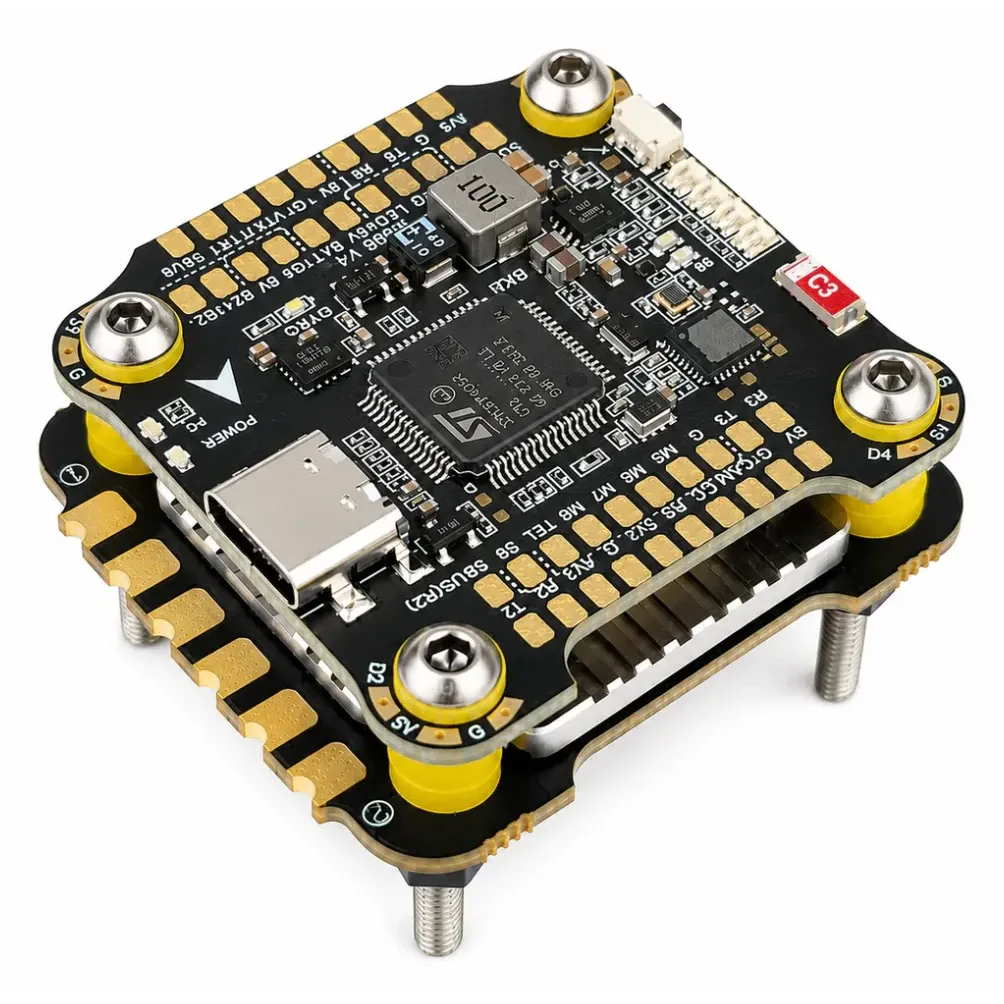

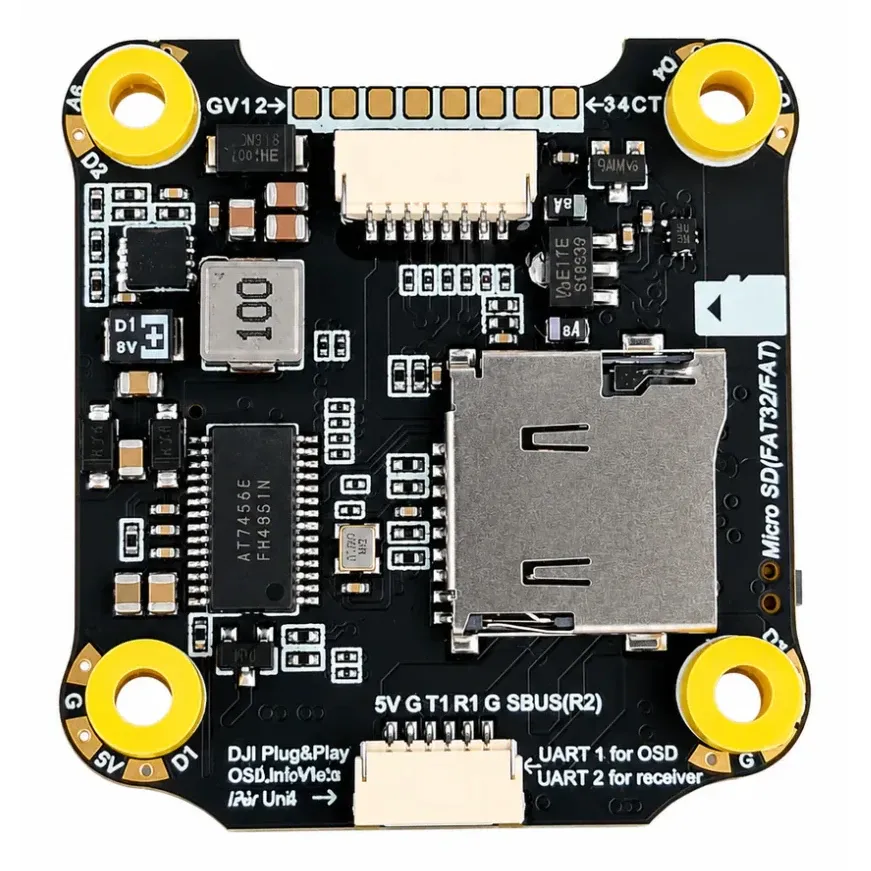

F405 V4 BLS 60A 30x30 FC & ESC Stack (Generic)

This generic 30.5x30.5mm flight controller and ESC stack is built for 5-inch freestyle quads, racing rigs, and 7-inch long-range drones. Pairing a capable F405 V4 flight controller with a high-capacity 60A BLHeli_S 4-in-1 ESC, it delivers the essential processing speed and current overhead required for aggressive 6S powertrains without the brand-name markup.

Key features

• High-output 60A continuous ESC handles demanding motors and heavy pitch propellers without thermal throttling.
• F405 processor manages modern Betaflight PID loops and filtering with performance headroom to spare.
• BLHeli_S ESC firmware provides smooth, responsive motor control and supports bidirectional DShot protocols.
• Standard 30.5x30.5mm mounting layout fits the vast majority of 5-inch and larger FPV frames.

Specifications

• Processor: STM32F405
• Continuous current: 60A
• Input voltage: 3-6S LiPo
• ESC firmware: BLHeli_S
• Supported firmware: Betaflight
• Mounting pattern: 30.5x30.5mm

This unbranded stack is a highly practical choice for budget-conscious builders assembling a powerful basher or practice rig where pure cost-effectiveness takes priority over proprietary telemetry extras.
