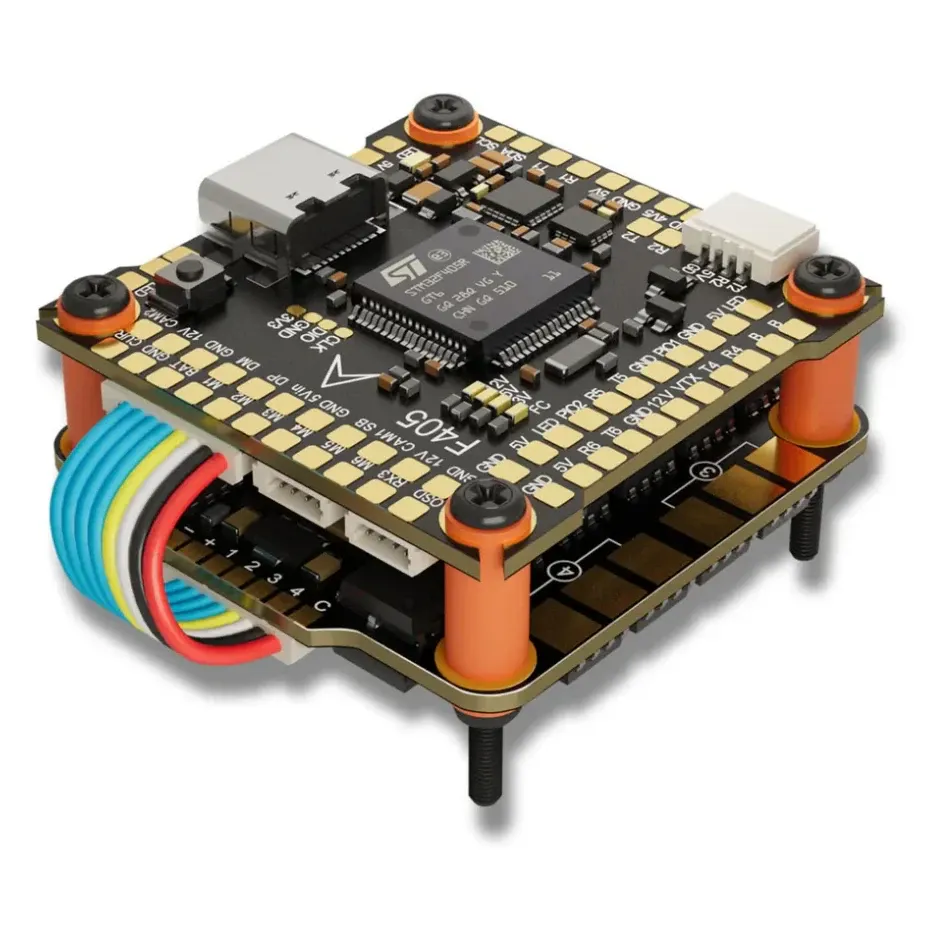

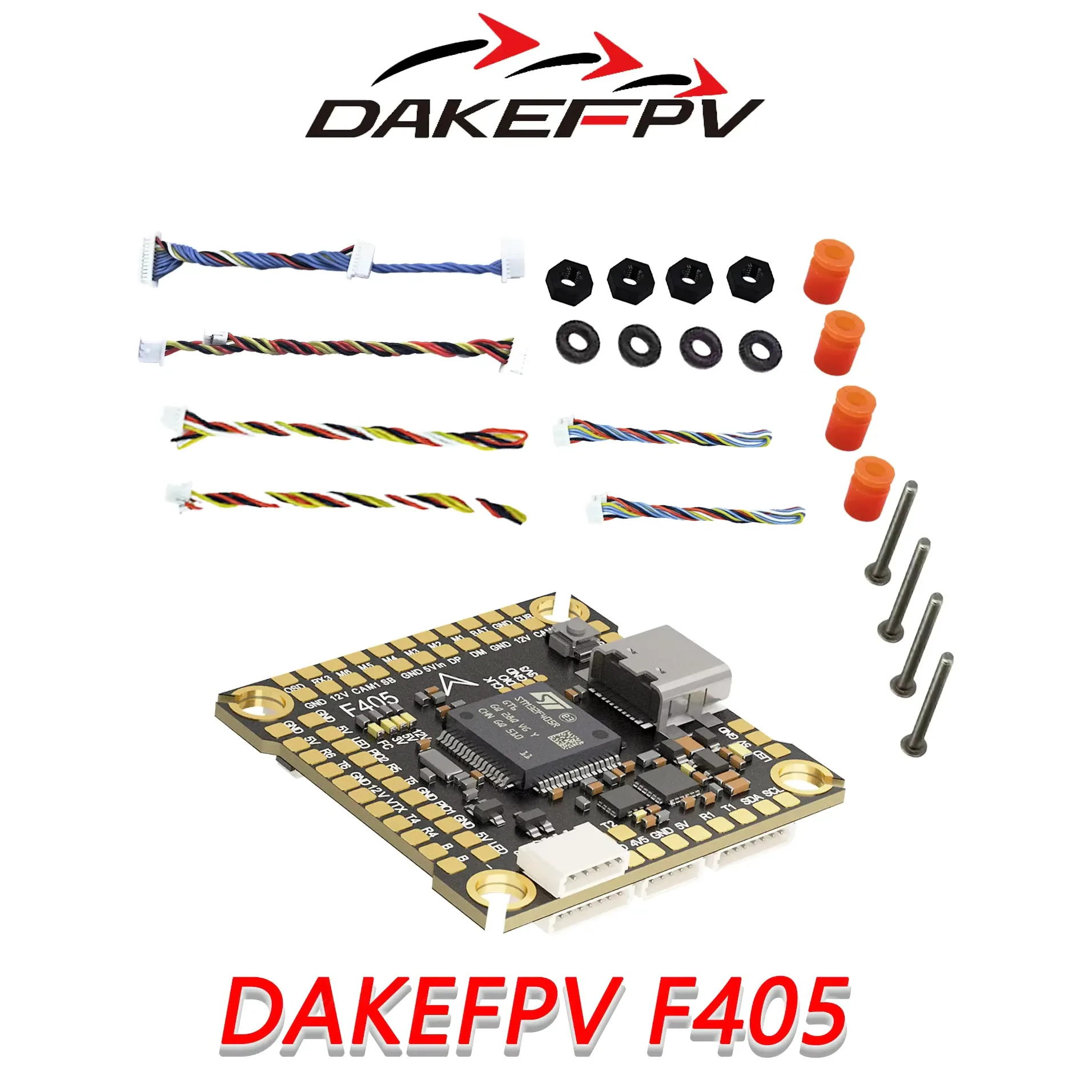

DAKEFPV F405 Flight Controller & 8S 70A 4-in-1 ESC Stack
SKU DAKE-F405-8S-70A-STACK
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The DAKEFPV F405 flight controller and 70A 4-in-1 ESC stack is engineered for high-voltage, high-draw builds, making it a reliable foundation for 7-inch to 10-inch long-range drones, macro quads, and heavy-lift cinelifters. Built to handle up to 8S LiPo voltage and deliver a continuous 70A per motor, this stack provides the electrical overhead required by large-stator motors pushing heavy payloads.
Key features
- 70A continuous current capacity sustains aggressive throttle inputs on large propellers
- Rated for 8S LiPo input voltage for high-efficiency, low-sag power delivery
- Onboard dual camera switching allows seamless toggling between two separate FPV feeds
- Powered by the STM32F405 processor for consistent loop times
Specifications
- Flight Controller MCU: STM32F405
- ESC Continuous Current: 70A
- Input Voltage: 8S LiPo
- Mounting Size: 30.5x30.5mm
- Supported Firmware: Betaflight
Ensure your drone frame accommodates a full-size 30.5x30.5mm stack. The integrated dual camera switcher is especially useful for utility and commercial pilots who require both forward-facing and downward-facing FPV views on a single aircraft.
| Mounting Size | 30.5x30.5 |
|---|---|
| FC Processor | F405 |
| Gyro | ICM42688P |
| ESC Current | 70 A |
| Input Voltage | 8S |
| Integrated Receiver | No |
| Integrated VTX | No |
| Made in India | No |
| Brand | DAKEFPV |
| Supported Firmware | Betaflight |
| Barometer | Yes |
| UARTs | 6 |
