FC + ESC Stacks
F405 FC + 60A BLHeli_S 4in1 ESC FPV Stack
₹6,699Incl. GST
SKU F405-60A-BLS-STACK
FC Processor: F405ESC Current: 60 AInput Voltage: 3–6SMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

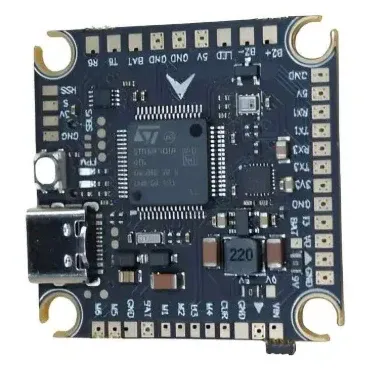

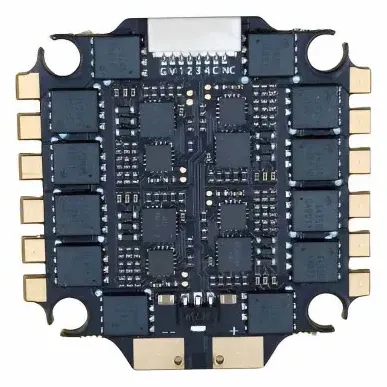

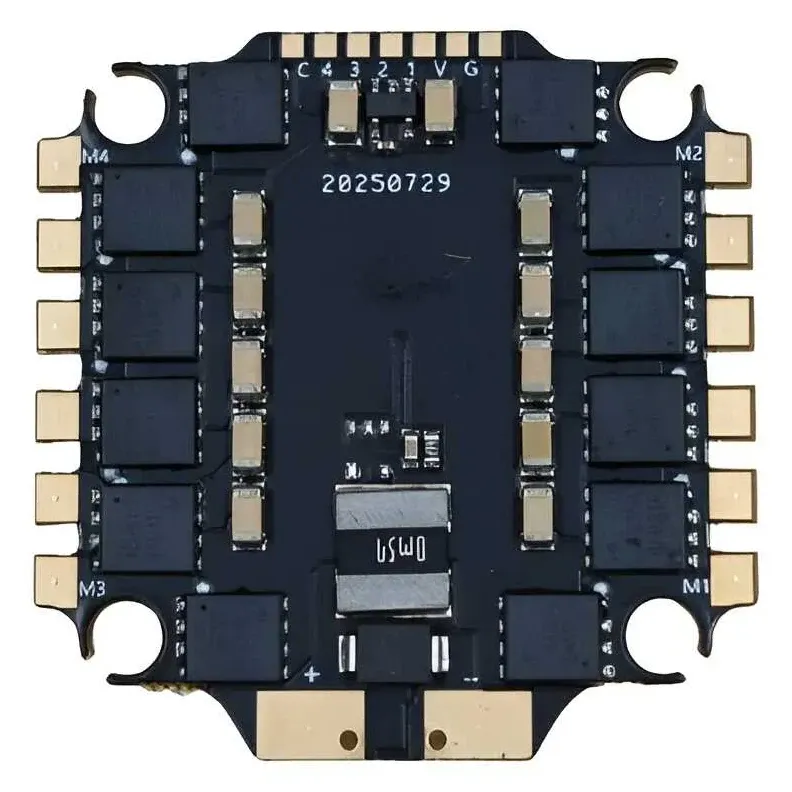

A stack pairing an F405 flight controller with a 60A BLHeli_S 4-in-1 ESC, for 3-6S racing and freestyle quads that need generous current headroom.
Key features
- ESC rated 60 A continuous per channel with 70 A burst for up to 10 seconds.
- BLHeli_S firmware with DShot150, DShot300, DShot600, OneShot125 and Multishot support.
- Synchronous rectification (damped light) and adaptive timing for smooth control across a wide range of motors and KV.
- The ESC carries no BEC, so plan peripheral power around the flight controller.

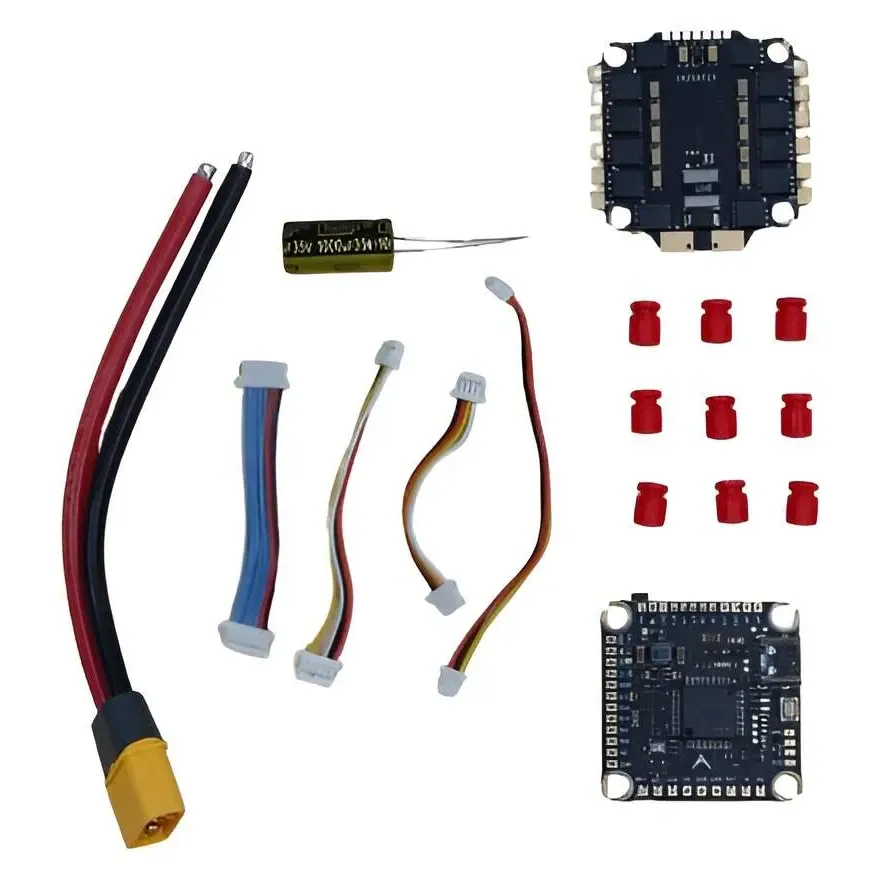

- ESC accessories include an 8-pin 1.0 mm FC-to-ESC cable, an XT60 plug, a 1000µF 35V capacitor and power wires.
Specifications
- Flight controller: F405
- ESC current: 60 A continuous, 70 A burst (10 s) per channel
- Input voltage: 3-6S LiPo
- ESC firmware: BLHeli_S
- Protocols: DShot150/300/600, OneShot125, Multishot
- ESC weight: 39 g
Solder the supplied 1000µF 35V capacitor across the ESC battery pads, as close to them as possible: on 6S it soaks up voltage spikes that would otherwise reach the ESC and flight controller. Size the motors so their peak draw on your cell count stays within the 60 A per-channel rating.
| FC Processor | F405 |
|---|---|
| ESC Current | 60 A |
| Input Voltage | 3–6S |
| Made in India | No |
| Brand | Generic |
| ESC Firmware | BLHeli_S |
