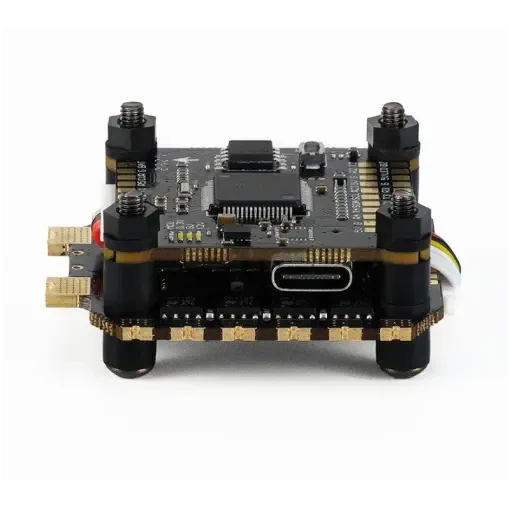

Axisflying Argus ECO F405 + 60A 6S ESC Stack, 30.5x30.5

The Argus ECO is Axisflying's lightweight open-PCB stack: an STM32F405 flight controller paired with a 60A 4-in-1 ESC on the 30.5x30.5mm M3 pattern. Without the aluminium housing of the Argus PRO it saves weight, making it a good fit for 5- to 7-inch freestyle and long-range quads on 4-6S.

Key features

• ICM42688P gyro and 16MB blackbox flash on the F405 flight controller.

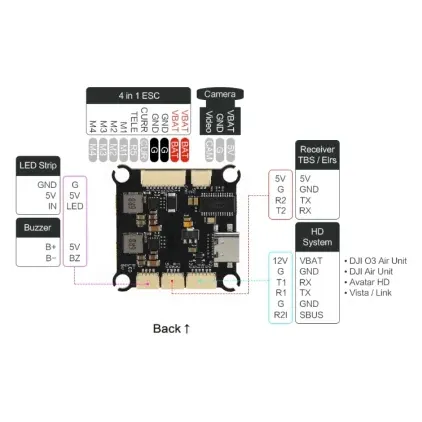

• Six UARTs for receiver, GPS, digital or analog VTX and other peripherals, with OSD support.
• Dual BEC: 5V 3A for electronics and 12V 2A for an HD air unit or camera.

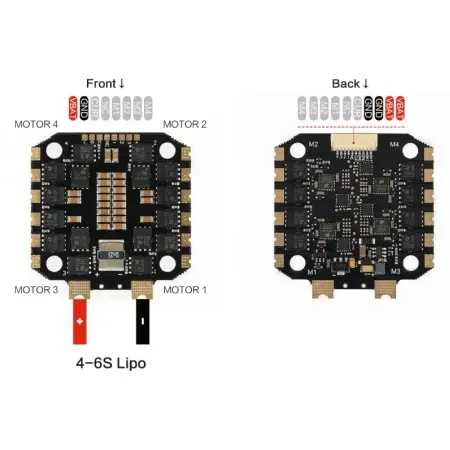

• 60A continuous, 70A burst 4-in-1 ESC running Bluejay (BLHeli_S hardware) with bidirectional DShot and temperature protection.
• Onboard current sensor on the ESC (scale 200) for battery consumption readings in the OSD.

Specifications

• FC MCU: STM32F405RGT6
• Gyro: ICM42688P
• Blackbox: 16MB
• UARTs: 6
• FC BEC: 5V 3A, 12V 2A
• ESC firmware: Bluejay (QH30)
• ESC current: 60A continuous, 70A burst
• Input voltage: 4-6S LiPo
• Mounting: 30.5 x 30.5mm, M3
• FC size / weight: 36 x 36 x 6mm, 7g
• ESC size / weight: 44.8 x 43 x 6mm, 13.5g

In the box: FC and ESC, short and long FC-to-ESC harnesses, a 35V 270µF capacitor, eight dampers, an HD VTX cable, mounting screws with lock nuts and an XT60 power lead. The ESC does not support telemetry, so rely on its current sensor for consumption data.
