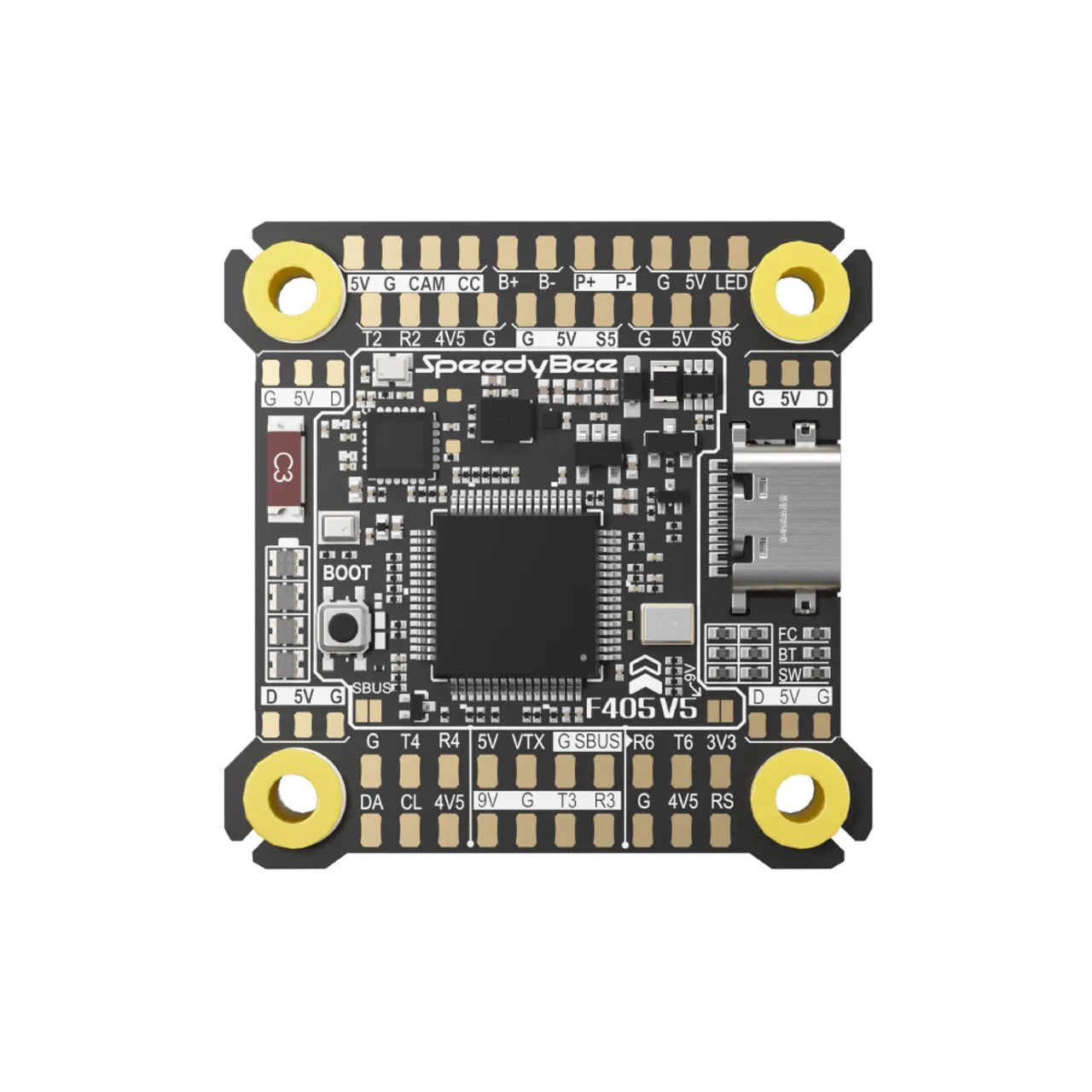

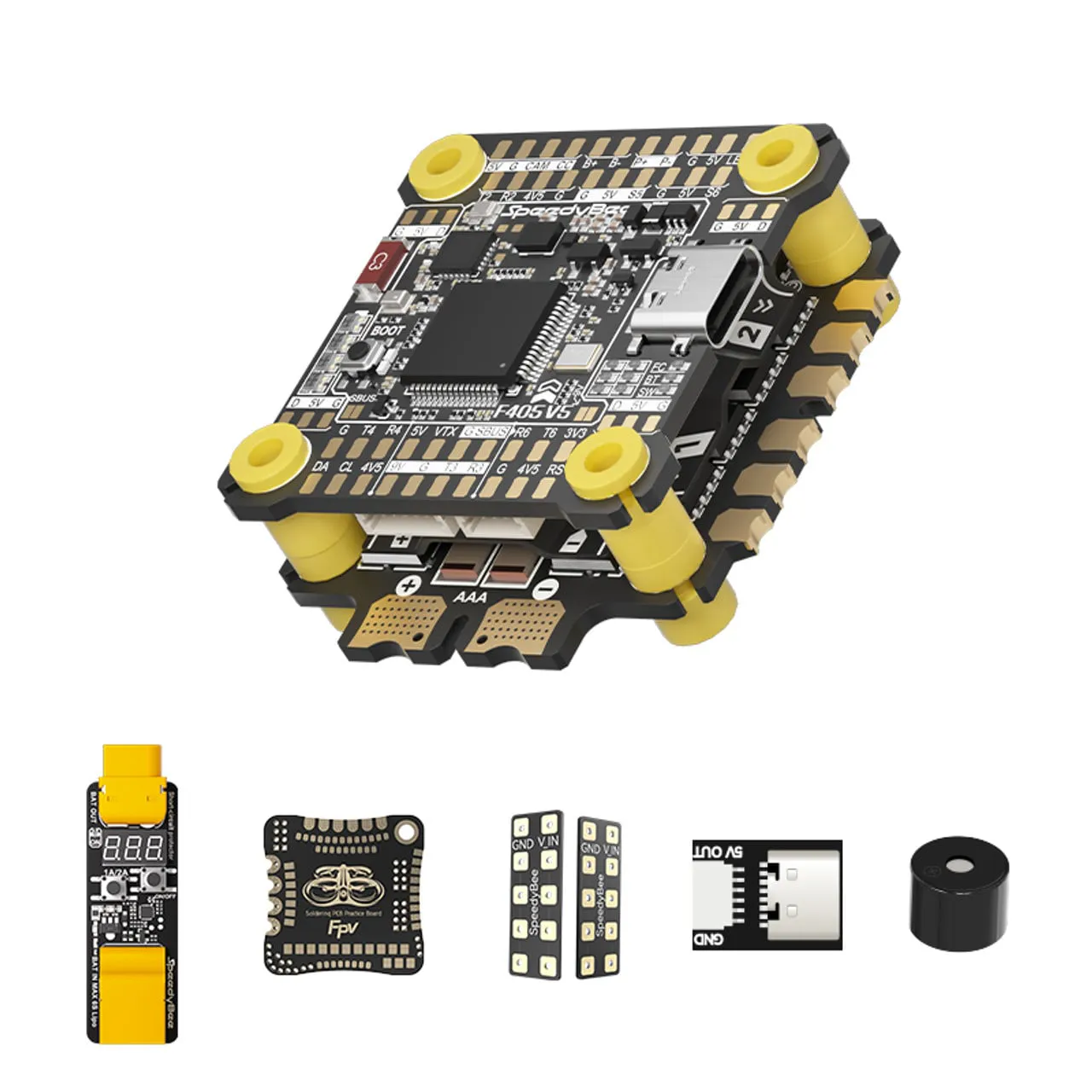

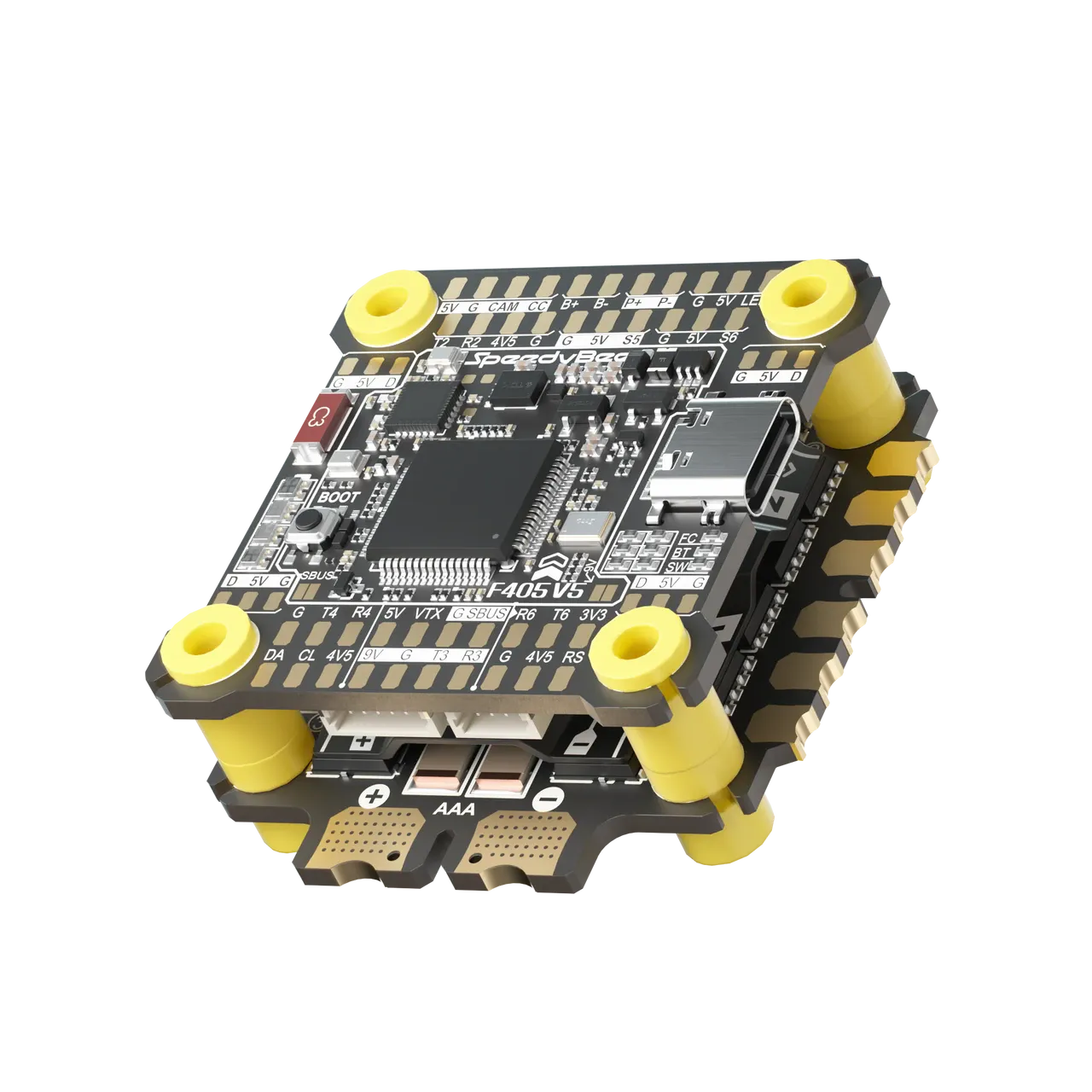

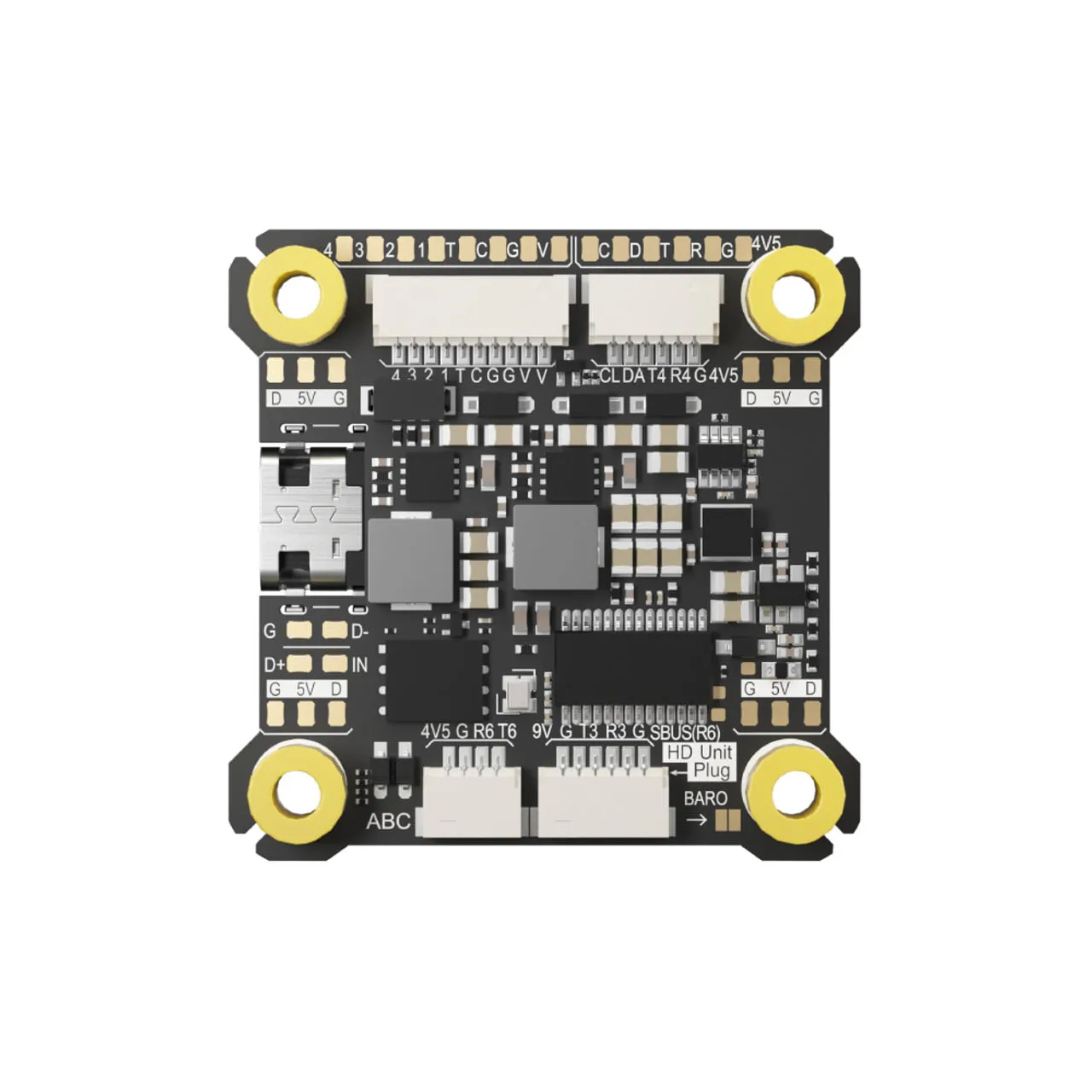

SpeedyBee F405 V5 OX32 55A 30×30 FC & ESC Stack

The SpeedyBee F405 V5 OX32 stack pairs a feature-rich F405 flight controller with a robust 55A 4-in-1 ESC. Engineered for demanding 5-inch freestyle drones, aggressive racers, and 7-inch long-range builds, this system drops into any frame with a standard 30.5x30.5mm mounting pattern. The introduction of the OX32 32-bit ESC architecture delivers exceptionally smooth throttle resolution and handles high-torque motor setups with ease. True to the SpeedyBee ecosystem, the flight controller features built-in wireless connectivity, allowing pilots to adjust tunes, configure peripherals, and check motor direction directly from a smartphone without needing a laptop.

Key features

• Wireless configuration: Integrated Bluetooth enables complete setup and field tuning via the SpeedyBee mobile app.

• OX32 ESC architecture: 32-bit processing provides rapid motor response and precise RPM control during heavy throttle punch-outs.

• HD video ready: Includes a dedicated plug-and-play port for rapid, solder-free connection to digital transmitters like the DJI O3 Air Unit.

• Variant options: Available in a Standard edition or a Deluxe edition.

Specifications

• Flight Controller MCU: STM32F405

• Gyro: ICM42688P

• Barometer: onboard

• OSD chip: AT7456E

• Blackbox: 16MB onboard flash

• UARTs: 6 (UART1 used by the Bluetooth module)

• BEC output: 5 V (1.5 A total), 9 V 3 A with PINIO on/off control

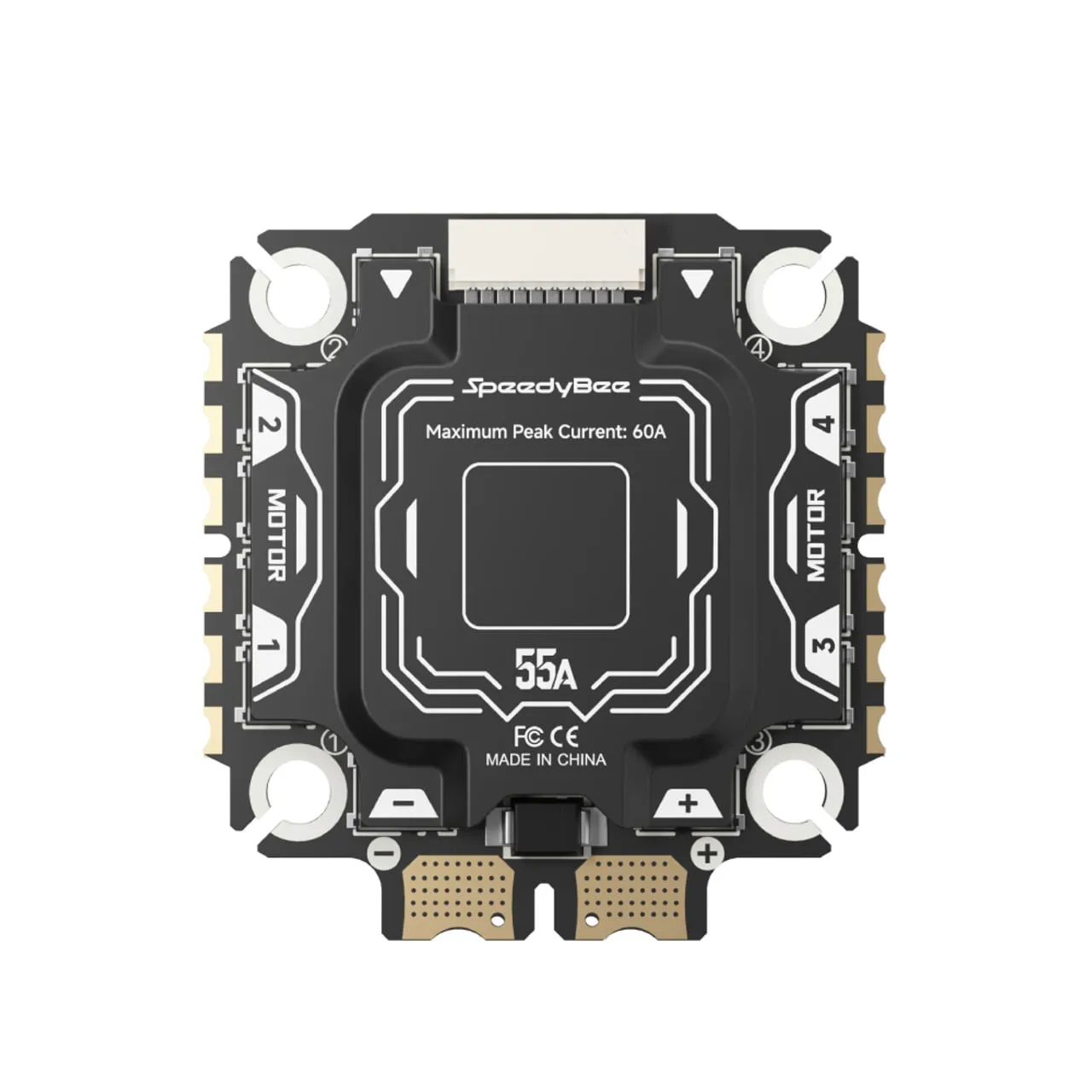

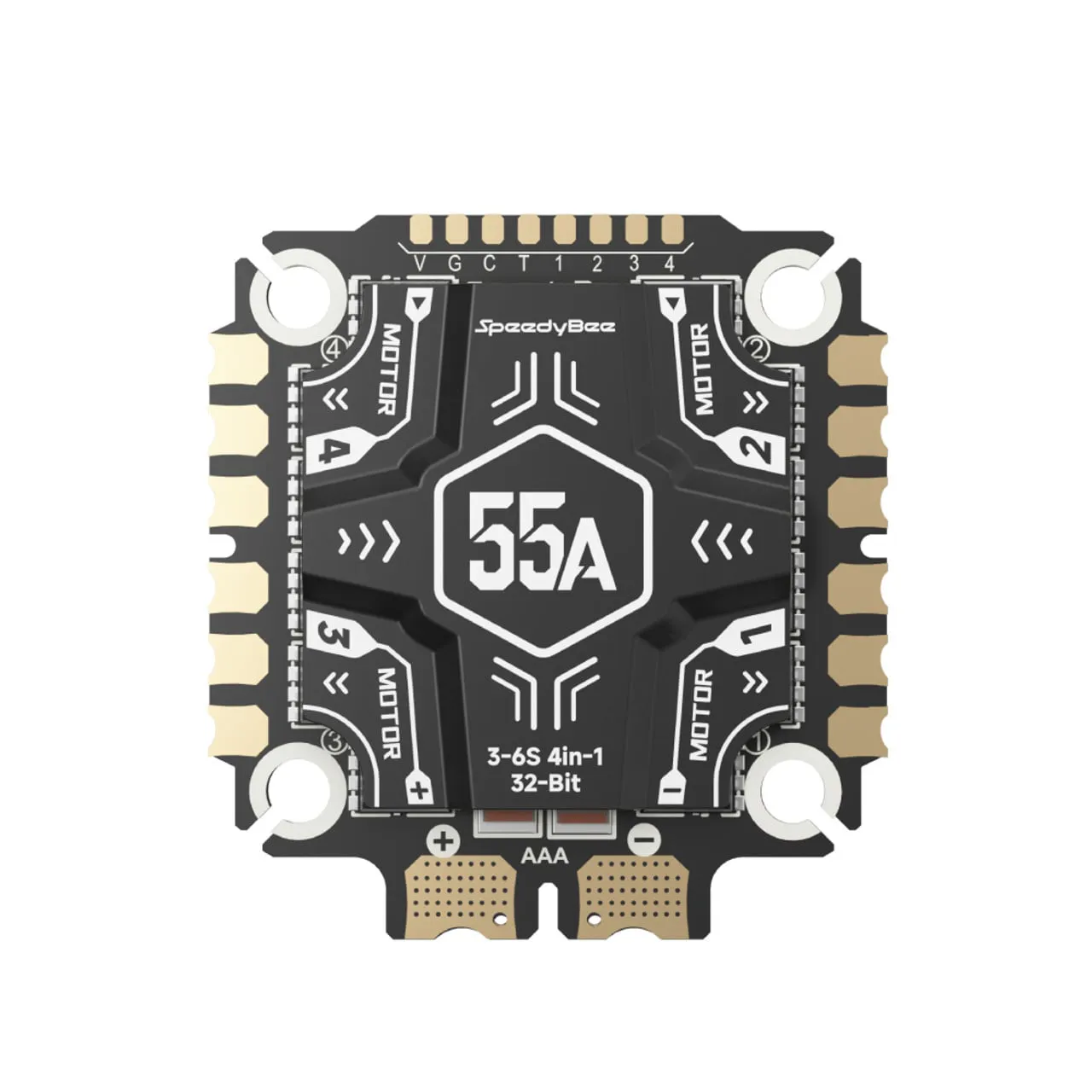

• Continuous ESC Current: 55 A

• Maximum ESC Current: 70 A per channel

• ESC protocol: DShot300/600, with current sensor and ESC telemetry

• External capacitor: 1000 uF solid capacitor included

• Input Voltage: 3-6S LiPo

• Mounting Size: 30.5x30.5 mm (4 mm holes)

• FC size: 39 x 39 x 4.9 mm, 8.1 g

• ESC size: 40.9 x 44.9 x 8.0 mm including heatsink, 19.1 g

• Supported Firmware: Betaflight, INAV, ArduPilot

This stack is a powerful core for builders who need high current overhead alongside the ultimate convenience of wireless field tuning. Always verify your frame has sufficient vertical clearance to accommodate full-size 30.5x30.5mm stacks.
