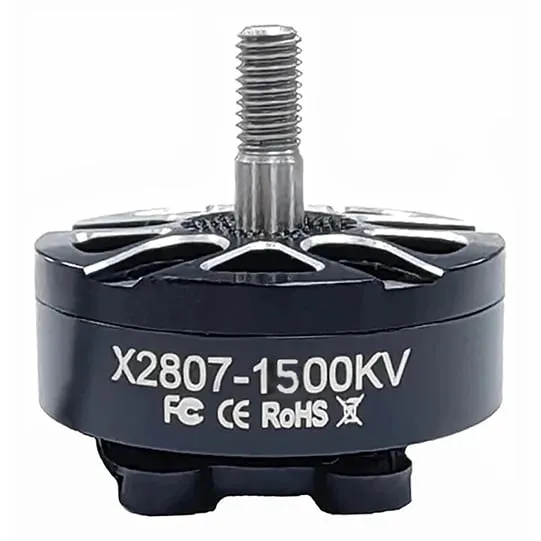

DYS X2807 1500KV 3-5S Brushless Motor

The DYS X2807 is a 1500KV brushless motor for 7-inch long-range and freestyle drone builds. Its 3-5S operating range and mid-KV winding suit larger propeller systems that prioritise efficient, stable flight over outright punch.

Key features

• 2807 stator format sized for 7-inch multirotor applications.
• 1500KV winding balances thrust and current draw for long-range and freestyle setups.
• Supports 3-5S LiPo battery systems, giving builders flexibility in pack choice.
• 33.5mm diameter and 17.5mm length, with a 1.2A idle current draw.

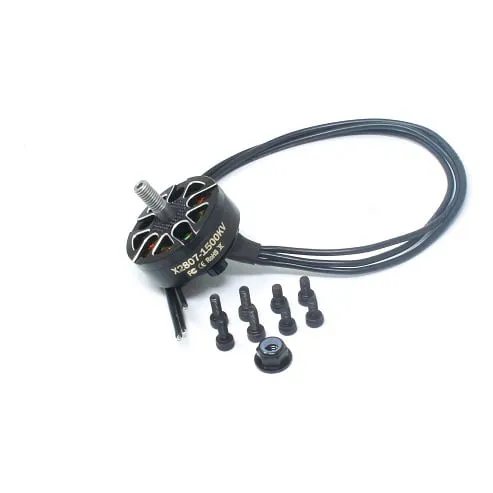

• Fitted with a 200mm, 18AWG power lead for direct ESC wiring, saving a splice on most builds.

Specifications

• Brand: DYS
• Stator size: 2807
• KV: 1500 KV
• Input voltage: 3-5S
• Diameter: 33.5 mm
• Length: 17.5 mm
• Motor type: Brushless

Check the frame motor pattern, shaft size, propeller clearance and ESC current rating so the motor matches the rest of the 7-inch power system before final assembly.
