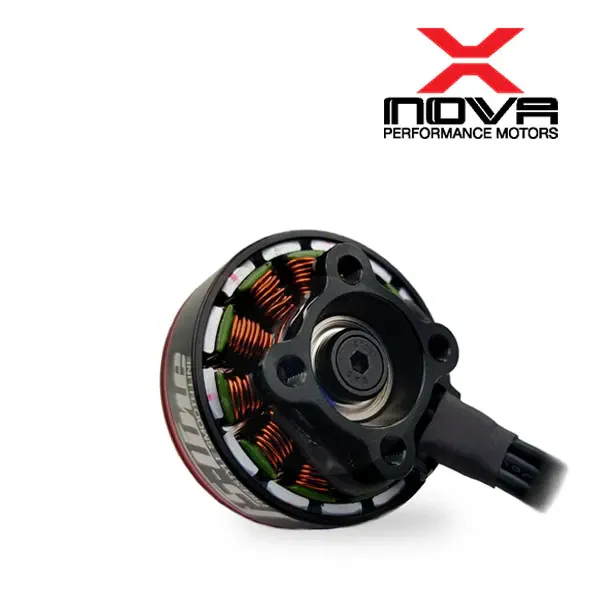

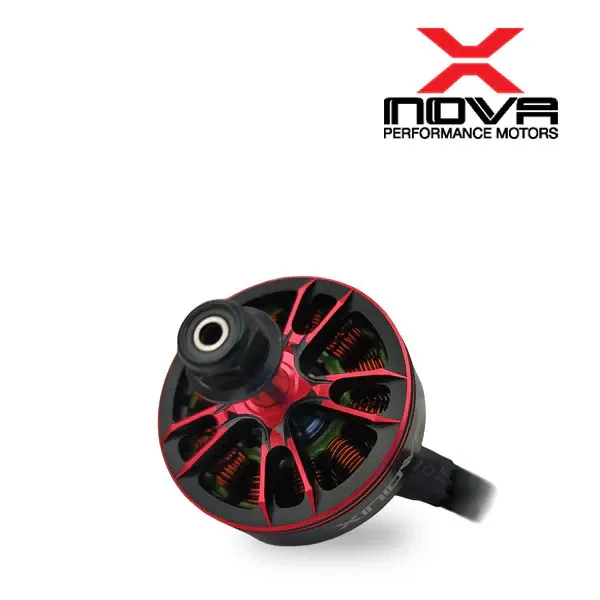

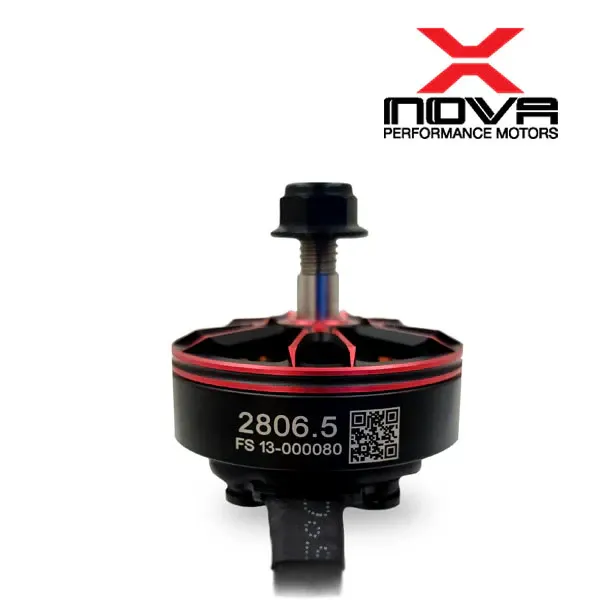

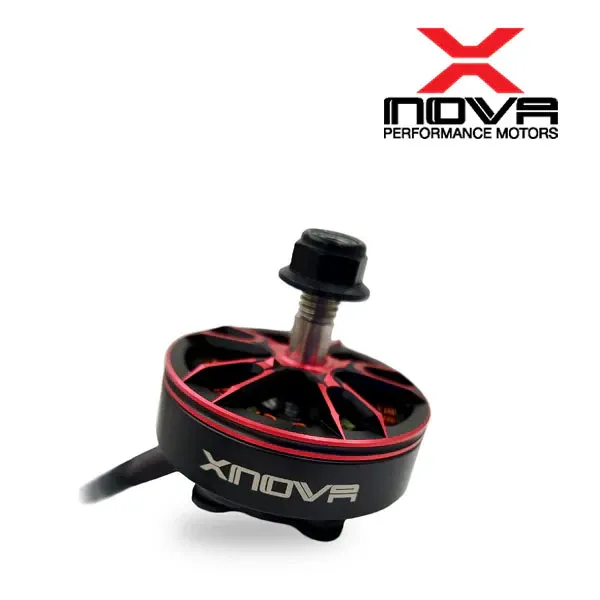

XNOVA 2806.5 1300KV Motor

The XNOVA 2806.5 1300KV is a large-stator FPV brushless motor aimed at high-torque 3–4" builds where you want a smooth, planted feel rather than ultra-light freestyle response. With 1300KV winding and a 2806.5 stator size, it suits pilots building heavier 4" rigs or smaller cinematic setups that benefit from extra low-end authority and controlled throttle transitions.

Key features

• 2806.5 stator format: prioritises torque and stability for heavier 3–4" builds and higher prop load.

• 1300KV winding: tuned for smoother throttle response and efficient cruising on appropriate voltage/prop choices.

• 26 mm motor mounting pattern: designed to match frames using the larger 26 mm mount standard.

• Smooth feel focus: suited to pilots who want controlled mid-throttle and reduced twitchiness on compact builds.

Specifications

• Brand: XNOVA

• Stator size: 2806.5

• KV: 1300KV

• Motor mounting: 26 mm

Before buying, confirm your frame supports a 26 mm motor mount and has enough arm clearance for a 28 mm-class motor bell, as this stator size is physically larger than typical 3–4" motor formats.
