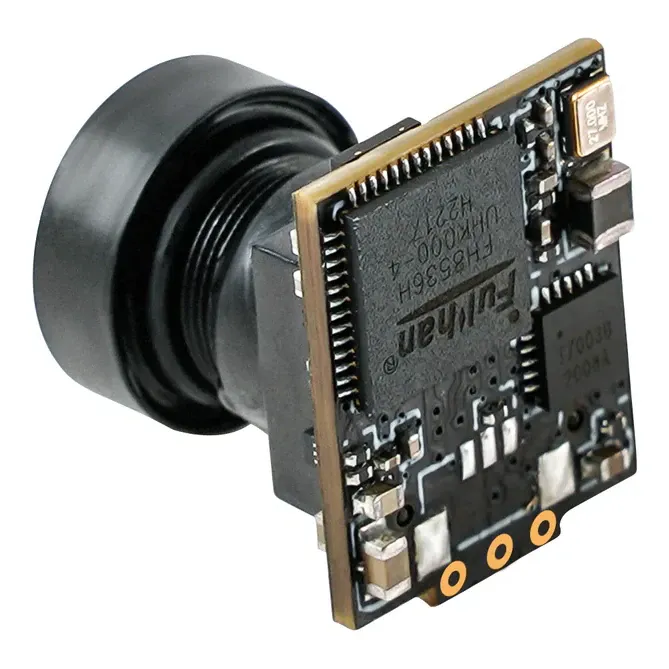

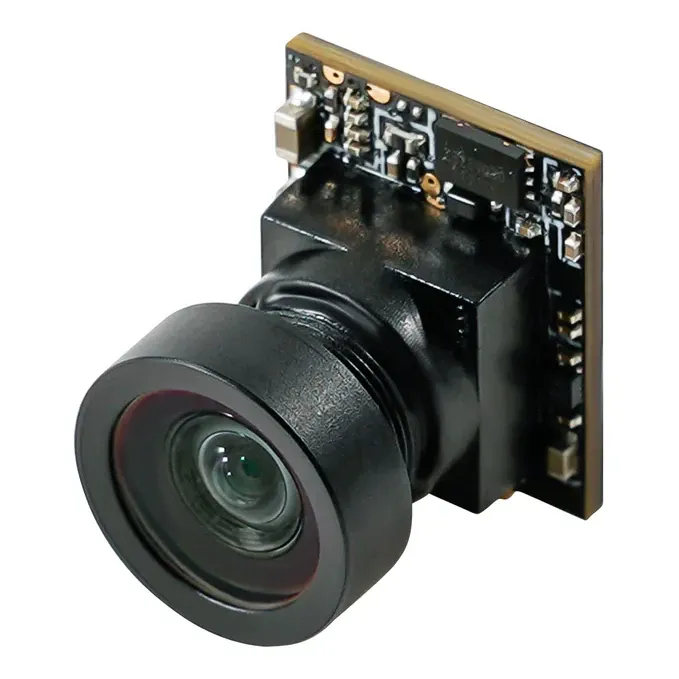

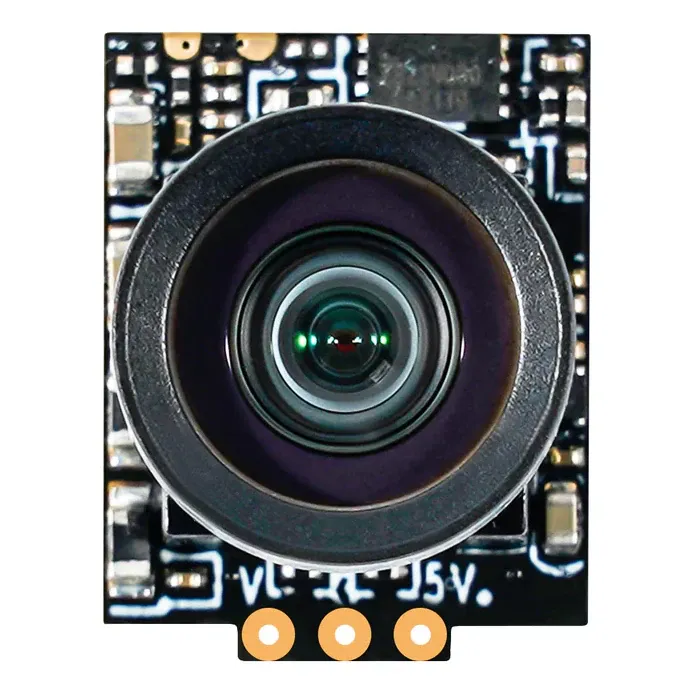

BetaFPV C03 FPV Micro Camera with Canopy

The BetaFPV C03 is an ultra-lightweight analogue FPV camera built for 1S micro whoops such as the Meteor65 and Meteor75. At just 1.45g it adds almost nothing to a build's weight while delivering a clear 1200TVL image, and it ships with a matching micro canopy ready to fit straight on.

Key features

• 1200TVL resolution from a 1/3-inch CMOS sensor with Global WDR for clear images in mixed lighting.
• 2.1mm (M7) lens gives a wide 160-degree field of view in a 4:3 aspect ratio.
• Plug-and-play JST-0.8 connector needs no soldering to pair with a compatible micro VTX or AIO board.

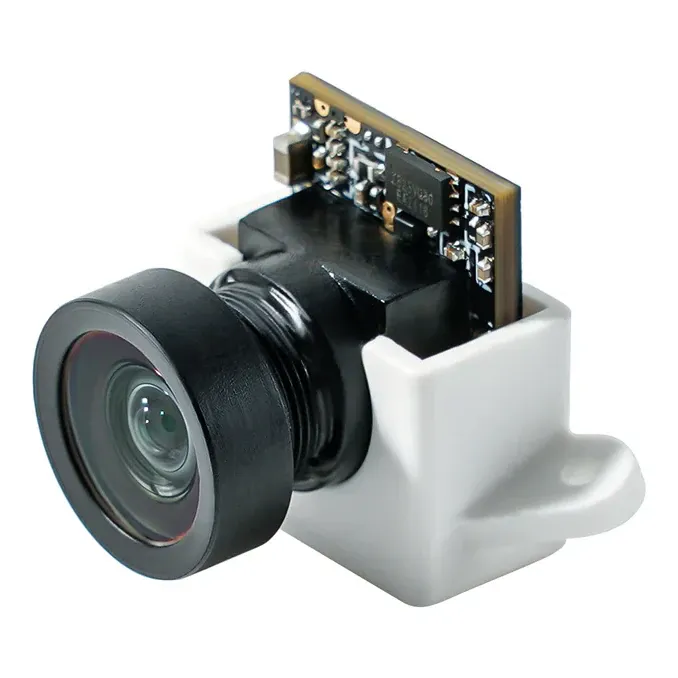

• Includes a BetaFPV micro canopy plus 20-degree and 30-degree camera mounts for different build angles.

Specifications

• Image sensor: 1/3" CMOS
• Resolution: 1200TVL
• Field of view: 160°
• Aspect ratio: 4:3
• TV system: NTSC
• Lens: 2.1mm (M7)
• Minimum illumination: 0.01 lux at F1.2
• Input voltage: DC 3-5.5V
• Current draw: 100 mA at 5 V, 120 mA at 3.3 V
• Connector: JST 0.8 mm
• Dimensions: 11 x 15 x 14mm

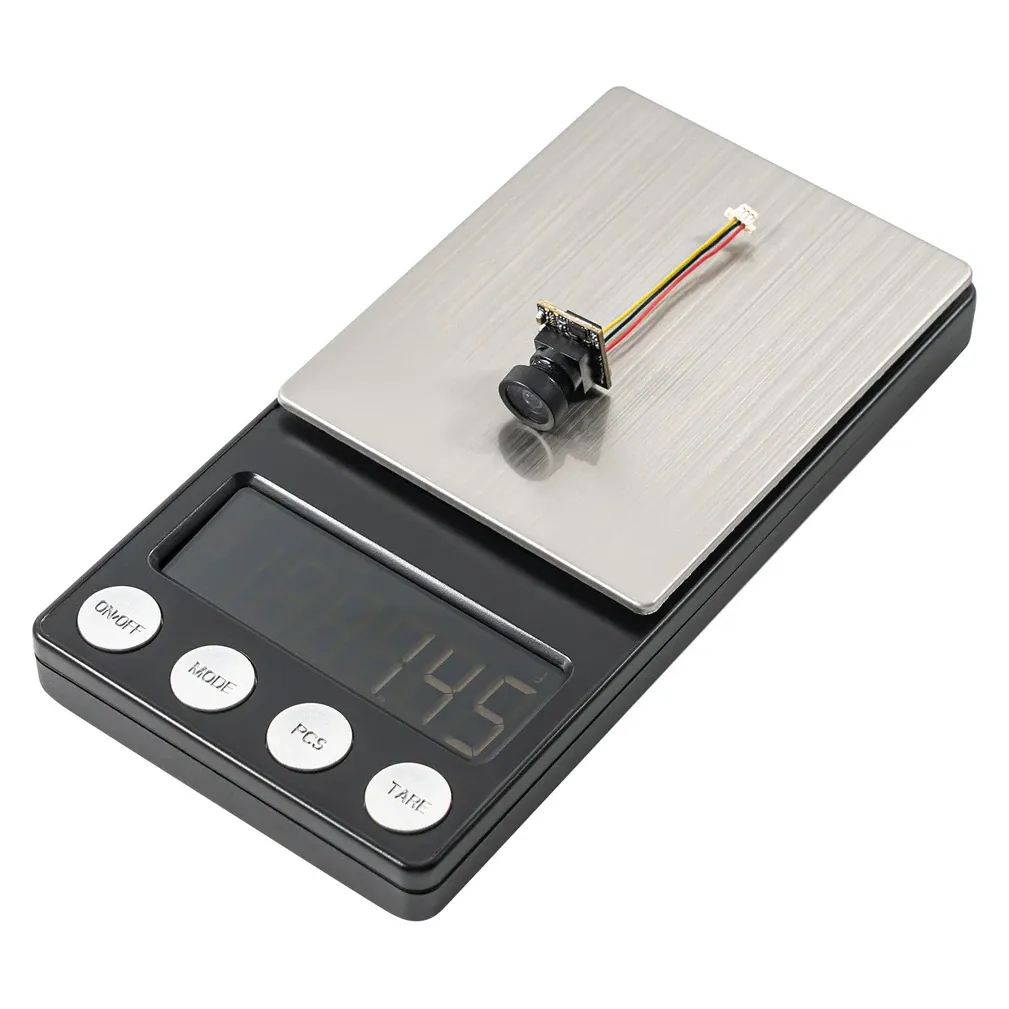

• Weight: 1.45g (camera only)

A direct fit for Meteor-series whoops or any custom micro build using a JST-0.8 camera input, complete with the mounts and screws needed to install it.
