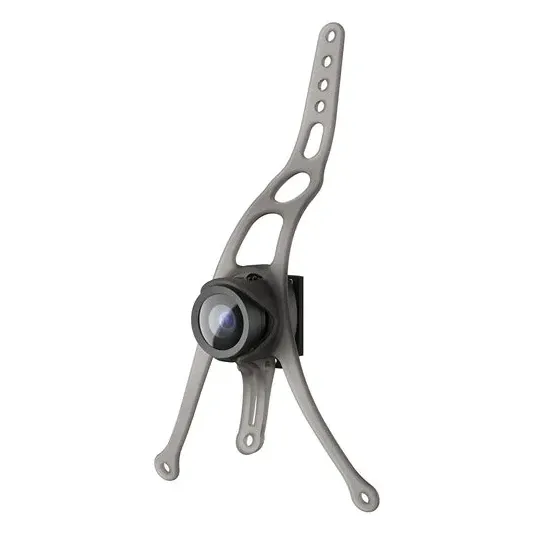

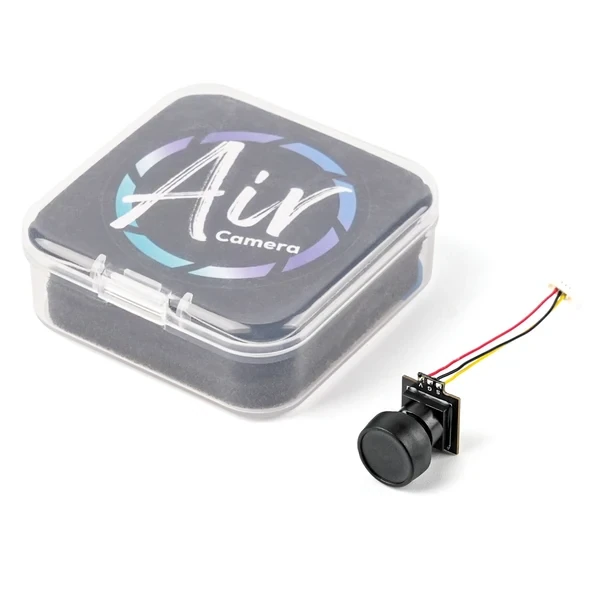

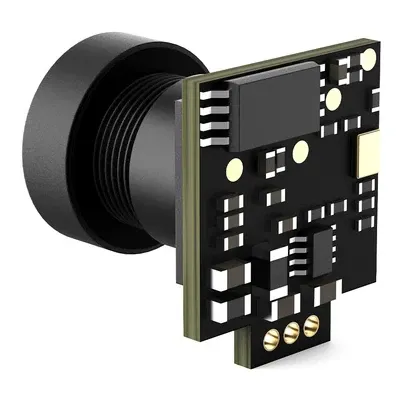

BetaFPV Air Camera 600TVL Analog Whoop FPV Camera

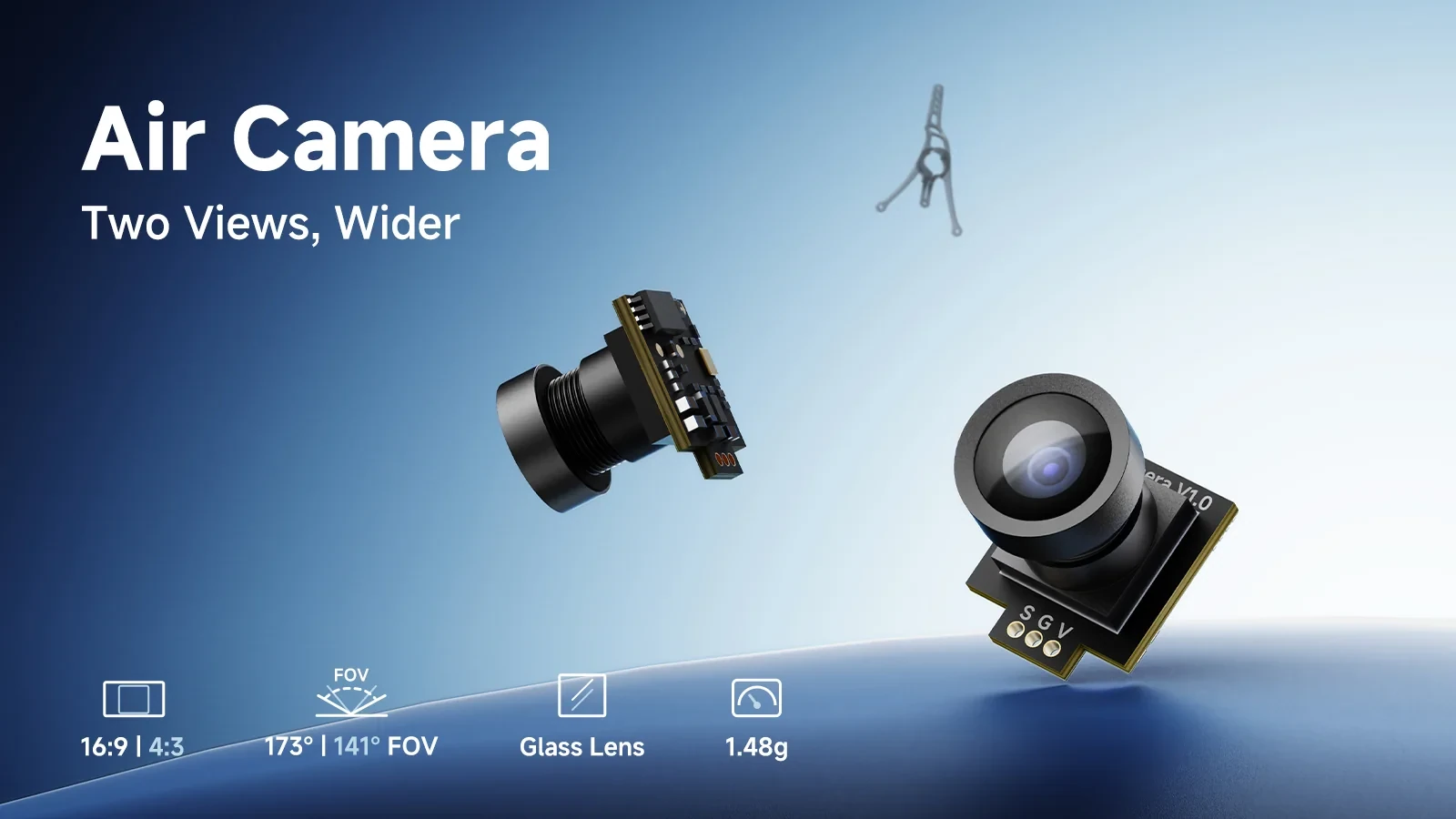

The BetaFPV Air Camera is a 1.48 g analog FPV camera built for BetaFPV's Air and Meteor whoops. A 1/4.5-inch CMOS sensor behind a glass lens delivers 600TVL, and it comes in 16:9 or 4:3 versions so you can match it to the screen format of your goggles or monitor.

Key features

• Glass lens: sharper and more scratch-resistant than plastic optics

• Wide view: 173° FOV in the 16:9 version, 141° in the 4:3 version

• Runs on 5-12 V and draws only 60 mA at 5 V, easy to power from a whoop flight controller's camera supply

• Connects with a JST 0.8 mm plug on a 40 mm lead

• Automatic shutter and gain control for changing light

Specifications

• Sensor: 1/4.5" CMOS

• Resolution: 600TVL

• Video format: NTSC

• FOV: 173° (16:9) / 141° (4:3)

• Signal-to-noise ratio: 40.59 dB

• Input voltage: 5-12 V DC

• Current: 60 mA at 5 V

• Connector: JST 0.8 mm, 40 mm cable

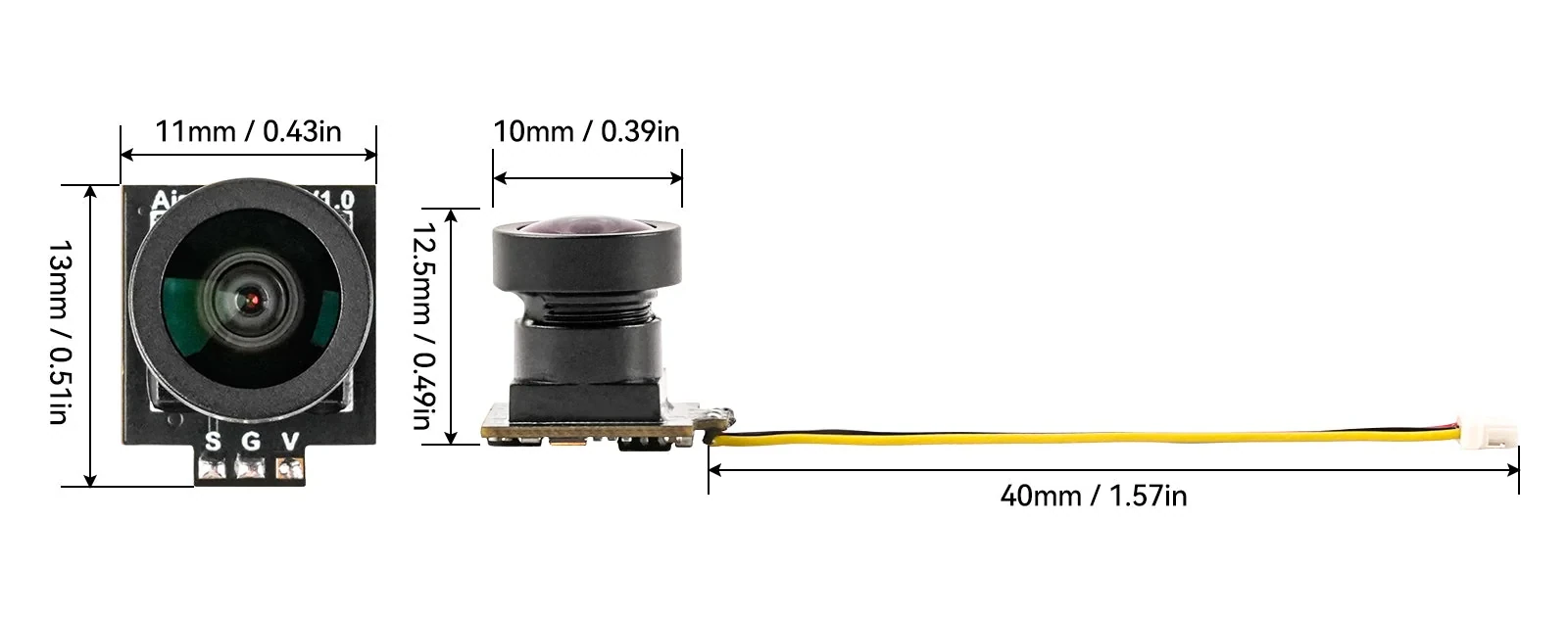

• Dimensions: 11 x 13 x 12.5 mm

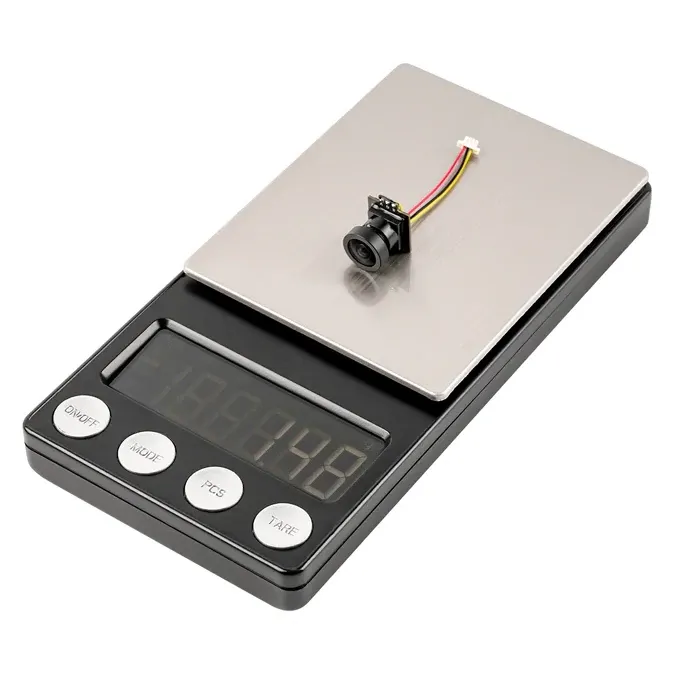

• Weight: 1.48 g

Pick the 16:9 version if your goggles or monitor have a widescreen display, and the 4:3 version for 4:3 screens. This is a compact whoop-format camera, not a standard 14 mm nano or 19 mm micro, so check that your canopy or camera mount takes it before ordering.
