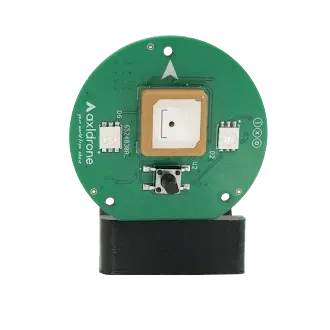

AXL Orbit Multi-GNSS GPS Module with Compass and Enclosure

The AXL Orbit is a multi-constellation GNSS module with an integrated IST8310 compass, designed and manufactured in India by axldrone. It comes sealed in a protective enclosure for drones, surveillance platforms, robots, boats and ground vehicles that need dependable positioning.

Key features

• Tracks GPS, GLONASS, Galileo and BeiDou together, with up to 32 satellites in use
• Integrated IST8310 compass for heading on autopilot builds
• Anti-spoofing and anti-jamming protection

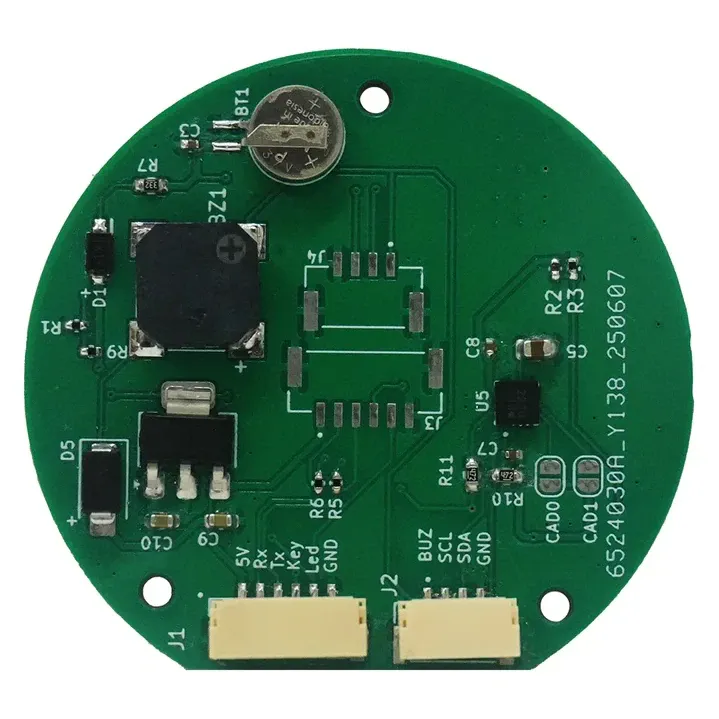

• Rechargeable backup battery for quicker satellite lock on the next power-up
• Enclosure guards against humidity, dust, shock, spills and short circuits, and gives a clean finish on the airframe
• Supplied with a 16.5 cm connection cable

Specifications

• Signals: GPS L1 C/A, GLONASS L1OF, Galileo E1B/C, BeiDou B1C
• Horizontal accuracy: 1.5 m
• Heading accuracy: 0.3°
• Update rate: up to 5 Hz
• Cold start: 23 s
• Operating limits: 80,000 m altitude, 500 m/s
• Operating temperature: −40 °C to 85 °C
• Dimensions: 52 × 49 × 17.15 mm
• Weight: approx. 26 g with enclosure

Its Indian design and manufacture make it a good fit for UAV projects that must use domestically made navigation hardware.
