HGLRC M80 Pro GPS Module

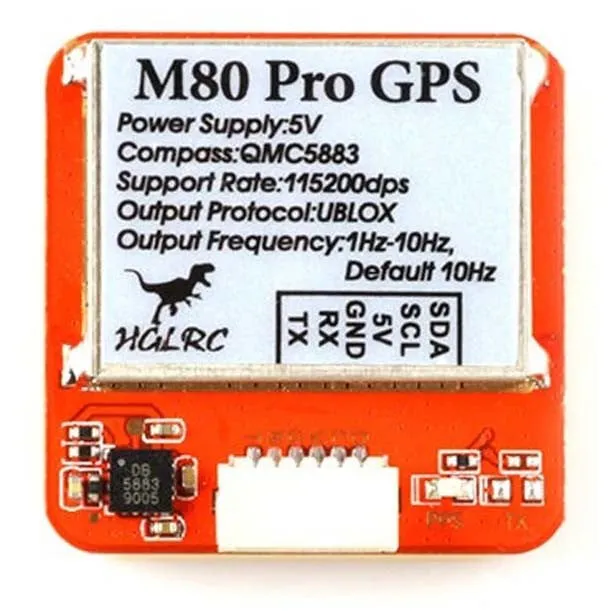

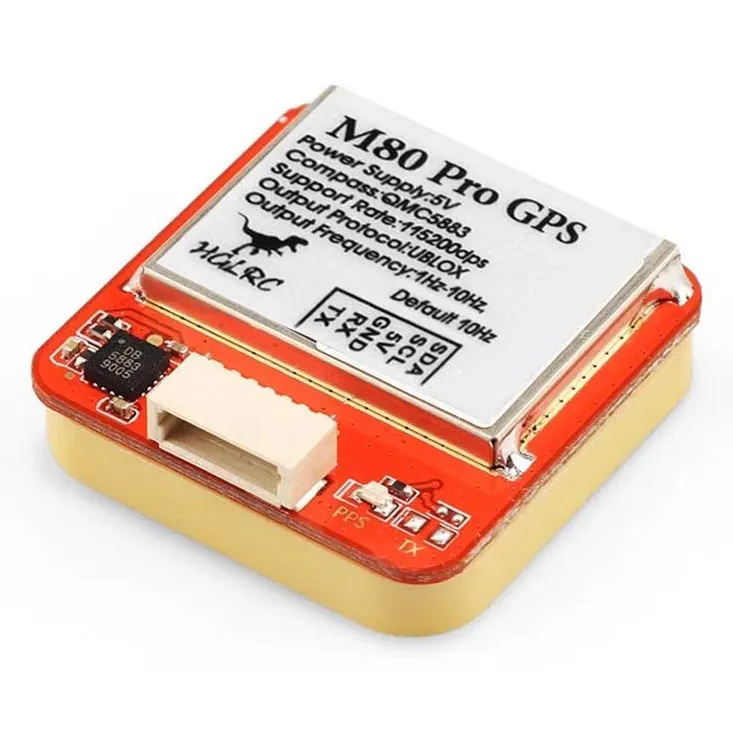

The HGLRC M80 Pro is a compact GPS and compass module for FPV flight controllers that need position data for navigation and return-to-home. Built around the M8030 GNSS chip with an integrated QMC5883 compass, it tracks GPS, GLONASS, Galileo, QZSS, SBAS and BeiDou constellations at once for a faster, steadier fix.

Key features

• Multi-constellation GNSS chip (GPS, GLONASS, Galileo, QZSS, SBAS, BeiDou) for quicker satellite acquisition.

• Integrated QMC5883 compass gives the flight controller a heading reference for navigation and return-to-home.

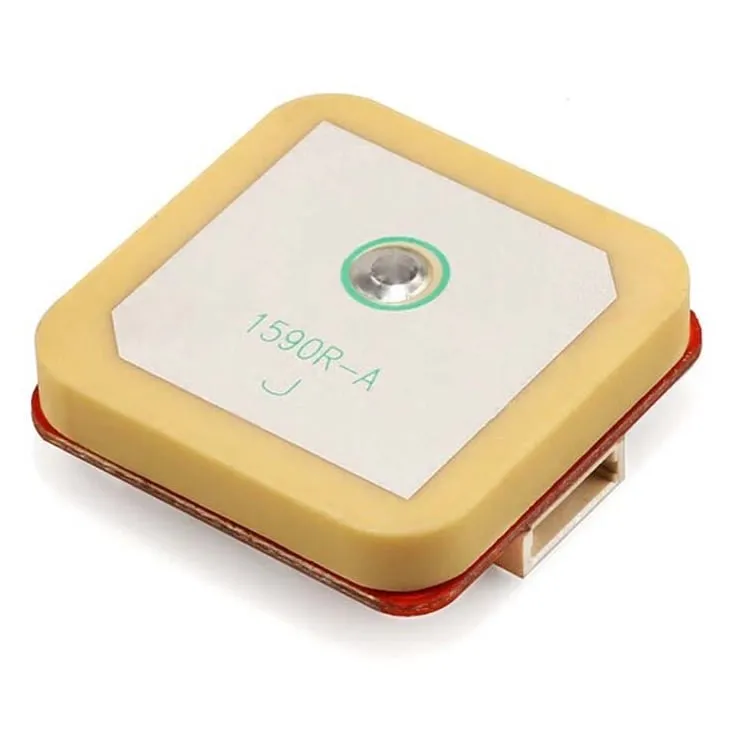

• Ceramic antenna with a 72-channel search for a stronger, more consistent satellite signal.

• UBLOX output protocol with a selectable 1-10Hz update rate, 10Hz by default.

• Plug-and-play wiring with no soldering needed.

• Compact 25 x 25 x 8.3mm module, weighing around 12.5g.

Specifications

• GNSS chip: M8030

• Compass: QMC5883

• Input voltage: 5 V

• Baud rate: 115200 bps

• Output protocol: UBLOX

• Update rate: 1-10 Hz (10 Hz default)

• Operating temperature: -40 to +85 °C

• Dimensions: 25 x 25 x 8.3 mm

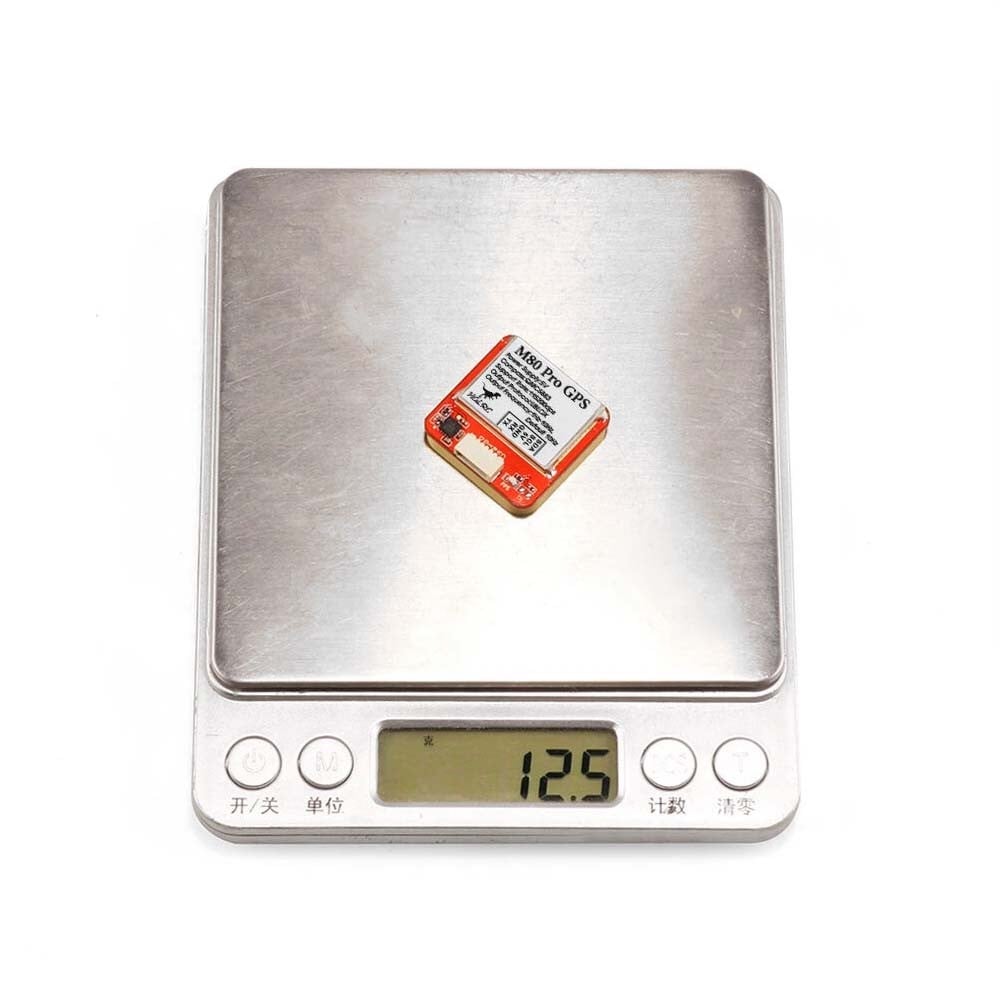

• Weight: 12.5 g

Pair the module only with a flight controller and firmware build that support UBLOX GPS input and the navigation or return-to-home features you plan to use.
