Radiolink SE100 u-blox M8 GPS with GPX Holder

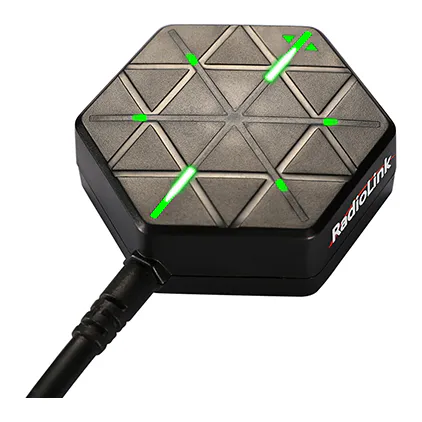

The Radiolink SE100 is a u-blox M8 GPS and compass module tailored for reliable autonomous flight on Pixhawk and APM flight controllers. Built around the UBX-M8030 chipset, it offers rapid satellite acquisition and 50-centimetre positioning accuracy, making it suited for fixed-wing mapping builds, multirotor camera rigs, and heavy-lift agricultural drones.

Key features

• Simultaneous reception of GPS, GLONASS, BeiDou, and QZSS satellite systems for optimal lock speed and positional stability.

• Integrated hardware-based magnetic compass for precise heading telemetry during autonomous waypoint missions.

• Includes a folding GPX mast bracket to elevate the module away from electromagnetic interference caused by the drone's power distribution board.

• Built-in signal amplifier (LNA) and SAW filter to maximise weak-signal reception in challenging environments.

Specifications

• GNSS Chipset: u-blox UBX-M8030

• Supported constellations: GPS, GLONASS, BeiDou, QZSS

• Positional accuracy: 0.5 metres

• Compass: Integrated

• Input voltage: 5V

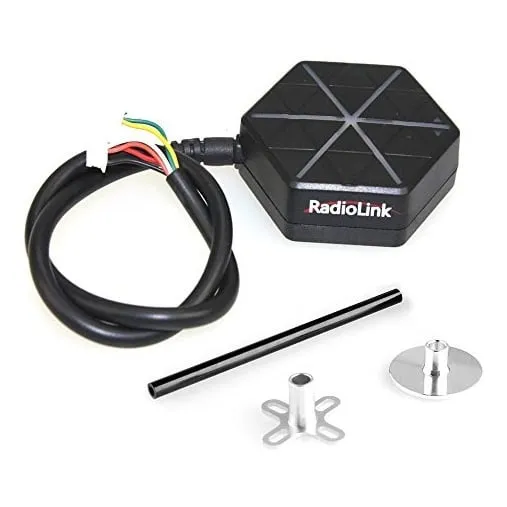

Provided with its own collapsible mast, the SE100 is simple to mount securely on larger frames where isolating the magnetometer from high-current electronics is critical for flight stability.
