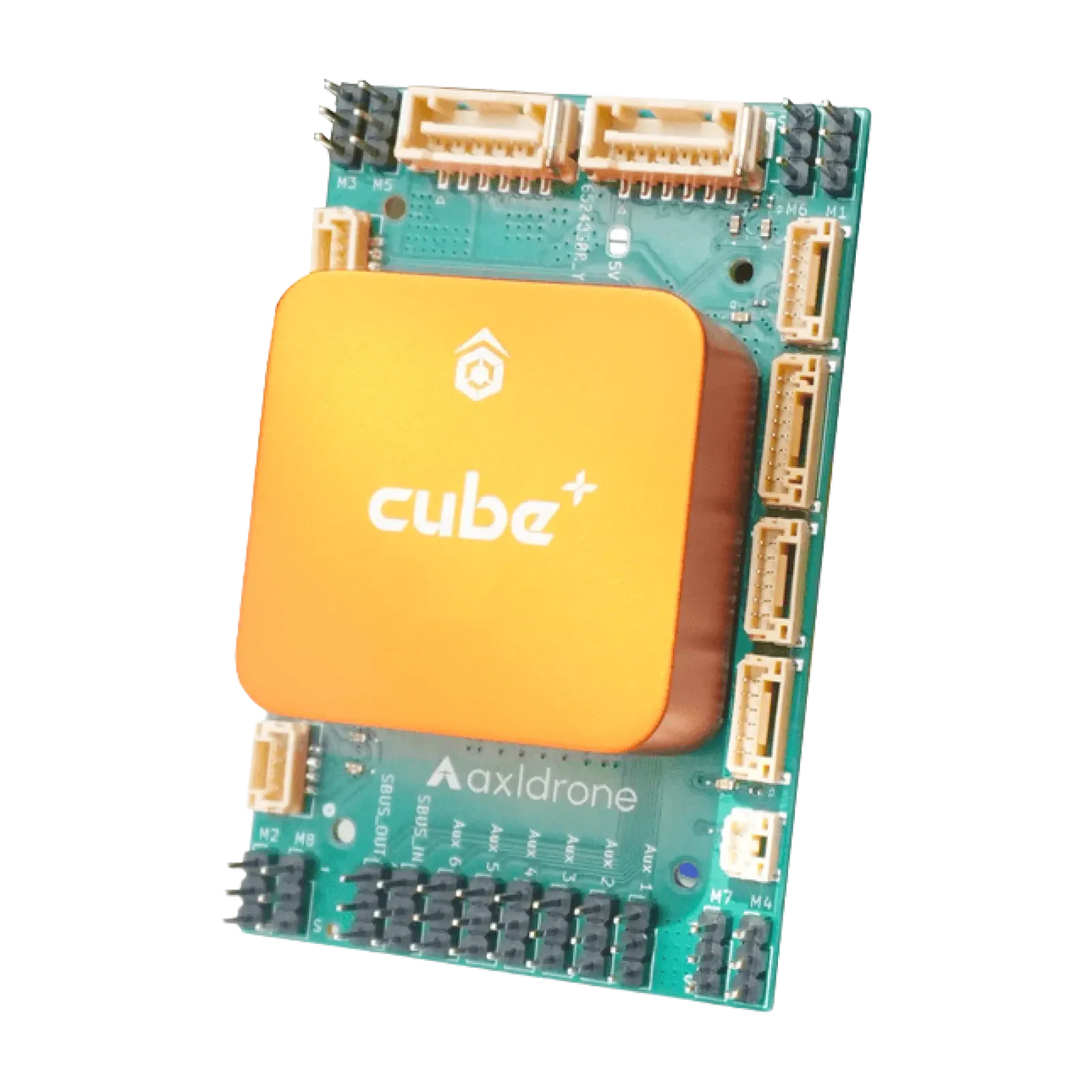

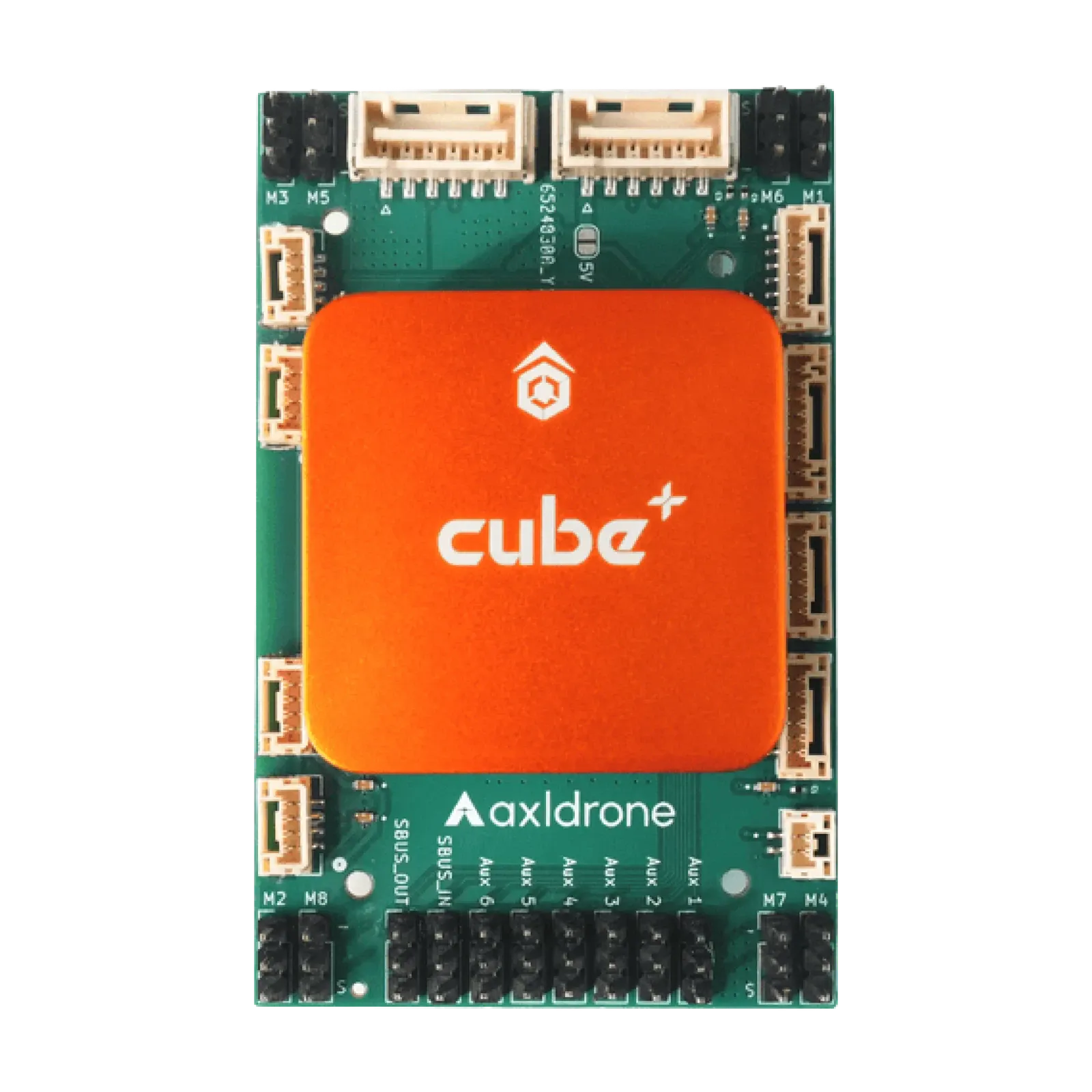

AXL Carrier Board with Cube Orange Plus

The AXL Carrier Board bundled with the CubePilot Cube Orange+ flight controller provides an enterprise-grade autopilot solution tailored for heavy-lift cinelifters, agricultural rigs, and commercial UAVs. This package pairs the processing capabilities of the Orange+ with a robust AXL breakout board, ensuring simplified wiring and accessible data routing for complex autonomous platforms.

Key features

• Cube Orange+ integrates a high-performance STM32H757 dual-core processor for executing complex autonomous missions.
• Triple-redundant, internally heated IMU system maintains sensor accuracy across fluctuating environmental conditions.
• AXL carrier board breaks out the 80-pin DF17 interface into accessible dual CAN, I2C, UART, and standard PWM output headers.
• Built-in vibration isolation protects the internal IMUs from high-frequency frame resonance.
• Native support for leading open-source flight management ecosystems.

Specifications

• Processor: STM32H757 (Dual Core, 480MHz)
• IMU: Triple redundant (ICM42688P, ICM20948, ICM20649)
• Carrier board I/O: PWM, CAN, I2C, UART
• Supported firmware: ArduPilot, PX4

This combined module is designed for custom commercial builds where hardware redundancy, stable sensor arrays, and precise mission execution are strict requirements.
