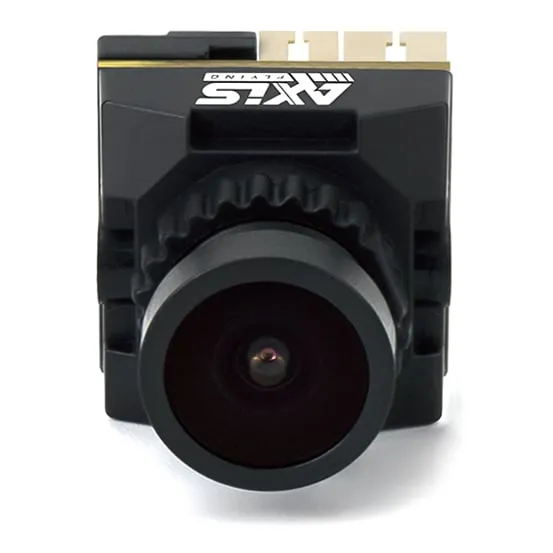

Axisflying C2 1200TVL 19mm Analog FPV Camera
₹1,799Incl. GST
SKU AXIS-C2-ANALOG-CAM
Camera Size: 19mmFPV System: AnalogAspect Ratio: 16:9Made in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Axisflying C2 is an affordable micro analog FPV camera built around a 1/4-inch CMOS sensor with 1200TVL resolution. Its 19x19mm body drops into most 5-inch freestyle, racing and training frames, and the plug-and-play setup with no OSD menu suits pilots putting together their first analog quad.
Key features
- F1.2 lens with 0.05 lux minimum illumination for usable dusk and low-light flying.
- 16:9 image with a 100° horizontal and 70° vertical field of view.

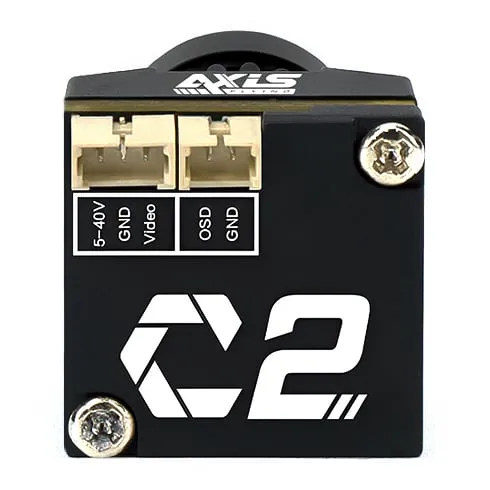

- 5-40V input at 60mA (12V), so it runs from a regulated FC pad or directly from the battery.
- PAL/NTSC selectable CVBS output with auto shutter, auto white balance and 2D noise reduction.
Specifications
- Sensor: 1/4-inch CMOS, 3.0µm pixel
- Resolution: 1200TVL
- Lens aperture: F1.2
- Field of view: H100°, V70°
- Aspect ratio: 16:9
- Video output: CVBS, PAL/NTSC
- Minimum illumination: 0.05 lux
- Input voltage: 5-40V
- Current draw: 60mA at 12V
- Size: 19 x 19mm
- Operating temperature: -20°C to 70°C
Ships with a connecting cable and mounting accessories. With no OSD menu, image settings are fixed, so it works best as a straightforward daily flyer or spare camera rather than a tunable freestyle cam.
| Camera Size | 19mm |
|---|---|
| FPV System | Analog |
| Aspect Ratio | 16:9 |
| Made in India | No |
| Brand | Axisflying |
| Sensor Size | 1/4" |
