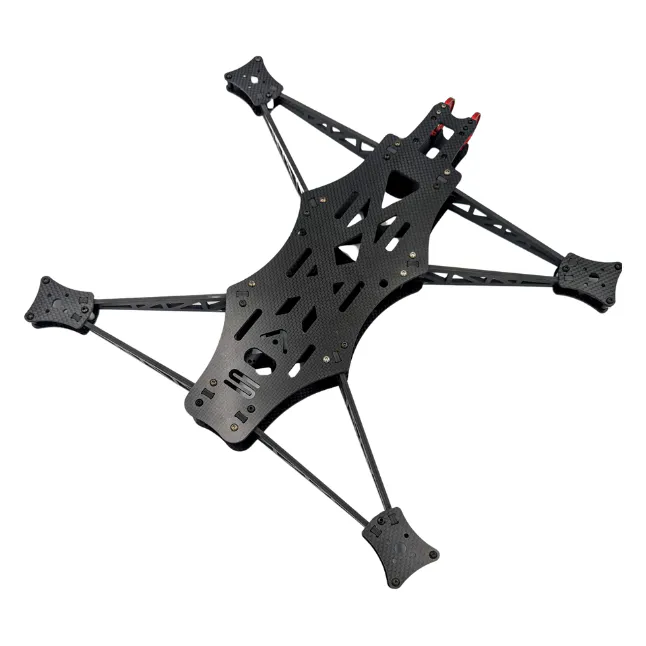

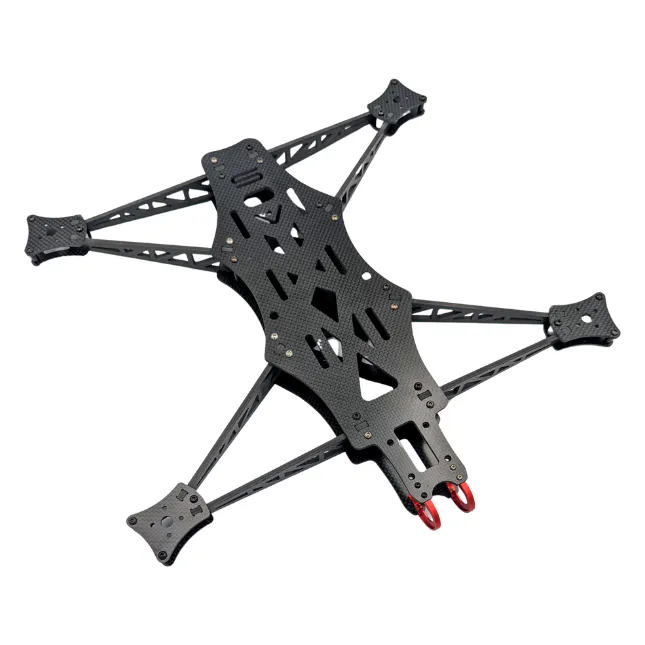

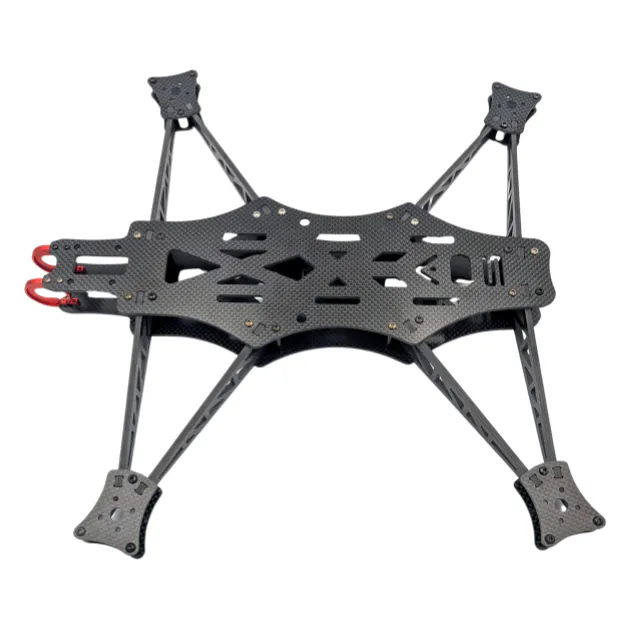

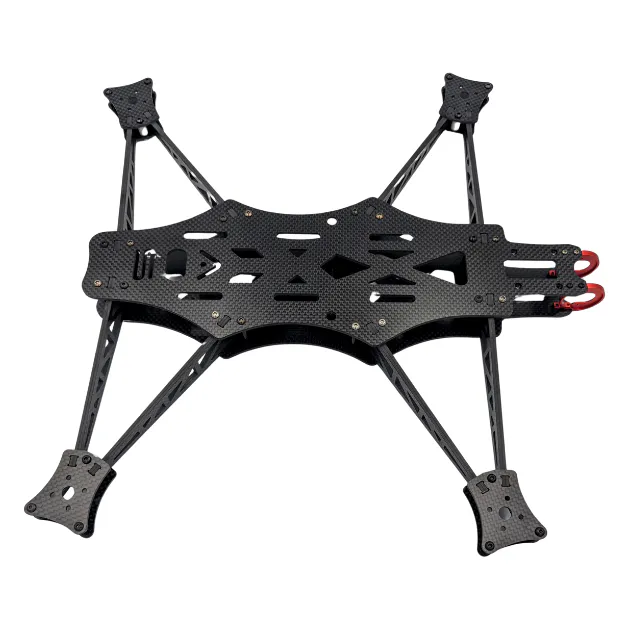

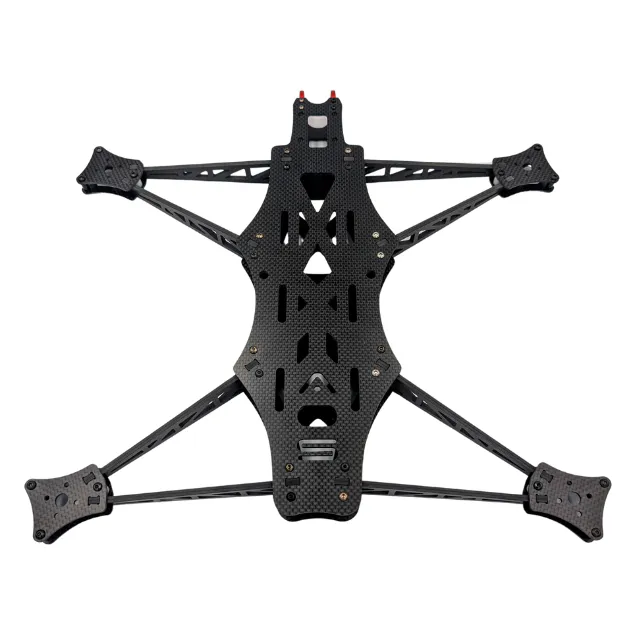

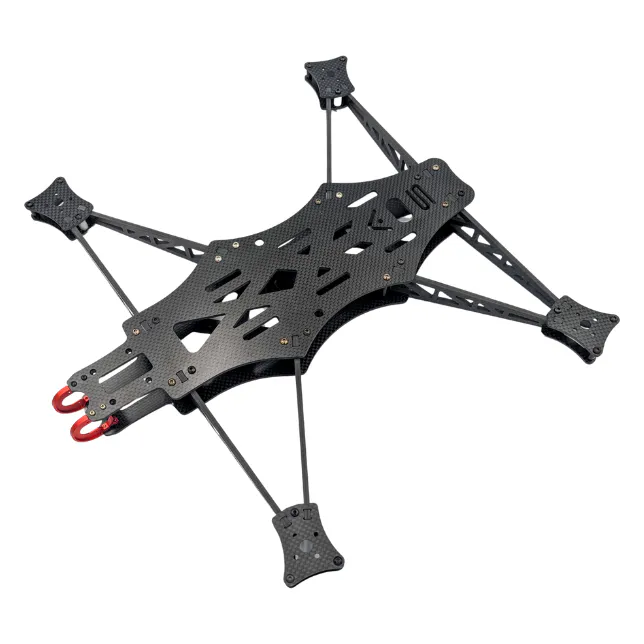

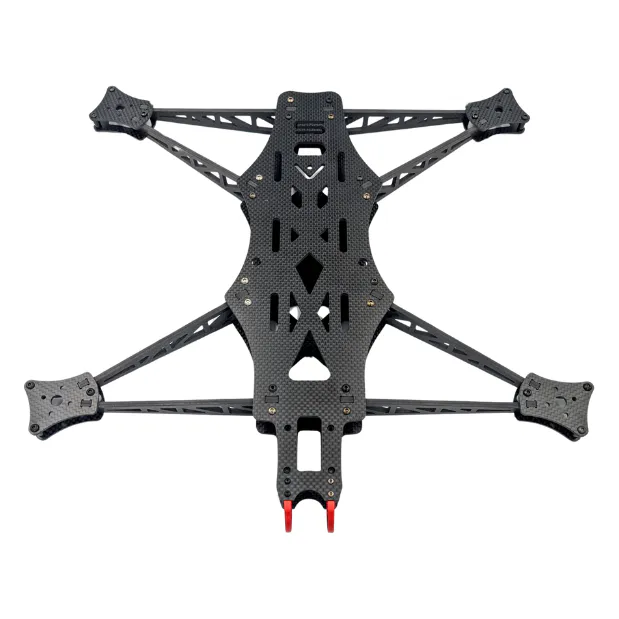

AOS UL10 V5 Frame Kit

The AOS UL10 V5 is an ultralight 10-inch frame engineered for high-efficiency long-range flights and stable, vibration-free HD footage. Designed using Chris Rosser's signature resonance analysis, the V5 geometry pushes frame resonances above the flight control bandwidth. This structural optimization delivers exceptionally clean gyro data and simplifies tuning, even when swinging massive 10-inch propellers on an ultralight carbon footprint.

Key features

• Optimized V5 frame geometry specifically scaled for ultralight 10-inch setups.
• Advanced topological resonance management eliminates mid-band vibrations.
• Integrated vibration damping system isolates the FPV camera from motor noise.
• Truss arm architecture maximizes rigidity while cutting excess weight for extended cruising efficiency.

Specifications

• Propeller compatibility: Up to 10 inches
• Camera sizing: 19mm, 20mm (DJI O3)
• Design generation: AOS V5
• Stack mounting: three positions, 30.5x30.5mm / 25.5x25.5mm / 20x20mm
• Motor mounting: 19mm pattern
• Camera cage: 7075 aluminium, soft mount for DJI O3 with ND filter support
• FPV field of view: 155 degrees with no props in view

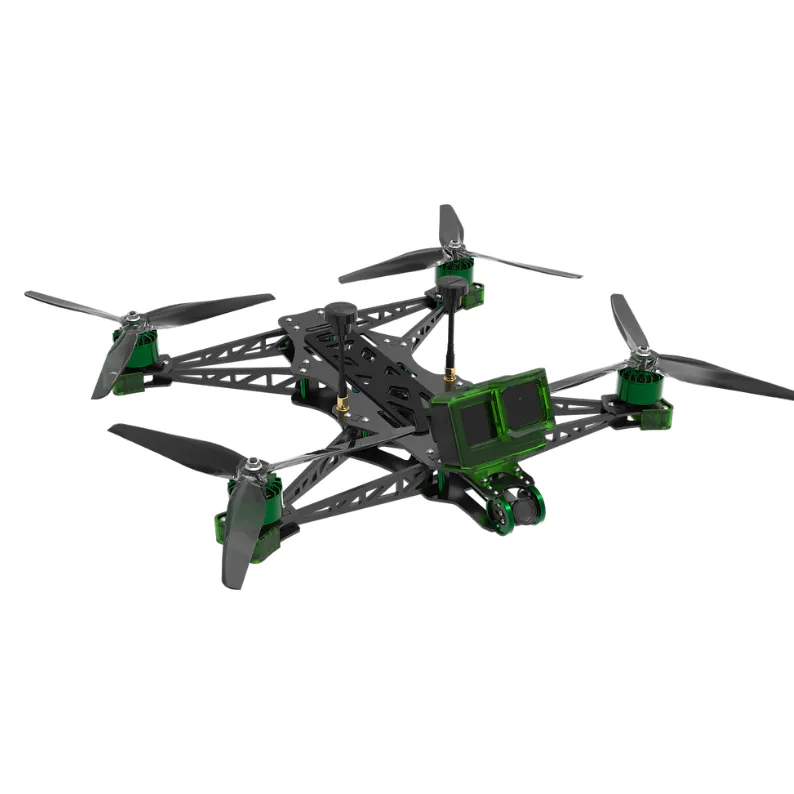

Ideal for mountain surfing and long-endurance autonomous flights. To fully exploit the efficiency of this ultralight 10-inch platform, pair the UL10 V5 with 3215-3220 motors (around 900KV on 6S or 750KV on 8S) and a high-capacity Li-ion battery pack.
