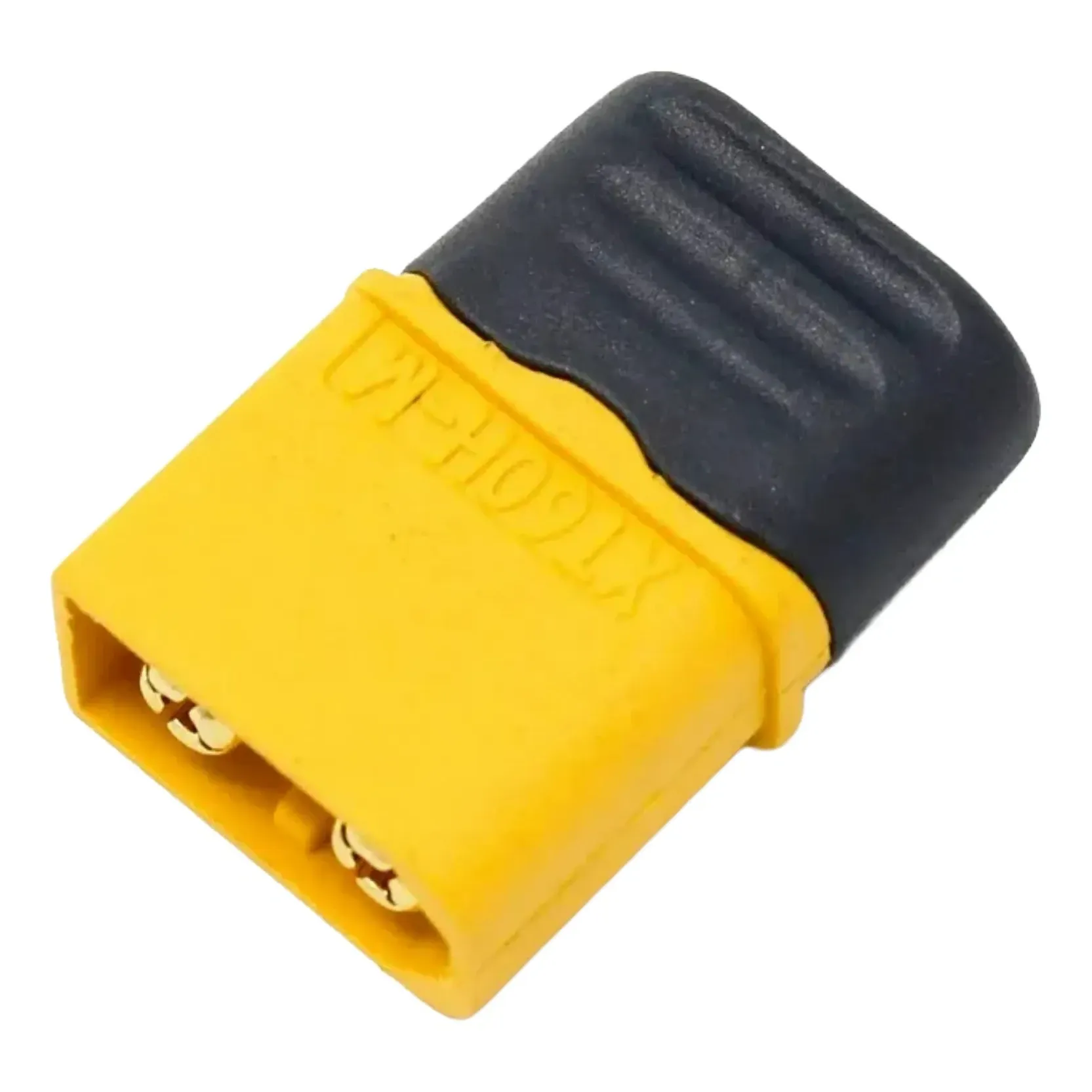

XT60H Male Battery Connector with Locking Housing

XT60H male battery connector with a snap-on housing that covers the soldered joints. It mates with any standard XT60 female. Use it to fit or replace the power lead on an ESC, PDB or flight stack, or to make charge and adapter leads for quadcopters, fixed wings, RC cars and boats.

Key features

• Protective housing: the locking shell clips over the solder cups once the wire is soldered, shielding the joints from shorts and knocks.
• High-temperature nylon body: less likely to deform or melt under heat and load than non-nylon copies.
• Gold-flash plated contacts: rated at 60 A and suitable for applications up to 65 A.
• Easier handling: the shell is shorter and lighter than the original XT60 and has a built-in grip for plugging and unplugging.
• Drop-in compatible: mates with original XT60 connectors, so your existing batteries and chargers need no changes.

Specifications

• Series: XT60H
• Gender: Male
• Contact plating: Gold flash
• Rated current: 60 A
• Operating temperature: -20 to +120 °C
• Wire size: up to 12 AWG
• Termination: Solder cup, straight
• In the box: 1 x XT60H male connector with housing

Tin both the solder cups and the wire before joining them, then slide the housing on once the joint has cooled. If you are making both ends of a lead, order an XT60H female separately.
