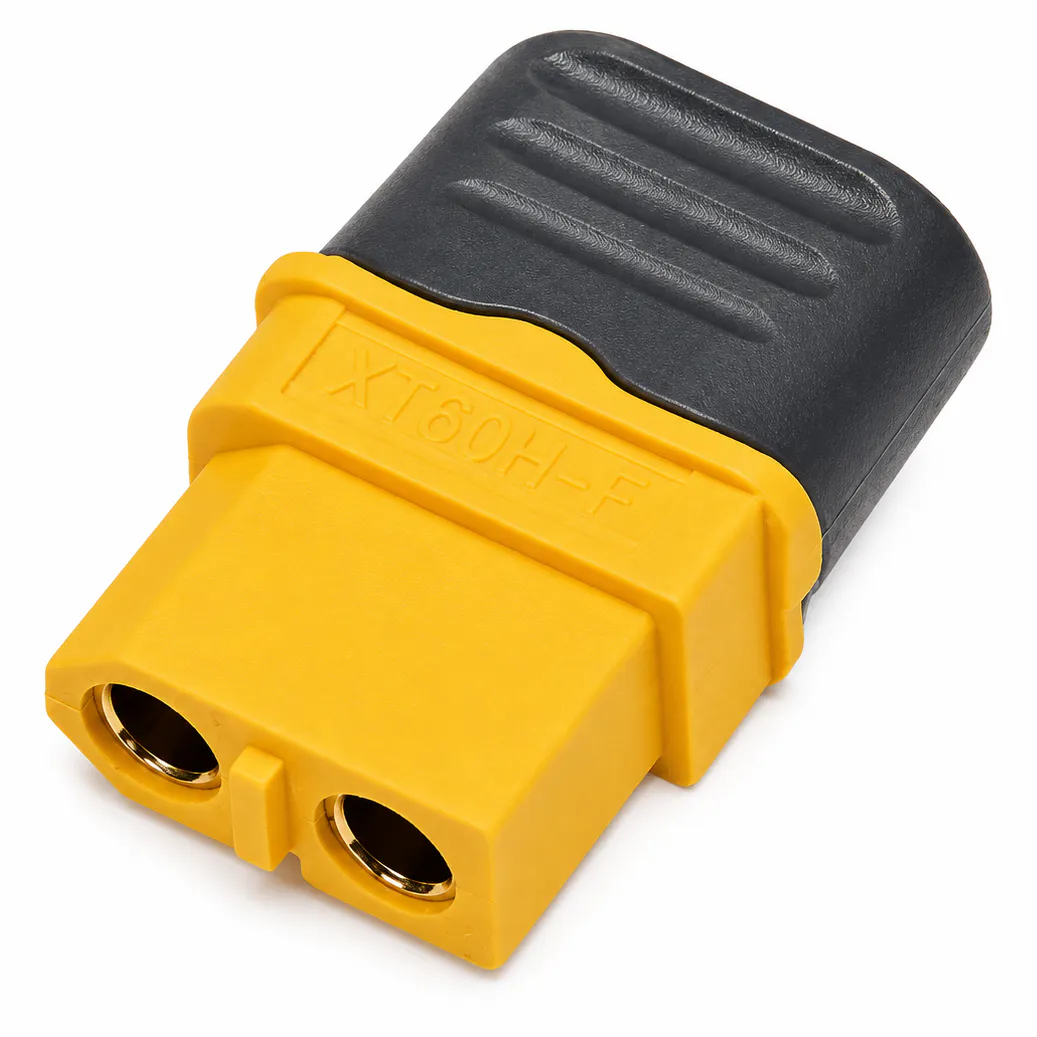

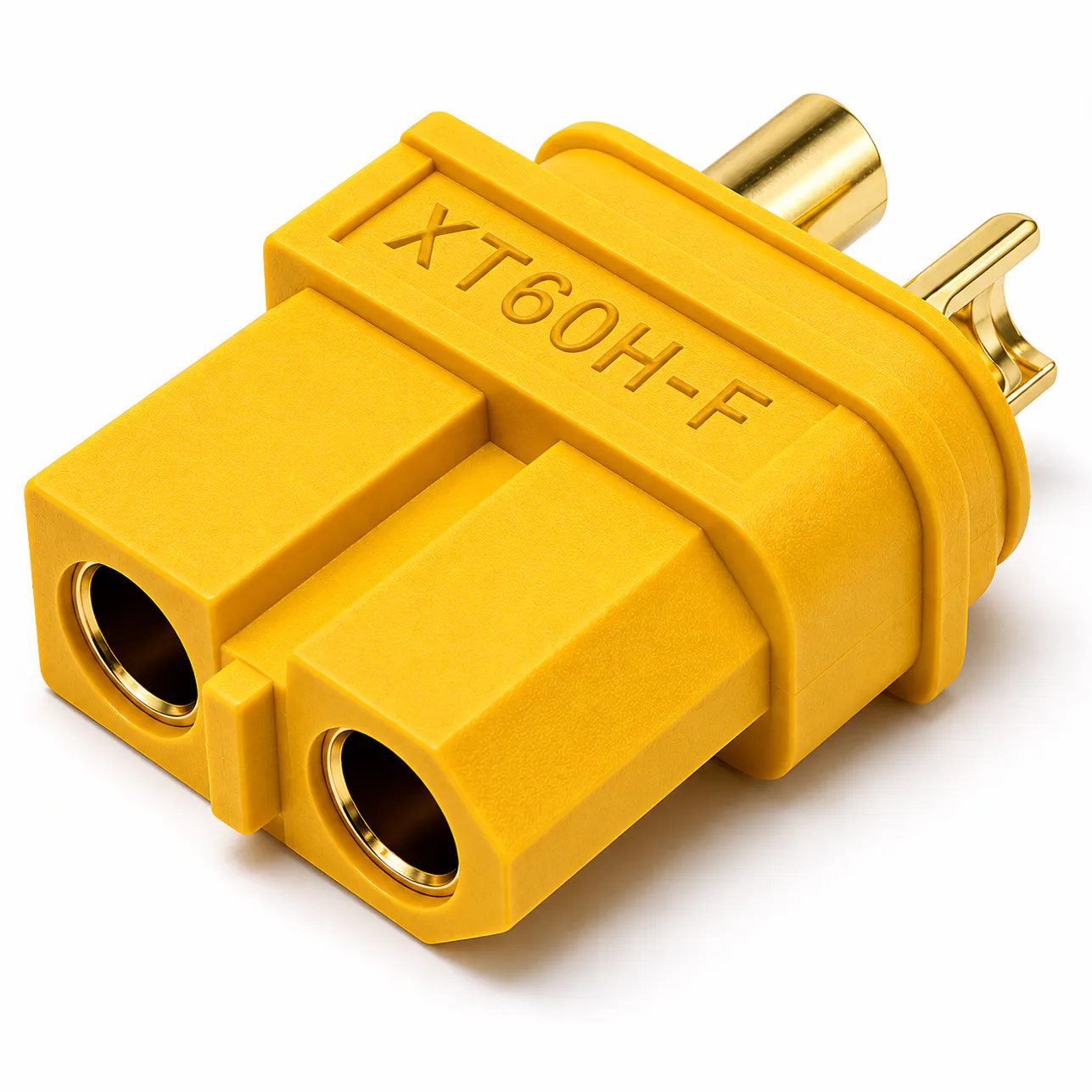

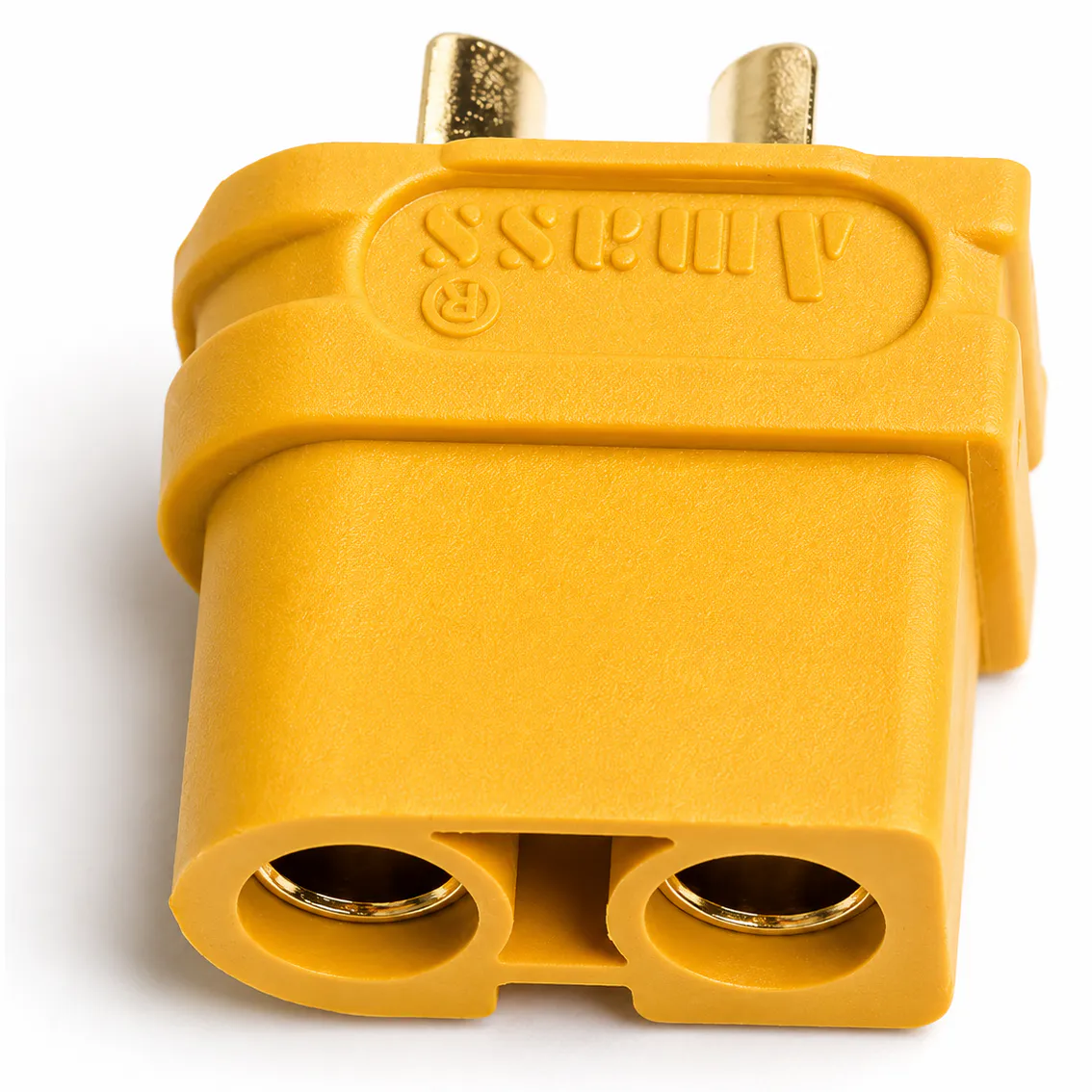

Amass XT60H Female Connector — Gold/Yellow

The Amass XT60H female connector is a standard power component for 3-inch to 5-inch FPV freestyle and racing drones, as well as general RC power systems. Featuring the upgraded "H" design, this connector includes a snap-on insulating cap that completely eliminates the need for heat shrink tubing over the solder cups. This reduces assembly time while providing better mechanical strain relief for your power leads.

Key features

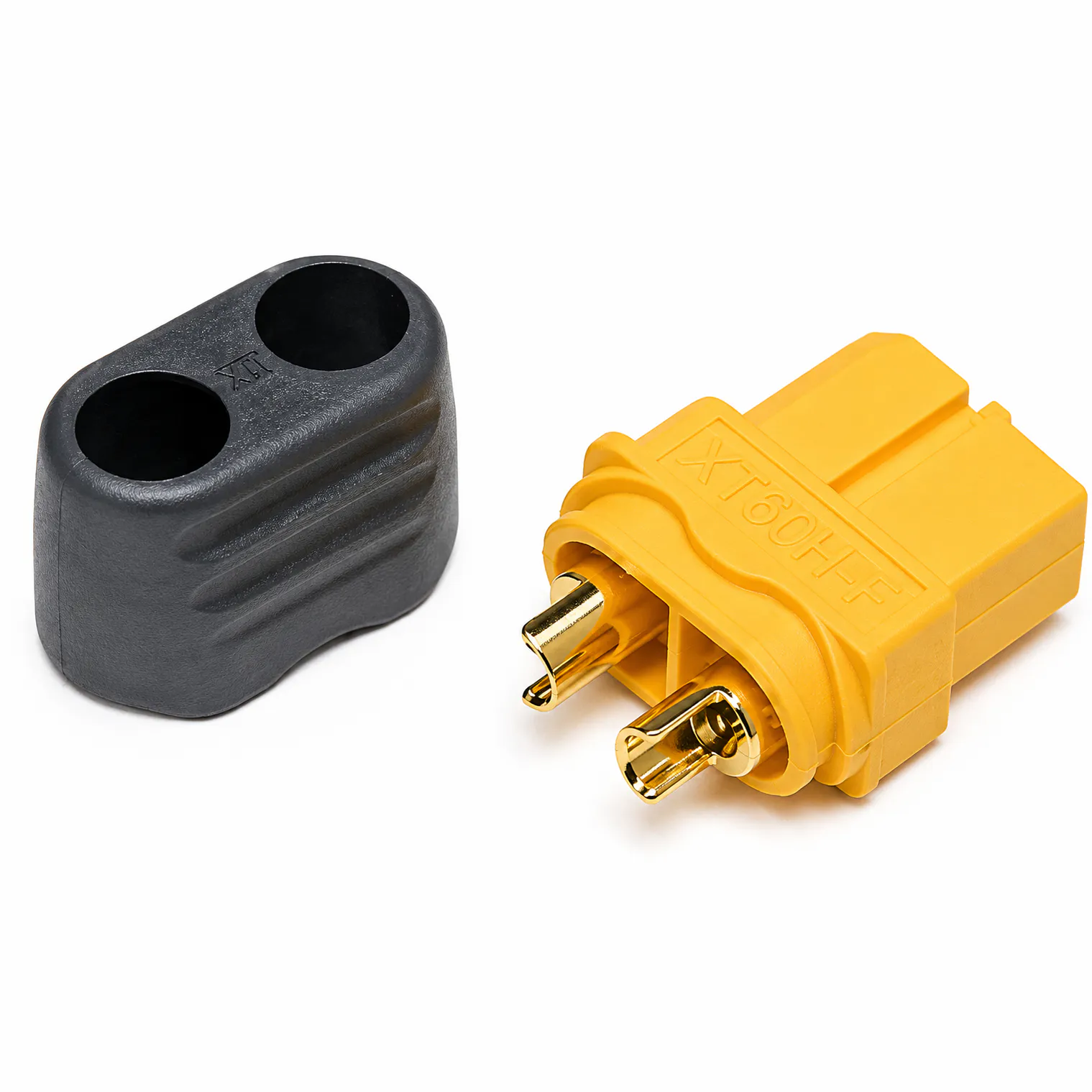

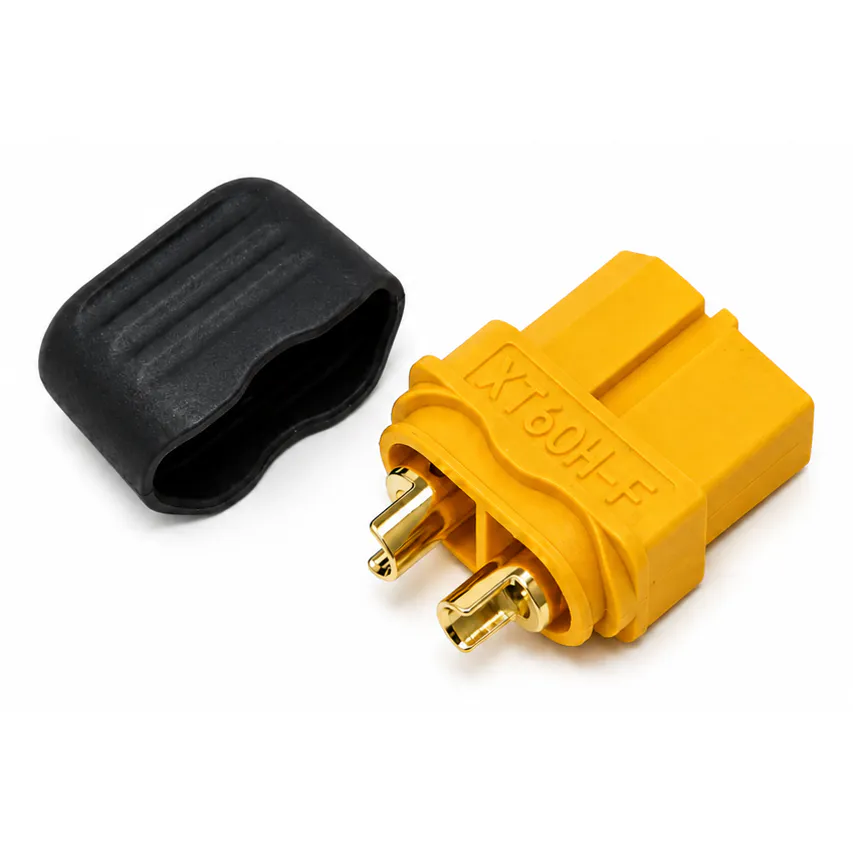

• Snap-on grey end cap replaces heat shrink and shields solder joints from mechanical stress
• Gold-plated brass bullet contacts deliver high conductivity and a reliable connection
• Heat-resistant nylon housing prevents connector deformation during heavy soldering or high-current draw
• Keyed housing design inherently prevents reverse-polarity connections

Specifications

• Connector Type: XT60H Female
• Continuous Current: 30A
• Burst Current: 60A
• Housing Material: Heat-resistant Nylon
• Contact Material: Gold-plated Brass
• Recommended Wire Gauge: 12AWG to 14AWG

In standard FPV and RC wiring configurations, female XT60 connectors are installed on the battery pack, while the corresponding male connector is soldered to the ESC, PDB, or flight controller power lead.
