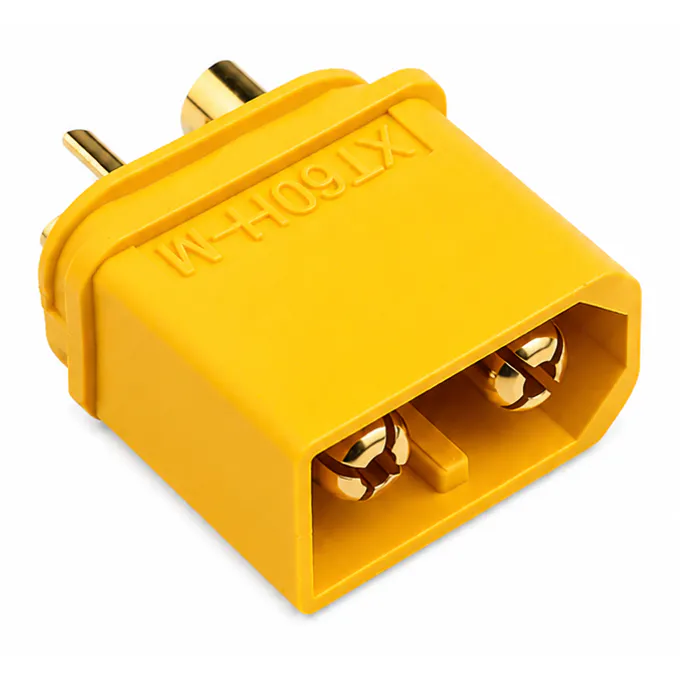

Amass XT60H-M Connector (Grey/Yellow)

The Amass XT60H Male (XT60H-M) connector is a direct upgrade to the standard XT60, designed for FPV drone power leads, charging adapters and custom wiring harnesses. It features a snap-on insulating end cap that completely eliminates the need for heat shrink tubing, streamlining your build process while providing a cleaner, more robust strain relief for your heavy-gauge battery cables.

Key features

• Integrated snap-on grey housing replaces traditional heat shrink and physically protects the solder joints from mechanical stress.
• Gold-plated brass bullet contacts ensure low contact resistance (0.50mΩ) and reliable high-current power delivery.
• High-temperature nylon (PA) construction withstands extreme heat during soldering and handles high-draw flight operations without melting.
• Asymmetric, polarised housing geometry physically prevents accidental reverse-polarity connections.

Specifications

• Connector type: XT60H Male
• Continuous current: 30A
• Peak current: 60A
• Recommended wire gauge: 12AWG
• Contact material: Gold-plated brass
• Insulation material: Nylon/PA
• Temperature rating: -20°C to 120°C
• Contact size: 4.5 mm
• Voltage rating: 500V DC
• Weight: 6 g

This male connector is typically soldered to the drone's ESC power lead, flight controller AIO, or power distribution board. When soldering, temporarily mate it with a female XT60 to keep the internal pins perfectly aligned and prevent the plastic housing from warping under the iron's heat.
