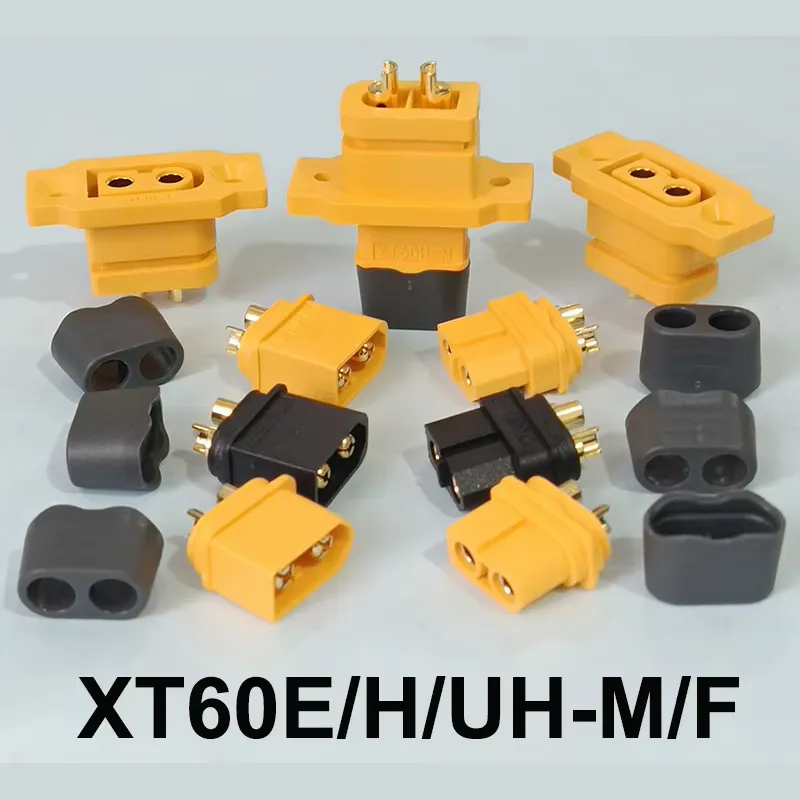

Amass XT60UH Battery Connector (Male / Female / Pair)

The genuine Amass XT60UH is a single XT60-type power connector, fully compatible with standard XT60 plugs, for LiPo packs, ESC and PDB power leads, chargers and RC models. Choose the male or the female half, each with or without a protective cap.

Key features

• Rated 500 V, with 30 A long-term and 60 A maximum current
• Gold-plated brass contacts for low resistance and strong corrosion resistance
• High-temperature nylon housing designed for easy soldering and a secure, vibration-resistant fit
• Cap versions include a cover that keeps out dust and debris and prevents accidental shorts on spare packs and field kits
• Drop-in XT60 compatibility, so it mixes freely with packs and leads already on XT60

Specifications

• Connector: Amass XT60UH-M (male) or XT60UH-F (female)
• Rated voltage: 500 V
• Long-term current: 30 A
• Maximum current: 60 A
• Contacts: gold-plated brass
• Housing: high-temperature nylon
• Options: male or female, with or without cap

The female normally goes on the battery and the male on the ESC or power lead, so order one of each to make up a matched connection. XT60 leads are commonly made up with 12AWG silicone wire.
