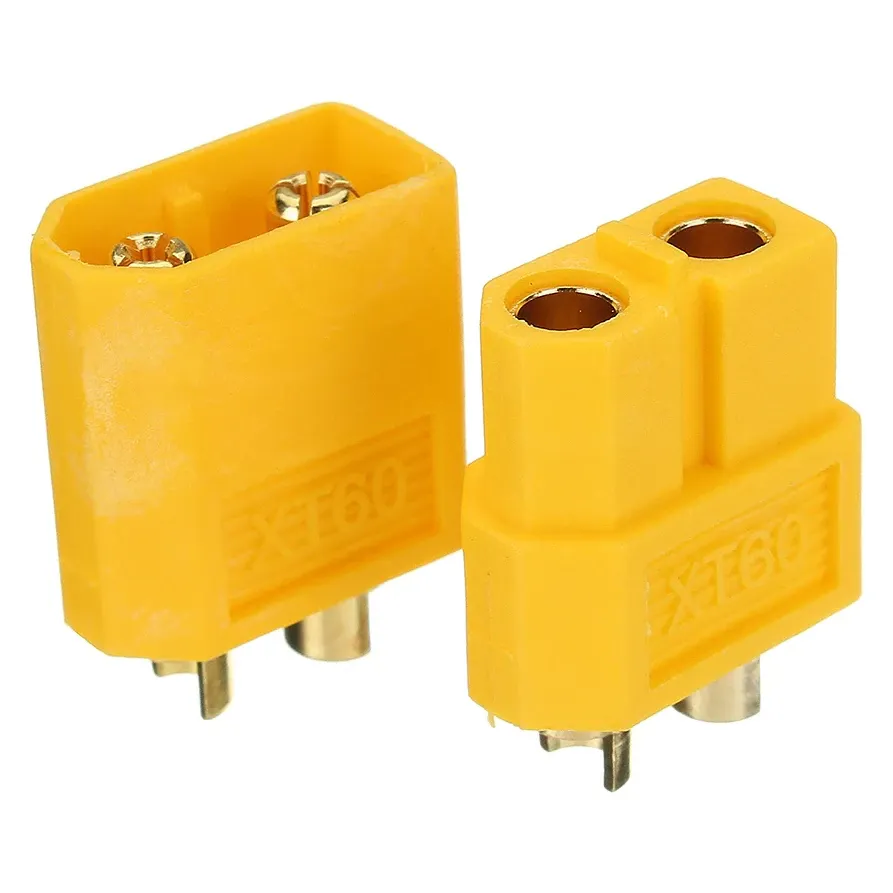

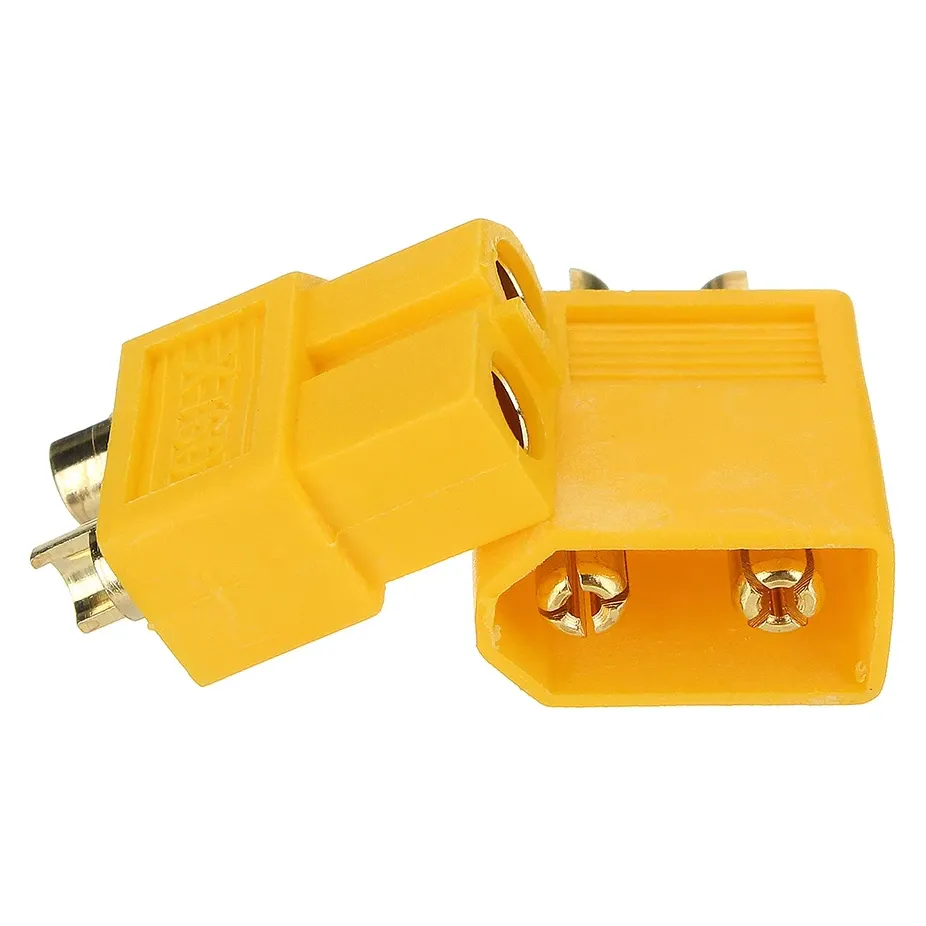

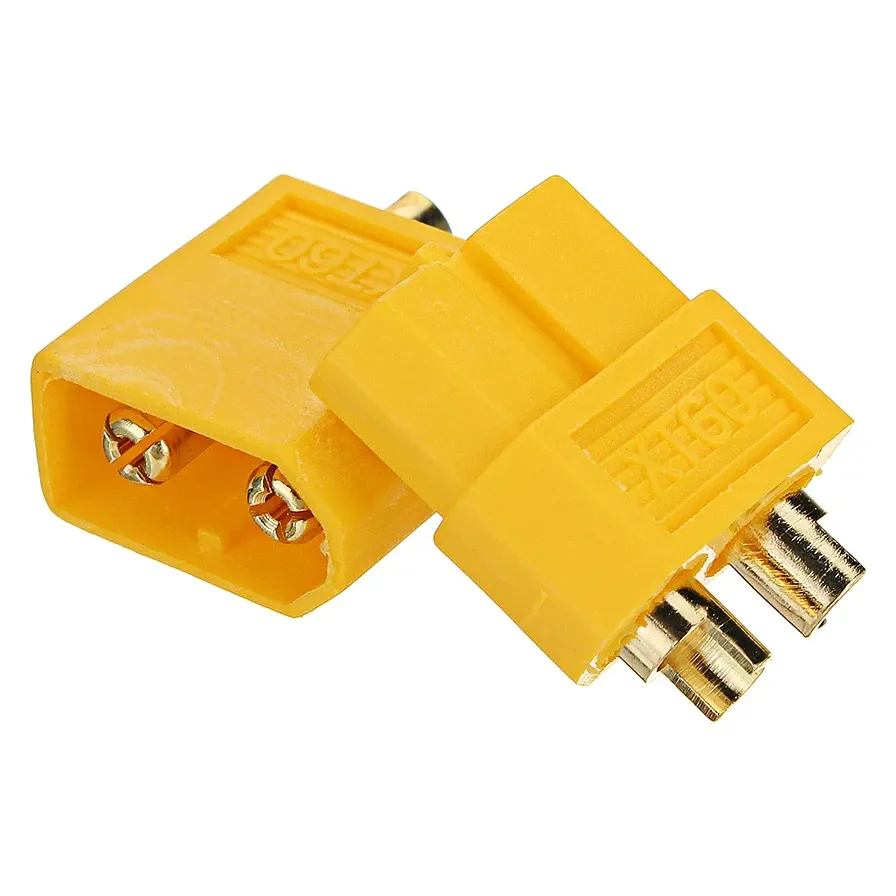

XT60 Bullet Connector Plug, 60A, Male or Female

A single XT60 power connector for battery leads, ESC and PDB pigtails, charger leads and adapter cables in drone and RC builds. Choose the male (pin) or female (socket) half; the keyed body only mates one way round, so polarity cannot be reversed.

Key features

• Gold-plated brass spring contacts moulded into a high-temperature polyamide (nylon) body
• Rated 60 A and 500 V DC
• Accepts wire up to 12 AWG
• Operating range -20 °C to 120 °C
• Yellow, two-pin, sold as one plug

Specifications

• Connector: XT60, 2-pin

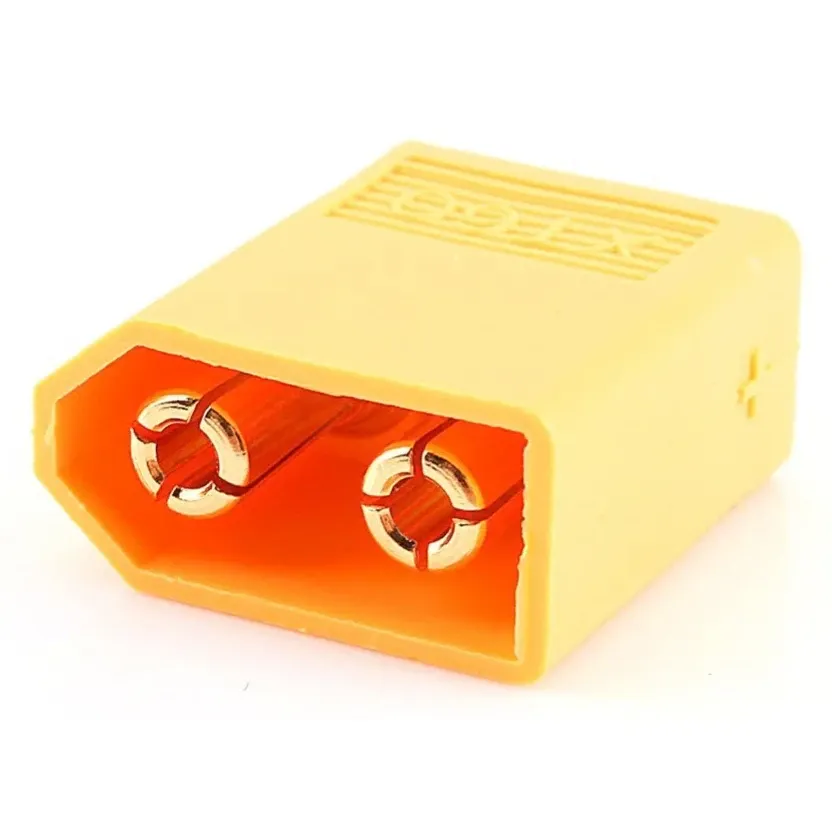

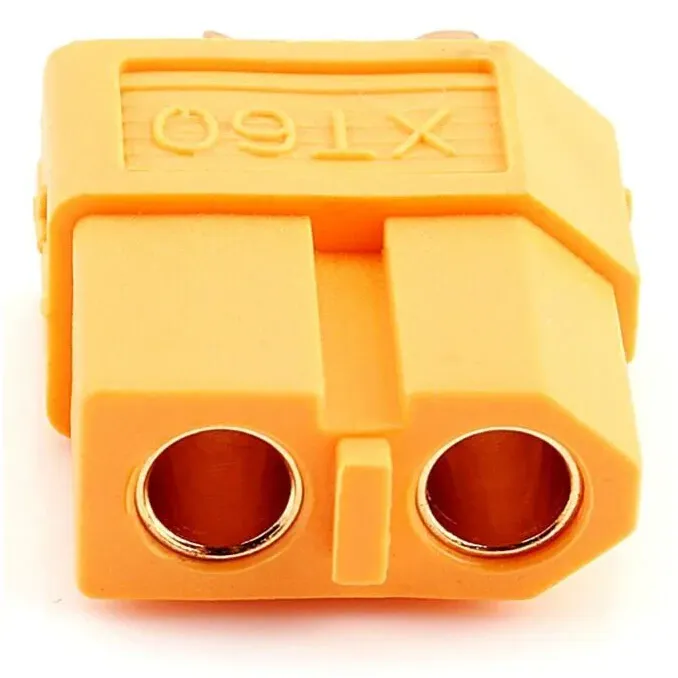

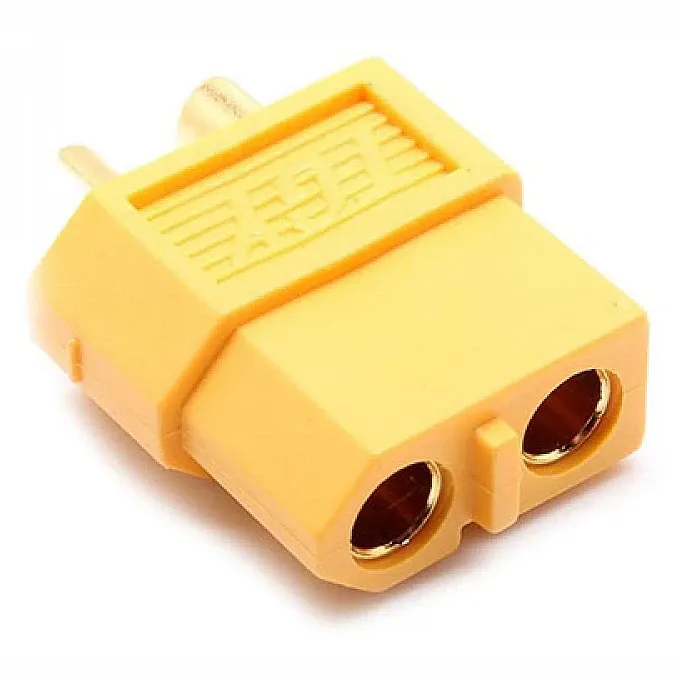

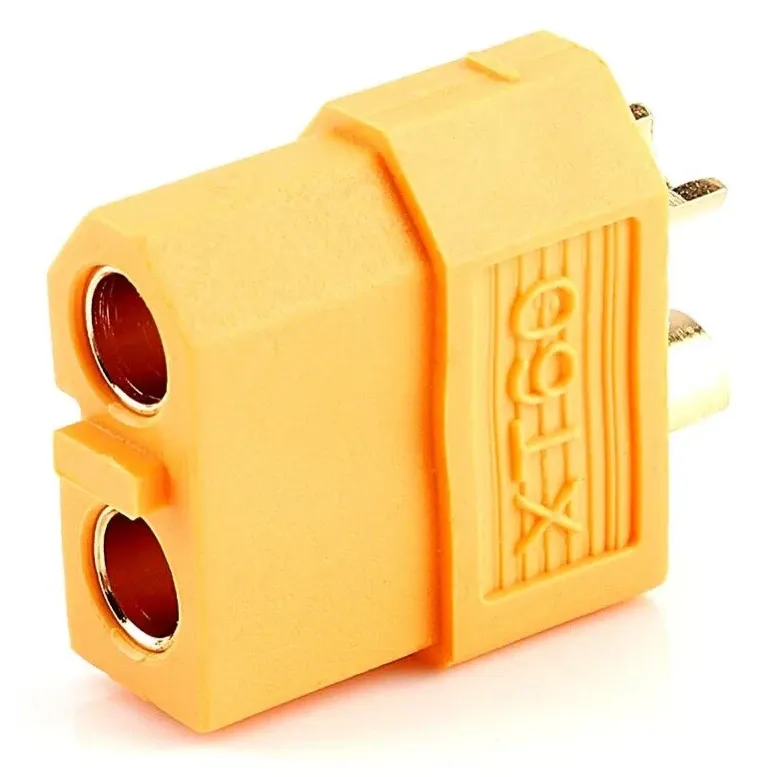

• Gender: Male or female (select option)
• Rated current: 60 A
• Rated voltage: 500 V DC
• Wire size: up to 12 AWG
• Body / contacts: Polyamide / gold-plated brass
• Operating temperature: -20 °C to 120 °C
• Colour: Yellow

Standard practice puts the female (socket) half on the battery or power source, so its live contacts stay shrouded, and the male (pin) half on the ESC, PDB or charger lead. Slip heat shrink onto the wire before soldering, then shrink it over each joint.
