Amass XT90 Male / Female Battery Connector

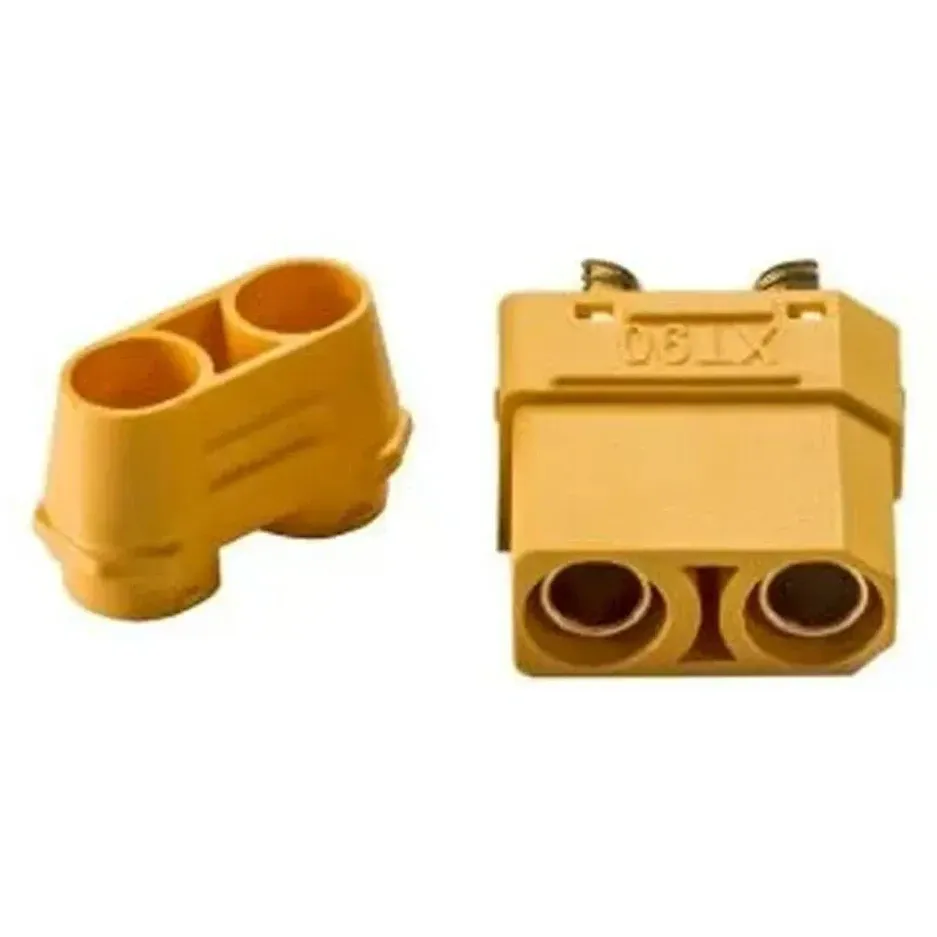

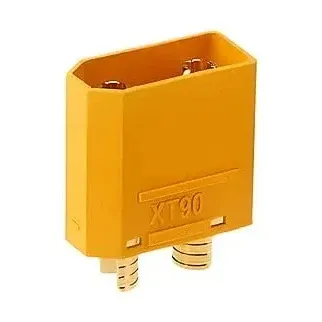

The genuine Amass XT90 is the high-current step up from the XT60, used on large multirotors, cinelifters, big fixed-wing models and high-capacity battery packs. Its gold-plated brass contacts are moulded into a high-temperature nylon body, which keeps them aligned for easy plugging and unplugging. Choose a single male or female connector, with or without the housing.

Key features

• Amass rating of 45 A at a temperature rise under 85 °C, ahead of the XT60's 35 A
• 4.5 mm gold-plated brass contacts moulded in place for low contact resistance and consistent alignment
• Polarised body shape guards against shorting and reverse-polarity connection
• Takes wire up to 8 AWG, with semicircular solder terminals that make fitting the wire easier

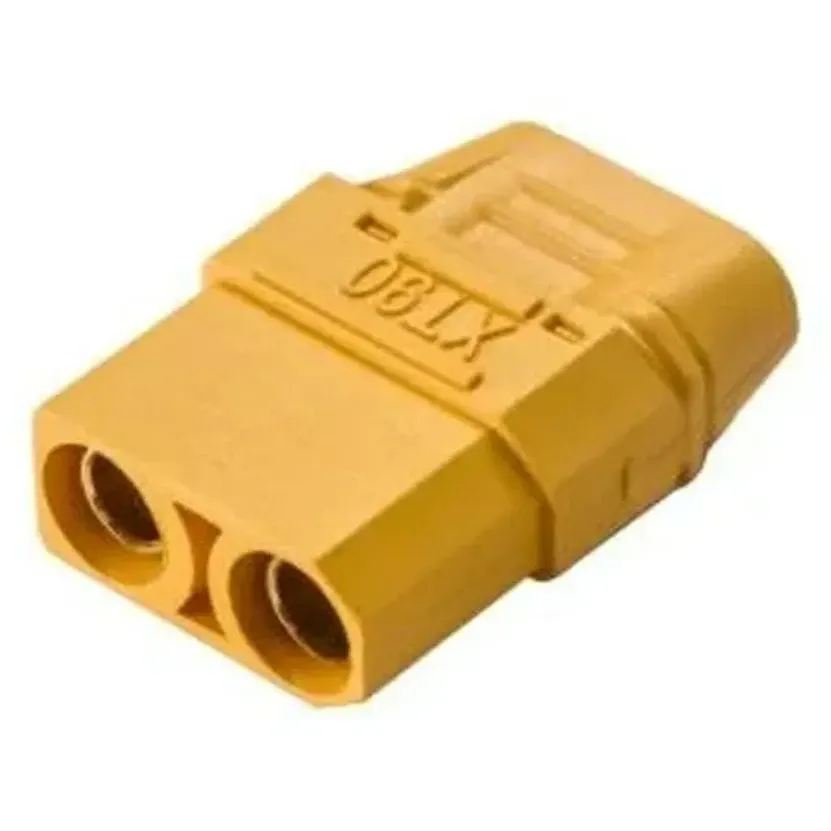

• Housing versions (XT90H) add a cover over the solder joints that insulates them against shorts

Specifications

• Connector: Amass XT90 or XT90H, male or female
• Rated current: 45 A max (temperature rise under 85 °C)
• Contact resistance: 1.2 mΩ max
• Contacts: 4.5 mm, gold-plated brass
• Wire size: up to 8 AWG
• Mating cycles: 100
• Operating temperature: -20 °C to 120 °C
• Flammability: UL94 V-0
• Weight: 6 g (housing version)

The female normally goes on the battery and the male on the ESC or PDB lead. On high-voltage packs where plug-in sparks become a problem, the XT90-S anti-spark version mates with the same XT90 interface.
