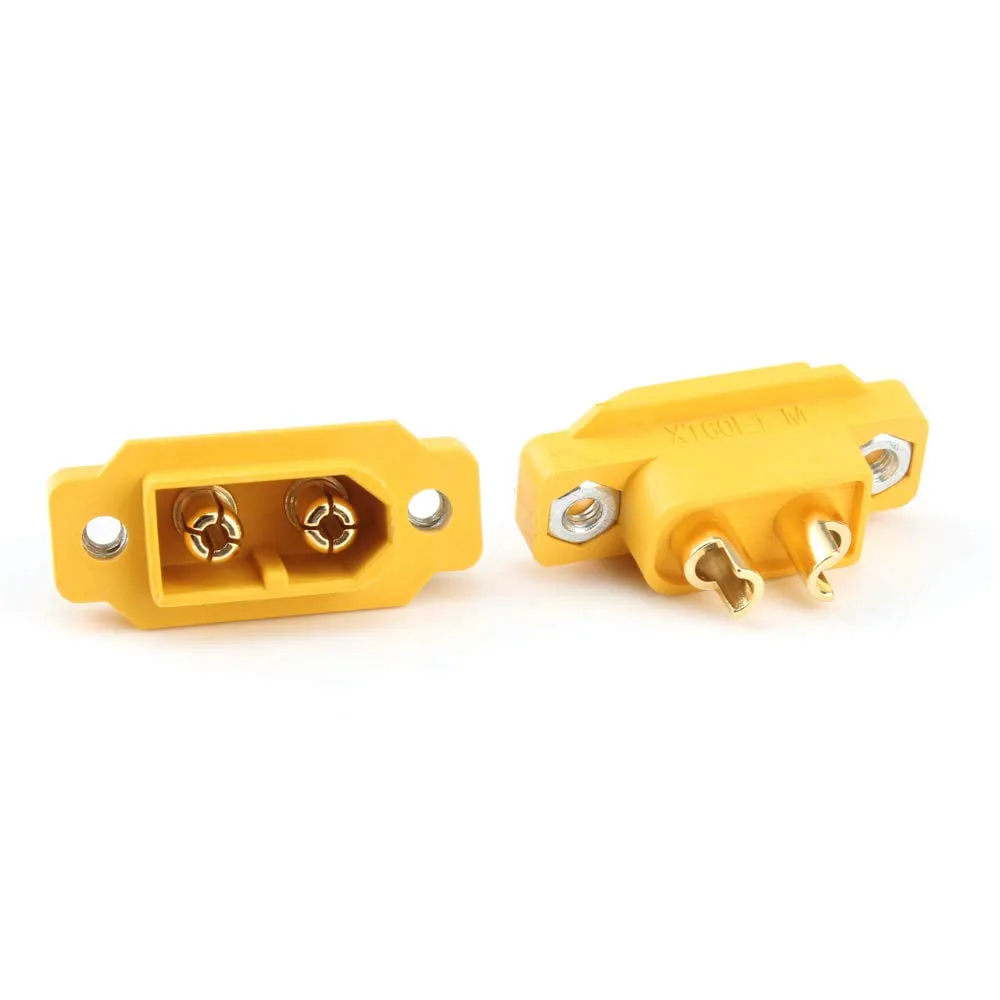

Amass XT60E-M Mountable XT60 Male Connector

The Amass XT60E-M is a mountable XT60 male connector for FPV power leads, bench rigs and custom enclosures where you want the battery connection fixed to a panel rather than left loose in the wiring. Its flanged body with side screw holes suits clean, strain-managed installations in frames, cases and charger stations that use XT60 wiring.

Key features

• Panel-mount XT60 male connector for a fixed external power port.

• Side screw holes let you secure the connector to a plate, enclosure or frame.

• Useful when you want the mating wear on the exposed connector, not on the wiring harness.

• Works well for custom FPV power setups, charger boxes and other XT60-equipped electronics builds.

• Available in yellow and black variant options.

Specifications

• Connector type: XT60 male

• Mounting style: Panel mount with side screw holes

• Brand: Amass

• Available colours: Yellow, Black

• Mounting holes: M3

• Dimensions: 27 x 16 x 8 mm

• Weight: 3 g

• Contacts: Gold-plated brass

• Housing: PA66 nylon, UL94 V-0 flame rated

• Temperature range: -20 to 120 °C

Choose this version if your build needs a rigid XT60 output on the outside of an enclosure or tray; if you need a loose in-line connector instead, a standard non-mountable XT60 is the better match.
