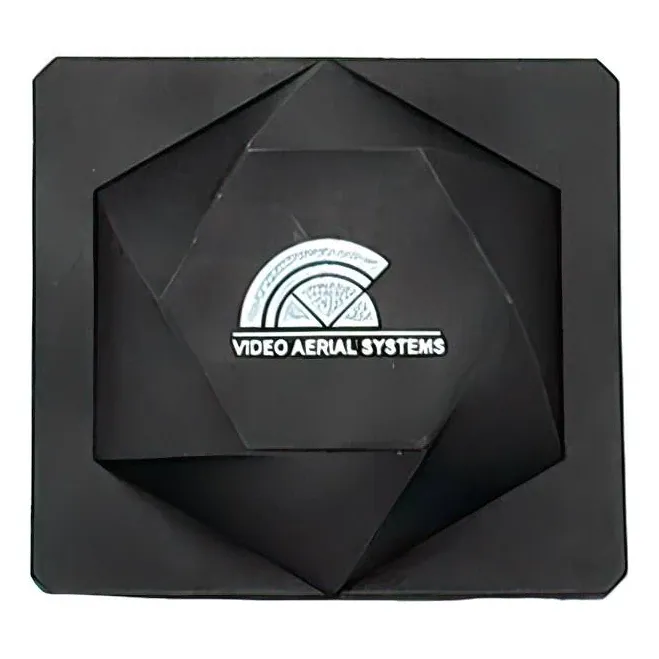

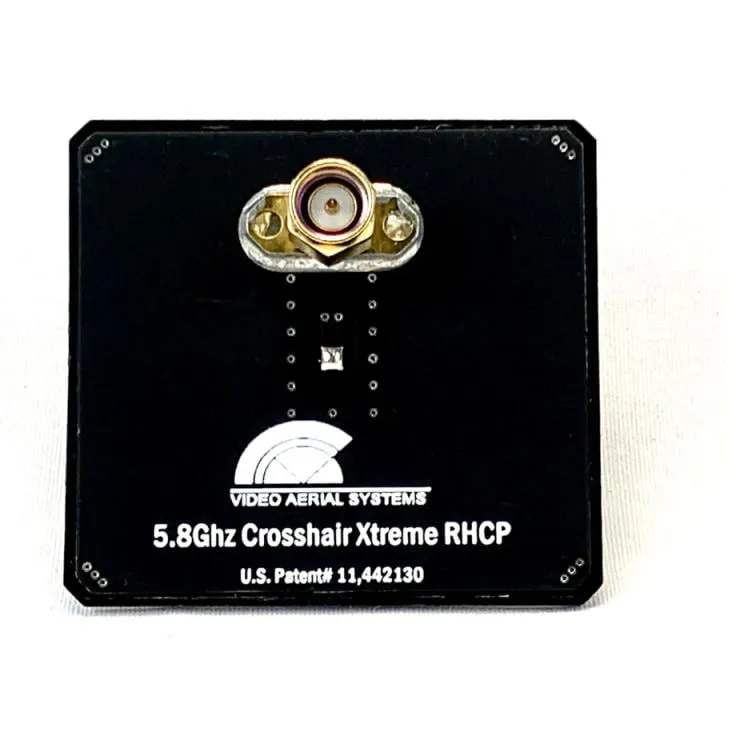

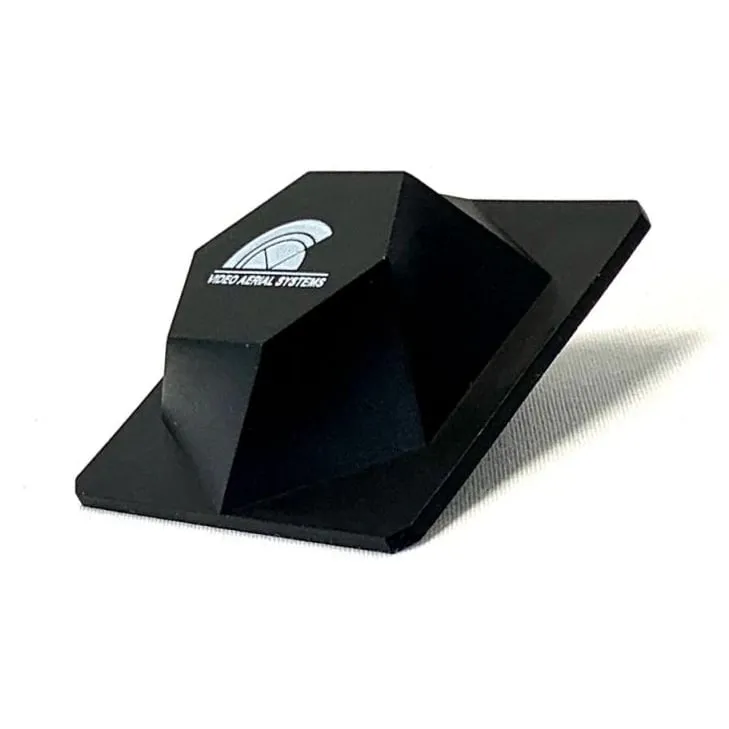

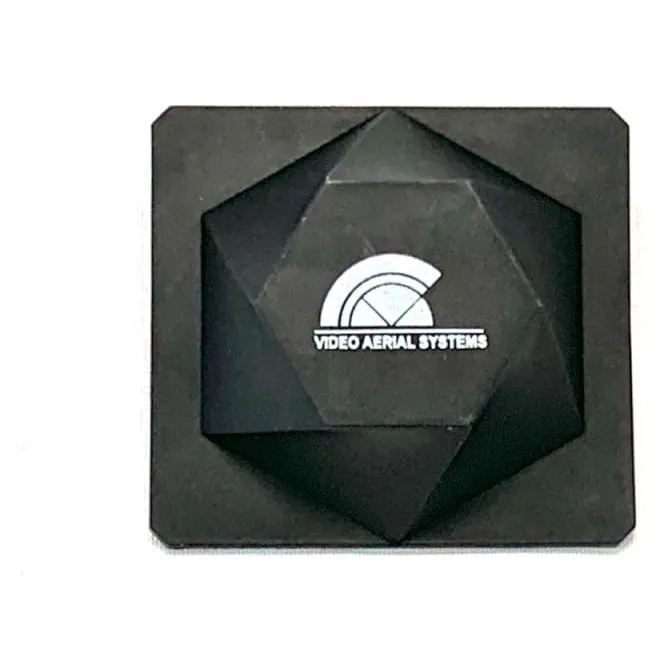

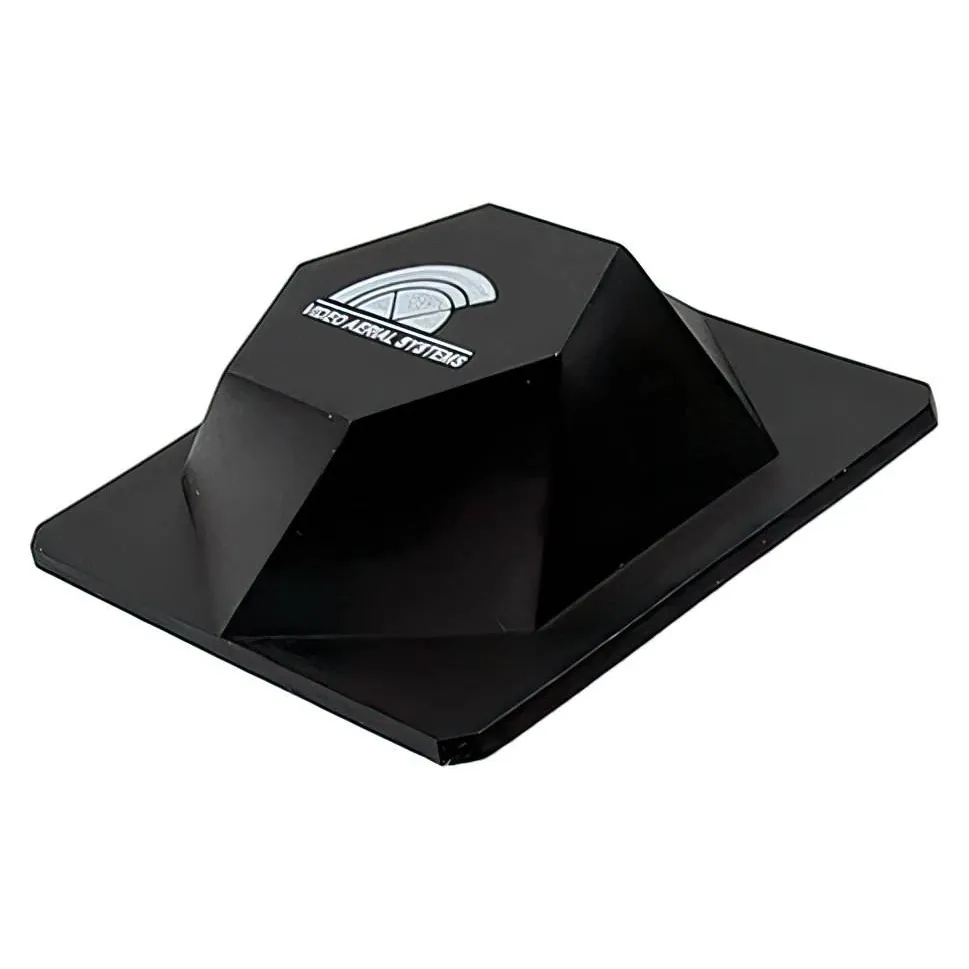

VAS Crosshair Xtreme Mini 5.8GHz Antenna (RHCP)

Designed by IBCrazy at Video Aerial Systems, the Crosshair Xtreme Mini packs the industry-leading performance of the classic Crosshair Xtreme into a significantly more compact form factor. This 5.8GHz directional patch antenna is tailored for FPV goggles and ground stations, giving long-range and freestyle pilots reliable penetration through heavy foliage and structures without adding unnecessary bulk to their headset.

Key features

• Miniaturised footprint designed specifically for goggle modules, maintaining aggressive signal penetration in a low-profile shell.
• Exceptional 0.99 axial ratio provides near-perfect rejection of multipath interference in challenging band environments.
• Ultra-wide 120-degree flight beamwidth ensures a consistent video link even when flying off-centre from the patch direction.
• Features a semi-rigid cable that holds its shape, allowing you to angle the patch perfectly for your normal head position.

Specifications

• Frequency: 5.8GHz
• Bandwidth: 5300-6400 MHz
• Gain: 10.0 dBic
• Axial Ratio: 0.99
• Flight Beamwidth: 120°
• -3 dB point: +/- 30°
• Polarisation: RHCP
• Connector: SMA

Pair this RHCP directional antenna with a high-quality omni on receiver modules like the RapidFIRE, TBS Fusion, or SteadyView to push the limits of your 5.8GHz analog system.
