HGLRC Mini Hammer Antenna V2 5.8GHz (IPEX)
₹799Incl. GST
SKU HGLRC-MINI-HAMMER-V2-IPEX-LHCP
Polarization: LHCP
Polarization: RHCP, LHCPAntenna Connector: U.FLFrequency: 5.8GHzMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

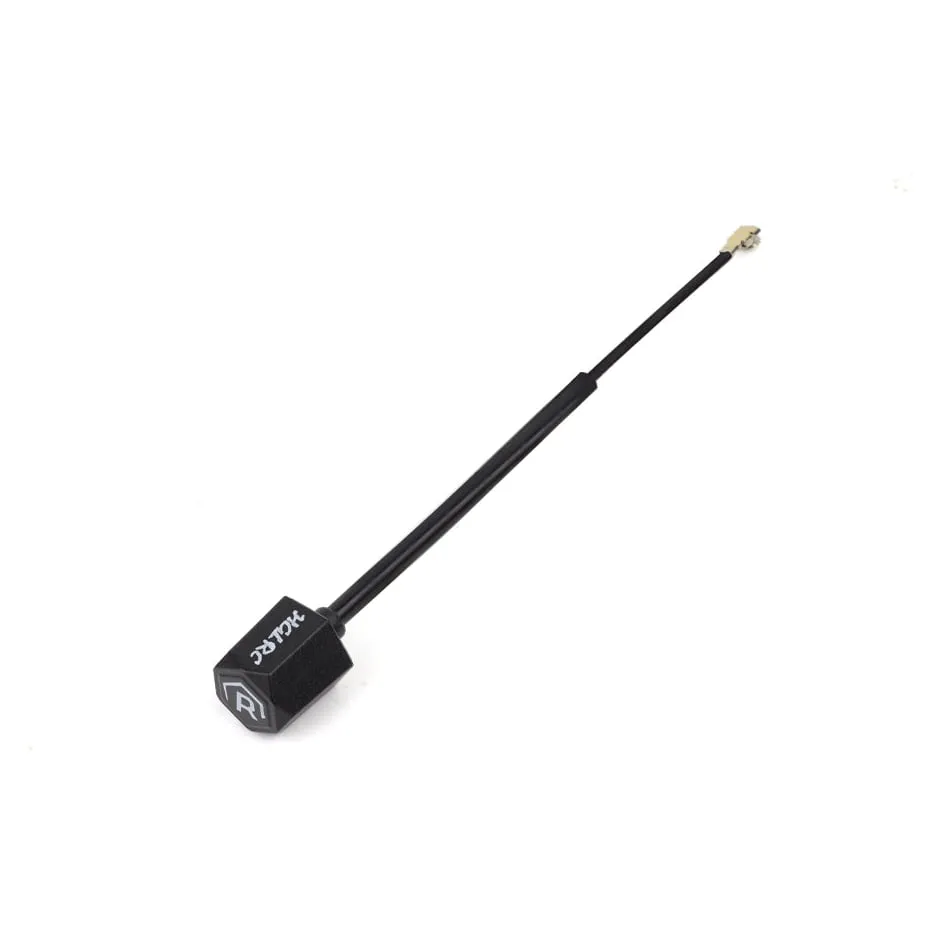

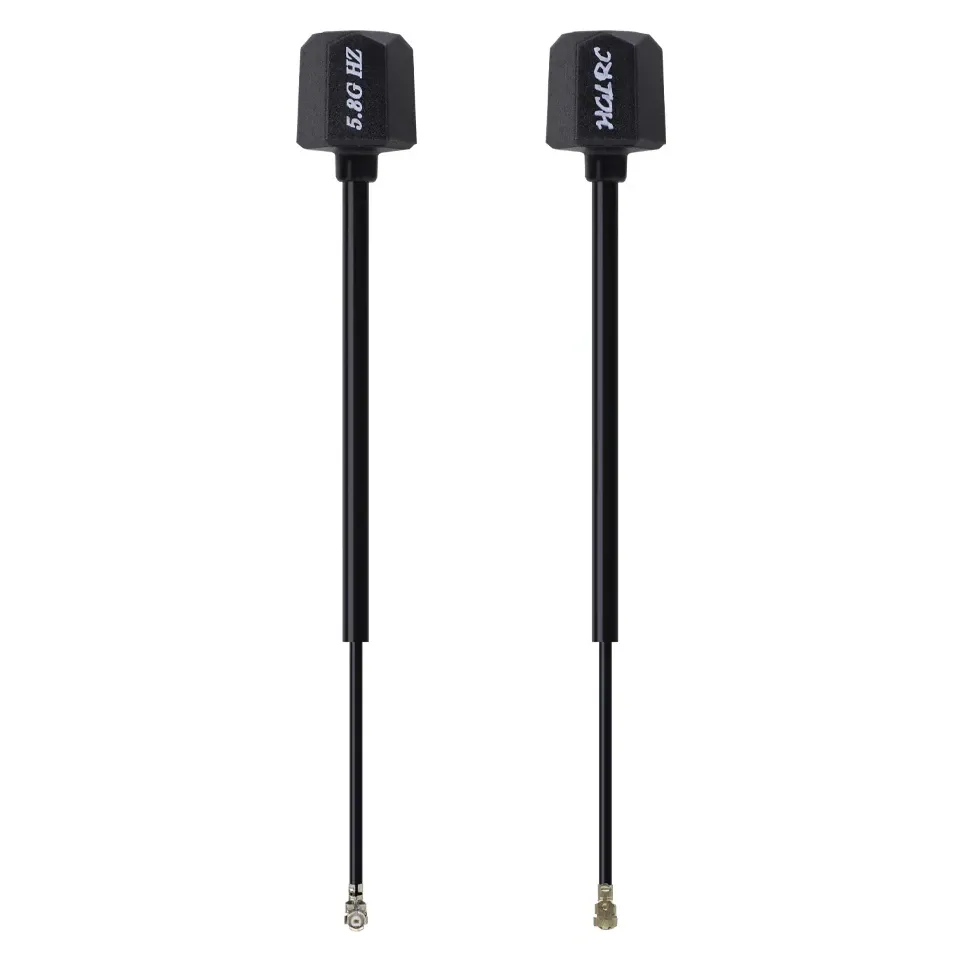

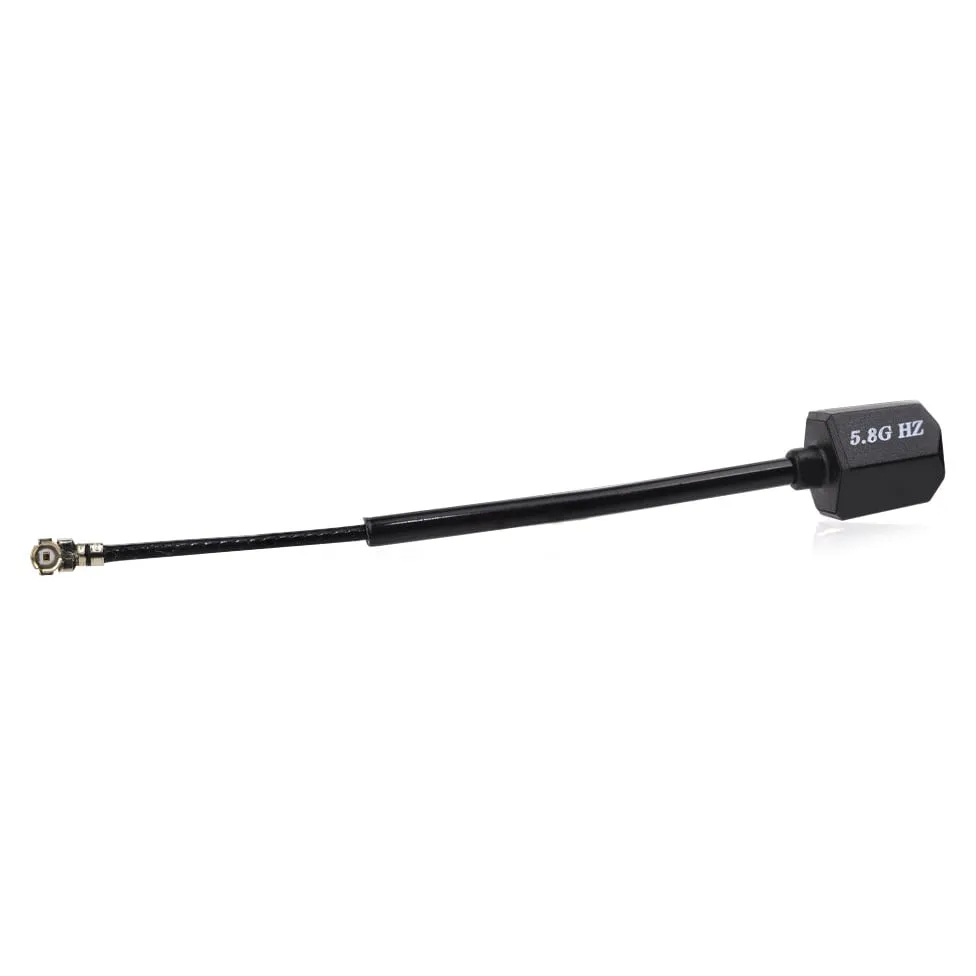

The HGLRC Mini Hammer Antenna V2 is a 1.5 g, 5.8GHz FPV video antenna on an IPEX (U.FL) lead, made for compact quads and cinewhoops where a full-size SMA antenna will not fit. HGLRC lists it for its Rekon35 V2.
Key features

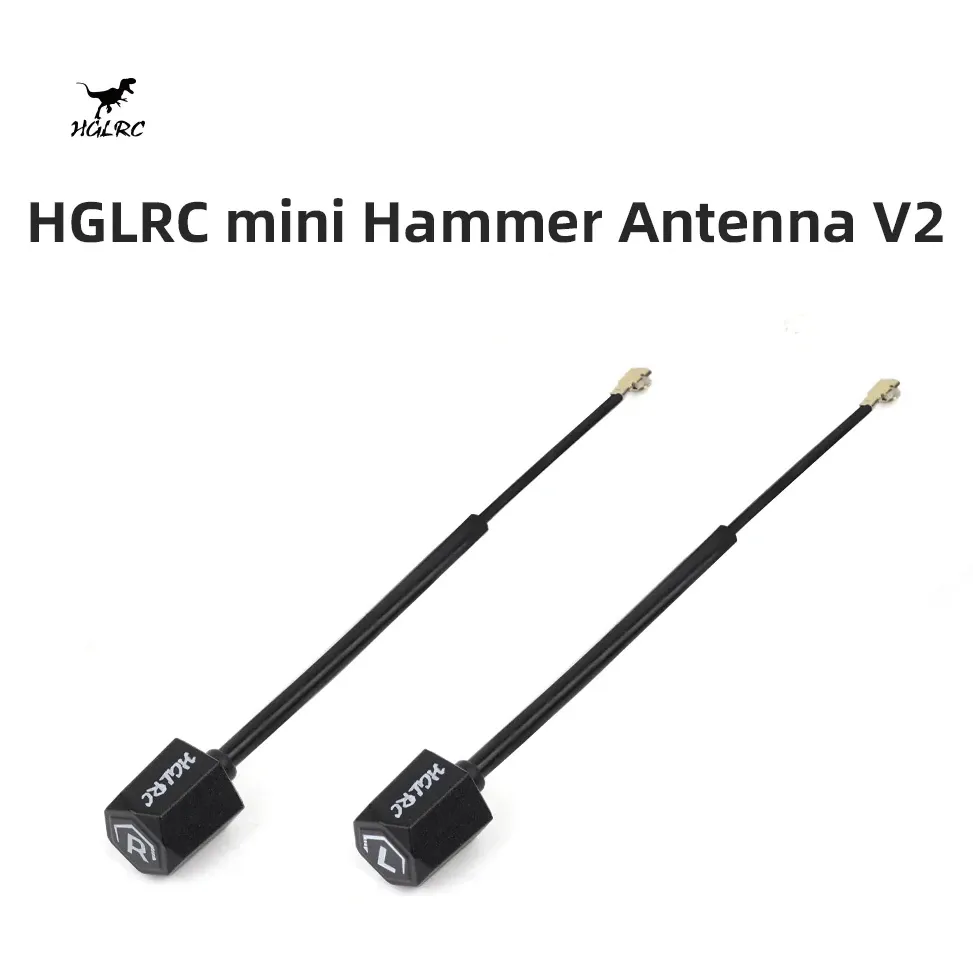

- Choose RHCP or LHCP polarisation to match the antennas on your goggles or video receiver
- 2.5 dBi gain across 5000-6000 MHz, covering the common 5.8GHz FPV bands
- 60 mm rigid tube holds the element clear of the frame while the 55 mm lead routes to the VTX
- Black ABS radome protects the element in crashes

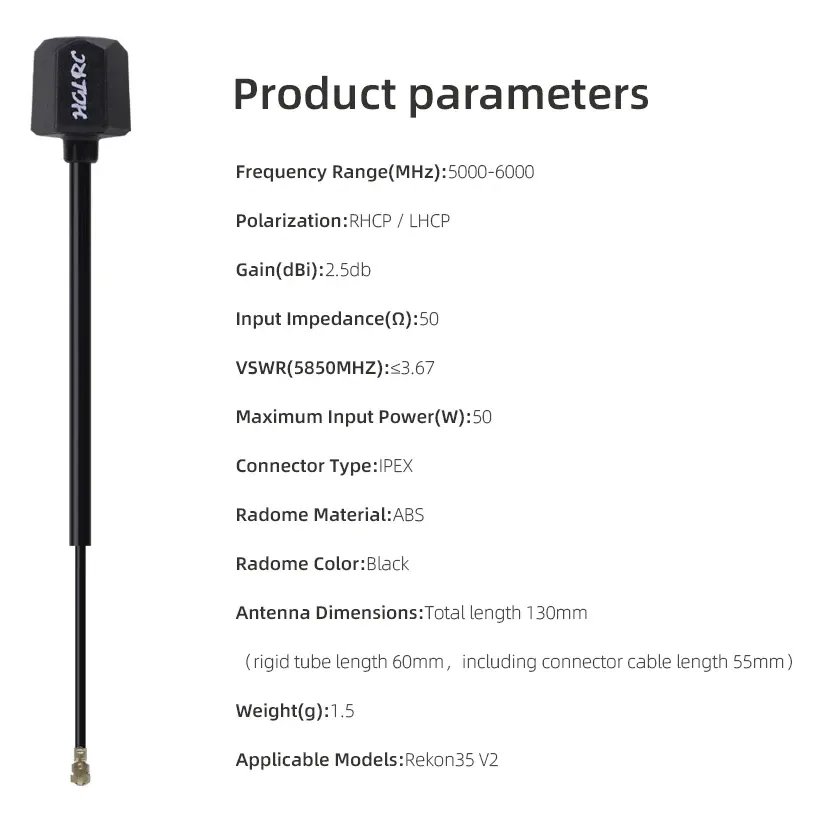

Specifications
- Frequency: 5000-6000 MHz
- Gain: 2.5 dBi
- Polarisation: RHCP or LHCP
- Impedance: 50 Ω
- Connector: IPEX (U.FL)

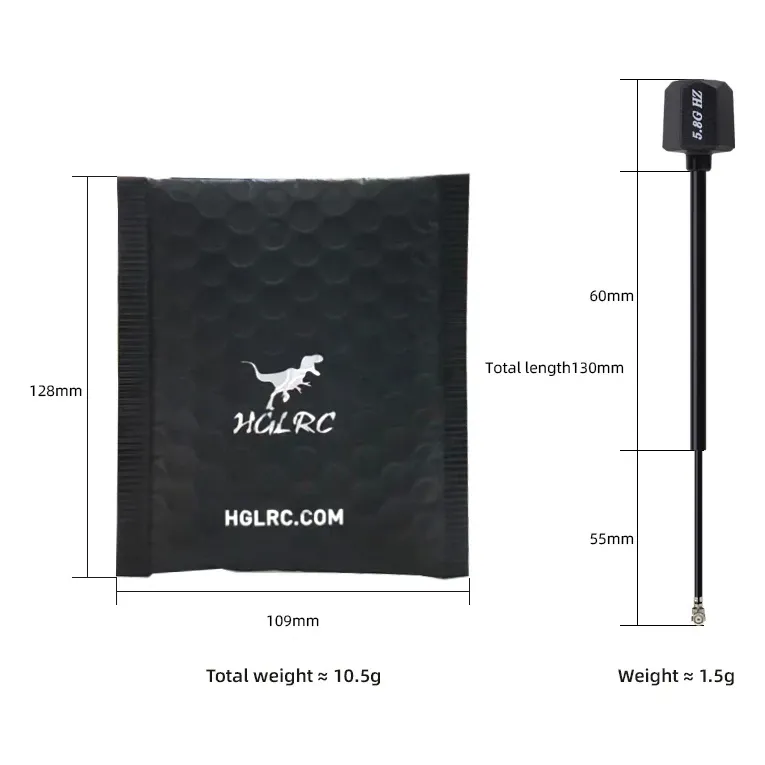

- Total length: 130 mm (60 mm rigid tube, 55 mm lead)
- Max input power: 50 W
- Weight: 1.5 g
It plugs into VTXs and digital air units with an IPEX/U.FL antenna port; transmitters with MMCX or SMA ports need a different antenna or a pigtail adapter. Mismatched polarisation between quad and goggles costs a lot of signal, so order the same hand as your ground antennas.
| Polarization | RHCP, LHCP |
|---|---|
| Antenna Connector | U.FL |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | HGLRC |
| Gain | 2.5 dBi |
| Antenna Type | Omni |
