HGLRC Mini Hammer Antenna 2.5dBi 5.8GHz SMA/
SKU HGLRC-HMR-MINI-LHCP-SMA
Connector: SMA
Polarization: LHCP
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

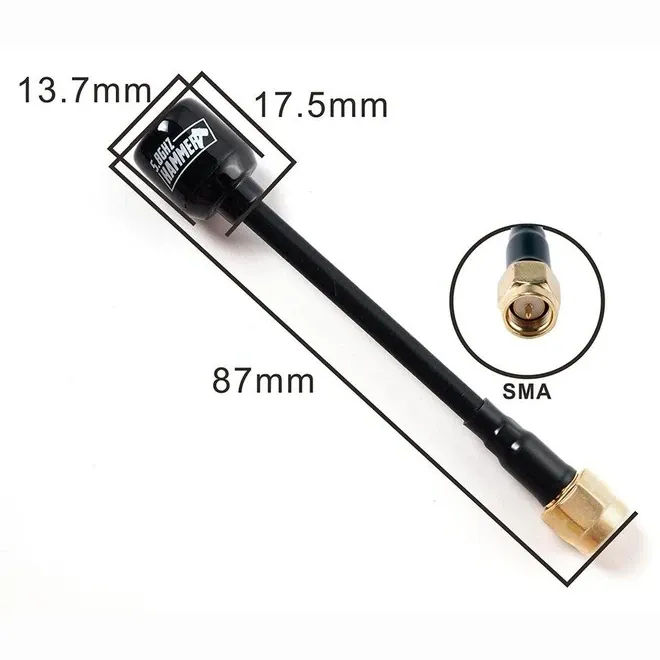

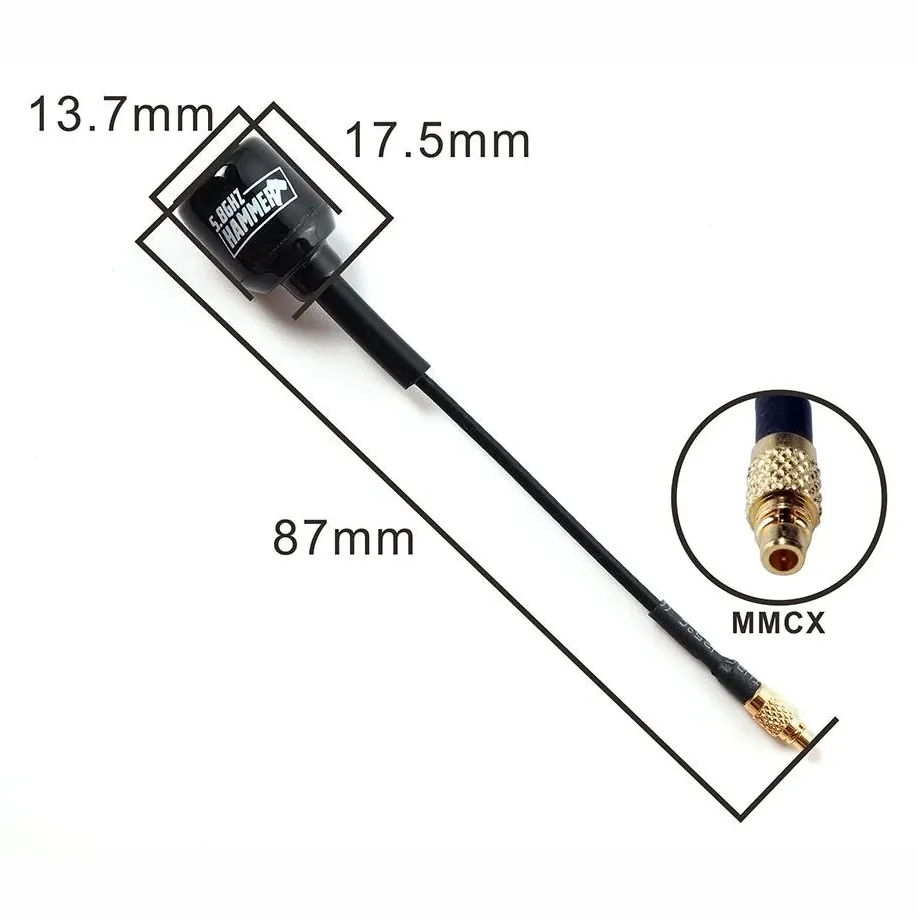

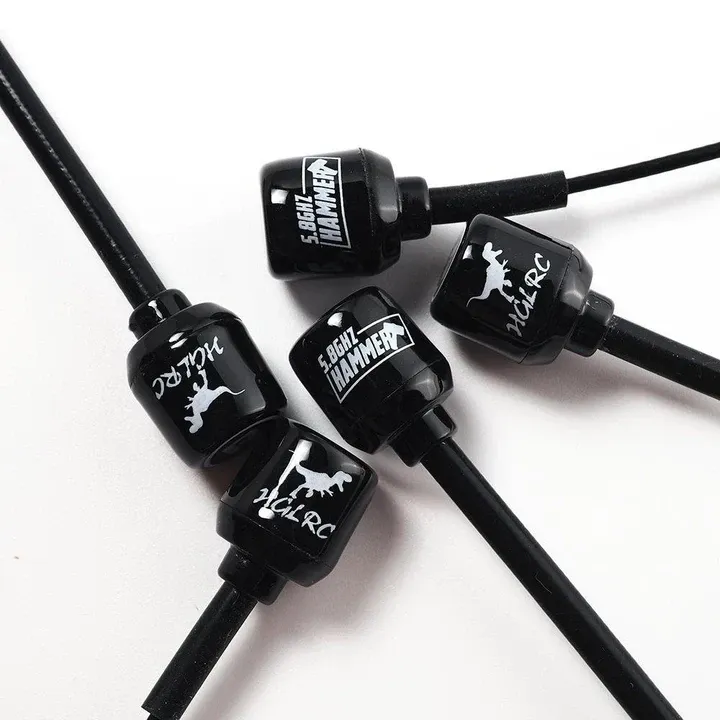

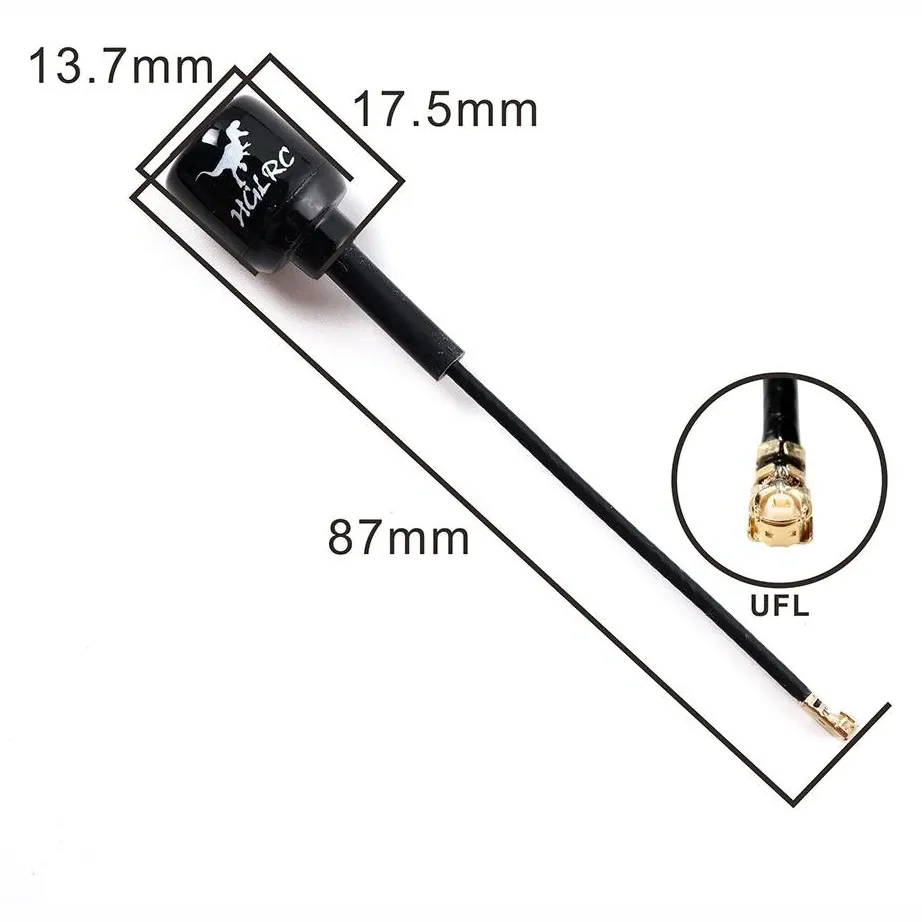

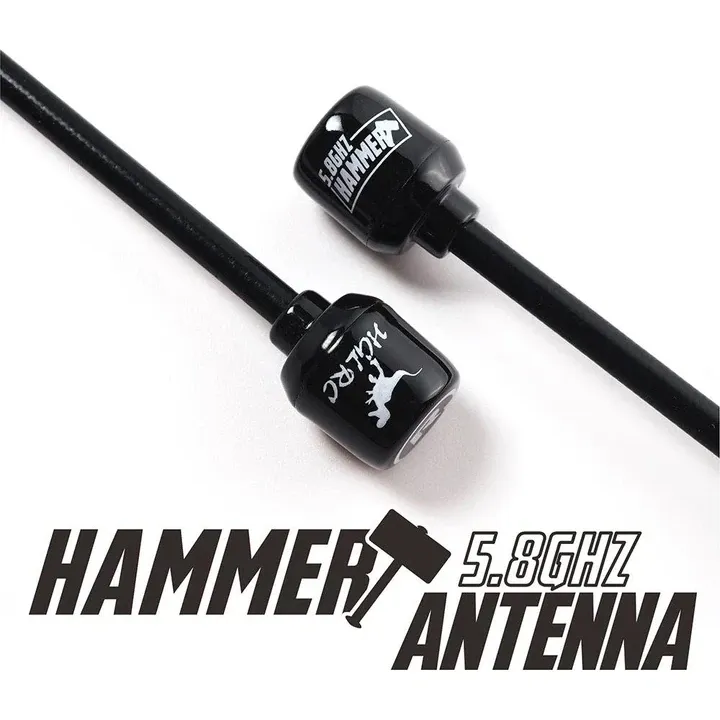

The HGLRC Mini Hammer is a compact 5.8GHz FPV antenna built for micro and toothpick builds where space and weight are tight. At just 87mm, it delivers circular polarization with solid gain in a super-mini radome, offered with SMA, MMCX or U.FL (IPEX) connectors to match your VTX or goggles.
Key features
- Circularly polarized (RHCP or LHCP) for cleaner, more stable 5.8GHz FPV video
- 87mm super-mini size fits tightly on micro and toothpick builds
- Available with SMA, U.FL or MMCX connectors
- Durable ABS radome protects the antenna element from knocks
Specifications
- Frequency range: 5500-6000 MHz
- Gain: 2.5 dBi
- Impedance: 50 Ω
- VSWR (5800MHz): ≤1.5
- Max input power: 50 W
- Size: 87 mm
- Radome: Black ABS
Choose the connector and polarization that matches your video transmitter or goggle receiver before ordering, since RHCP and LHCP antennas must be paired on the same end of the video link.
| Polarization | RHCP, LHCP |
|---|---|
| Antenna Connector | SMA, MMCX, U.FL |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | HGLRC |
| Gain | 2.5 dBi |
| Antenna Type | Omni |
