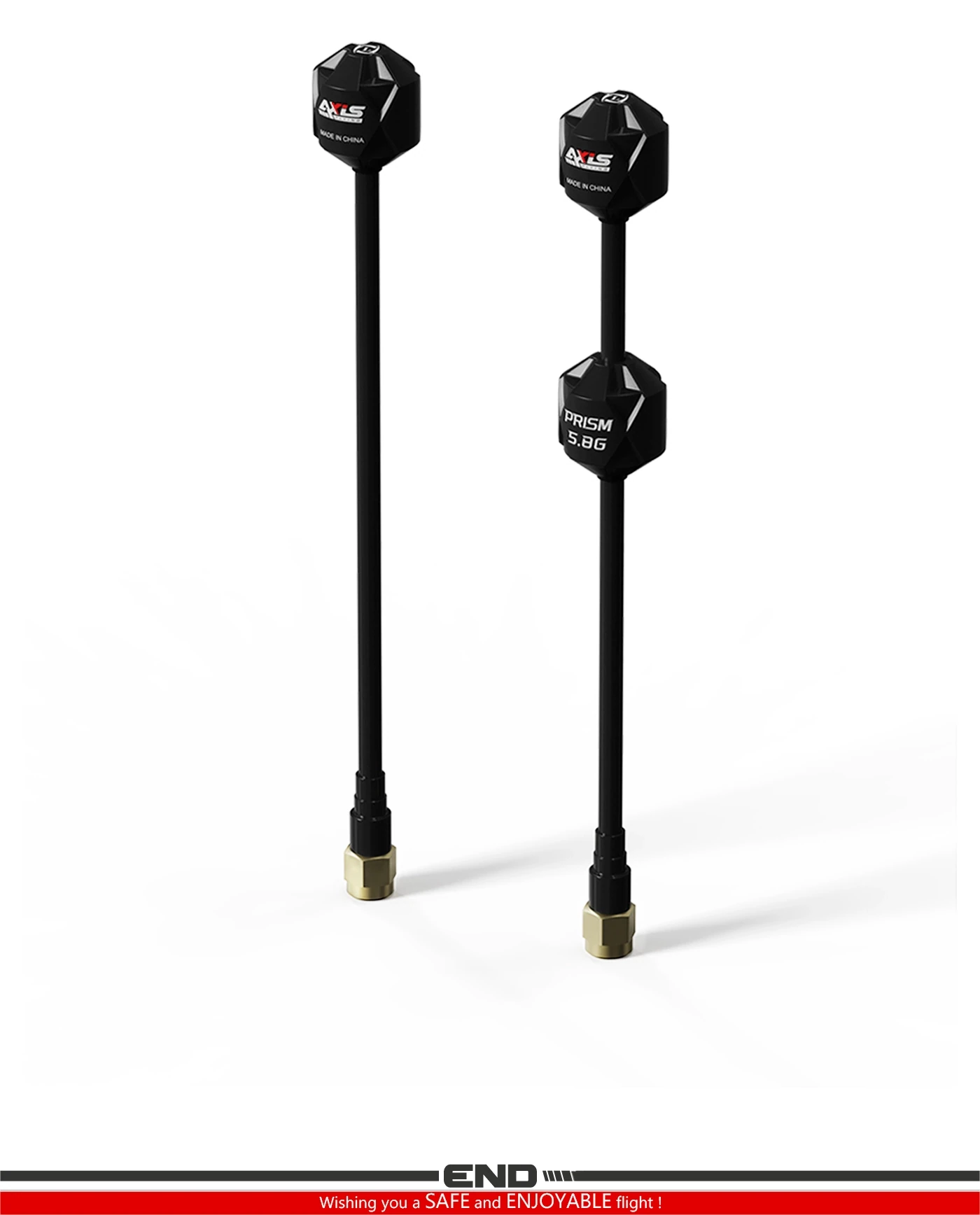

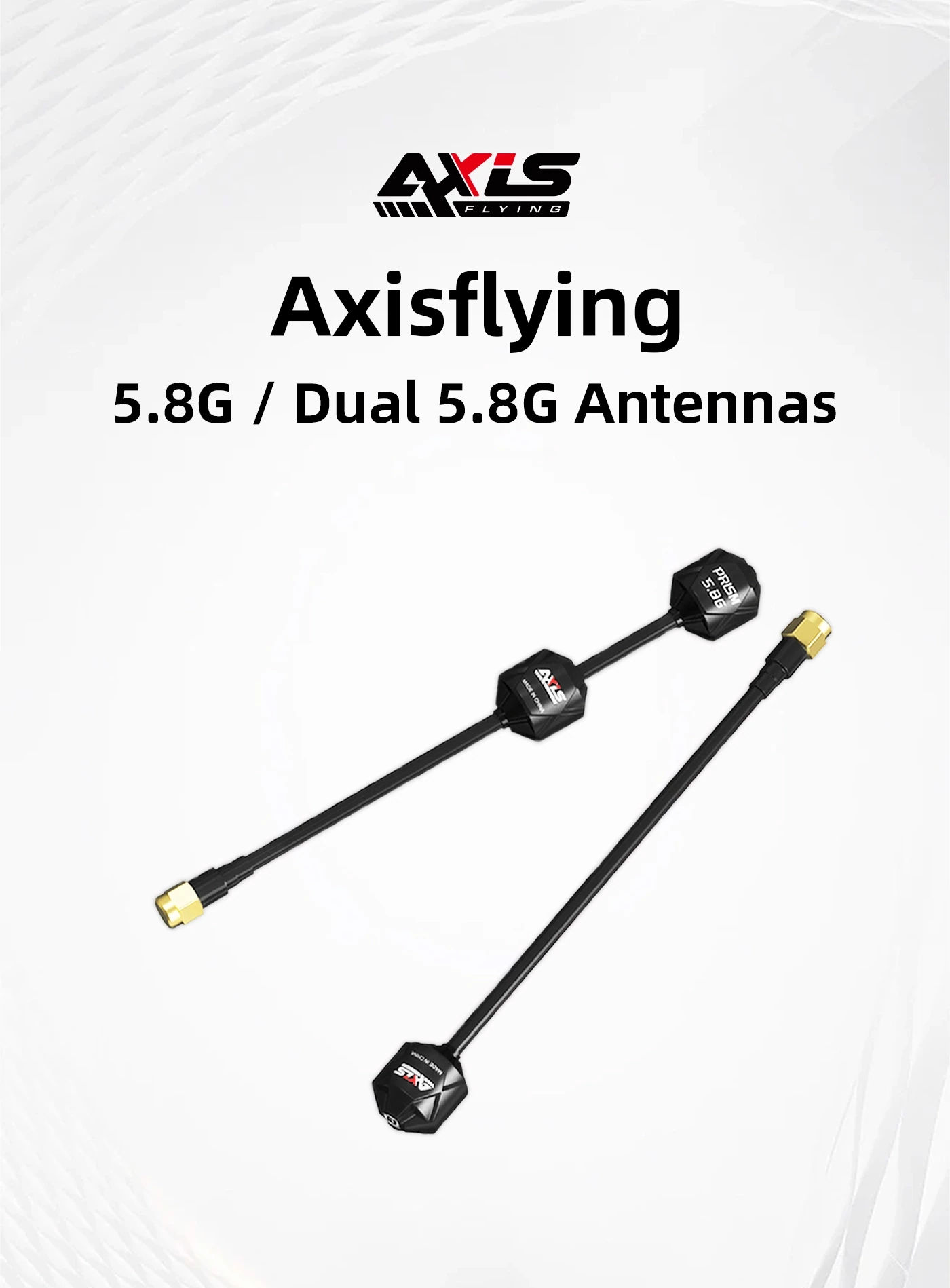

Axisflying Prism Single 5.8GHz RHCP FPV Antenna, SMA
SKU AXIS-PRISM-58-RHCP-60MM
Length: 60mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Axisflying Prism is a single 5.8GHz omnidirectional FPV antenna with right-hand circular polarisation and an SMA connector, available in 60mm, 100mm and 150mm lengths. Use it on the quad's VTX or on goggles and receiver modules, paired with other RHCP antennas.
Key features

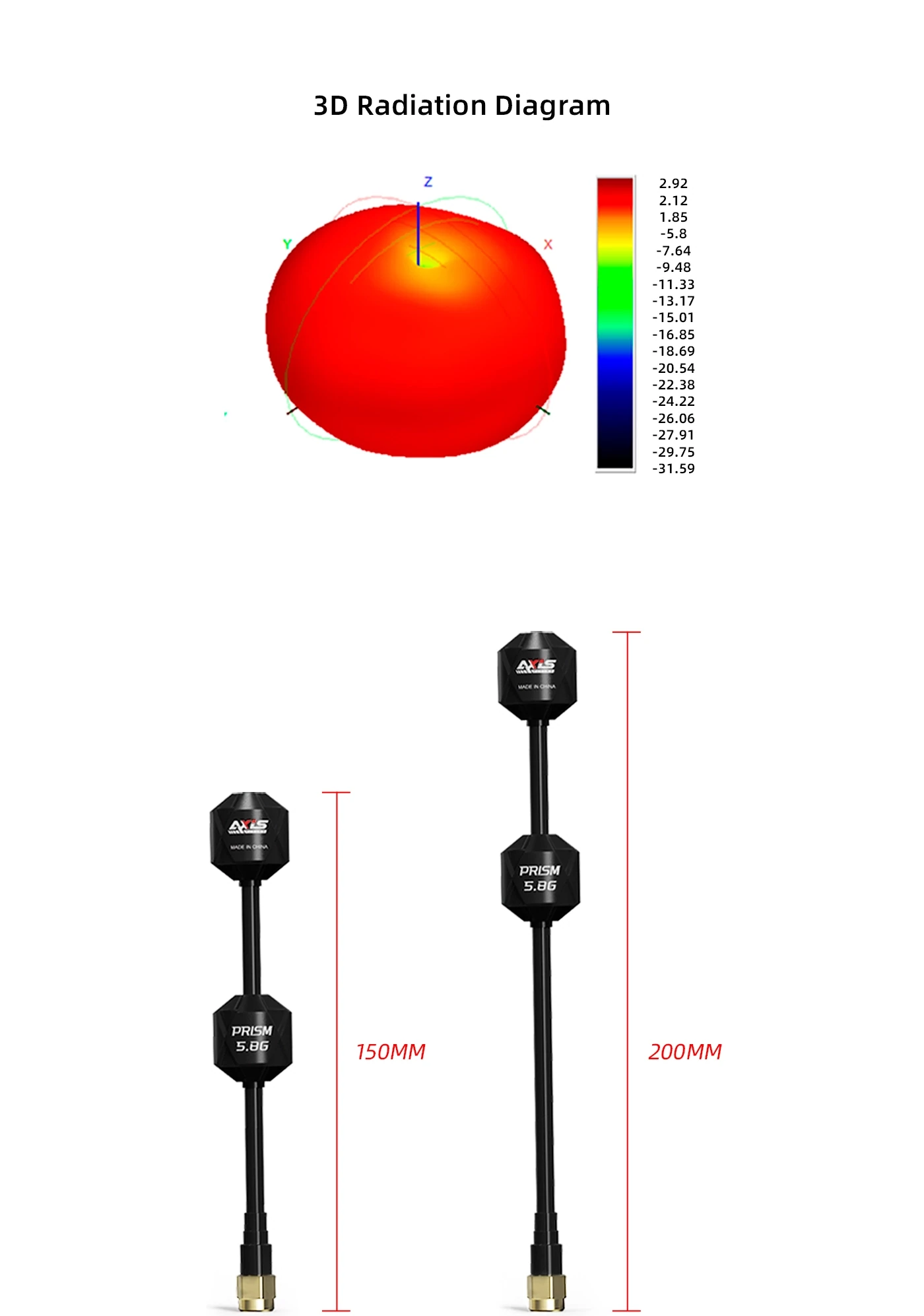

Tuned for 5.5-6GHz, peaking at 2.92dBi gain at 5800MHz (2.13dBi at 5500MHz).

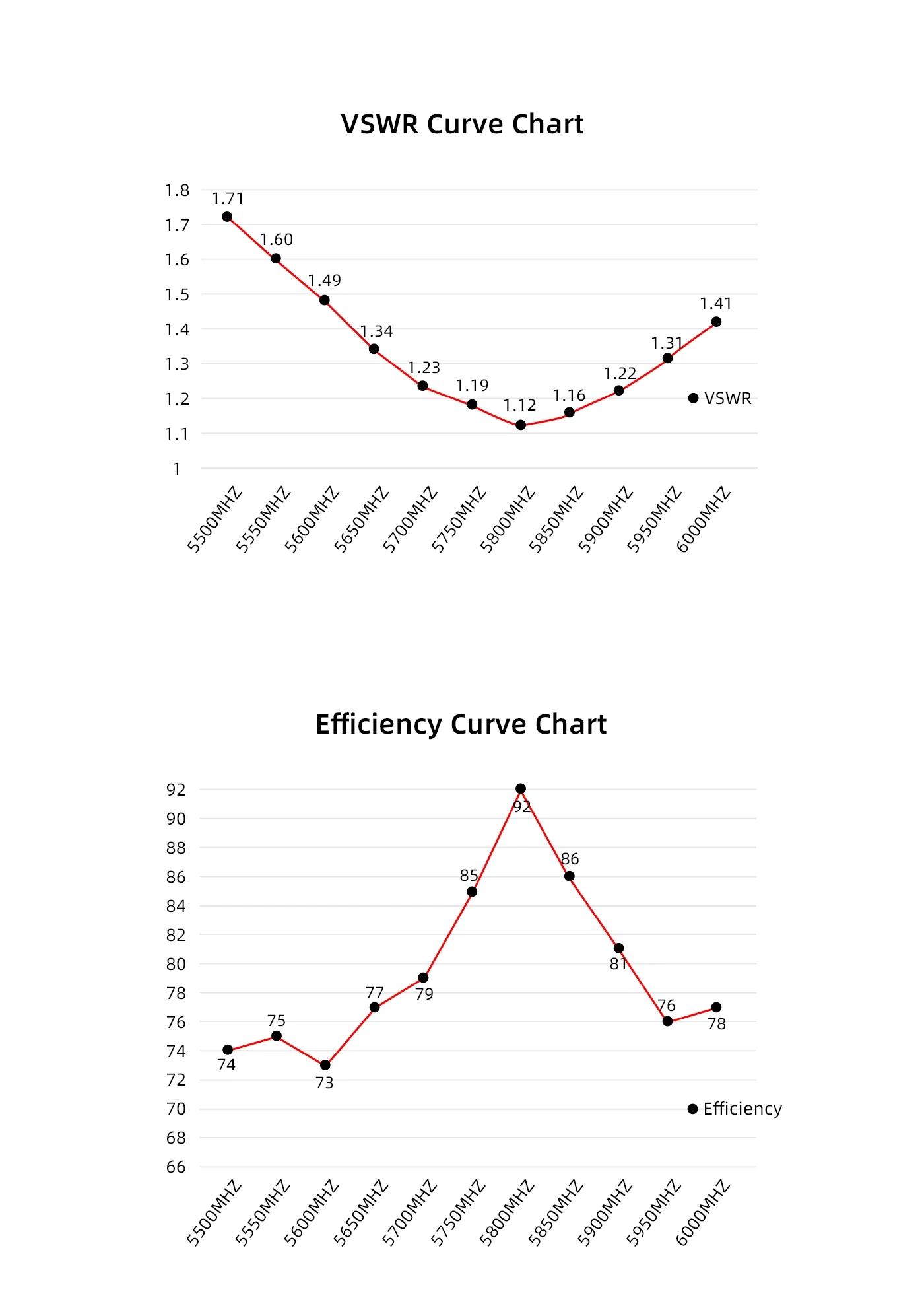

Low VSWR of 1.12 at 5800MHz (highest 1.71 at 5500MHz) for efficient power transfer from the VTX.
Up to 92% radiation efficiency at 5800MHz.

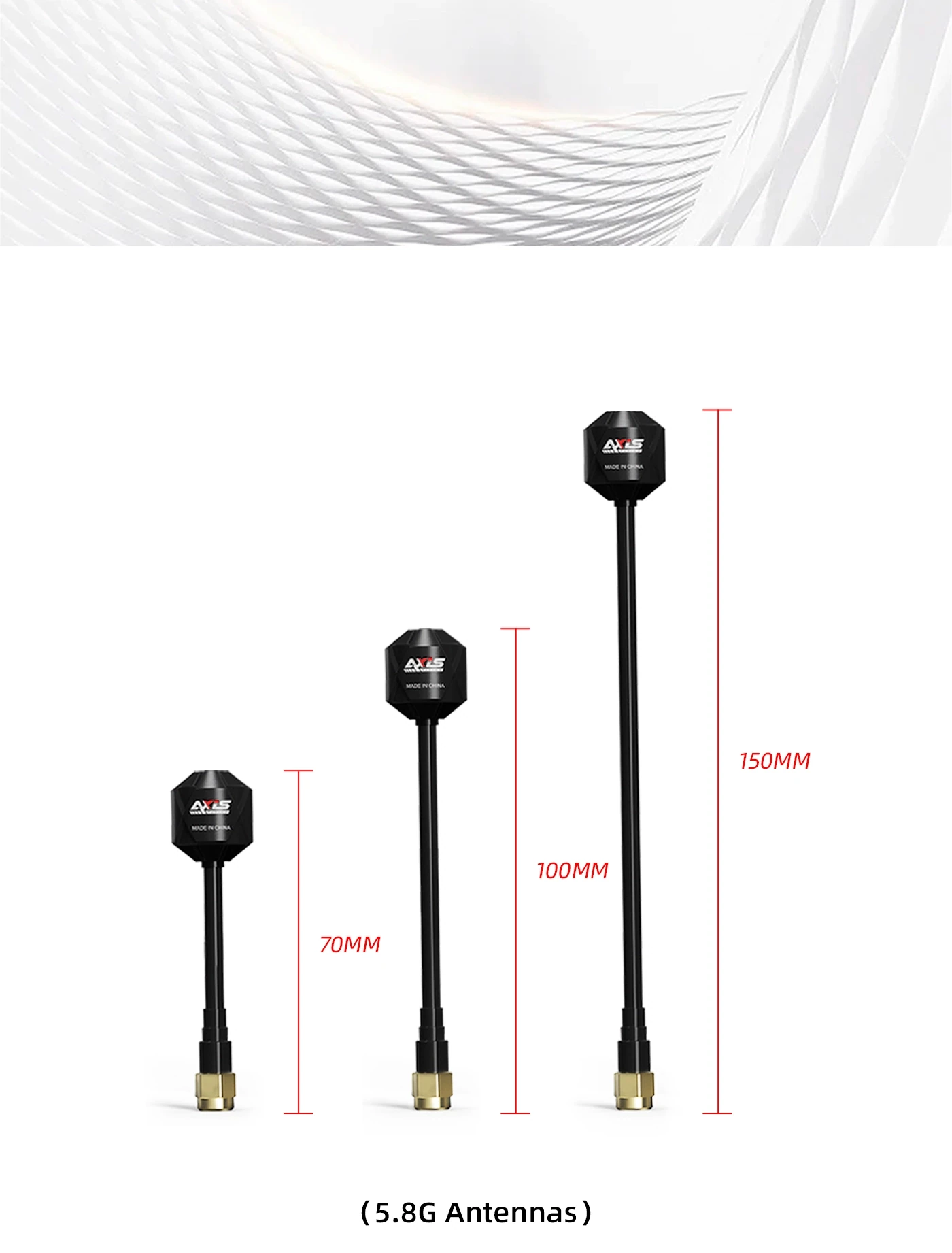

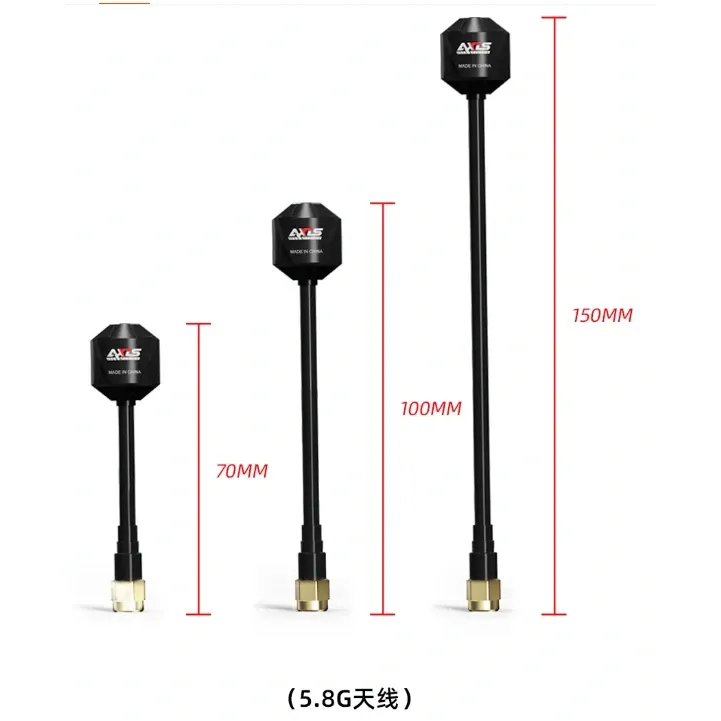

Three lengths: a short version for a tidy mount, longer versions to lift the element clear of props and carbon.

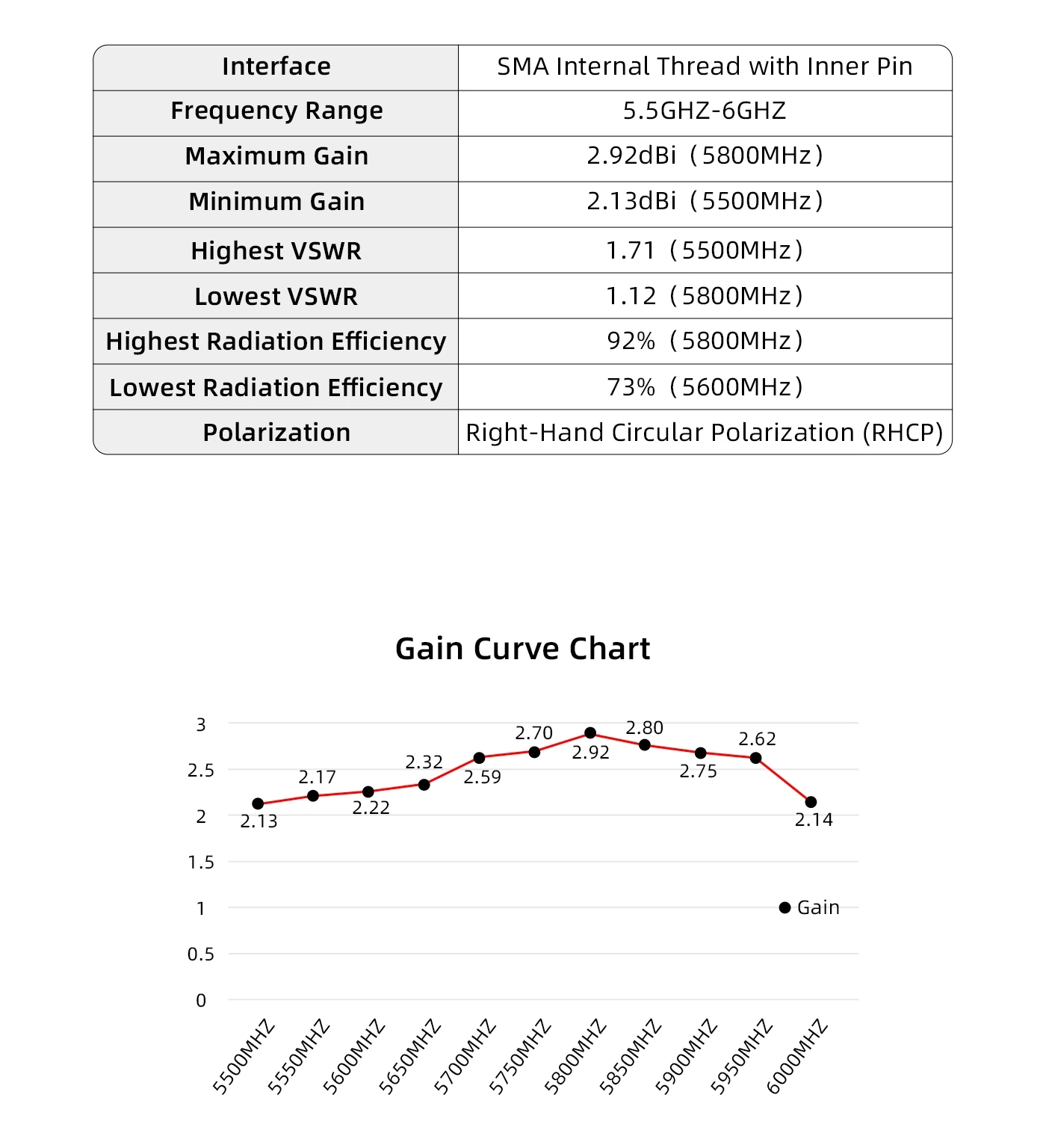

Specifications
Connector: SMA (internal thread, inner pin)
Frequency range: 5.5-6GHz
Polarisation: RHCP
Gain: 2.13dBi (5500MHz) to 2.92dBi (5800MHz)
VSWR: 1.12 (5800MHz) to 1.71 (5500MHz)
Radiation efficiency: 73-92%

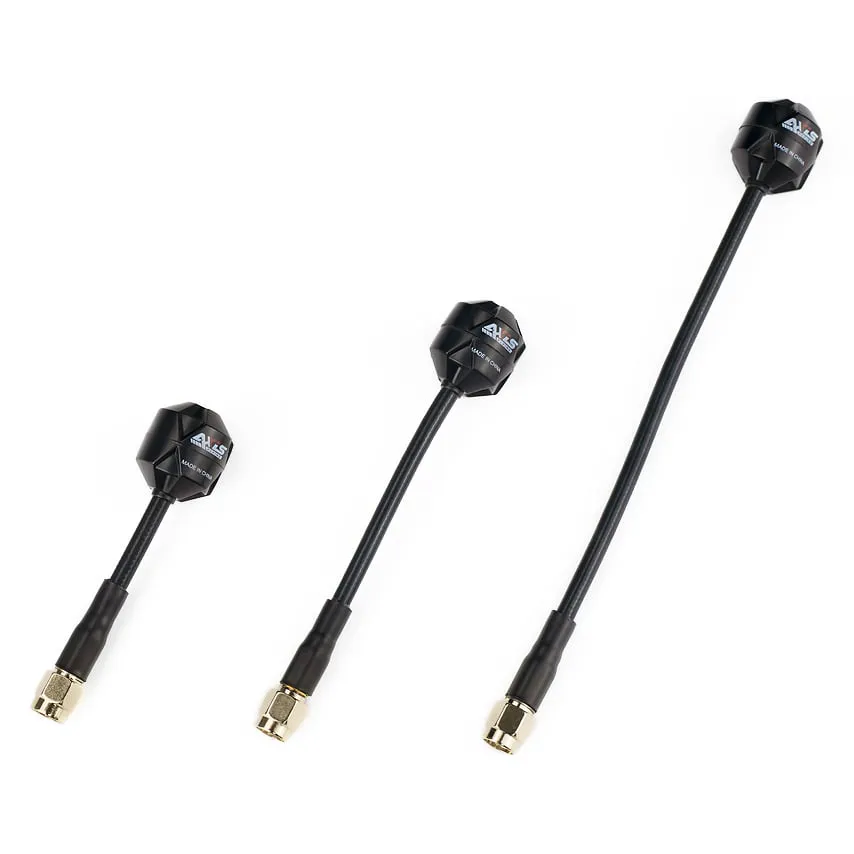

Lengths: 60mm, 100mm, 150mm
Match polarisation at both ends: an RHCP antenna on the quad needs RHCP on the goggles or receiver. The SMA plug fits standard SMA jacks and pigtails, not RP-SMA; for MMCX or U.FL VTXs, add an SMA pigtail.
| Polarization | RHCP |
|---|---|
| Antenna Connector | SMA |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | Axisflying |
| Gain | 2.92 dBi |
| Antenna Type | Omni |
