HGLRC Long Range Hammer Mini 2.5dBi 5.8G FPV Antenna
₹599Incl. GST
SKU HGLRC-LR-HAMMER-MINI-RHCP-SMA
Connector: SMA
Polarization: RHCP
Polarization: LHCP, RHCPAntenna Connector: U.FL, SMA, MMCXFrequency: 5.8GHzMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The HGLRC Long Range Hammer Mini is a compact 5.8 GHz omnidirectional FPV antenna with 2.5 dBi gain, for VTXs, goggles and receivers on analog or digital 5.8 GHz links. Choose RHCP or LHCP to match the rest of your system, and the connector your hardware takes.
Key features

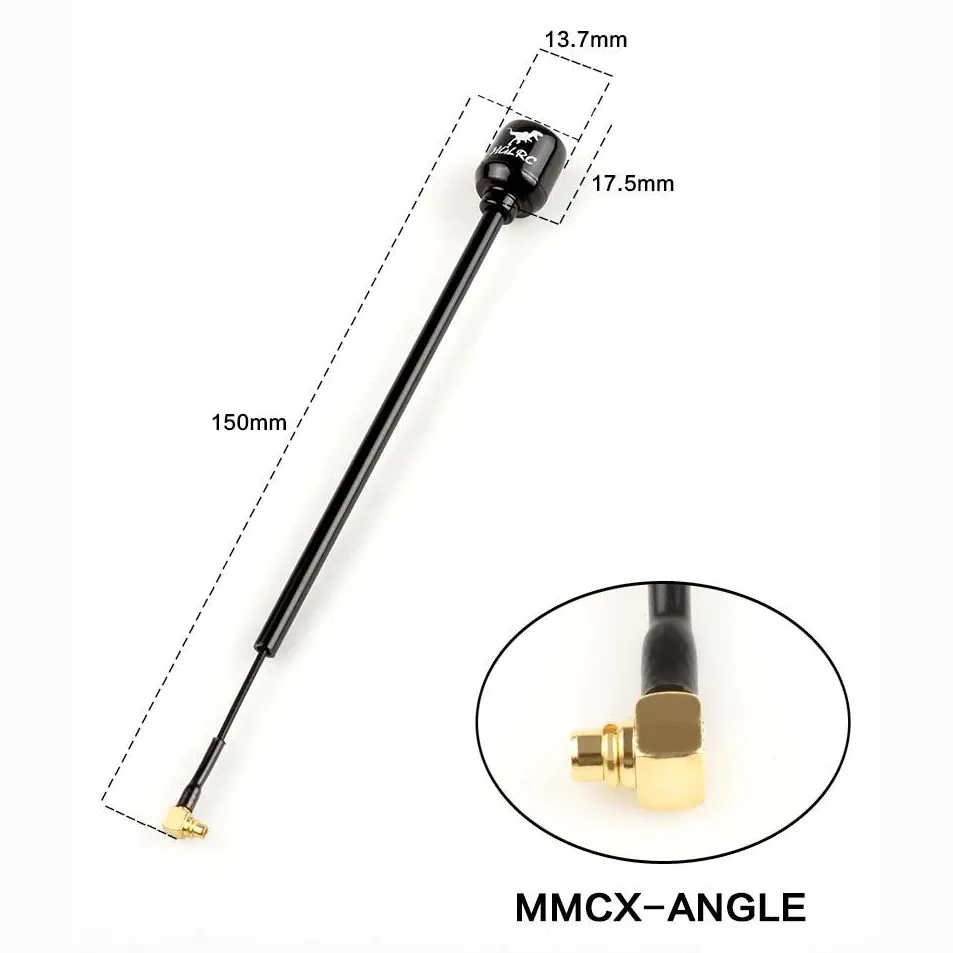

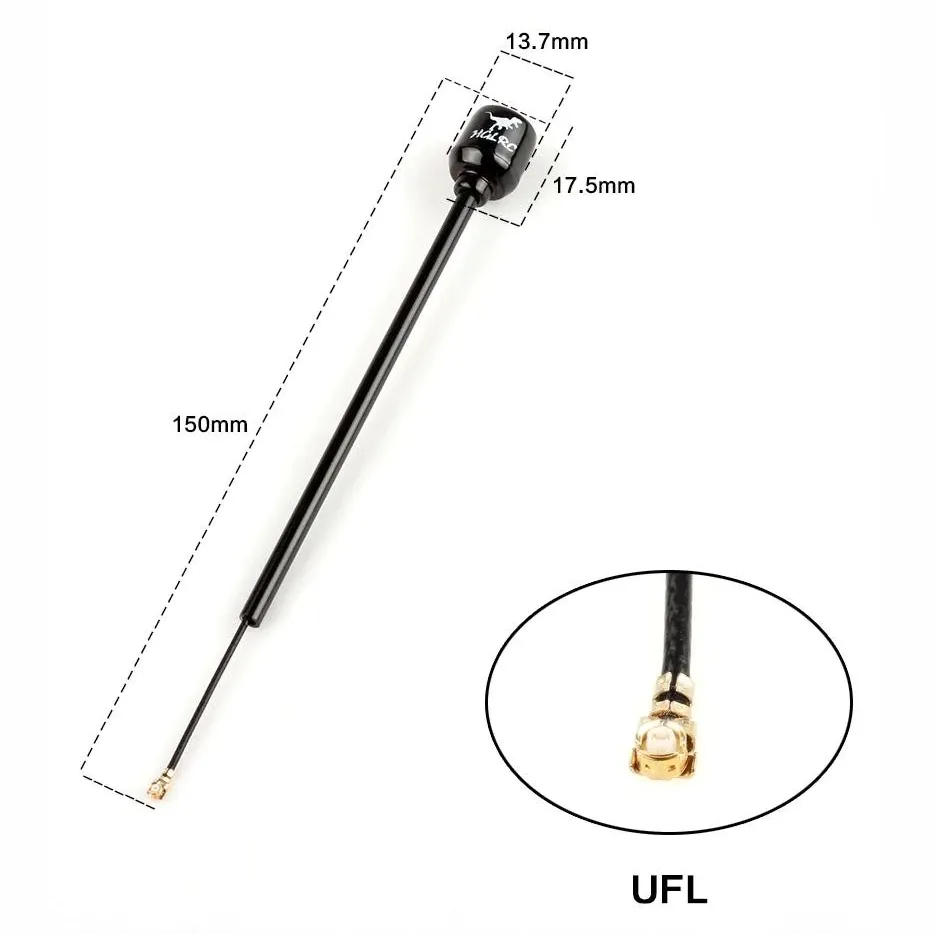

- Connector options: SMA, 90° MMCX or U.FL in RHCP or LHCP; straight MMCX in LHCP only.
- 5500–6000 MHz coverage spans the full 5.8 GHz FPV band.
- Well matched: VSWR ≤1.5 at 5800 MHz on a 50 Ω feed, so little power reflects back into the VTX.
- 50 W maximum input power, far above any FPV VTX output.

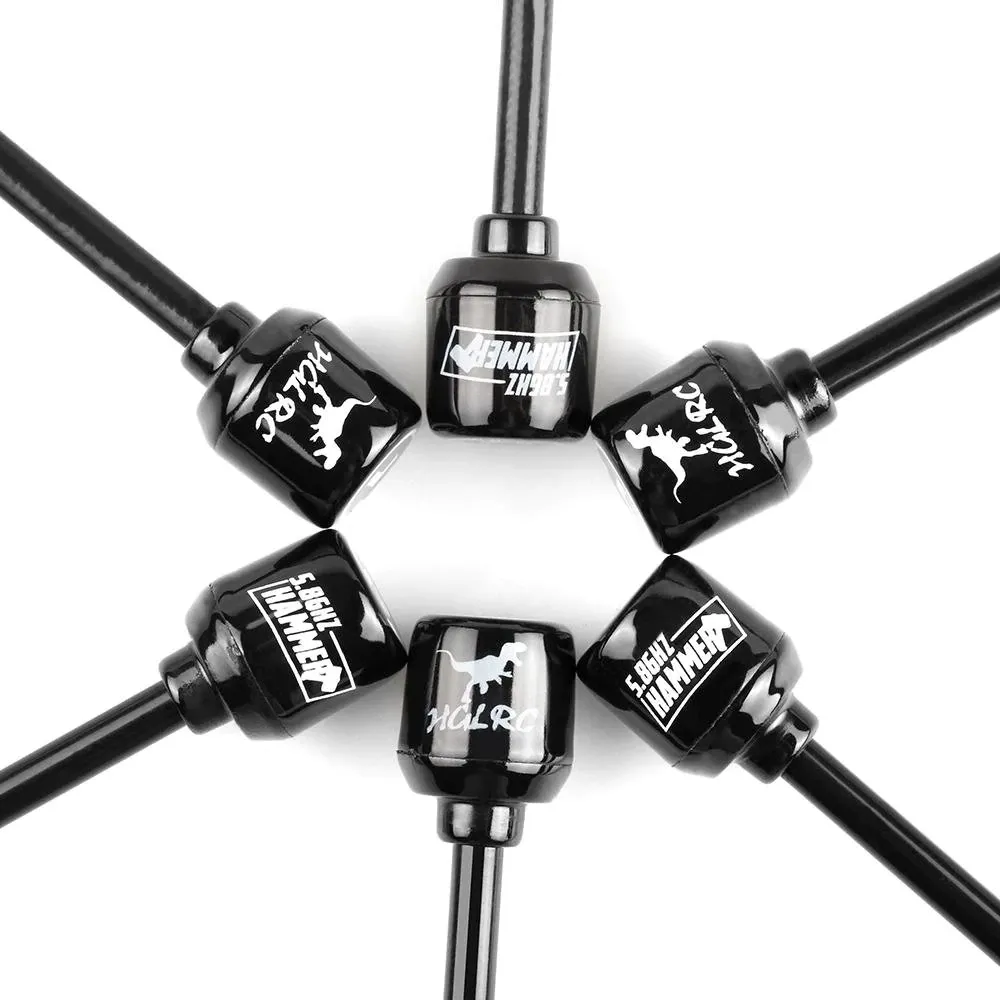

- Black ABS radome protects the radiating element.

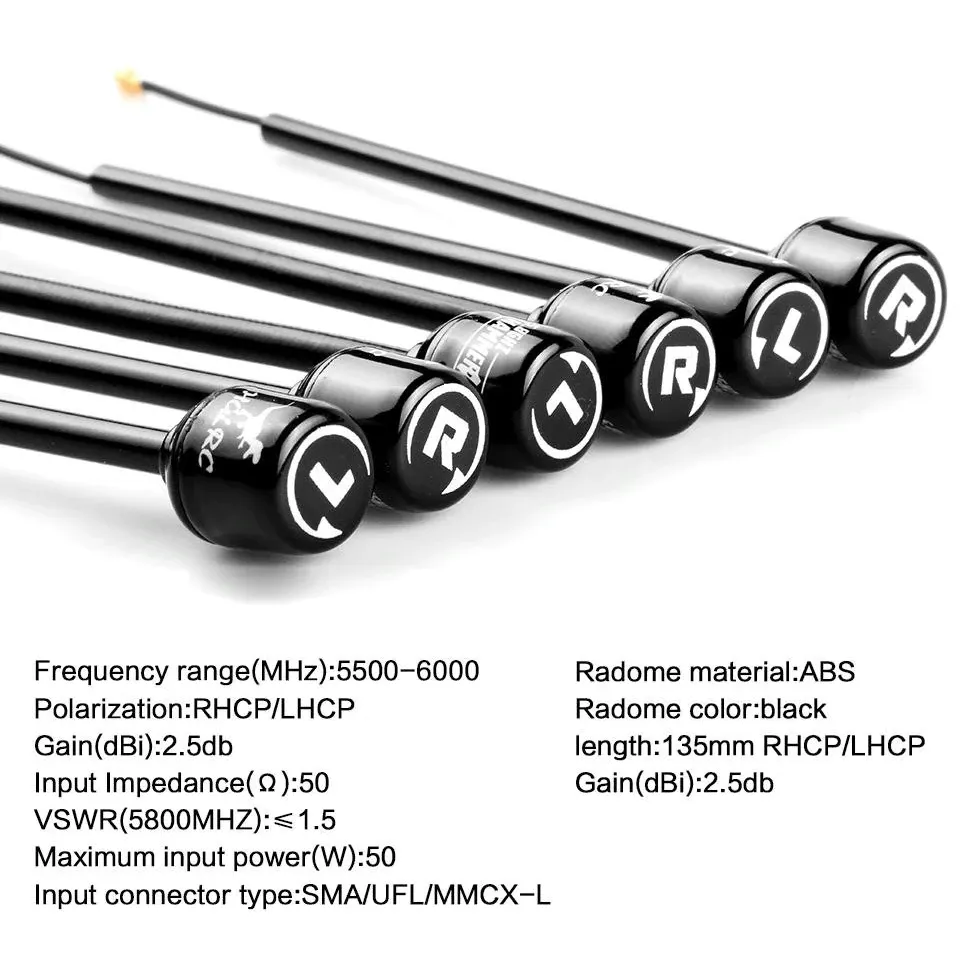

Specifications
- Frequency range: 5500–6000 MHz
- Gain: 2.5 dBi
- Polarisation: RHCP or LHCP
- Impedance: 50 Ω
- VSWR: ≤1.5 (5800 MHz)
- Max input power: 50 W
- Radome: ABS, black

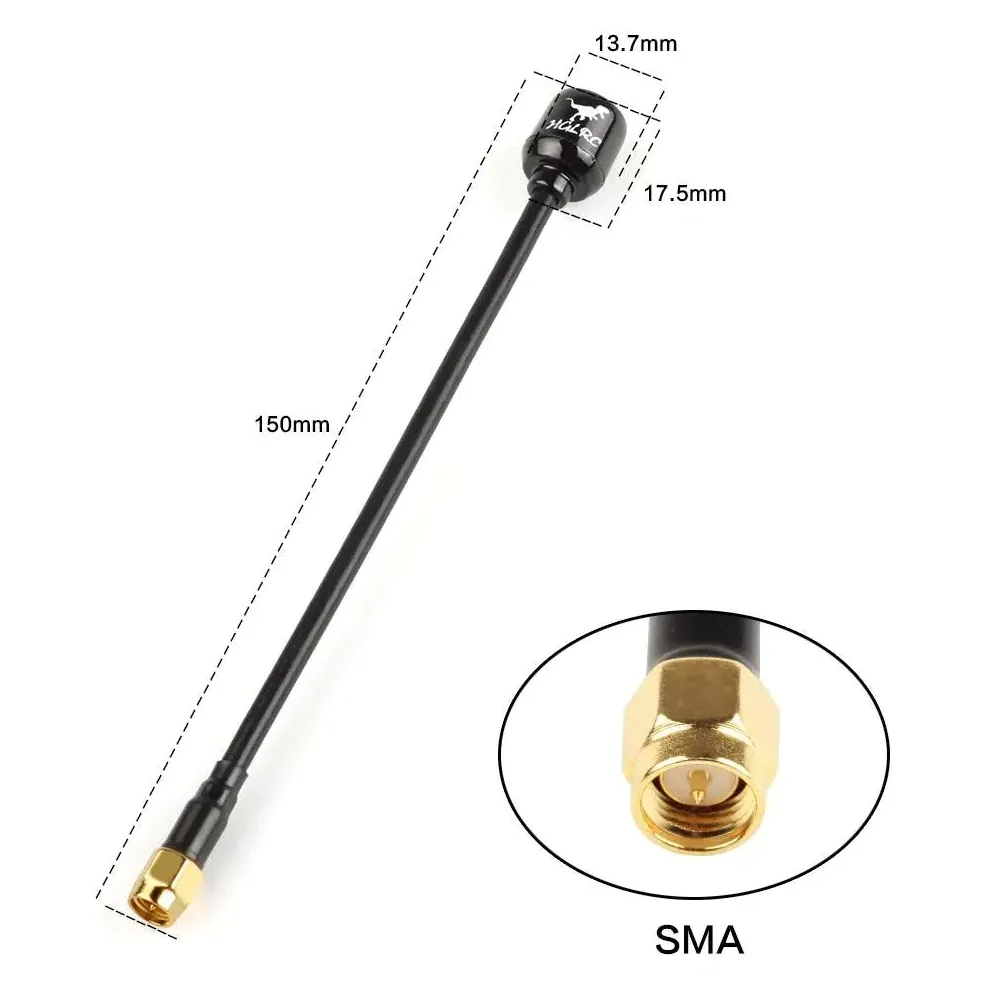

- Length: 135 mm (SMA version)

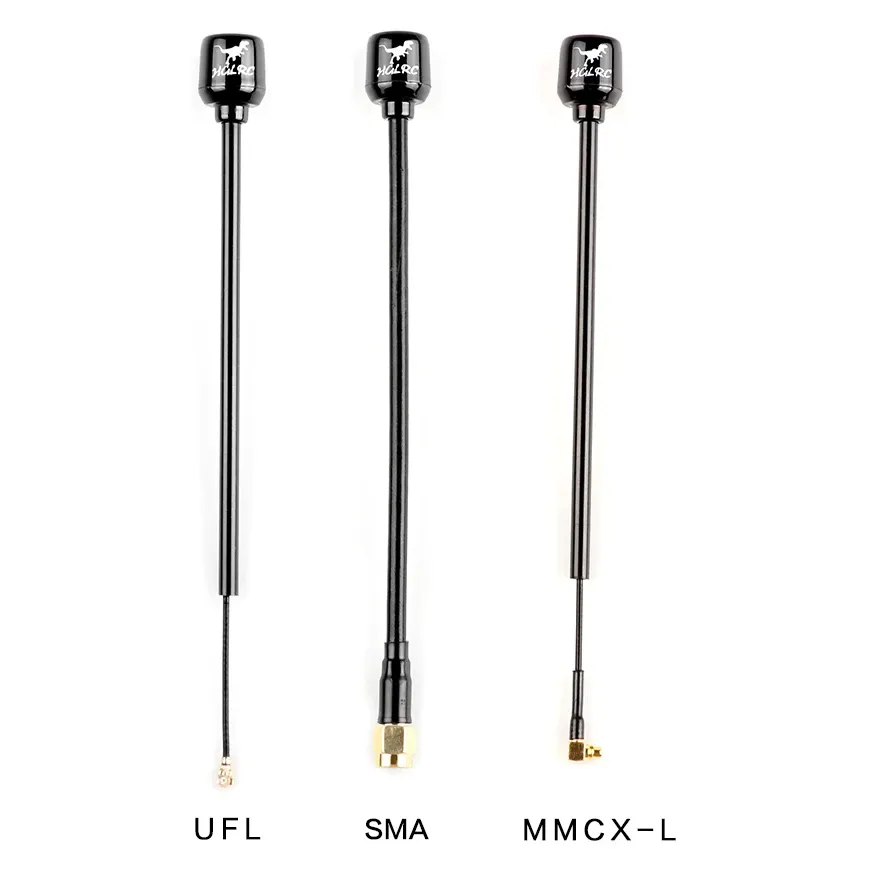

SMA suits VTXs and receivers with an SMA jack, while MMCX and U.FL plug straight into compact VTXs without an adapter pigtail. Check the polarisation of the antennas at the other end of the link, as RHCP and LHCP do not pair.
| Polarization | LHCP, RHCP |
|---|---|
| Antenna Connector | U.FL, SMA, MMCX |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | HGLRC |
| Gain | 2.5 dBi |
| Antenna Type | Omni |
