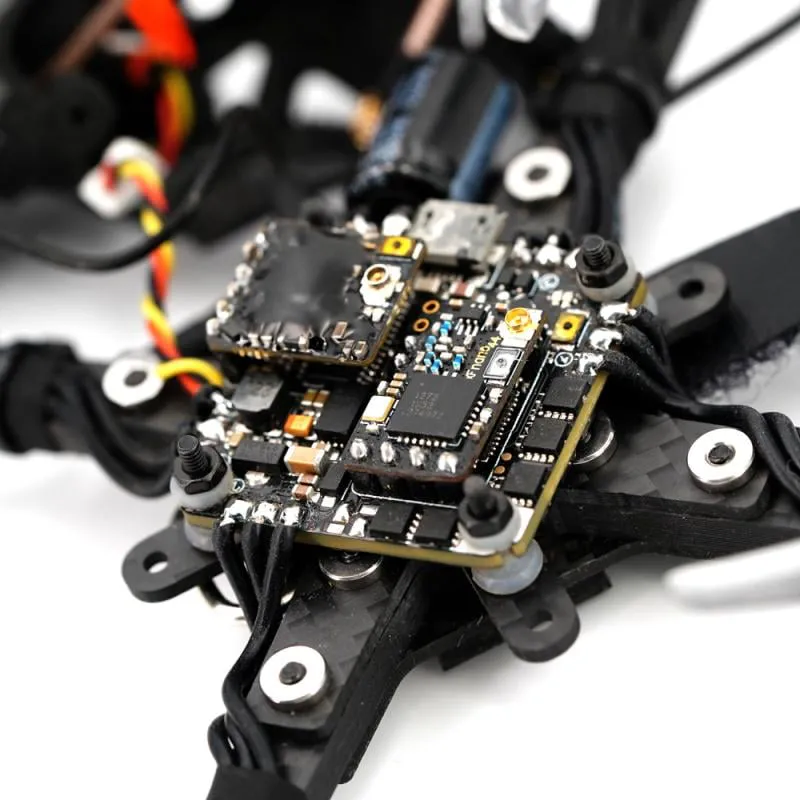

TBS Podracer AIO Flight Controller
₹9,099Incl. GST
SKU TBS-PODRACER-AIO
Integrated VTX: NoMounting Size: 25.5x25.5Integrated Receiver: NoESC Current: 30 A
Dispatched within 3–4 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

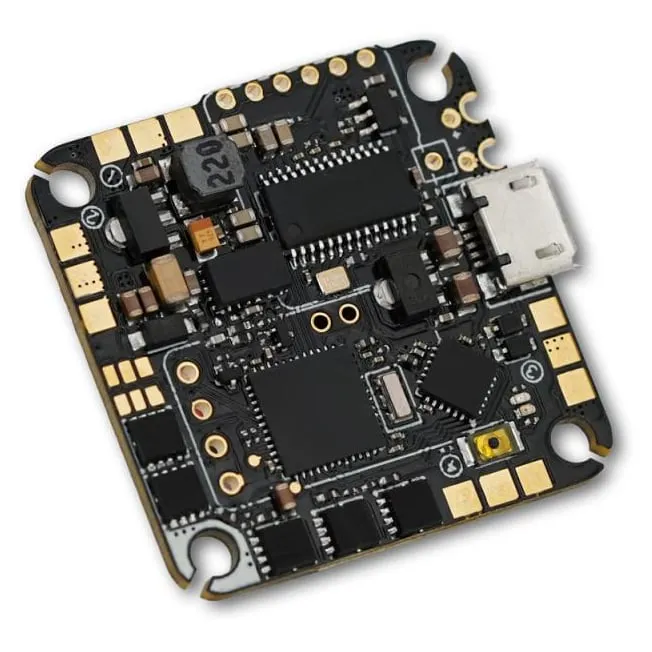

The TBS Podracer AIO combines an STM32F411 flight controller and a 30A BLHeli_32 ESC on one board, built by Team BlackSheep with Zeez for micro racing, toothpick and long-range builds that need a light, compact core.
Key features
- F4-based STM32F411 MCU with an MPU6000 gyro and onboard AT7456E OSD, running Betaflight or EmuFlight
- 30A continuous / 35A peak BLHeli_32 ESC supports PWM through DShot600, with an LC filter for clean 5V VTX and camera power

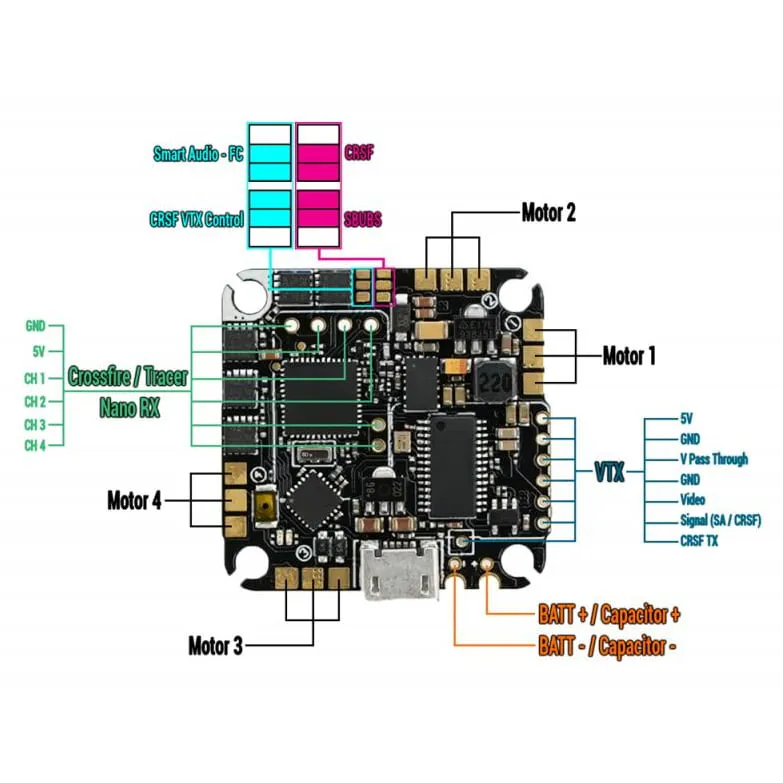

- Direct solder pads for TBS Crossfire/Tracer Nano RX and the TBS Unify Pro32 Nano VTX skip the usual UART wiring
- Built-in current sensor and a 5V BEC rated to 1.2A continuous keep the FC, VTX and camera powered
- 25.5x25.5mm M2 mounting holes and a 7.6g board weight suit cinewhoop, 4–5-inch racers and long-range builds alike
Specifications
- FC processor: STM32F411
- Gyro: MPU6000
- ESC current: 30A continuous / 35A peak
- ESC firmware: BLHeli_32
- Input voltage: 2–6S LiPo
- 5V BEC: 1.2A continuous
- Mounting: 25.5x25.5mm
- Weight: 7.6g

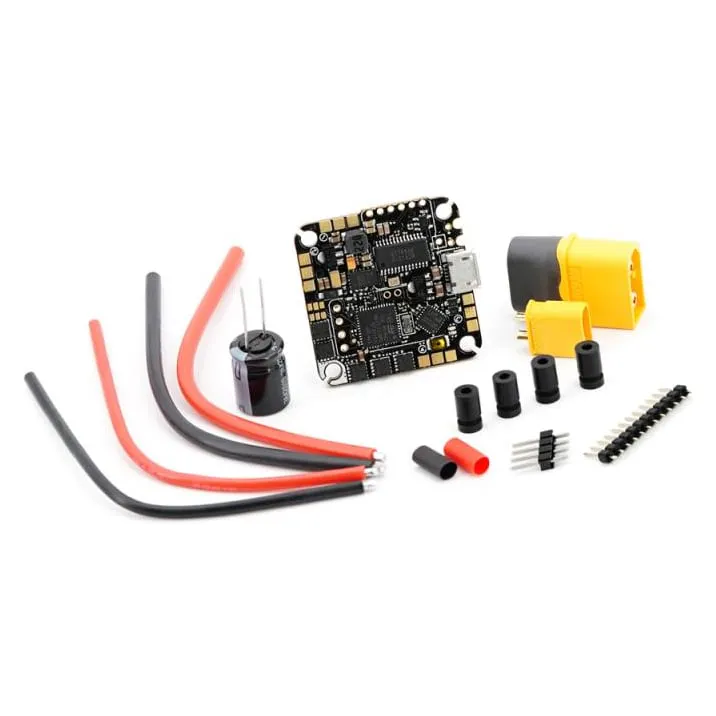

Ships with a capacitor, an AWG wiring set with shrink tubing, mounting grommets, an XT60 and XT30 male connector, and a pin header set for the TBS VTX and RX.
| Integrated VTX | No |
|---|---|
| Mounting Size | 25.5x25.5 |
| Integrated Receiver | No |
| ESC Current | 30 A |
| Input Voltage | 2–6S |
| Made in India | No |
| Brand | TBS |
| FC Processor | F411 |
| Gyro | MPU6000 |
| ESC Firmware | BLHeli_32 |
| Barometer | No |
| UARTs | 2 |
| Supported Firmware | Betaflight |
| Weight | 7.6 g |
