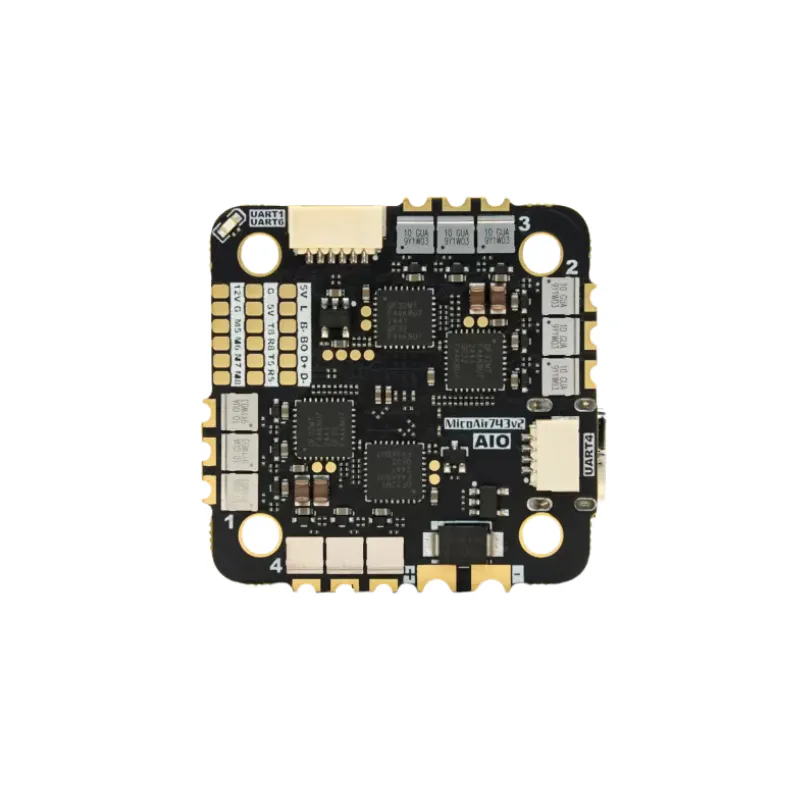

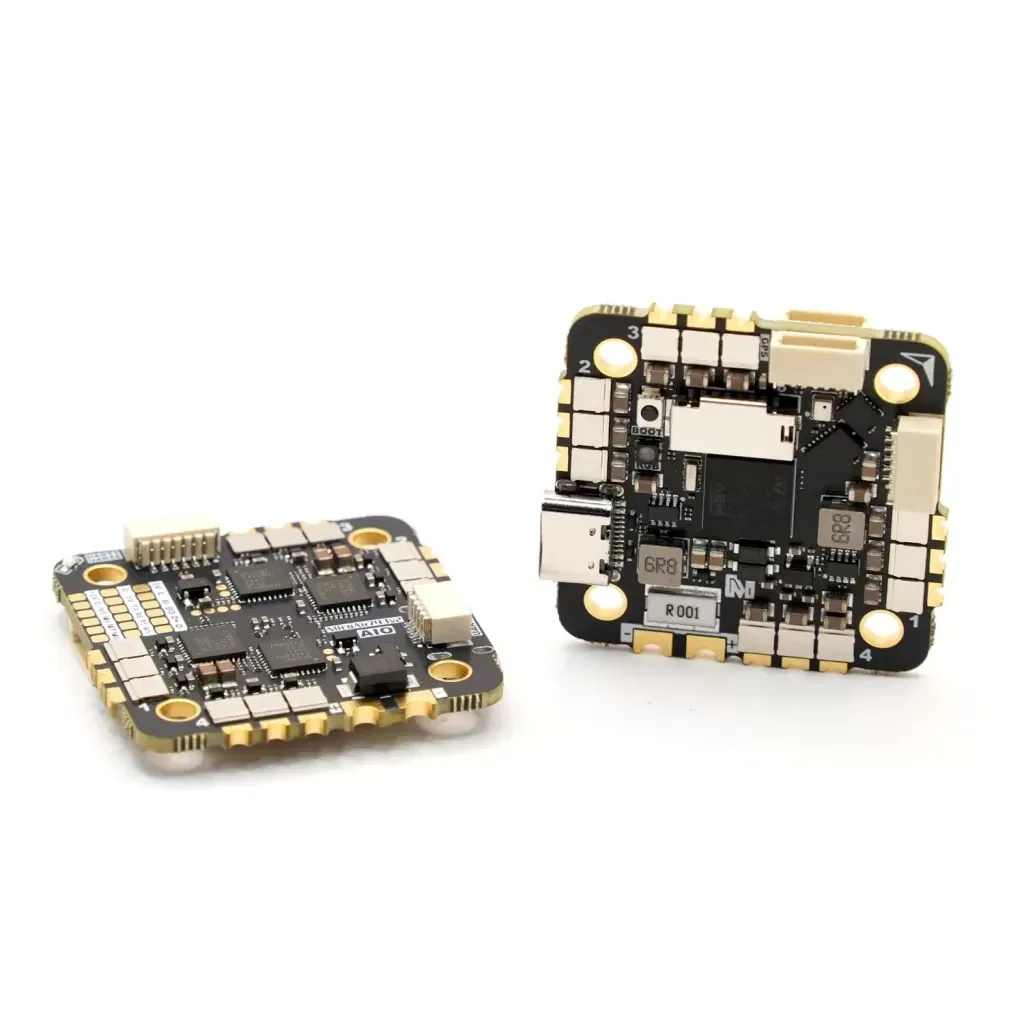

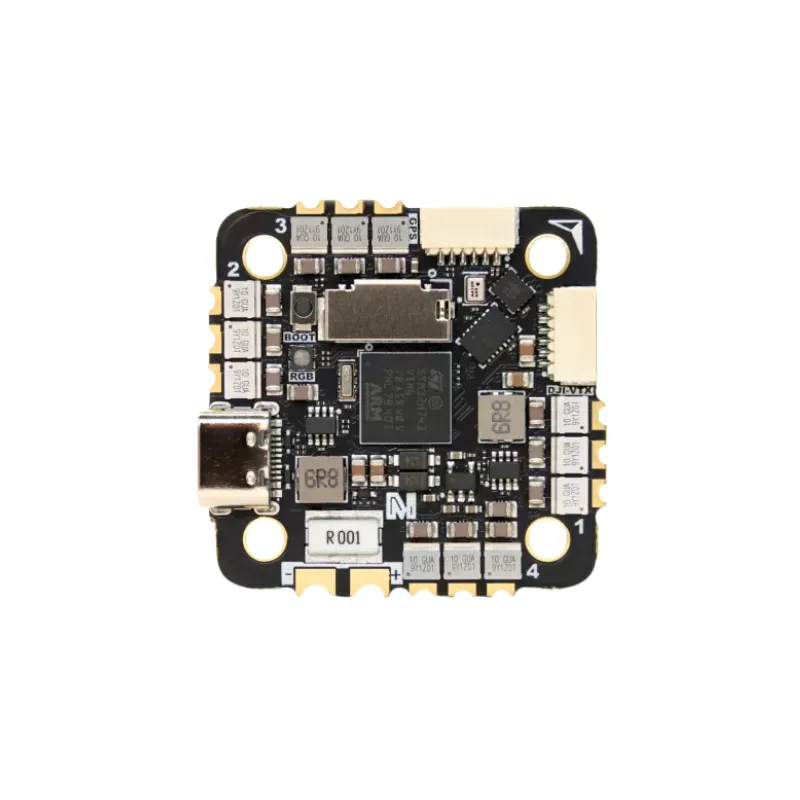

MicoAir743 V2 AIO 45A Flight Controller

The MicoAir743 V2 AIO is a high-processing all-in-one board designed for advanced micro drones, long-range explorers, and compact autonomous builds. By pairing a top-tier STM32H743 microcontroller with a robust 45A AM32 ESC on a single PCB, this flight controller brings full-scale computational power to the popular whoop-style form factor.

Key features

• High-speed STM32H743 MCU easily manages complex ArduPilot navigation and intensive INAV filtering workloads.

• Integrated AM32 4-in-1 ESC delivers a smooth, linear throttle response and handles continuous 45A loads.

• Direct compatibility with 3S to 6S LiPo batteries allows for versatile powertrain setups.

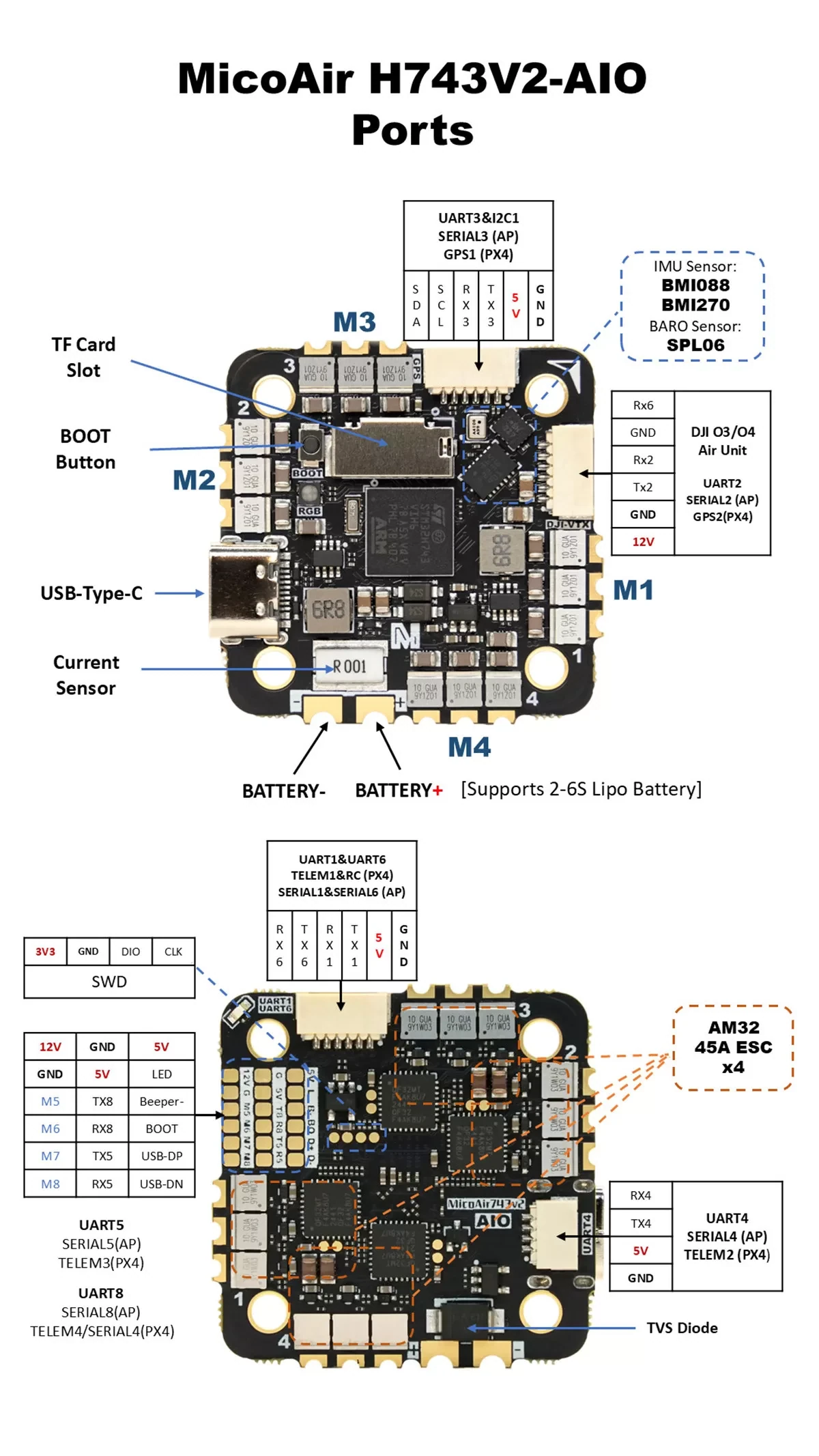

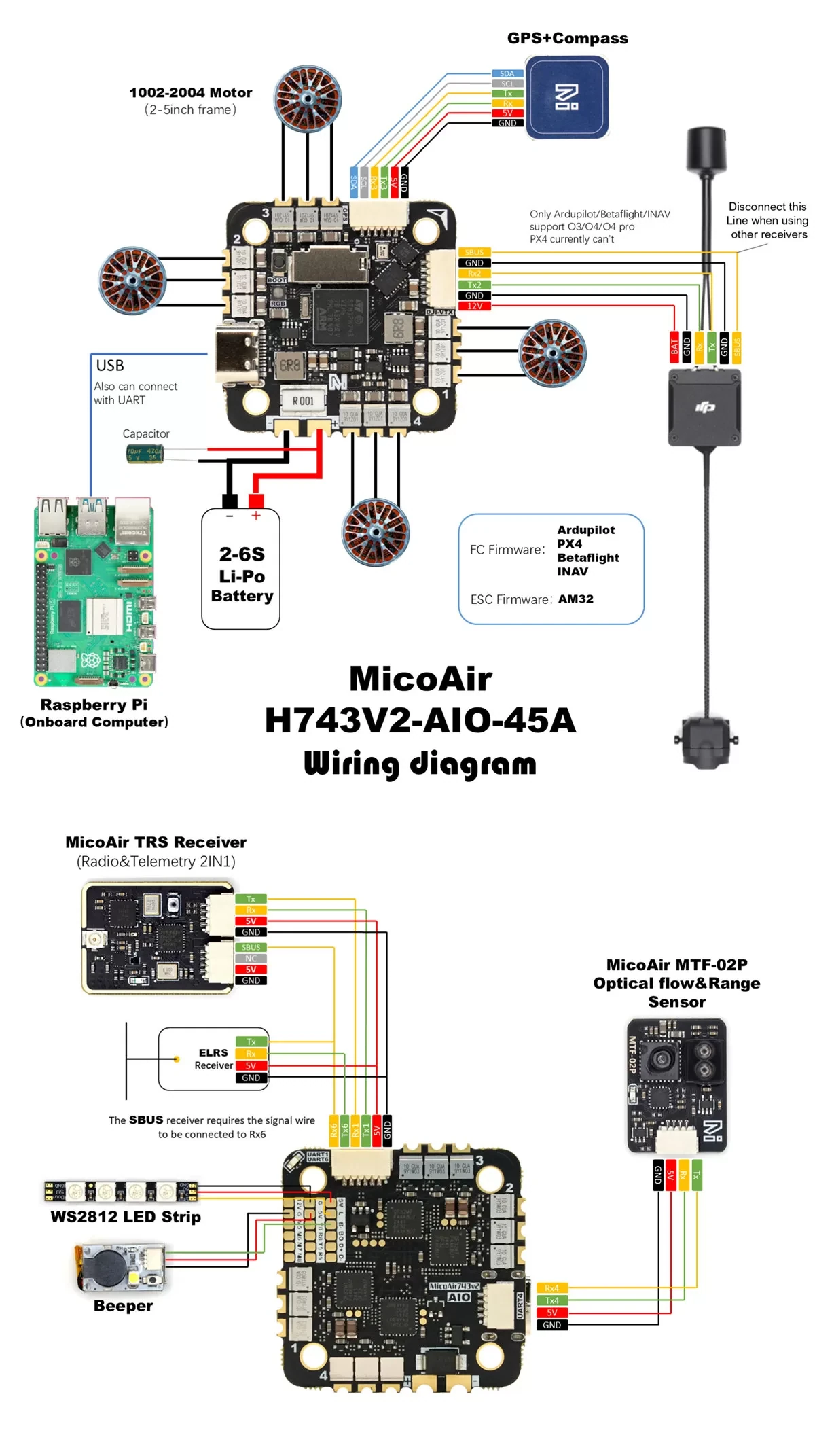

• Comprehensive I/O layout with native hardware UARTs and I2C support for integrating GPS modules, compasses, and digital HD VTX systems.

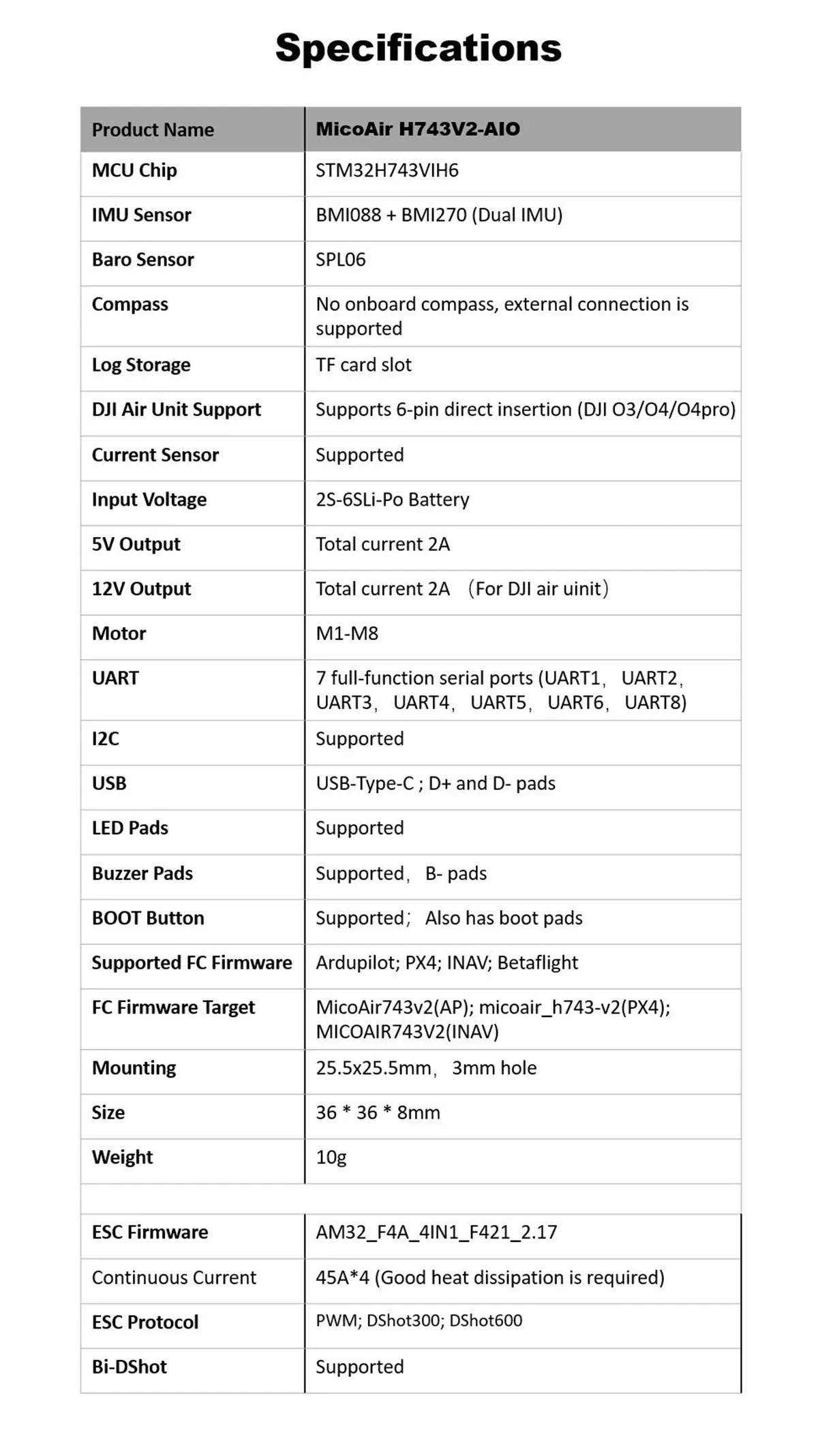

Specifications

• MCU: STM32H743

• IMU: BMI088 + BMI270

• Barometer: SPL06

• Blackbox: TF (microSD) card slot

• Input Voltage: 3-6S LiPo

• ESC Continuous Current: 45A

• ESC Firmware: AM32

• Supported FC Firmware: ArduPilot, Betaflight, INAV, PX4

• UARTs: 7

• PWM Outputs: 9 (channels 1-8 support DShot and bidirectional DShot)

• BEC: 5V 2A, plus 12V 2A for DJI O3 / O4 / O4 Pro

• HD VTX Port: SH1.0 6-pin (pin 1 carries 12V)

• USB: Type-C

• Compass: none onboard; connect an external compass over I2C

• Mounting Pattern: 25.5x25.5mm

• Dimensions: 36 x 36 x 8 mm

• Weight: 10 g

This AIO board is an excellent choice for builders looking to shrink down their ArduPilot rigs without sacrificing the processing overhead required for sophisticated waypointing, telemetry, and GPS-assisted flight modes.
