TBS Crossfire Nano Diversity RX Adapter
SKU TBS-XF-NANO-DIV-ADAPT
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

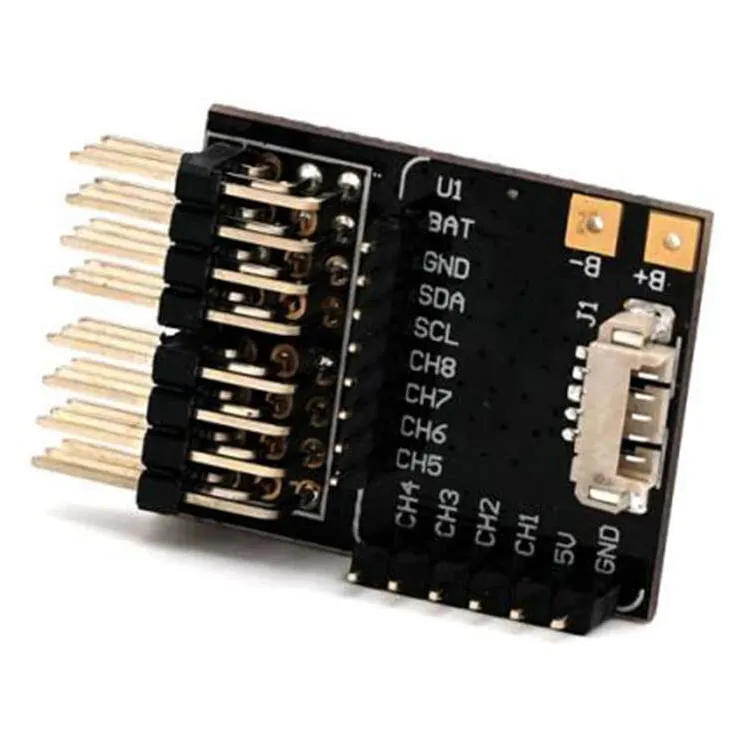

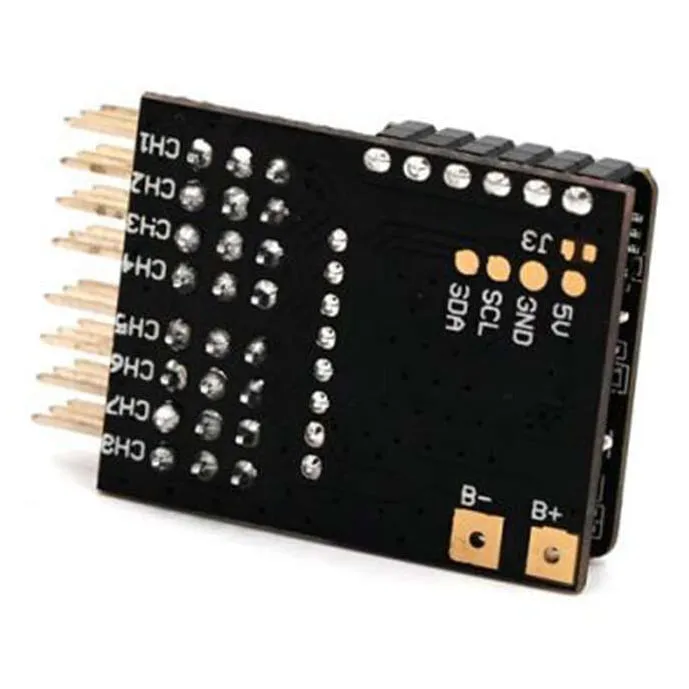

The TBS Crossfire Diversity Nano RX Adapter is a purpose-built breakout board designed to adapt your surface-mount receiver to standard 2.54mm pin headers. Aimed primarily at fixed-wing pilots and custom builders, this adapter expands the capabilities of your receiver by unlocking standard PWM channel outputs for direct servo control. This makes it a crucial component for traditional RC builds or X-Class frames that do not rely on a dedicated multirotor flight controller for every channel.
Key features
- Breaks out the surface-mount Diversity Nano RX into an accessible 8-channel PWM configuration.
- Features standard 2.54mm pitch spacing for direct plug-and-play servo and ESC connections.
- Includes dedicated breakout routing for BST (BlackSheep Telemetry) integration.
- Provides a larger, secure mounting footprint for installation in planes, wings, and heavy-lift drones.
Specifications
- Compatible receiver: TBS Crossfire Nano Diversity RX
- Outputs: 8x PWM channels plus BST
- Size: 37 x 25 x 10 mm (with pins)
- Weight: 5.73 g

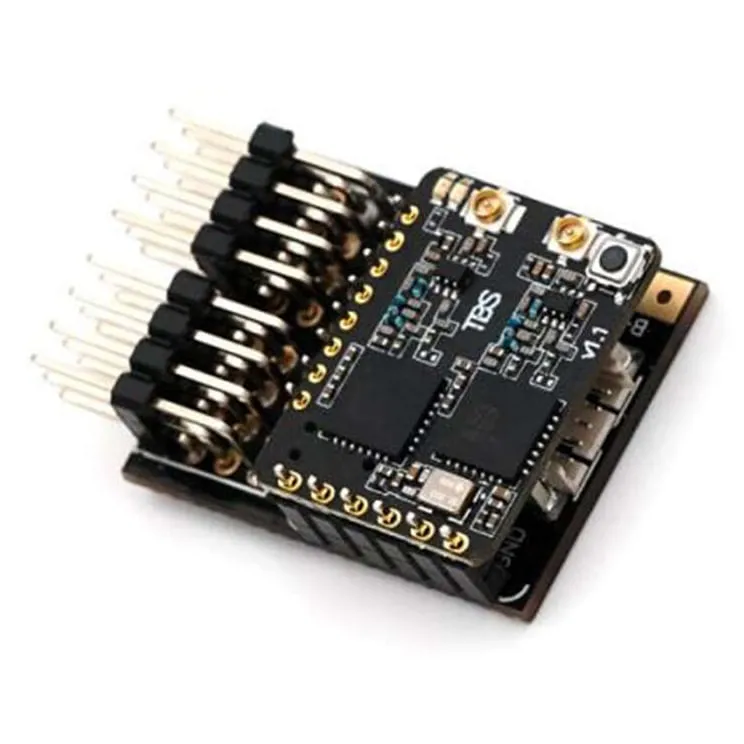

Note: This is a passive adapter board only. It requires a compatible TBS Crossfire Diversity Nano RX (sold separately) and basic soldering to complete the assembly.
| Made in India | No |
|---|---|
| Brand | TBS |
| Product Type | Receiver Adapter |
