FrSky X8R 8/
₹5,699Incl. GST
SKU FRSKY-X8R-8-16CH
RC Protocol: FrSky D16, FrSky D8, FrSkyMade in India: NoBrand: FrSkyFrequency: 2.4GHz
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

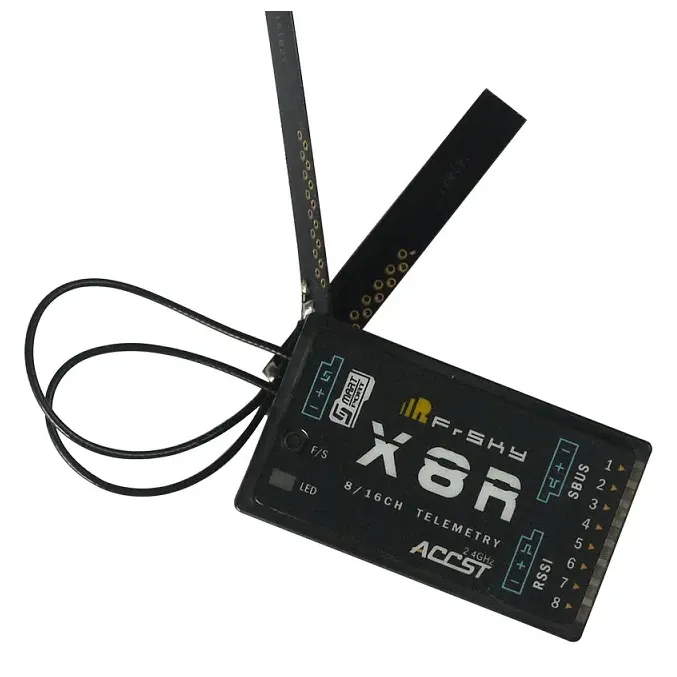

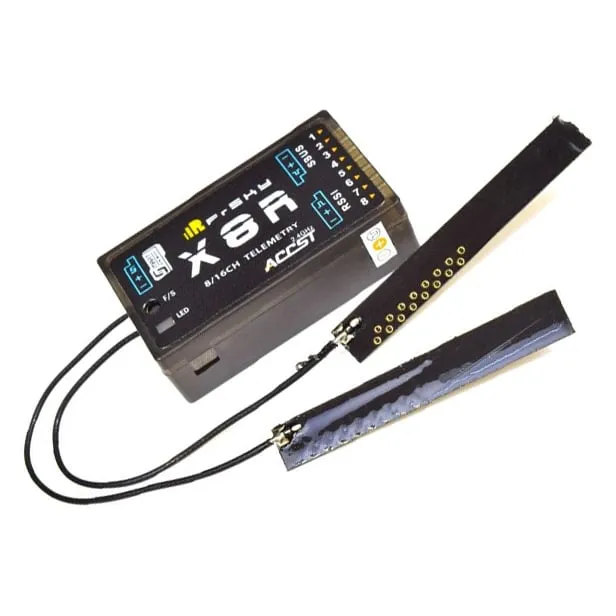

The FrSky X8R is a full-duplex telemetry receiver for FrSky 2.4GHz radio systems, giving 8 direct servo outputs plus SBUS access to 16 channels for multirotors, fixed-wing aircraft and other RC platforms.
Key features
- SmartPort enables two-way telemetry alongside standard control, working with FrSky's digital and analogue sensors.
- 8 standard servo outputs, with all 16 channels available over the SBUS port or by pairing two X8R receivers (1-8 and 9-16).
- Backward compatible with FrSky's D8-mode transmitter modules (DHT, DJT, DFT, DHT-U) as well as D16-mode Taranis and XJT setups.
- PCB antenna design and RSSI PWM output (0-3.3V) support reliable range and failsafe monitoring.
- Firmware is upgradable to keep pace with new FrSky protocol releases.
Specifications
- Channels: 8 PWM outputs, 16 via SBUS (D16 mode); 8 in D8 mode
- Frequency: 2.4GHz
- Operating voltage: 4-10 V
- Operating current: 100 mA at 5 V
- Range: over 1.5 km (full range)
- RSSI output: analogue voltage, 0-3.3 V
Check the transmitter module and firmware generation before binding, especially when mixing older and newer FrSky radio equipment.
| RC Protocol | FrSky D16, FrSky D8, FrSky |
|---|---|
| Made in India | No |
| Brand | FrSky |
| Frequency | 2.4GHz |
| Channels | 16 |
| PWM Channels | 8 |
| Output Protocol | PWM, SBUS, S.Port |
