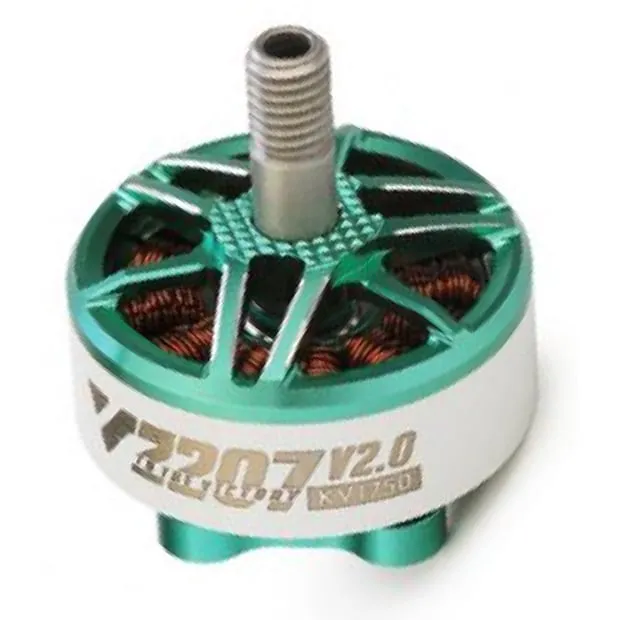

T-Motor 2207 V2 1750KV 5-6S Motor

The T-Motor V2207 V2 1750KV is part of T-Motor's budget-friendly Velox line, built for 5-inch FPV freestyle and racing quads on 5–6S LiPo power. Curved magnets and a refined bell design give smooth, efficient power delivery for pilots stepping up from entry-level motors.

Key features

• 2207 stator sized for 5-inch propeller systems, rated for 5-6S LiPo

• 1750KV winding tuned for freestyle and racing response on 5-6S packs

• Curved magnet design for smoother, more efficient operation

• 804W maximum power and 36.6A peak current on a 6S pack, per T-Motor's own bench data

• V2 platform: an updated, more impact-resistant version of the original Velox motor

Specifications

• Stator size: 2207

• KV: 1750KV

• Configuration: 12N14P

• Input voltage: 5-6S LiPo

• Shaft diameter: 4mm

• Internal resistance: 59mΩ

• Idle current (10V): 1.1A

• Lead: 20AWG, 150mm

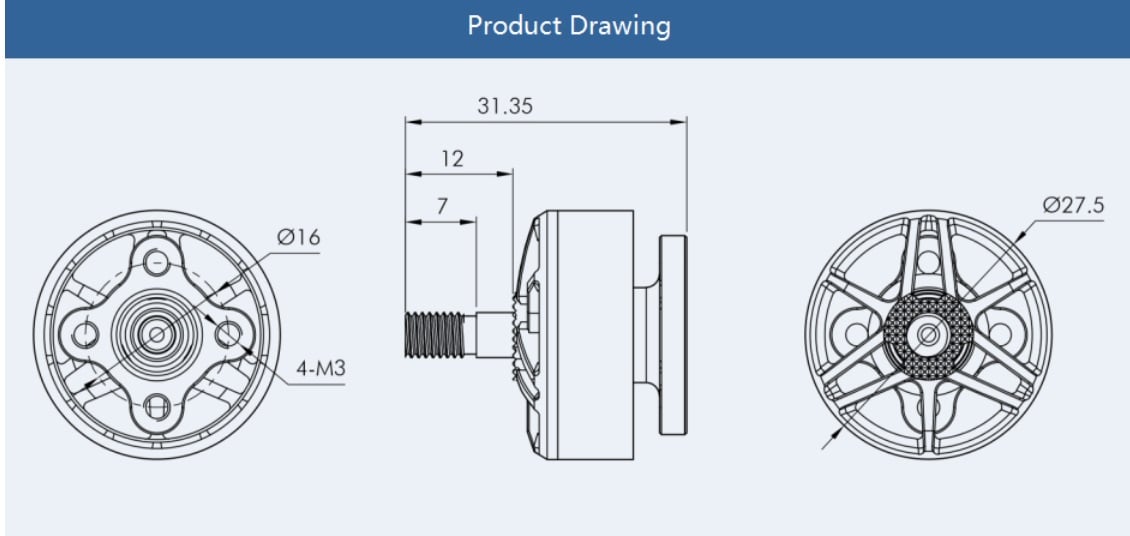

• Motor dimensions: 27.5 x 31.35mm

• Weight: 35.1g (including lead)

• Max power (60s): 804W

• Peak current (60s): 36.6A

Use with an ESC and battery rated for 5-6S operation, and confirm clearance around the motor bell and propeller during final assembly.
