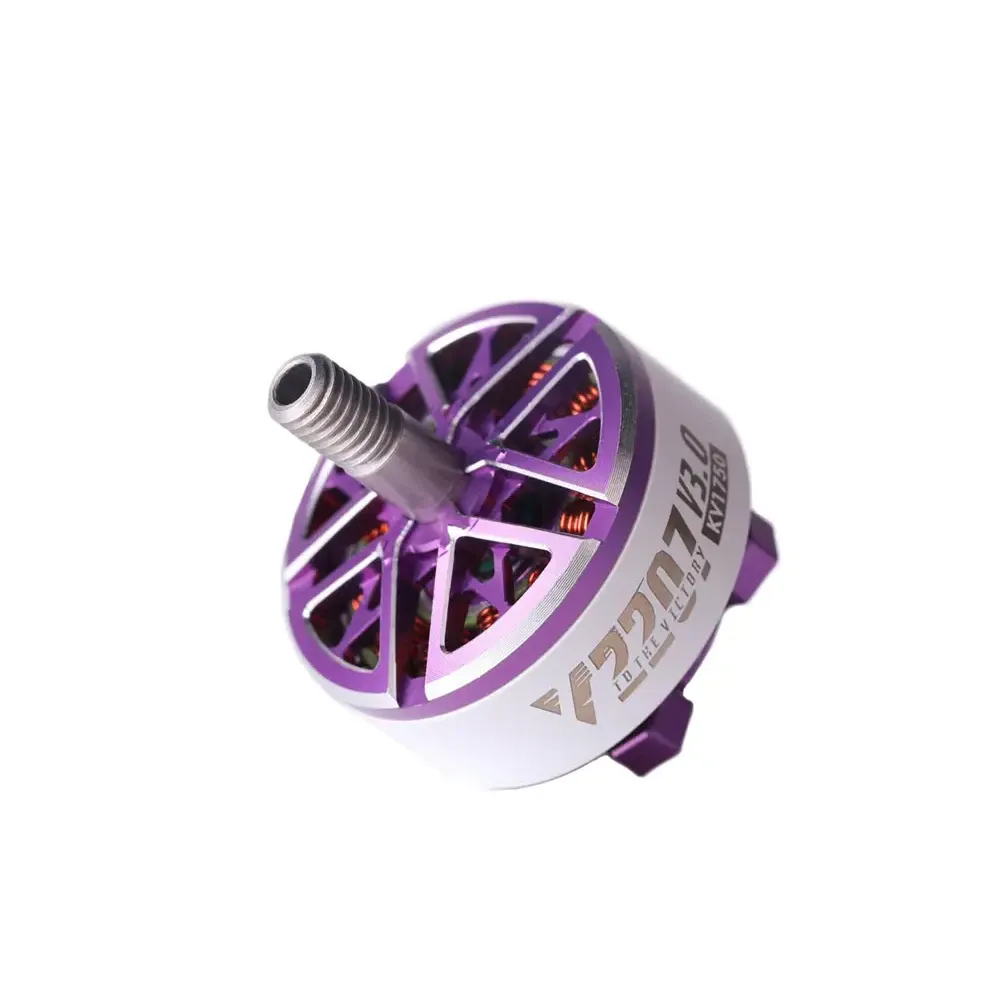

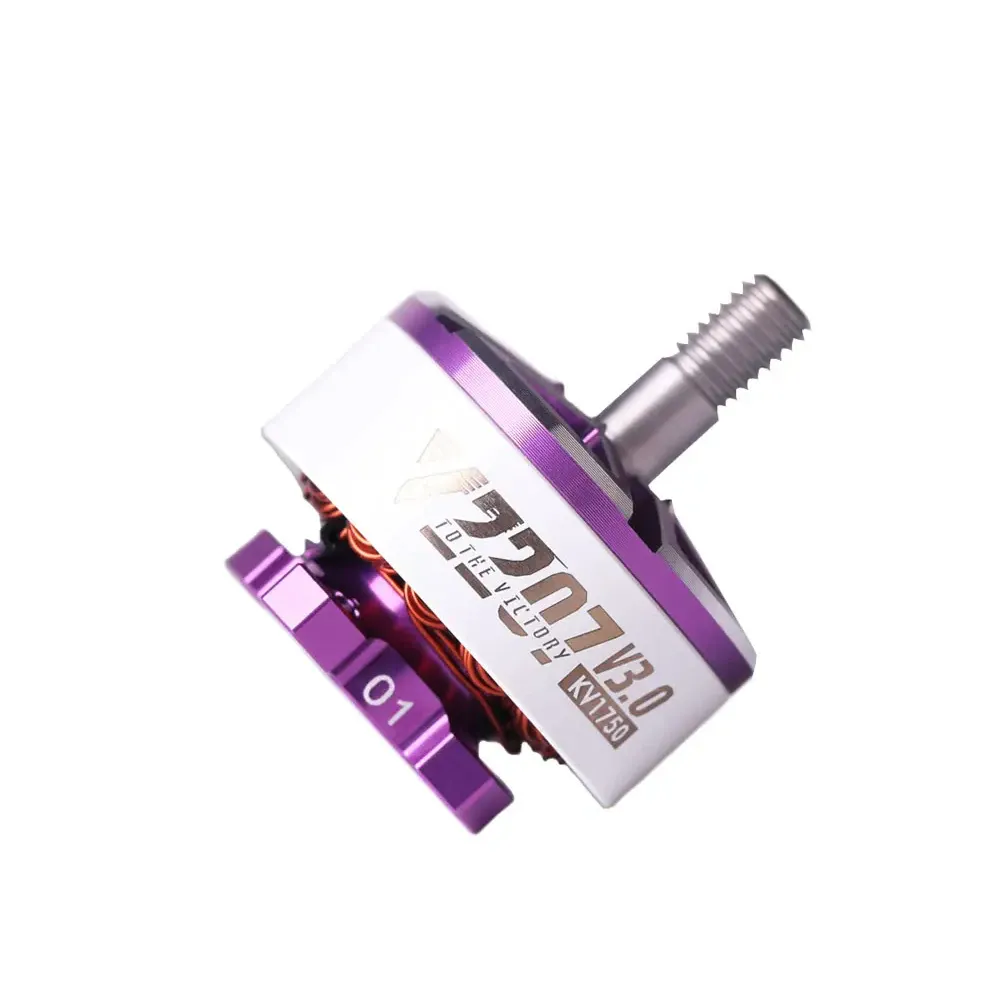

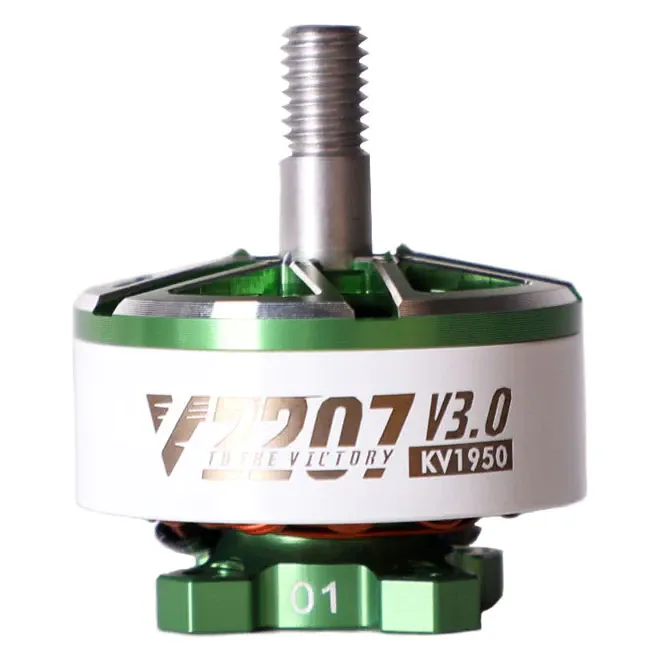

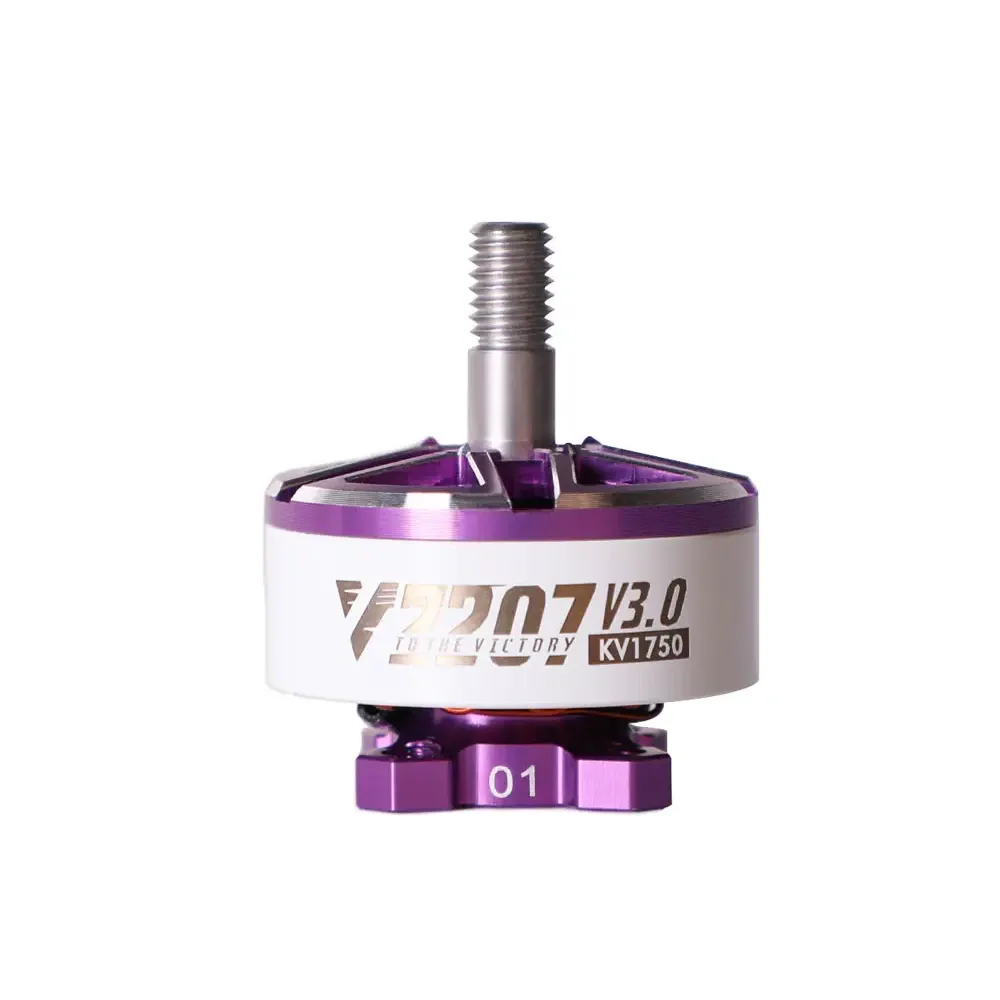

T-Motor Velox V2207 V3 Brushless Motor

The T-Motor Velox V2207 V3 is engineered for 6S 5-inch freestyle and racing quads, delivering a balanced blend of torque and top-end efficiency, and is offered in 1750KV, 1950KV, 2050KV, 2250KV and 2550KV windings. As the third generation of the Velox series, this motor introduces upgraded stator materials and a reinforced bell design for better durability against crash impacts. At 1750KV, it hits the sweet spot for 6S voltage, offering responsive throttle control without excessive current draw.

Key features

• Upgraded 12N14P stator design provides improved thermal management under heavy loads

• Reinforced bell architecture reduces the risk of deformation during hard bando or freestyle impacts

• Pre-tinned 150mm 20AWG wire leads easily accommodate typical 5-inch frame routing

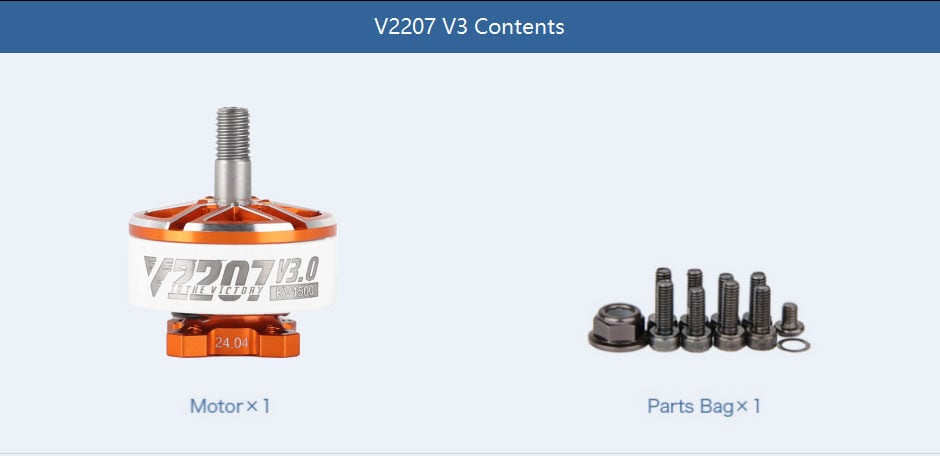

• Sold as a single motor; order four for a complete quad

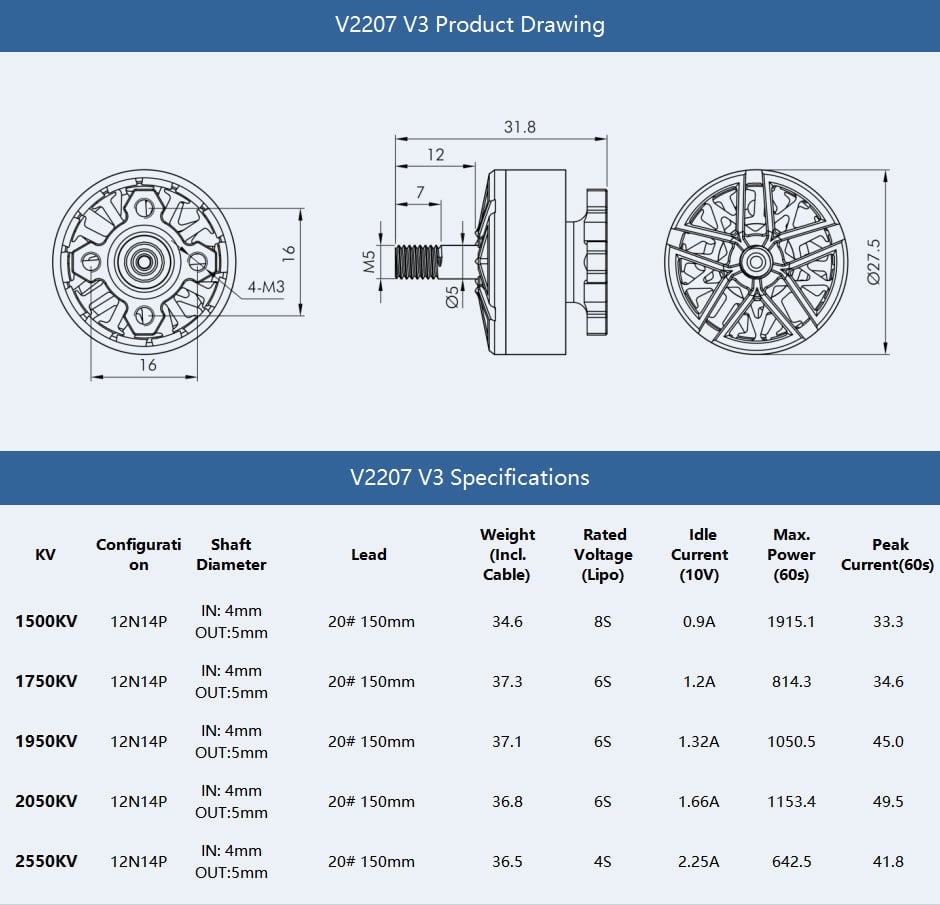

Specifications

• KV: 1750 / 1950 / 2050 / 2250 / 2550

• KV guide: 1750KV for efficient, easy video flying; 1950KV for smooth freestyle; 2050KV for fast, high-power flying; 2550KV for 4S

• Configuration: 12N14P

• Rated voltage: 6S LiPo (2550KV: 4S)

• Shaft diameter: 5 mm

• Motor dimensions: 27.5 x 31.35 mm

• Mounting pattern: 16x16 mm

• Cable: 20AWG, 150 mm

• Weight: 35.1 g (with cable)

This motor pairs best with medium-pitch 5-inch propellers and a 45A to 50A ESC, providing an ideal powerband for both cinematic freestyle and mid-weight racing builds.
