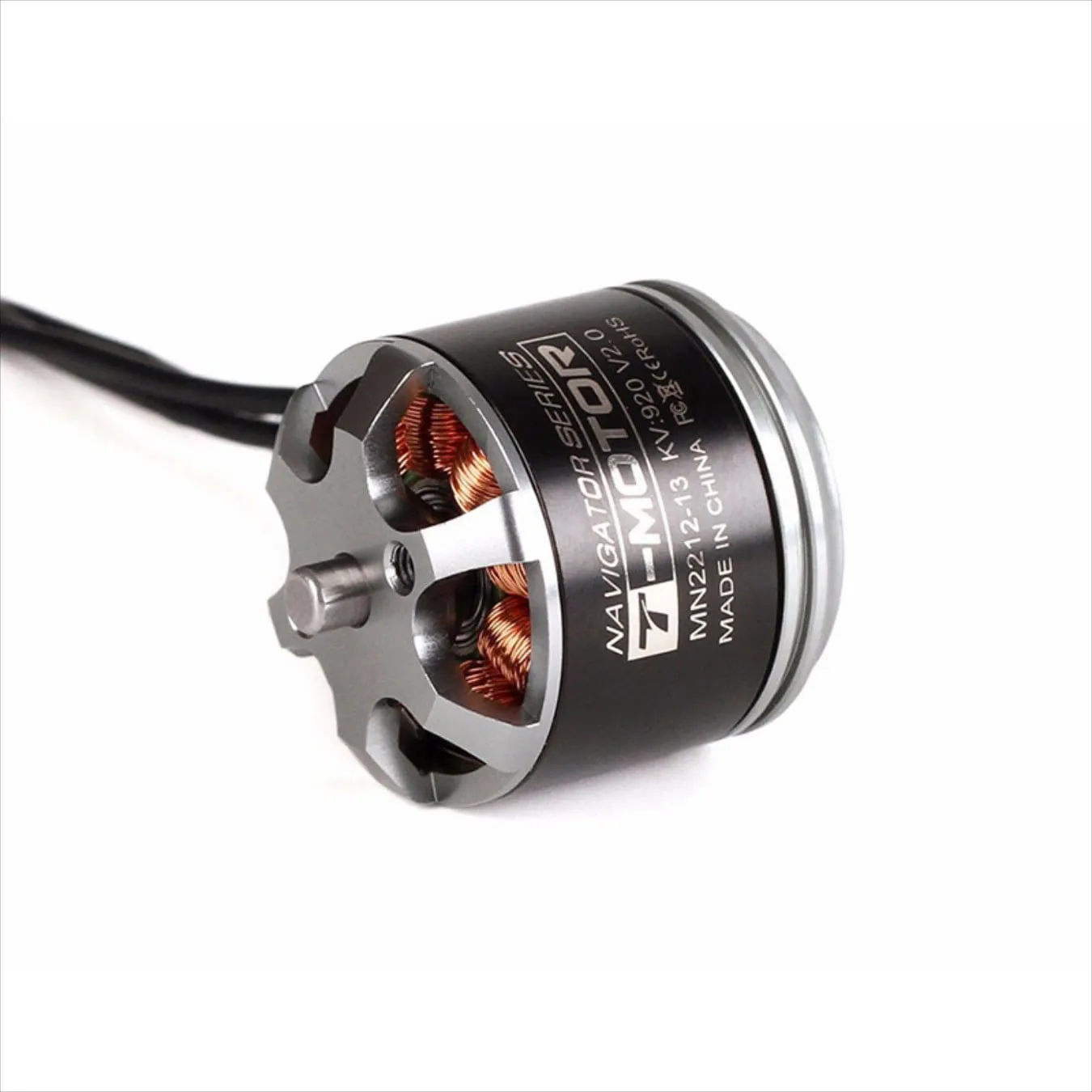

T-Motor Navigator MN2212 V2 920KV

The T-Motor Navigator MN2212 V2.0 KV920 is a brushless motor for long-endurance aerial-photography and heavy-lift multirotors, sized for large propellers such as T-Motor's own 15-inch P15x5 rather than compact FPV frames.

Key features

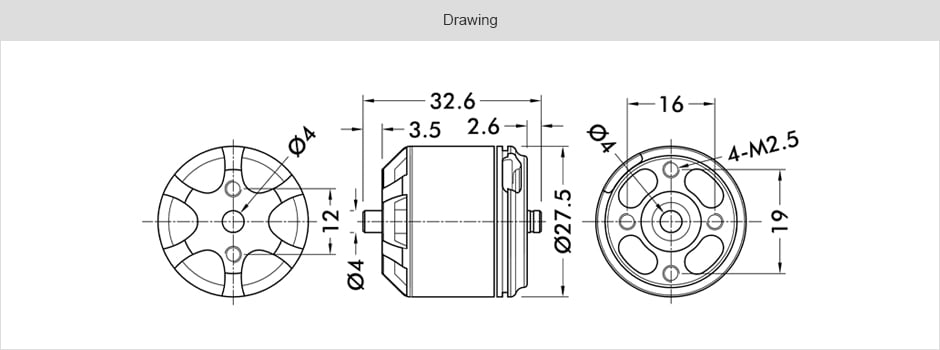

• 9N12P stator winding, 22 mm stator diameter, in a 27.5 x 26.5 mm motor housing.

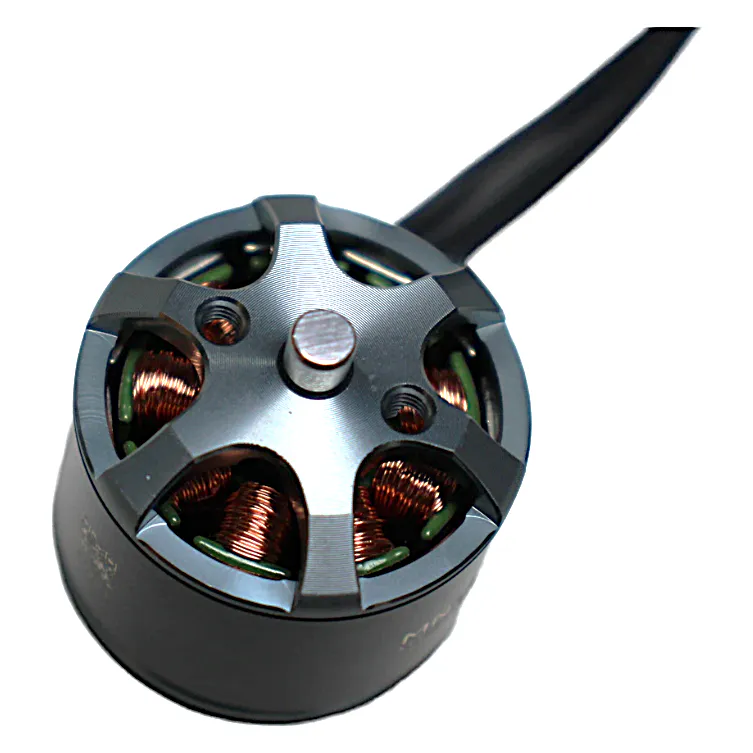

• 4 mm output shaft for the propeller adapter.

• Runs on 2–4S LiPo, drawing up to 15 A continuous for around 220 W at full throttle.

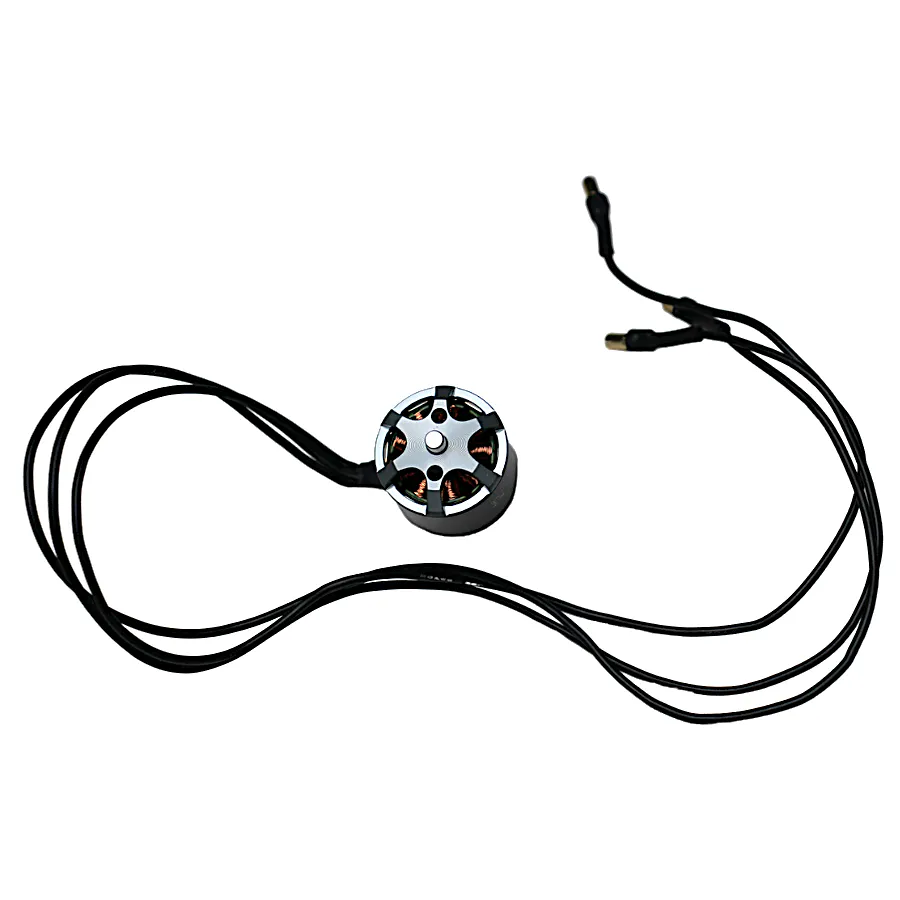

• 400 mm 20AWG motor leads for wiring into the power system.

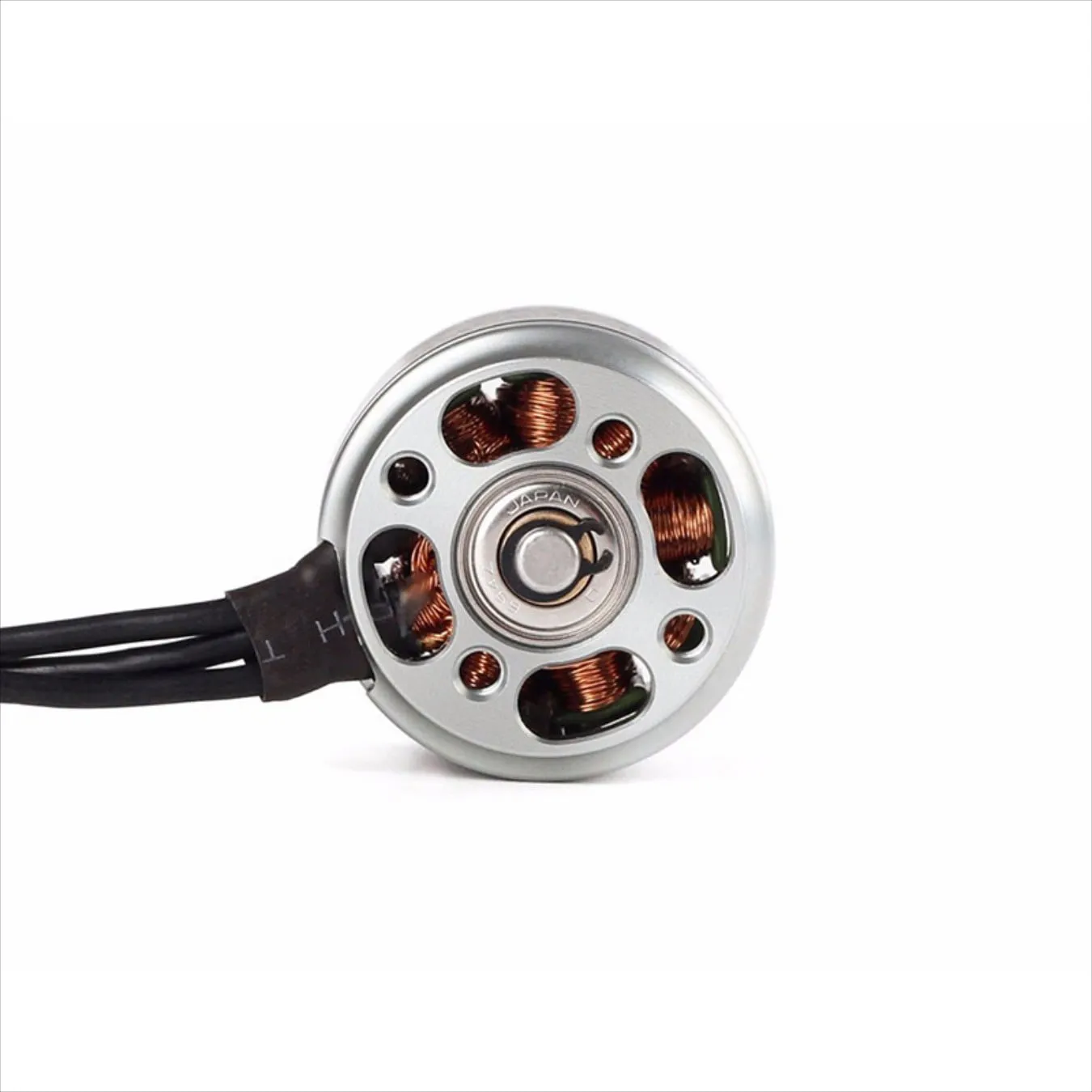

• Flexible mounting holes in both 16 x 19 mm and 19 x 25 mm patterns fit common multirotor arm plates.

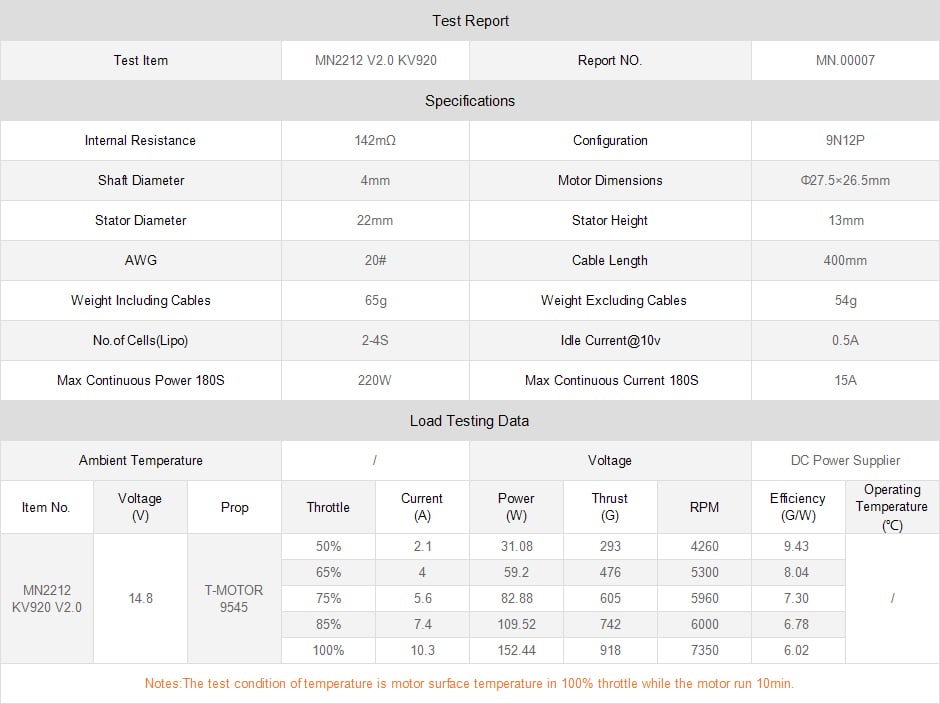

Specifications

• Stator size: 2212

• KV: 920KV

• Shaft diameter: 4 mm

• Weight: 54 g

• Input voltage: 2–4S

• Max continuous current: 15 A

• Mounting holes: 16 x 19 mm and 19 x 25 mm

• Bearings: EZO

Fit matched motors on every arm for even thrust, and size the ESC and propeller to the motor's 2–4S, 15 A rating.
