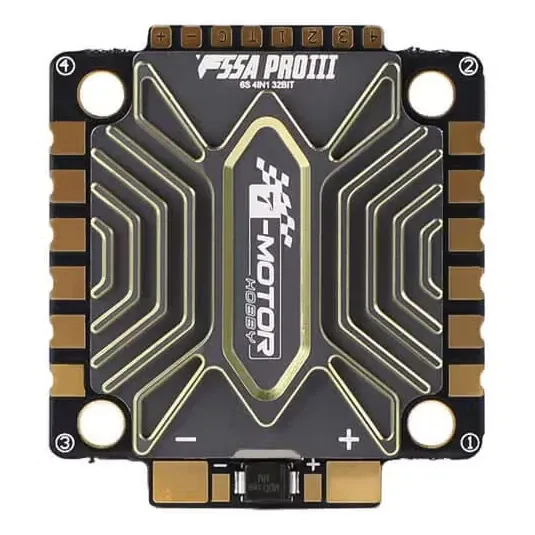

T-Motor F55A Pro III 55A 3-8S TPHR8504 MOSFET 4-in-1 ESC

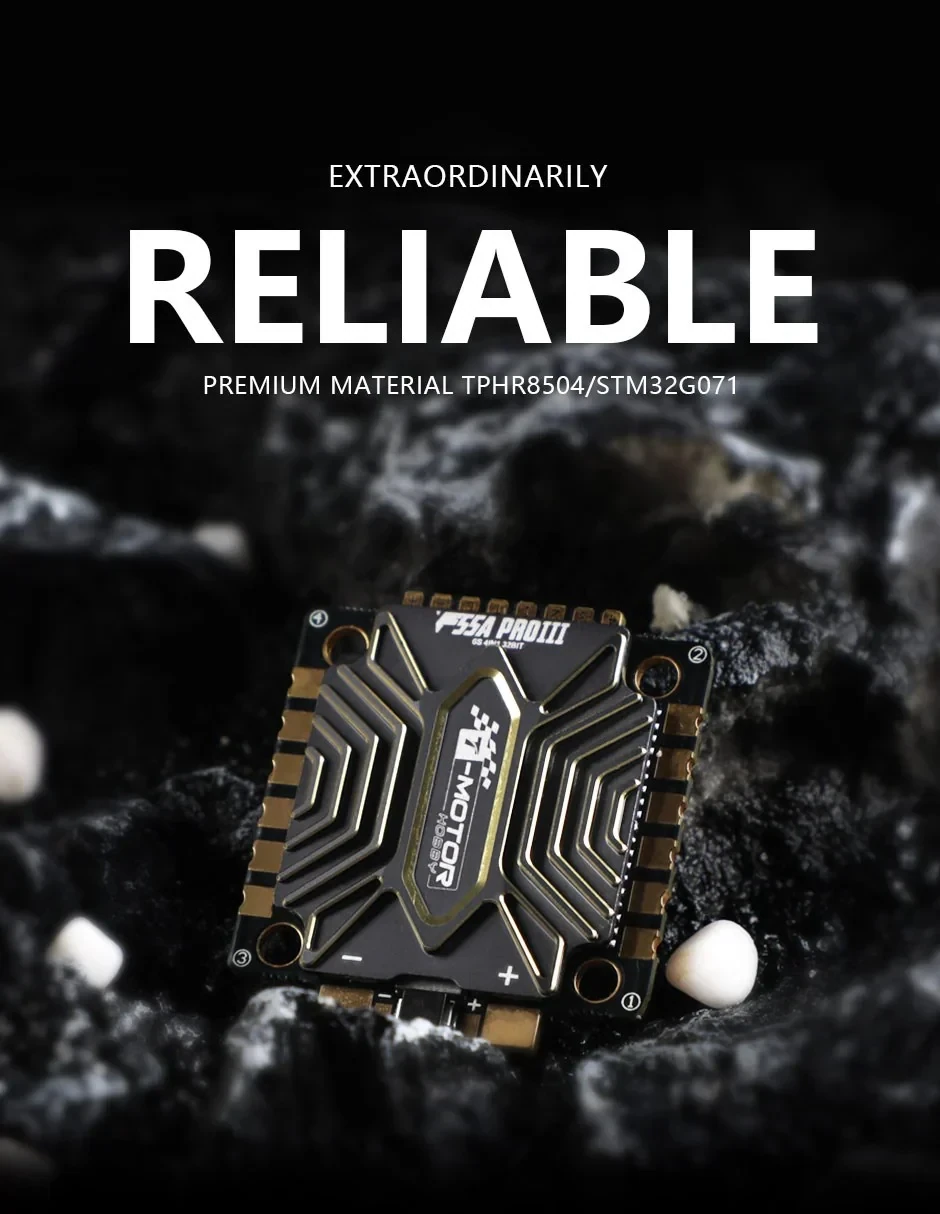

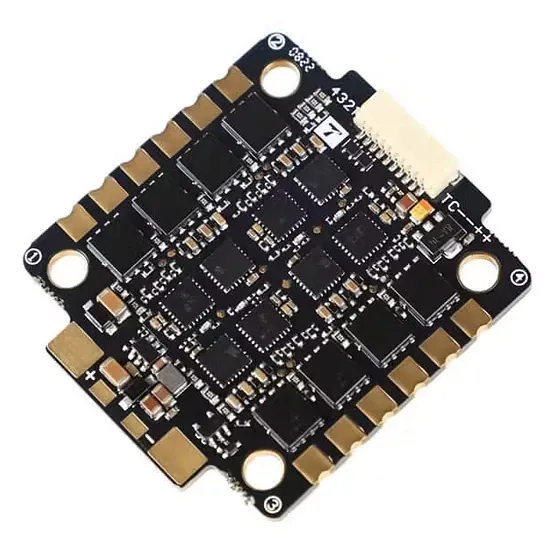

The T-Motor F55A Pro III is a 4-in-1 ESC for 3-8S FPV builds, using TPHR8504 MOSFETs and an STM32G071 controller for stable high-current output.

Key features

• A wide 16-128kHz PWM range auto-adjusts to the motor's KV for smoother throttle response.

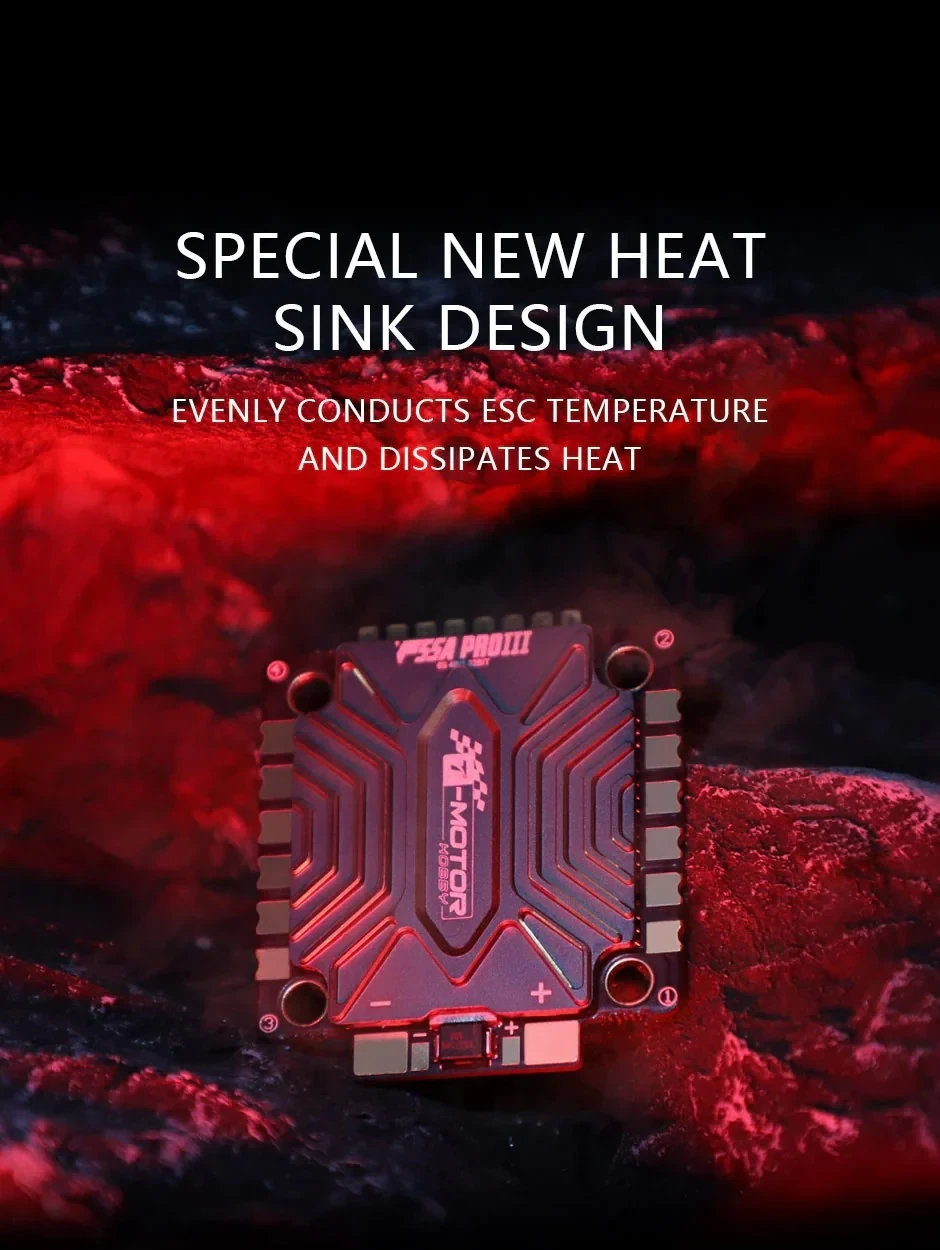

• A dual oxide heat-sink design and added TVS protection improve heat dissipation and durability under hard flying.

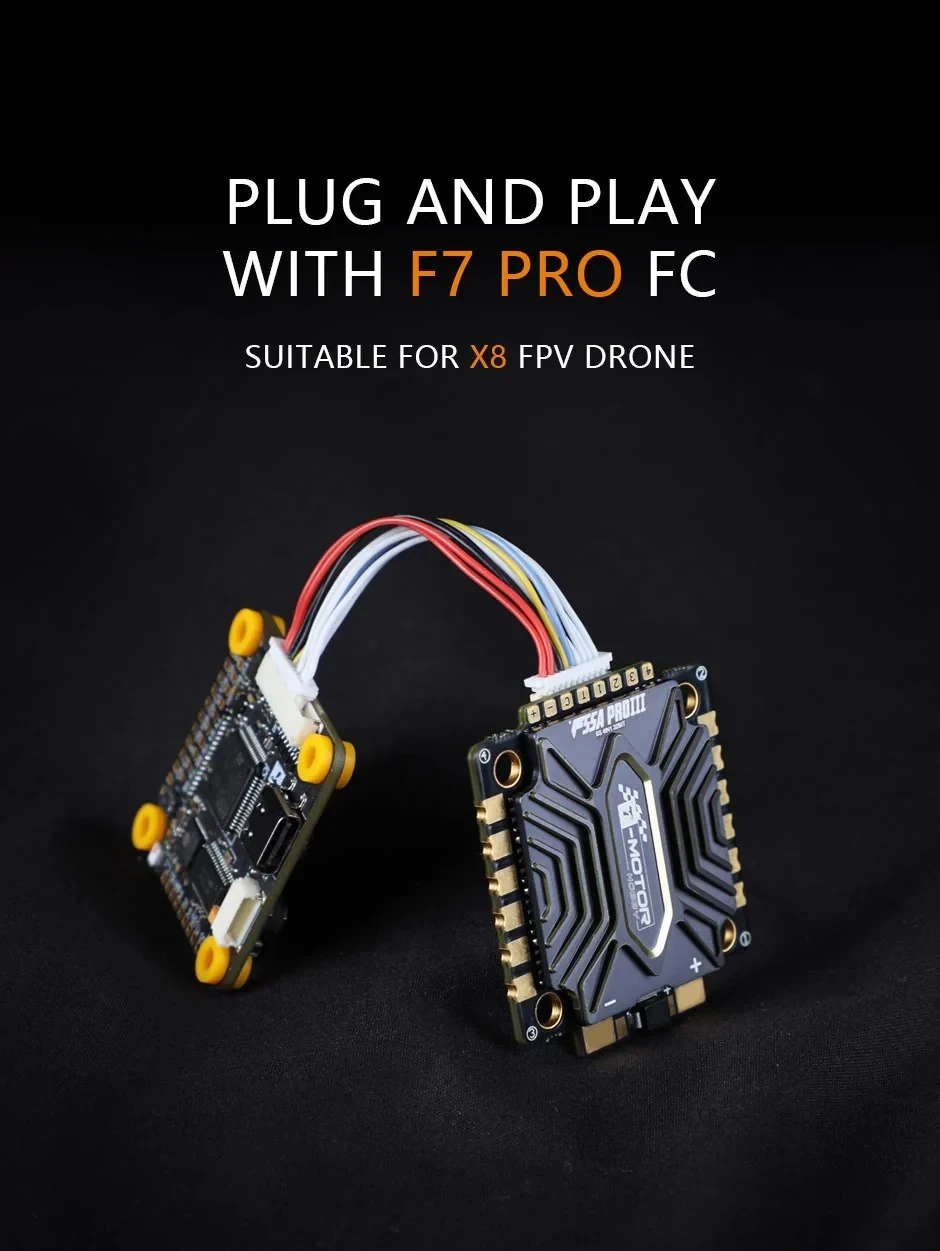

• It mounts plug-and-play with T-Motor's F7 Pro flight controller.

• Supports DShot150/300/600/1200 with telemetry for real-time current and temperature monitoring.

Specifications

• Input voltage: 3-8S LiPo

• Continuous current: 55 A per channel

• Burst current: 65 A per channel (10 seconds)

• MCU: STM32G071

• Mounting: 30.5x30.5 mm, M3

• Dimensions: 45 x 41 x 7.3 mm

• Weight: 17.8 g (including heat sink)

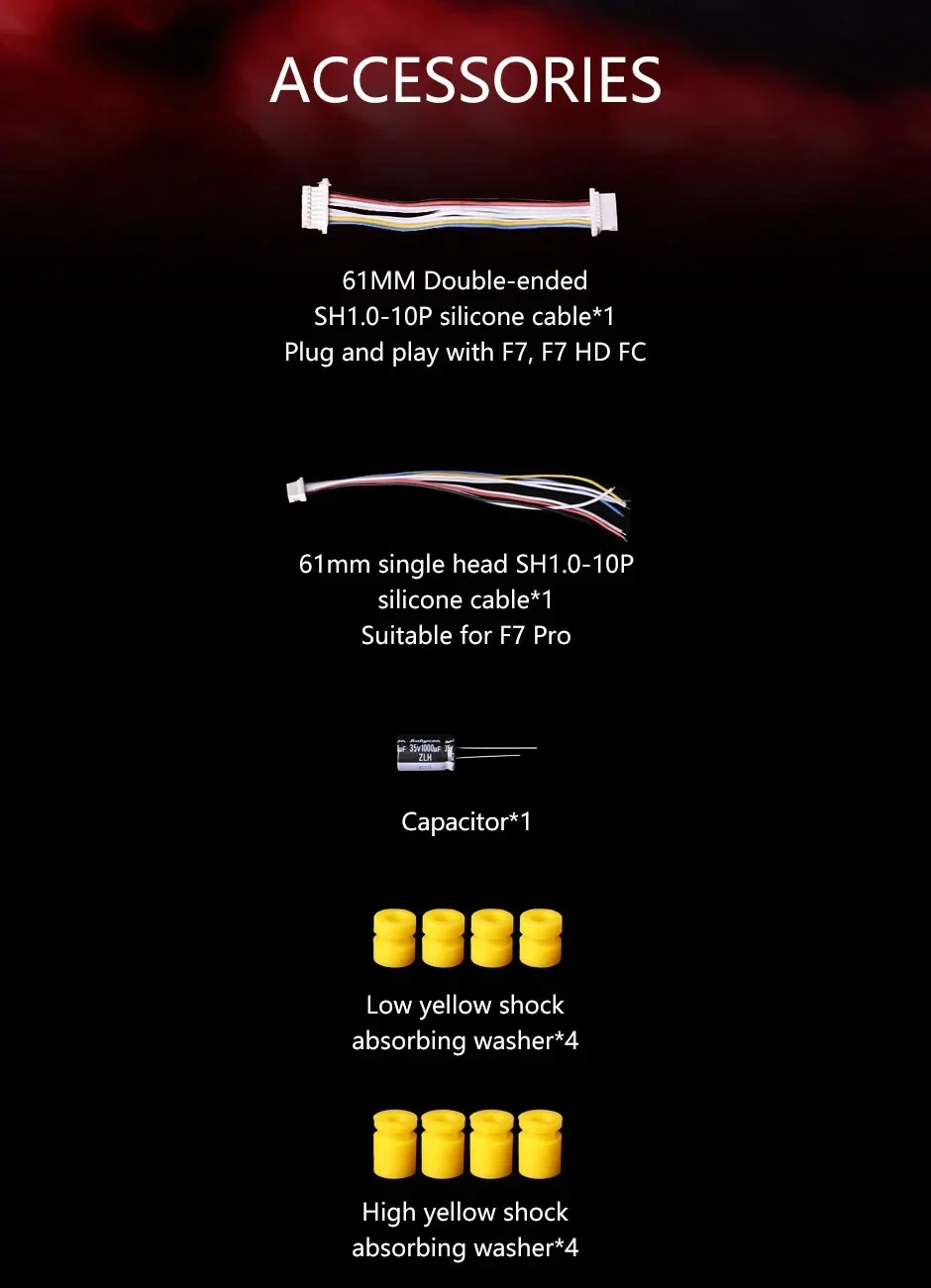

• In the box: ESC, 4 short and 4 long rubber grommets, capacitor, 2 FC cables

Match this ESC's 3-8S rating and 30.5x30.5mm mounting to your flight-controller stack before wiring it in.
