iFlight Blitz E55R 4-in-1 ESC
₹8,199Incl. GST
SKU IFL-BLITZ-E55R
Mounting Size: 20x20ESC Current: 55 AInput Voltage: 2–6SESC Firmware: BLHeli_32
Dispatched within 5–7 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

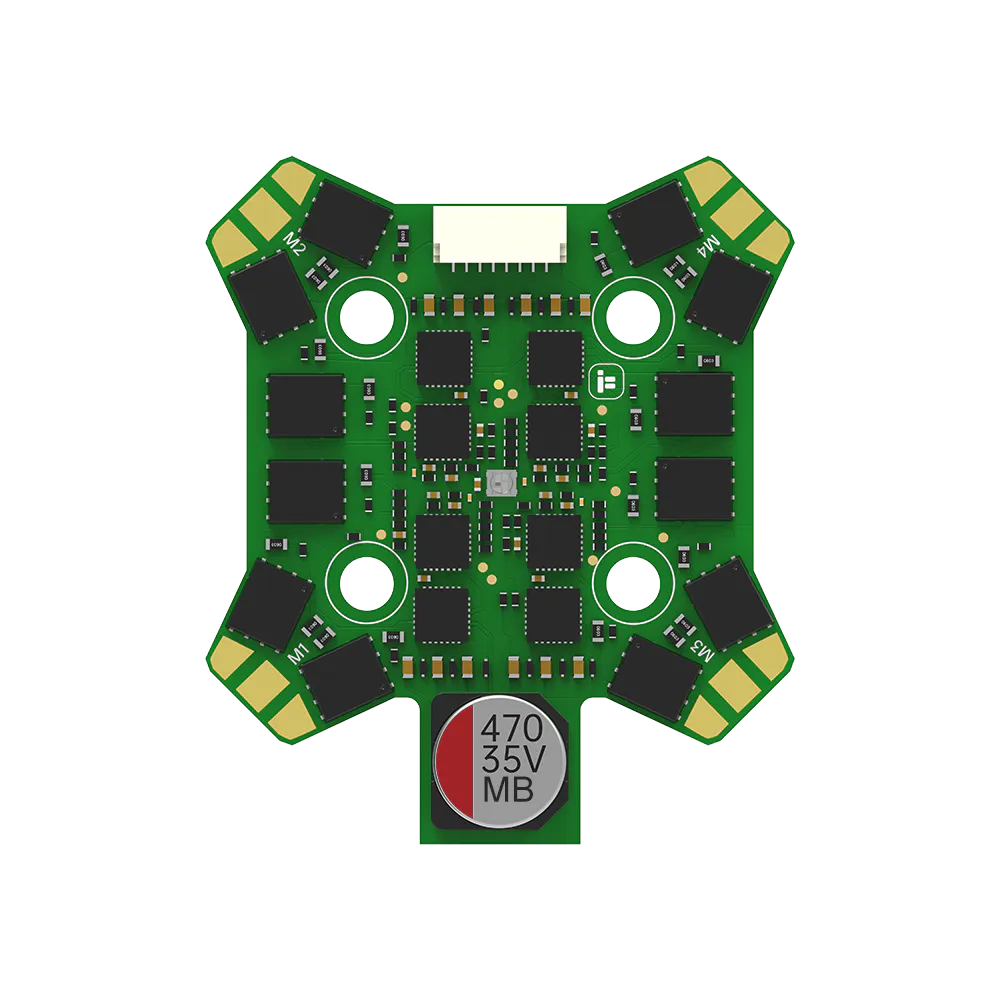

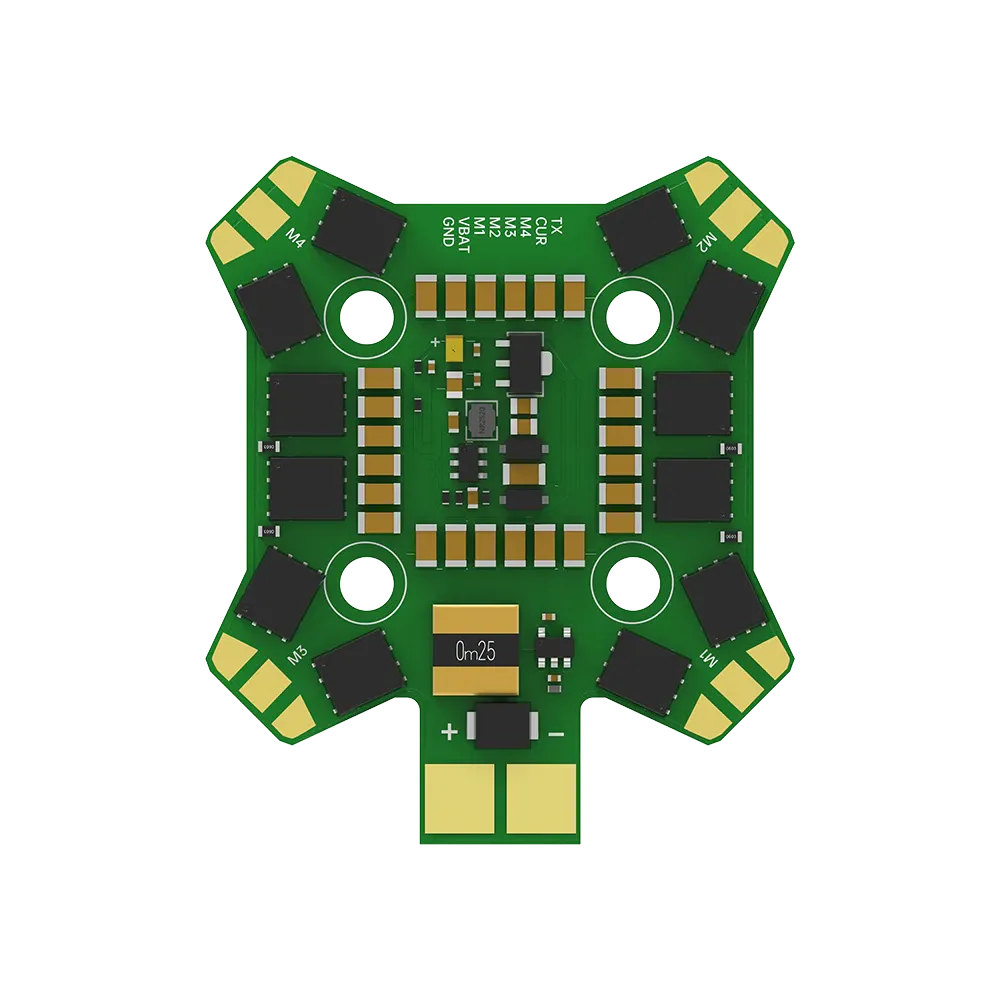

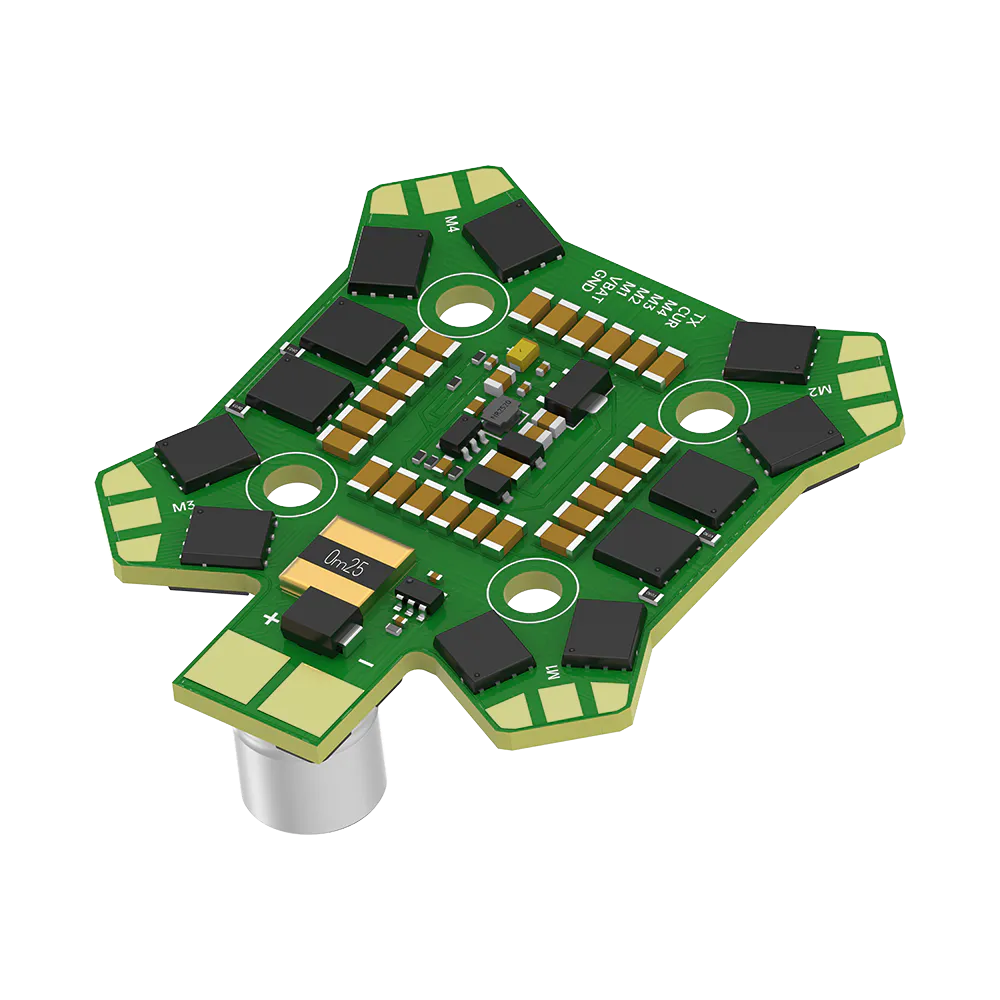

The iFlight BLITZ E55R is a 20x20mm 4-in-1 ESC built for the BLITZ flight controller series, delivering 55A continuous and 65A burst current for 5-inch freestyle and racing quads running 2-6S.
Key features
- Larger MOSFETs and a bigger PCB spread heat more effectively than earlier BLITZ ESCs.
- Runs BLHeli_32 firmware with full DShot150/300/600, Multishot and OneShot support plus telemetry.
- Onboard current sensor (rate 200) feeds accurate battery consumption data to the flight controller.
- 20x20mm mounting matches the BLITZ FC series and drops into frames such as the Mach R5 and AOS 5R.
Specifications
- Input voltage: 2-6S LiPo
- Continuous current: 55A
- Burst current: 65A
- Firmware: BLHeli_32 (target IFLIGHT_BLITZ_G2/G3)
- MCU: G071
- BEC: None
- Current sensor scale: 200
- Mounting pattern: 20x20mm, 4mm holes
- Weight: 15.3 g
This is a 20x20mm-pattern ESC, not a 30.5x30.5mm full-size footprint — check your flight controller's mounting holes before ordering, and note it has no onboard BEC, so your FC or VTX must supply their own 5V/9V rails.
| Mounting Size | 20x20 |
|---|---|
| ESC Current | 55 A |
| Input Voltage | 2–6S |
| ESC Firmware | BLHeli_32 |
| Made in India | No |
| Brand | iFlight |
| Weight | 15.3 g |
| BEC | No |
| Current Sensor | Yes |
